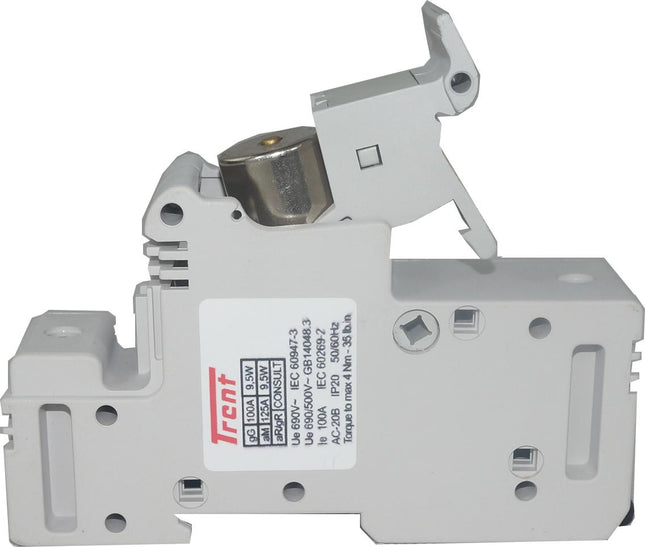

Trent NBR-CH14/UQ/6A/690V + RT18-63L Series 6 Amp 690V Semiconductor I²t gR Fuse & Din Rail Fuse Holder Cartridge Style 51 x 14mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 63 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 51 x 14mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/6A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 10 A²/s Nominal Current (RMS + DC) 6 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 42g Factory Pack Qty 10   Datasheet Product Datasheet RT18-63L

Read more less

Trent NBR-FR22GR69V125T + RT18-125L Series 125 Amp 690V Semiconductor I²t gR Fuse & DIn Rail Fuse Holder Cartridge Style Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V125T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 8100 A²/s Nominal Current (RMS + DC) 125 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 22.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet

Read more less

Trent NBR-FR22GR69V40T + RT18-125L Series 40 Amp 690V Semiconductor I²t Fuse & DIN Rail Fuse Holder Cartridge Style (3pcs) Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V40T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 750 A²/s Nominal Current (RMS + DC) 40 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 9.5W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet

Read more less

Trent NBR Series NBR-FR22GR69V25T + RT18-125L, 25 Amp 690V Semiconductor I²t Fuse & DIN Rail Fuse Holder Cartridge Style Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V25T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 410 A²/s Nominal Current (RMS + DC) 25 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet

Read more less

Trent NBR-CH14/UQ/63A/690V + RT18-63L Series 63 Amp 690V Semiconductor I²t gR Fuse & Din Rail Fuse Holder Cartridge Style 51 x 14mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 63 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 51 x 14mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/63A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 2800 A²/s Nominal Current (RMS + DC) 63 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 42g Factory Pack Qty 10   Datasheet Product Datasheet RT18-63L

Read more less

Trent NBR-CH14/UQ/40A/690V + RT18-63L 40 Amp 690V Semiconductor I²t gR Fuse Cartridge Style 51 x 14mm with DIN Rail Fuse Holder Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/40A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 750 A²/s Nominal Current (RMS + DC) 40 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-63L Datasheet
