Northern Design Power Rail 350-M2 Three Phase Power Meter 5 Amp CT Input Optional RS 232/RS 485 communication up to 19,200 bit/s True RMS values of currents and voltages Power Quality Measurements   The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, Hours Run, Peak Demand etc to the 30th Harmonic) from the measured signals.   Features : Accuracy class 1 Measurement of Active and Reactive Power Optional MODBUSRS 232/RS 485 communication up to 19,200 bit/s communication Pulse output as standard Graphic LCD with illumination Specification Northern Design Part Number Power Rail 350-M2 Functions Three Phase Energy Meter Supply Voltage 230V L-N, 5 Amp +/-15% < 5VA Nominal Measurement Range 415V L-L 230V L-N, 5 Amp +/-15% Maximum Measurement Range 480V L-L 230V L-N, 5 Amp +/-15% Nominal Current Input 5 Amp AC Pulse Output 3 x NO Voltage Free Contacts 100mA @ 100VAC/DC Accuracy Class 1 (I,U,F,PF,) Class 2 (Reactive) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 106mm x 90mm x 58mm (6 modules wide) Isolation 3.5kV RS232/RS485 (Optional 1200-19200 b/s) Weight 150g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Enclosure Size DIN 42880 6 Modules Operating Temperature -20 →+70 °C   Datasheet Product Datasheet Product Manual Product Comms Manual Option Links Application Notes CT Cable Losses Meter Accuracy at Low Current Current Input Isolation

Read more less

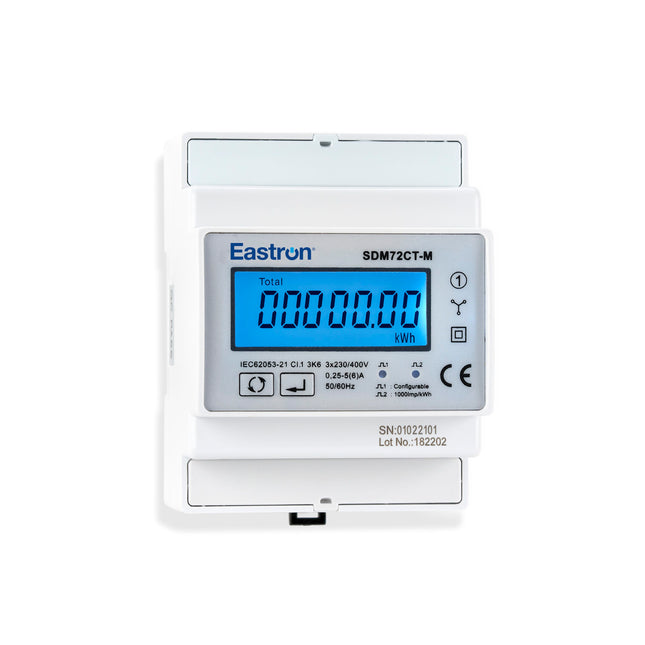

Eastron Europe SDM72CT-M, DIN Rail Mount kWh Meter, 3 Phase, with Resettable Energy Register, 500VAC L-L, Class 1, 1/5 Amp CT Connect input, w/ 1 x fixed pulse output and RS485 Comms, MID Approved. Built for EV Chargers   Features   3 x 1/5 Amp CT Input RS 485 communication up to 38,400 bit/s as standard True RMS values of currents and voltages 1 x Pulse Outputs (fixed)   The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power to the 30th Harmonic) from the measured signals.   Features : Accuracy class 1 Measurement of Active and Reactive Power Modbus RTU communication up to 38,400 bit/s communication Pulse output as standard Graphic LCD with illumination Specification Eastron Europe Part Number SDM72CT-M Functions Three Phase Energy Meter Supply Voltage N/A Nominal Measurement Range 415V L-L 230V L-N, 5000 Amp Maximum Measurement Range 500V L-L 230V L-N, 5000 Amp Nominal Current Input External CT Connect 3 x 1/5 Amp Pulse Output 1 x Passive (fixed) Tariff Input N/A Accuracy Class 1 (I,U,F,kW,kWh) Class 2 (Reactive) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 72mm x 100mm x 66mm (4 modules wide) Isolation 4kV RS485 2400-38400 b/s (400ms Response Time) Weight 150g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Safety IP51(Indoor) Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Enclosure Size DIN 42880 4 Modules Operating Temperature -20 →+70 °C   Documents Product Datasheet User Manual Alternatives SDM630MCT Modbus Utility EEM Meter Setting Software Utility

Read more less

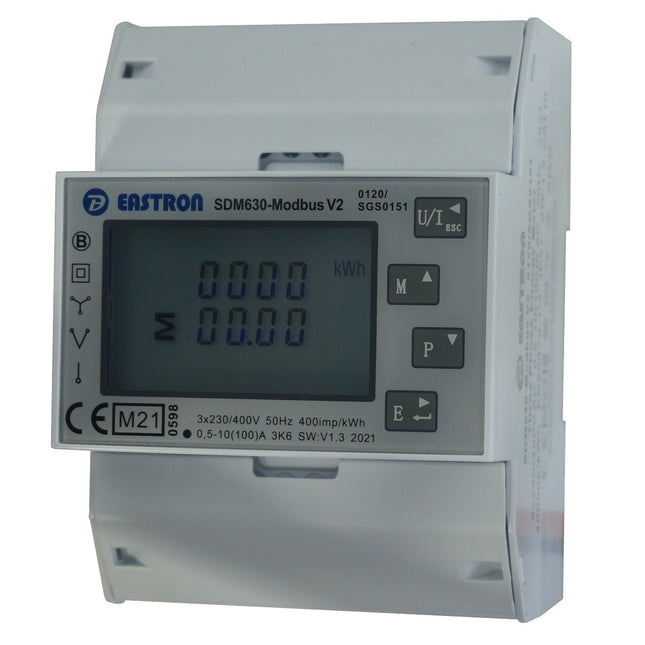

Eastron SDM630Modbus-MID-V2-GROWATT-SOLAX, DIN Rail Mount kWh Meter, 3 Phase, Class 1, 100Amp Direct Connect, w/ 2 x pulse outputs and RS485 Modbus RTU Comms, MID Approved, Special 100mS Communication response time Special 100mS Communication response time 3 x 100 amp Direct Connect RS 485 communication up to 38,400 bit/s as standard Optional Mbus Model available True RMS values of currents and voltages 2 x Pulse Outputs (1 Configurable)   The meter is intended for measuring, and monitoring single-phase or 3 phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power to the 30th Harmonic) from the measured signals.   Features : Accuracy class 1 Measurement of Active and Reactive Power Modbus RTU communication up to 38,400 bit/s communication Pulse output as standard Graphic LCD with illumination Specification Eastron Part Number SDM630Modbus-MID-V2-GROWATT-SOLAX Functions Three Phase Energy Meter Supply Voltage NA Nominal Measurement Range 415V L-L 230V L-N, 100 Amp Maximum Measurement Range 480V L-L 230V L-N, 100 Amp Nominal Current Input Direct connect 3 x 100 Amp Pulse Output 2 x Passive, (1 x Configurable 60/100/200ms) Tariff Input N/A Accuracy Class 1 (I,U,F,kW,kWh) Class 2 (Reactive) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 72mm x 100mm x 66mm (4 modules wide) Isolation 4kV RS485 2400-38400 b/s (Special 100ms Response version) Weight 150g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Safety IP51(Indoor) Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Enclosure Size DIN 42880 4 Modules Operating Temperature -20 →+70 °C   Documents Product Datasheet User Manual Modbus Protocol Alternatives WM3-6 230DB Modbus Utility EEM Meter Setting Software Utility

Read more less

Eastron Europe SDM72CT-D, DIN Rail Mount kWh Meter, 3 Phase, with Resettable Energy Register, 500VAC L-L, Class 1, 1/5 Amp CT Connect input, w/ 1 x fixed pulse output and RS485 Comms, MID Approved. Built for EV Chargers   Features   3 x 1/5 Amp CT Input RS 485 communication up to 38,400 bit/s as standard True RMS values of currents and voltages. Note only kWH is shown on display 1 x Pulse Outputs (fixed)   The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power to the 30th Harmonic) from the measured signals.   Features : Accuracy class 1 Measurement of Active and Reactive Power Modbus RTU communication up to 38,400 bit/s communication Pulse output as standard Graphic LCD with illumination Specification Eastron Europe Part Number SDM72CT-D Functions Three Phase Energy Meter Supply Voltage N/A Nominal Measurement Range 415V L-L 230V L-N, 5000 Amp Maximum Measurement Range 500V L-L 230V L-N, 5000 Amp Nominal Current Input CT Connect 3 x 5/1 Amp Pulse Output 1 x Passive (fixed) Tariff Input N/A Accuracy Class 1 (kWh Only) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 72mm x 100mm x 66mm (4 modules wide) Isolation 4kV RS485 2400-38400 b/s (400ms Response Time) Weight 150g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Safety IP51(Indoor) Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Enclosure Size DIN 42880 4 Modules Operating Temperature -20 →+70 °C   Documents Product Datasheet Alternatives SDM630MCT SDM72CT-M (with additional measurement parameters) Modbus Utility EEM Meter Setting Software Utility

Read more less

SDM230-LORAWAN-MID-AS923, DIN Rail Mount kWh Meter, Single Phase, 240VAC aux, Class 1, 100Amp Direct Connect, w/ 2 x pulse outputs and LoRaWaN AS923 Wireless Comms, MID Approved 100 amp Direct Connect LoRaWaN AS923 communication Optional Mbus Model available True RMS values of currents and voltages 1 x Configurable Pule Output (via Display Menu or Modbus) 1 x Fixed Pulse Output (1000imp/kwh)   The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power to the 30th Harmonic) from the measured signals.   Features : Accuracy Class 1 Measurement of Active and Reactive Power Modbus RTU communication up to 38,400 bit/s communication Pulse output as standard Graphic LCD with illumination Specification Eastron Europe Part Number SDM230-LORAWAN-MID-AS923 Functions Single Phase Energy Meter Supply Voltage 230V L-N +/-15% < 5VA Nominal Measurement Range 230V L-N 230V L-N, 100 Amp Maximum Measurement Range 276 L-N 230V L-N,100 Amp Nominal Current Input Direct connect 100 Amp Pulse Output 2 x Passive, (1 x Configurable 60/100/200ms) Tariff Input N/A Accuracy Class 1 (I,U,F,kW,kWh) Class 2 (Reactive) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 36mm x 100mm x 66mm (2 modules wide) Isolation 4kV LoRaWaN LoRaWaN AS923 Weight 250g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Safety IP51(Indoor) Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Enclosure Size DIN 42880 4 Modules Operating Temperature -20 →+70 °C   Documents Product Datasheet User Manual Modbus Protocol Modbus Utility EEM Meter Setting Software Utility

Read more less

SDM630MCT-LORAWAN-MID-AS923, DIN Rail Mount kWh Meter, 3 Phase, 240VAC aux, Class 1, 1/5 Amp CT Connect, w/ 2 x pulse outputs and LoRaWaN AS923 Wireless Comms 1/5 Amp CT Input LoRaWaN AS923 Optional Mbus Model available True RMS values of currents and voltages 1 x Configurable Pule Output (via Display Menu or Modbus) 1 x Fixed Pulse Output (1000imp/kwh)   The meter is intended for measuring, and monitoring single-phase or three phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power to the 30th Harmonic) from the measured signals.   Features : Accuracy class 1 Measurement of Active and Reactive Power Modbus RTU communication up to 38,400 bit/s communication Pulse output as standard Graphic LCD with illumination Specification Eastron Europe Part Number SDM630MCT-LORAWAN-MID-AS923 Functions Three Phase Energy Meter Supply Voltage 230V L-N +/-15% < 5VA Nominal Measurement Range 415V L-L 230V L-N, 1/5 Amp +/-15% Maximum Measurement Range 480V L-L 230V L-N, 1/5 Amp Nominal CT Current Input 1/5 Amp Pulse Output 2 x Passive, (1 x Configurable 60/100/200ms) Tariff Input N/A Accuracy Class 1 (I,U,F,kW,kWh) Class 2 (Reactive) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 72mm x 100mm x 66mm (4 modules wide) Isolation 4kV Comms LoRaWaN AS923 Weight 150g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Safety IP51(Indoor) Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Enclosure Size DIN 42880 4 Modules Operating Temperature -20 →+70 °C   Documents Product Datasheet User Manual Modbus Protocol Setup Video - CT Ratio Unlock Modbus Utility EEM Meter Setting Software Utility

Read more less

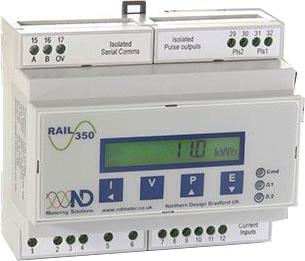

Northern Design Power Rail PR350-M2-C-0.333V, kWh Meter, 3 Phase, DIN Rail, 240VAC aux, Class 1, 0.333V input, w/ pulse output and RS485 Comms, Power quality measurements 0.333V CT Input Optional RS 485 communication up to 19,200 bit/s True RMS values of currents and voltages Power Quality Measurements   The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, Hours Run, Peak Demand etc to the 30th Harmonic) from the measured signals.   Features : Accuracy class 1 Measurement of Active and Reactive Power Optional MODBUS RS 485 communication up to 19,200 bit/s communication Pulse output as standard Graphic LCD with illumination Specification Northern Design Part Number Power Rail PR350-M2-C-0.333V Functions Three Phase Energy Meter Supply Voltage 230V L-N, 5 Amp +/-15% < 5VA Nominal Measurement Range 415V L-L 230V L-N, 5 Amp +/-15% Maximum Measurement Range 480V L-L 230V L-N, 5 Amp +/-15% Nominal Current Input 0.333 Volt AC Pulse Output 3 x NO Voltage Free Contacts 100mA @ 100VAC/DC Tariff Input N/A (Optional) Accuracy Class 1 (I,U,F,PF,) Class 2 (Reactive) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 106mm x 90mm x 58mm (6 modules wide) Isolation 3.5kV RS485 1200-19200 b/s Weight 150g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Enclosure Size DIN 42880 6 Modules Operating Temperature -20 →+70 °C   Datasheet Product Datasheet Product Manual Product Comms Manual Option Links Application Notes CT Cable Losses Meter Accuracy at Low Current Current Input Isolation

Read more less

Northern Design Rail310-M2 Series 3 x Single Phase Multifunction Meter 5 Amp CT Input Optional RS 232/RS 485 communication up to 19,200 bit/s RMS values of currents and voltages Measurements of active, reactive power, power factor, average current and voltage   The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc to the 30th Harmonic) from the measured signals.   Features : Accuracy class 1 Measurement of Active and Reactive Power RS 232/RS 485 communication up to 19,200 bit/scommunication Optional MODBUS communication protocol Graphic LCD with illumination Multilingual support User-friendly PC MiQen software Specification Northern Design Part Number Rail310-M2 Functions 3 x Single Phase Energy Meter Supply Voltage 230V L-N, 5 Amp +/-15% < 5VA Nominal Measurement Range 3 x 230V L-N, 5 Amp +/-15% Maximum Measurement Range 3 x 230V L-N, 5 Amp +/-15% Nominal Current Input 5 Amp AC Pulse Output 3 x NO Voltage Free Contacts 100mA @ 70VDC/33VAC Tariff Input N/A (Optional) Accuracy Class 1 (I,U,F,PF,) Class 2 (Reactive) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 106mm x 90mm x 58mm (6 modules wide) Isolation 3.5kV RS232/RS485 1200-19200 b/s (Optional) Weight 325g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Northern Design Head Office United Kingdom Operating Temperature -20 →+70 °C   Datasheet Product Datasheet Product Manual

Read more less

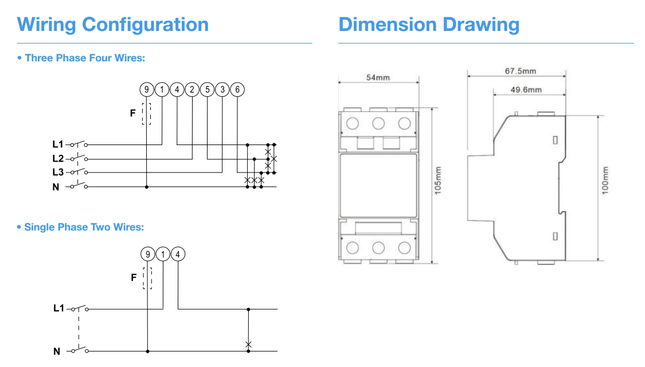

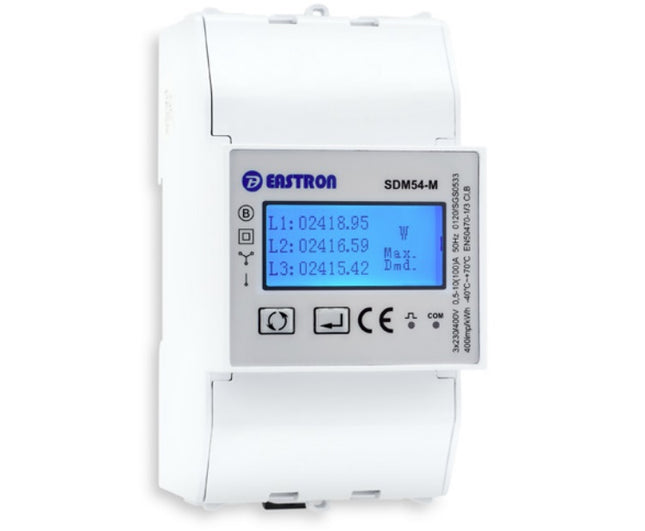

SDM54-MODBUS-MID, Ultra Compact DIN Rail Mount kWh Meter, 3 Phase, 500VAC L-L, Class 1, 100 Amp Direct Connect input, w/ 2 x Configurable Pulse Outputs and RS485 Comms, MID Approved. Built for EV Chargers   Features 3 x 100 amp Direct Connect RS 485 communication up to 38,400 bit/s as standard True RMS values of currents and voltages 2 x Pulse Outputs (2 x configurable)   The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power to the 30th Harmonic) from the measured signals.   Features : Accuracy class 1 Measurement of Active and Reactive Power Modbus RTU communication up to 38,400 bit/s communication Pulse output as standard Graphic LCD with illumination Specification Eastron Europe Part Number SDM54-MODBUS-MID Functions Three Phase Energy Meter Supply Voltage N/A Nominal Measurement Range 415V L-L 230V L-N, 100 Amp Maximum Measurement Range 500V L-L 230V L-N, 100 Amp Nominal Current Input Direct connect 3 x 100 Amp Pulse Output 2 x Passive (Configurable) Tariff Input N/A Accuracy Class 1 (I,U,F,kW,kWh) Class 2 (Reactive) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 72mm x 100mm x 66mm (4 modules wide) Isolation 4kV RS485 2400-38400 b/s (400ms Response Time) Weight 150g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Safety IP51(Indoor) Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Enclosure Size DIN 42880 4 Modules Operating Temperature -20 →+70 °C   Documents Product Datasheet User Manual Alternatives WM3-6 230DB Modbus Utility EEM Meter Setting Software Utility

Read more less

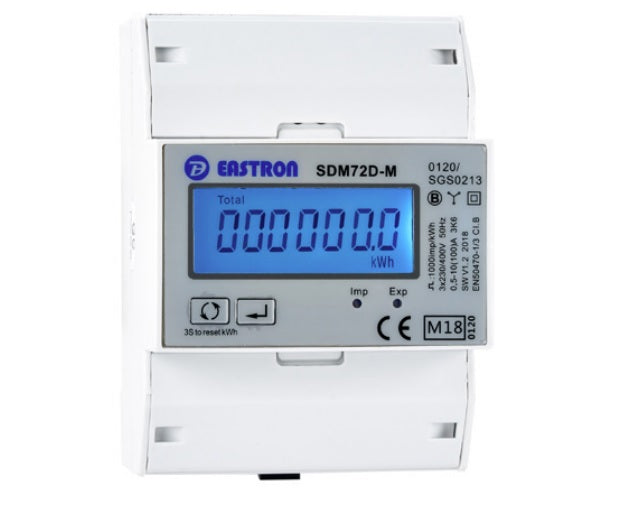

Eastron Europe SDM72D-M-2-MID, DIN Rail Mount kWh Meter, 3 Phase, with Resettable Energy Register, 500VAC L-L, Class 1, 100 Amp Direct Connect input, w/ 1 x fixed pulse output and RS485 Comms, MID Approved. Built for EV Chargers, (Superseeds SDM72D-M V2) 3 x 100 amp Direct Connect RS 485 communication up to 38,400 bit/s as standard True RMS values of currents and voltages 1 x Pulse Outputs (fixed)   The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power to the 30th Harmonic) from the measured signals.   Features : Accuracy class 1 Measurement of Active and Reactive Power Modbus RTU communication up to 38,400 bit/s communication Pulse output as standard Graphic LCD with illumination Specification Eastron Europe Part Number SDM72D-M-2-MID (Superseeds SDM72D-M V2) Functions Three Phase Energy Meter Supply Voltage N/A Nominal Measurement Range 415V L-L 230V L-N, 100 Amp Maximum Measurement Range 500V L-L 230V L-N, 100 Amp Nominal Current Input Direct connect 3 x 100 Amp Pulse Output 1 x Passive (fixed) Tariff Input N/A Accuracy Class 1 (I,U,F,kW,kWh) Class 2 (Reactive) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 72mm x 100mm x 66mm (4 modules wide) Isolation 4kV RS485 2400-38400 b/s (400ms Response Time) Weight 150g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Safety IP51(Indoor) Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Enclosure Size DIN 42880 4 Modules Operating Temperature -20 →+70 °C   Documents Product Datasheet User Manual Alternatives WM3-6 230DB Modbus Utility EEM Meter Setting Software Utility
