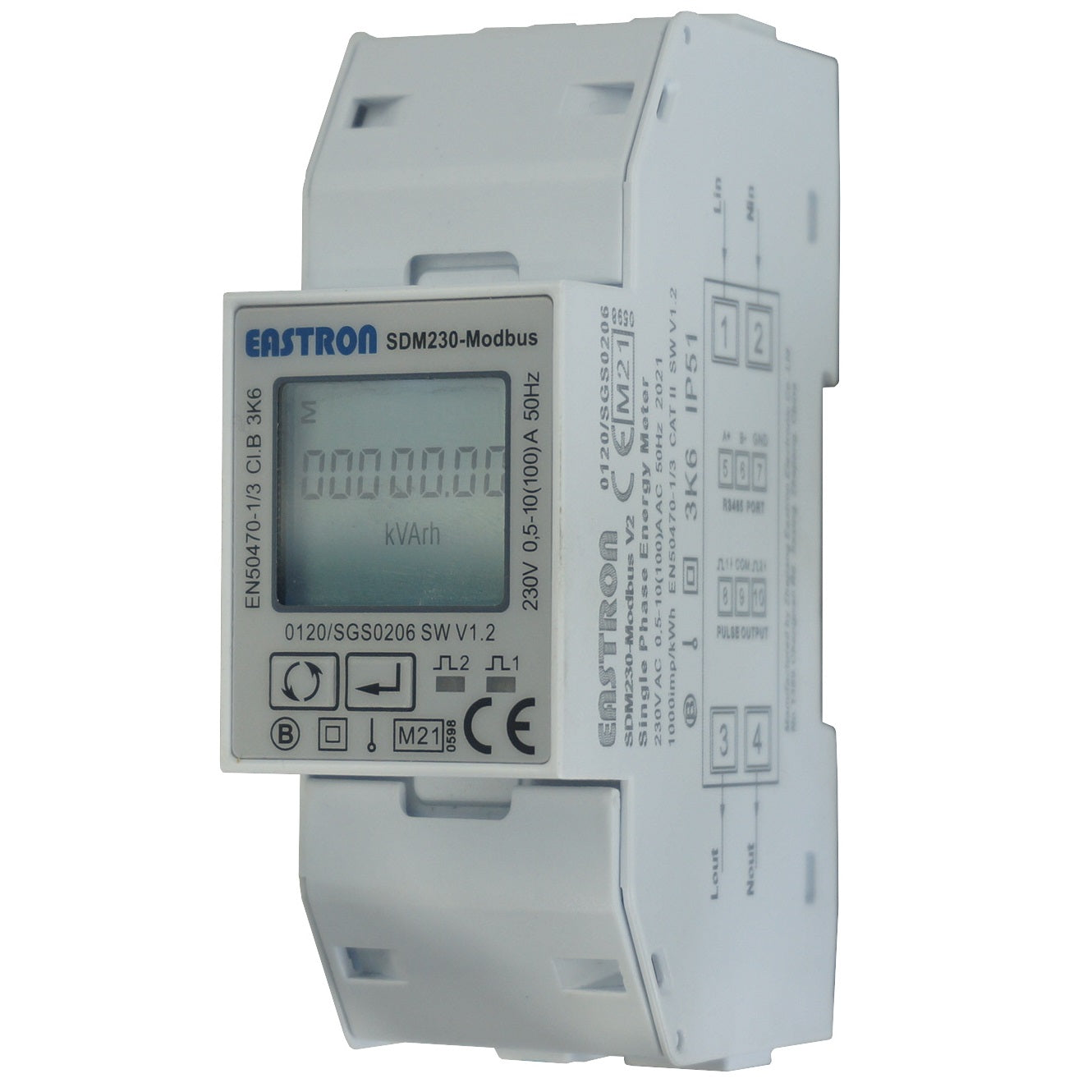

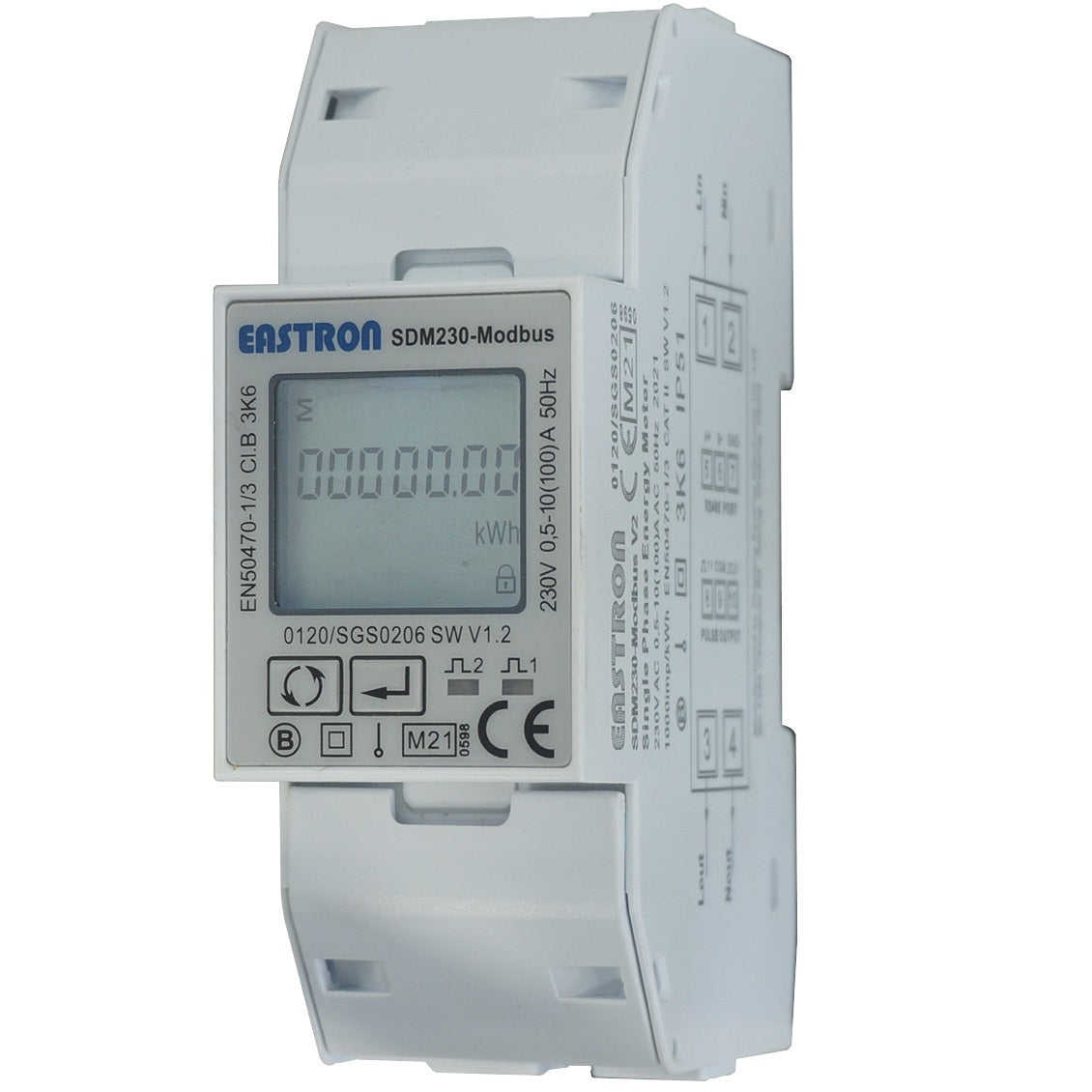

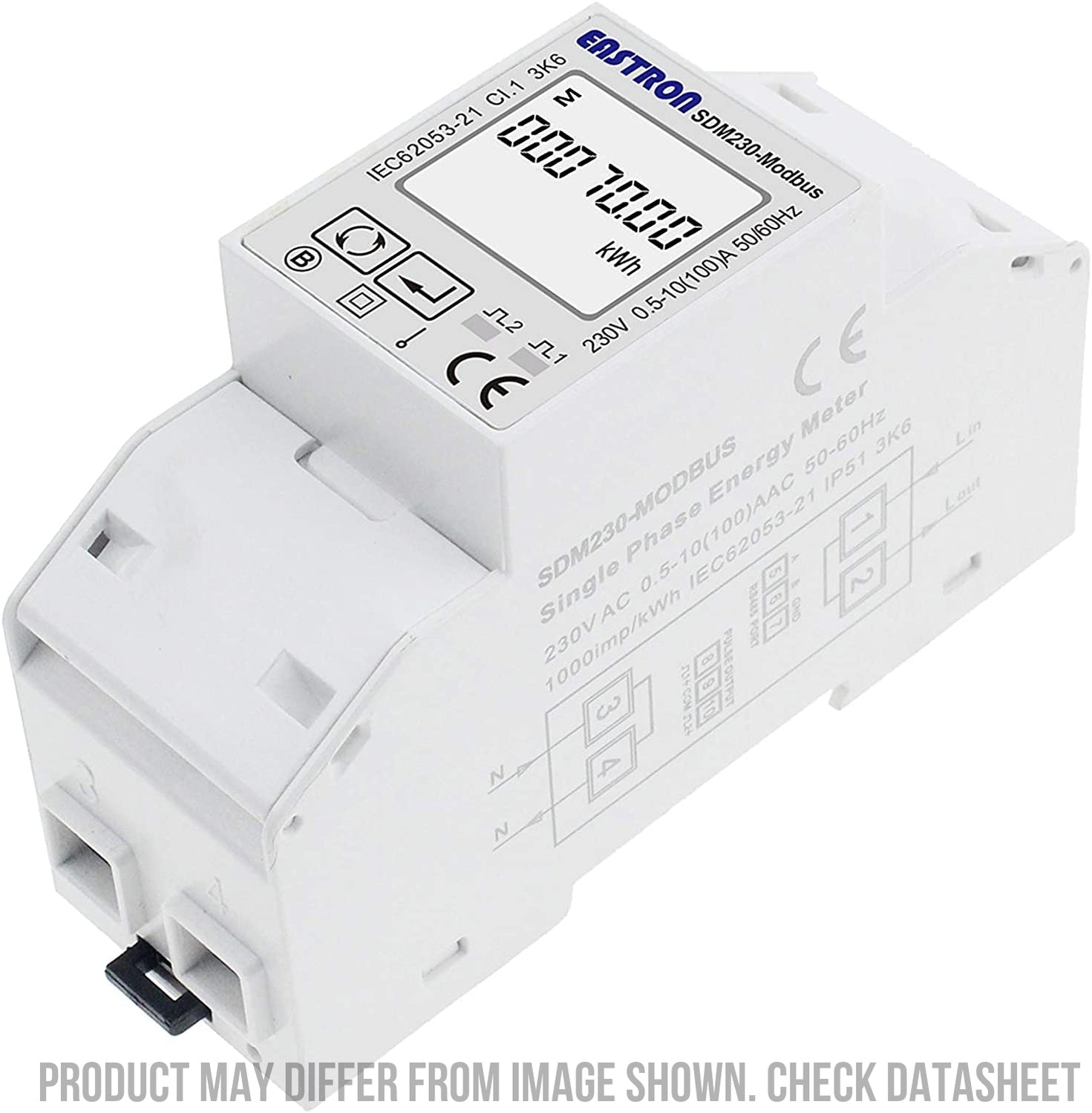

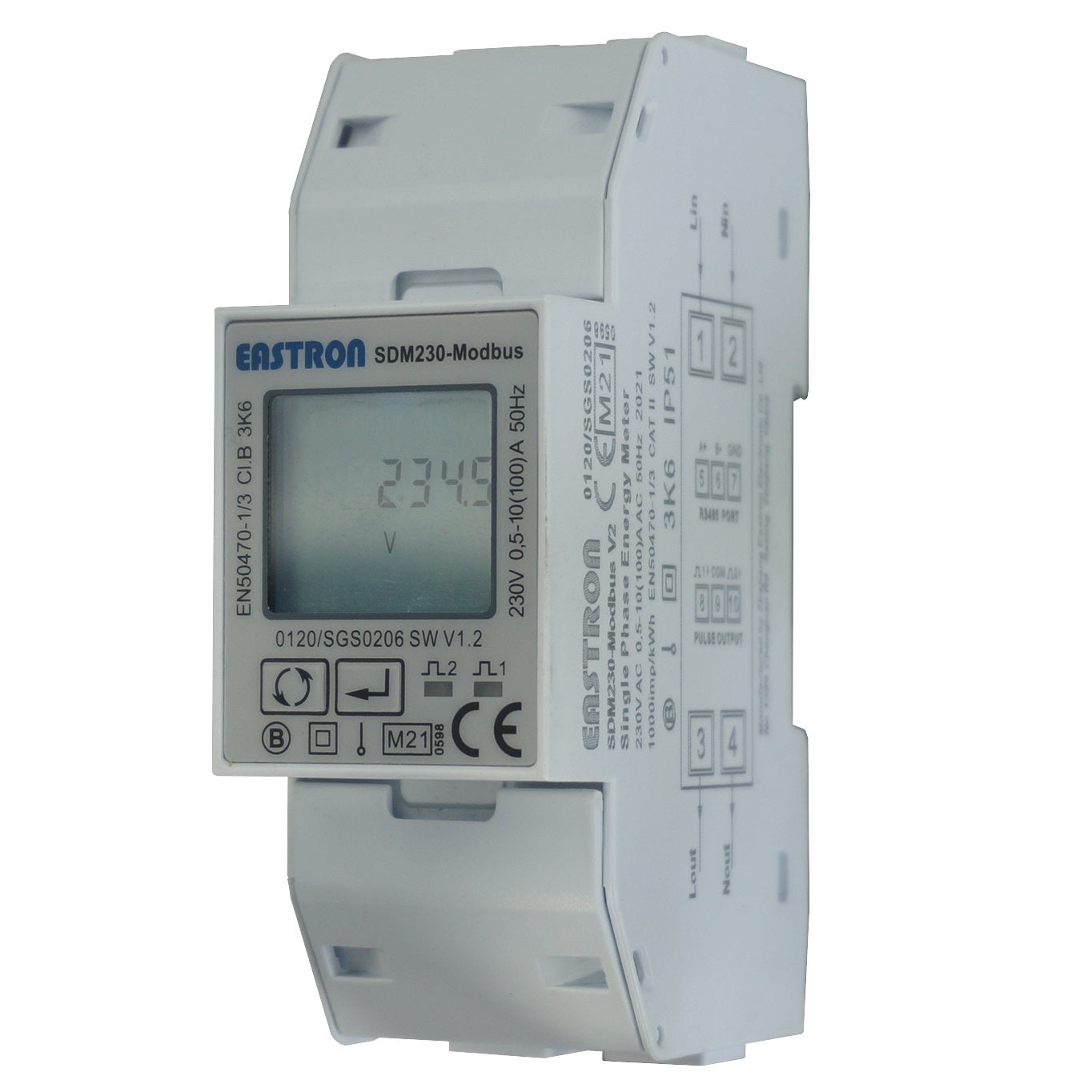

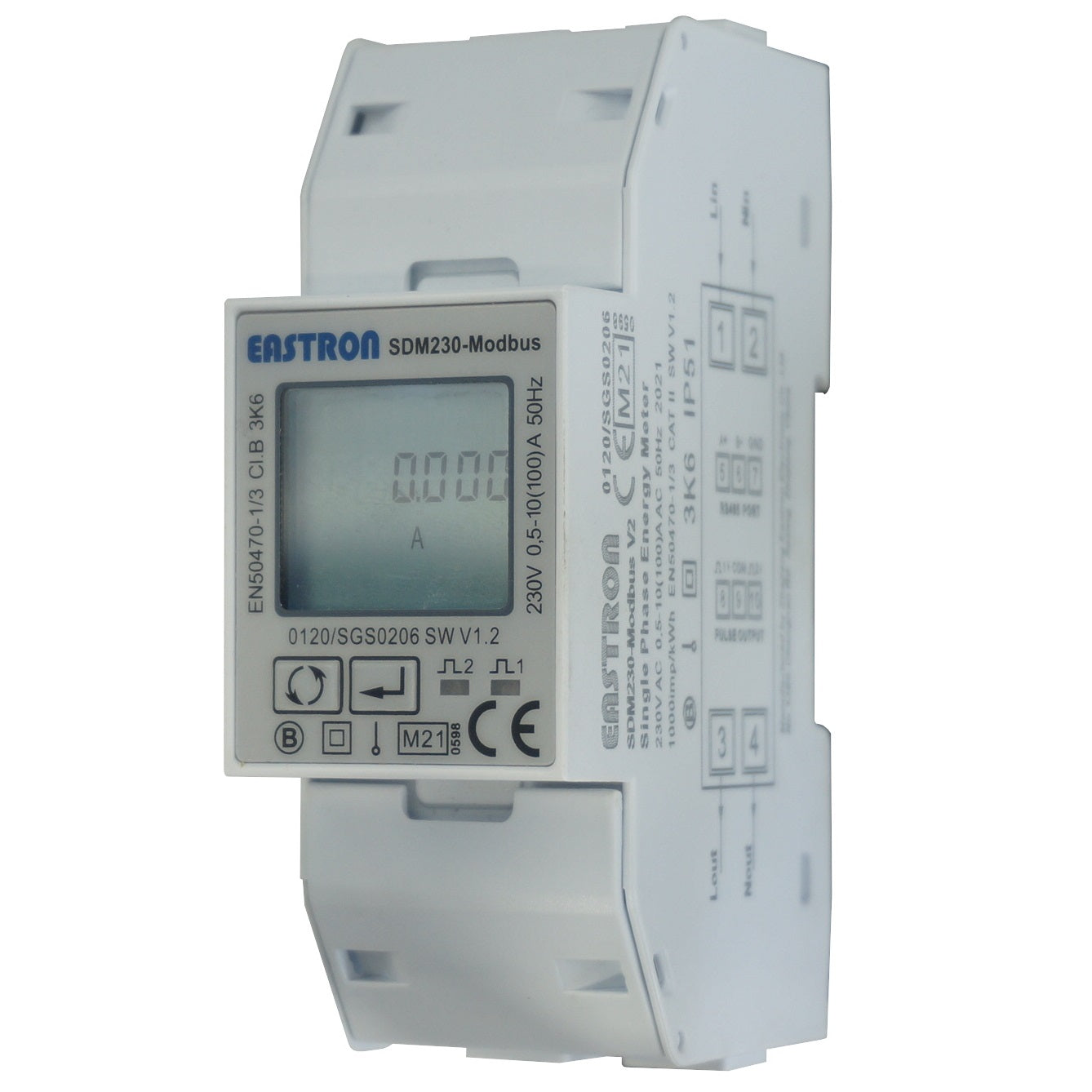

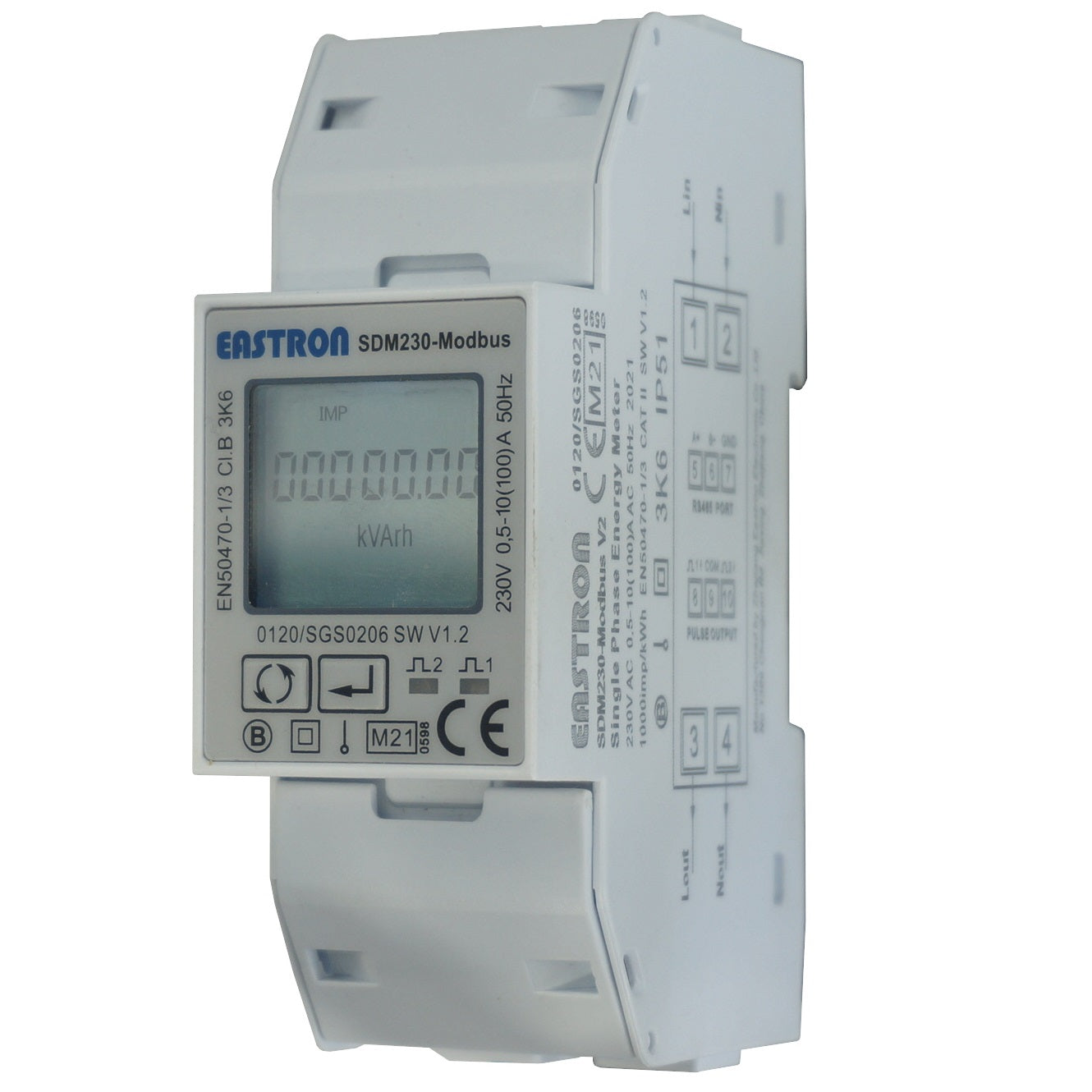

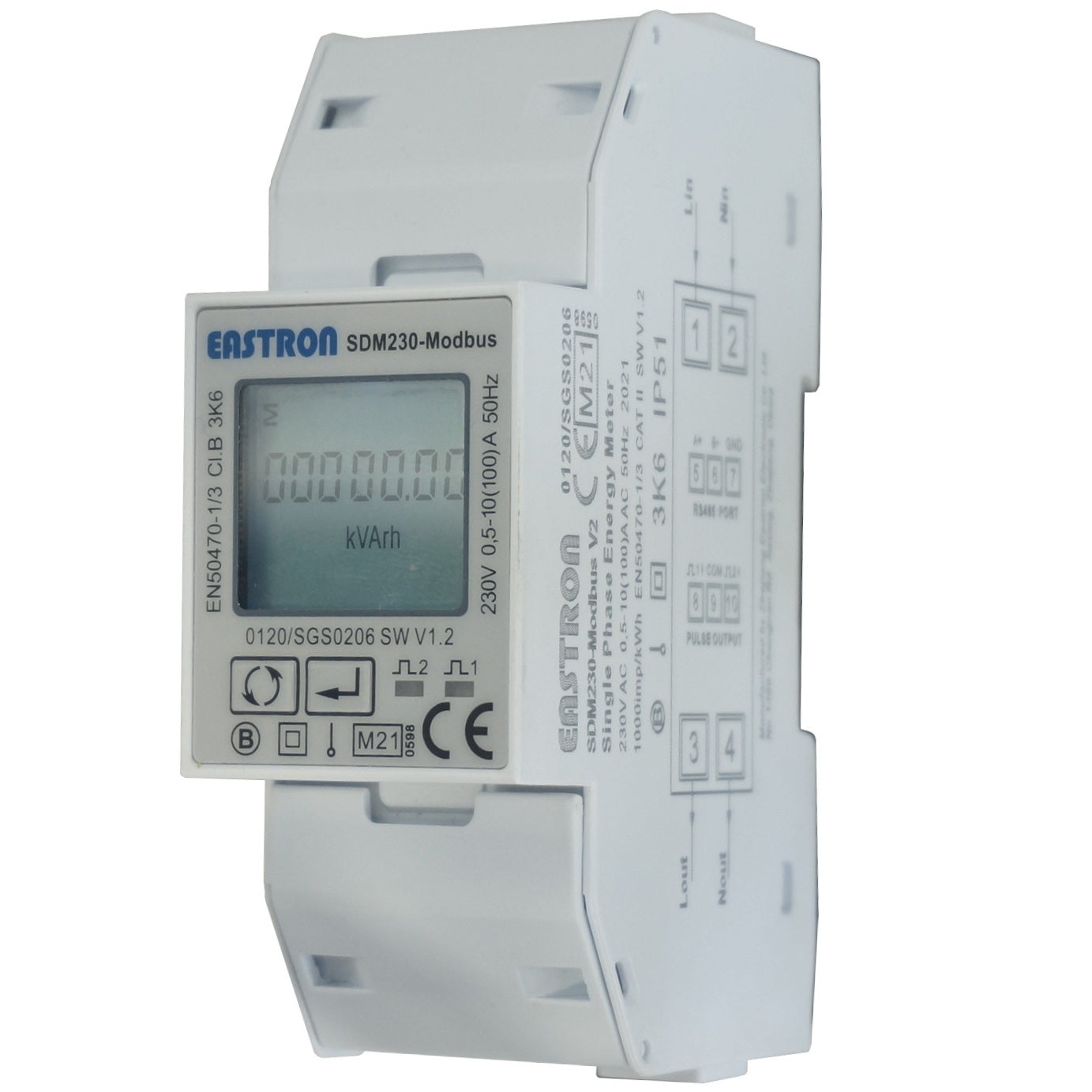

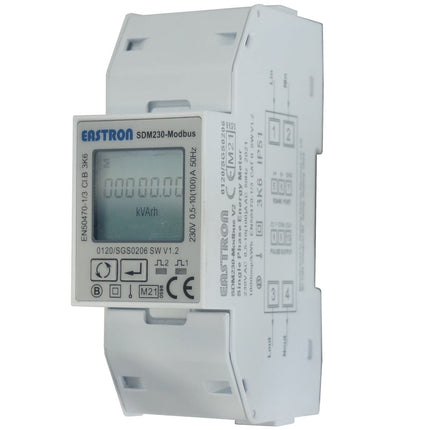

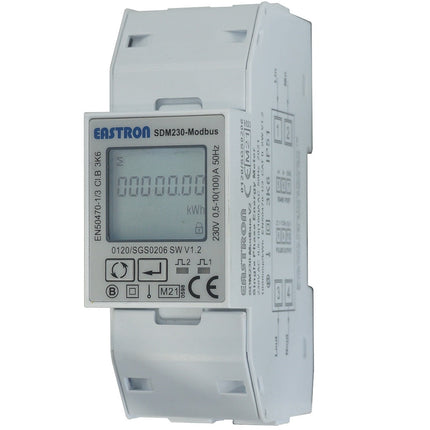

SDM230-LORAWAN-MID-AS923, DIN Rail Mount kWh Meter, Single Phase, 240VAC aux, Class 1, 100Amp Direct Connect, w/ 2 x pulse outputs and LoRaWaN AS923 Wireless Comms, MID Approved

SDM230-LORAWAN-MID-AS923, DIN Rail Mount kWh Meter, Single Phase, 240VAC aux, Class 1, 100Amp Direct Connect, w/ 2 x pulse outputs and LoRaWaN AS923 Wireless Comms, MID Approved

Product form

Out of stock

$209.00 $229.90 inclGST Excl. VAT

        SKU: FE-SDM230-LORAWAN-MID-AS923

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        SDM230-LORAWAN-MID-AS923, DIN Rail Mount kWh Meter, Single Phase, 240VAC aux, Class 1, 100Amp Direct Connect, w/ 2 x pulse outputs and LoRaWaN AS923 Wireless Comms, MID Approved

        • 100 amp Direct Connect
        • LoRaWaN AS923 communication
        • Optional Mbus Model available
        • True RMS values of currents and voltages
        • 1 x Configurable Pule Output (via Display Menu or Modbus)
        • 1 x Fixed Pulse Output (1000imp/kwh)



        The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power to the 30th Harmonic) from the measured signals.



        Features :

        • Accuracy Class 1

        • Measurement of Active and Reactive Power
        • Modbus RTU communication up to 38,400 bit/s communication
        • Pulse output as standard
        • Graphic LCD with illumination
          Specification
          Eastron Europe Part Number SDM230-LORAWAN-MID-AS923
          Functions Single Phase Energy Meter
          Supply Voltage 230V L-N +/-15% < 5VA
          Nominal Measurement Range 230V L-N 230V L-N, 100 Amp
          Maximum Measurement Range 276 L-N 230V L-N,100 Amp
          Nominal Current Input Direct connect 100 Amp
          Pulse Output 2 x Passive, (1 x Configurable 60/100/200ms)
          Tariff Input N/A
          Accuracy Class 1 (I,U,F,kW,kWh) Class 2 (Reactive)
          Mounting Din Rail
          Real Time Clock 1min/month (30ppm)
          Internal Memory N/A

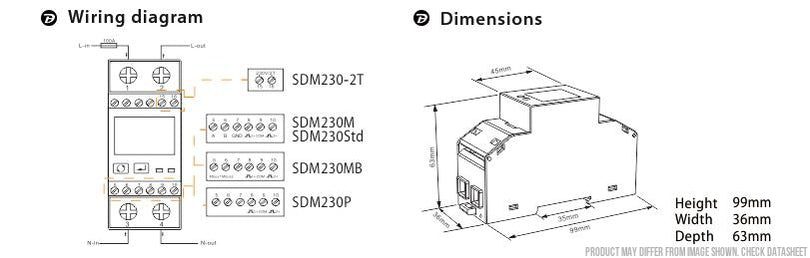

          Dimensions 36mm x 100mm x 66mm (2 modules wide)
          Isolation 4kV
          LoRaWaN LoRaWaN AS923
          Weight 250g
          Certification EN 61010-1 Installation Category III
          Factory Pack Qty 1
          Safety IP51(Indoor)
          Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing
          Enclosure Size

          DIN 42880 4 Modules
          Operating Temperature -20 →+70 °C
