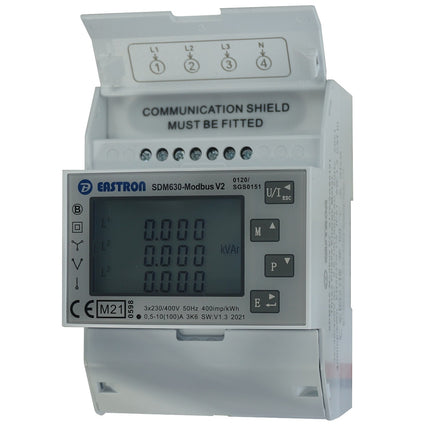

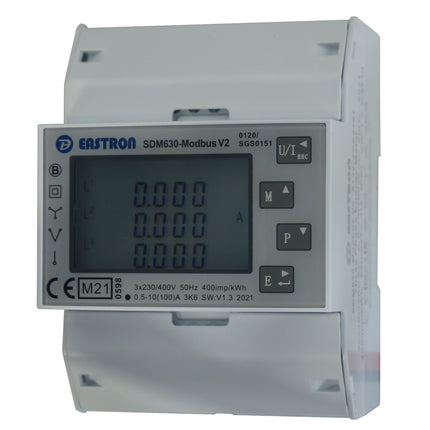

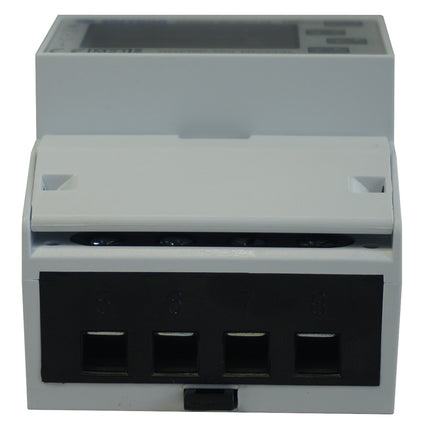

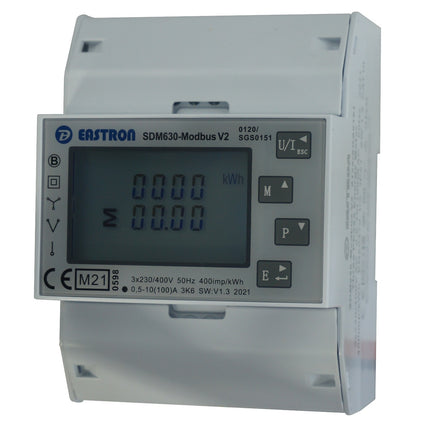

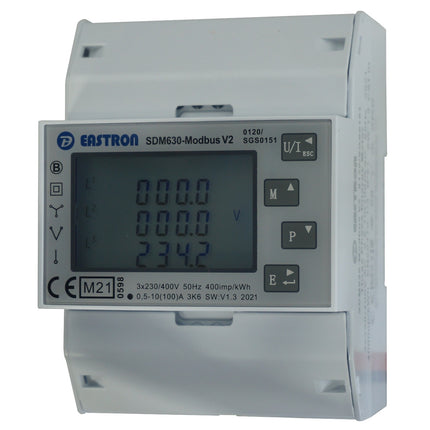

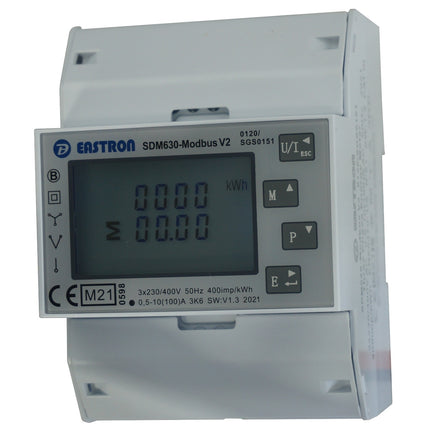

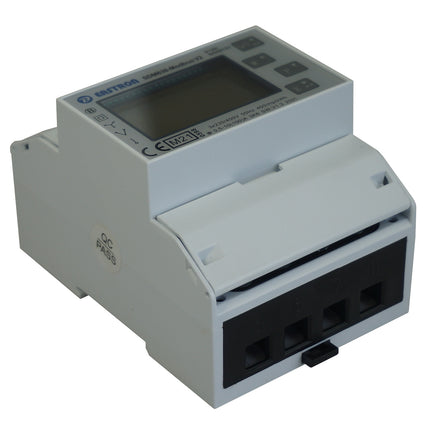

SDM630Modbus-MID-V2-GROWATT-SOLAX, DIN Rail Mount kWh Meter, 3 Phase, Class 1, 100Amp Direct Connect, w/ 2 x pulse outputs and RS485 Modbus RTU Comms, MID Approved, Special 100mS Communication response time

SDM630Modbus-MID-V2-GROWATT-SOLAX, DIN Rail Mount kWh Meter, 3 Phase, Class 1, 100Amp Direct Connect, w/ 2 x pulse outputs and RS485 Modbus RTU Comms, MID Approved, Special 100mS Communication response time

Product form
Free pickup in our shop(s)

95 pcs in stock

$298.00 $327.80 inclGST Excl. VAT

        SKU: FE-SDM630Modbus-MID-V2-GROWATT-SOLAX

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Eastron SDM630Modbus-MID-V2-GROWATT-SOLAX, DIN Rail Mount kWh Meter, 3 Phase, Class 1, 100Amp Direct Connect, w/ 2 x pulse outputs and RS485 Modbus RTU Comms, MID Approved, Special 100mS Communication response time

        • Special 100mS Communication response time
        • 3 x 100 amp Direct Connect
        • RS 485 communication up to 38,400 bit/s as standard
        • Optional Mbus Model available
        • True RMS values of currents and voltages
        • 2 x Pulse Outputs (1 Configurable)



        The meter is intended for measuring, and monitoring single-phase or 3 phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power to the 30th Harmonic) from the measured signals.



        Features :

        • Accuracy class 1

        • Measurement of Active and Reactive Power
        • Modbus RTU communication up to 38,400 bit/s communication
        • Pulse output as standard
        • Graphic LCD with illumination
          Specification
          Eastron Part Number SDM630Modbus-MID-V2-GROWATT-SOLAX
          Functions Three Phase Energy Meter
          Supply Voltage NA
          Nominal Measurement Range 415V L-L 230V L-N, 100 Amp
          Maximum Measurement Range 480V L-L 230V L-N, 100 Amp
          Nominal Current Input Direct connect 3 x 100 Amp
          Pulse Output 2 x Passive, (1 x Configurable 60/100/200ms)
          Tariff Input N/A
          Accuracy Class 1 (I,U,F,kW,kWh) Class 2 (Reactive)
          Mounting Din Rail
          Real Time Clock 1min/month (30ppm)
          Internal Memory N/A

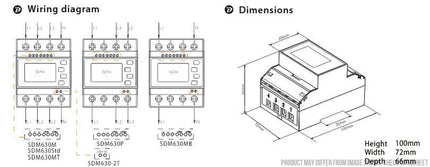

          Dimensions 72mm x 100mm x 66mm (4 modules wide)
          Isolation 4kV
          RS485 2400-38400 b/s (Special 100ms Response version)
          Weight 150g
          Certification EN 61010-1 Installation Category III
          Factory Pack Qty 1
          Safety IP51(Indoor)
          Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing
          Enclosure Size

          DIN 42880 4 Modules
          Operating Temperature -20 →+70 °C
