Westcode - IXYS, B0470WC160, Thyristor (SCR) Capsule 267Amp, 1600V, 41/14 Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Westcode-IXYS Part Number B0470WC160 Vrrm 1600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 267 Amp Package Size ø41 x 14mm Itsm 4.65 kA Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm Weight 90g Clamping Force 3 - 6kN Factory Pack Qty 12 Certification ROHS IXYS Headquarters USA Datasheet Product Datasheet Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse N3790TJ280, Thyristor(SCR) 2320 Amp, 2800V 111/26 Features Very low forward voltage drop Very low leakage current International standard package 111/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode IXYS Part Number N3790TJ280 Vrrm 2600V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 85 Deg C 2320 Amp Package Size ø111 x 26mm Itsm 49.5 kA VF(to) 0.90V Tj(max) 125°C rF 0.15mΩ Gate Terminals Hard wired Gate leads R th(j-c) (double sided cooled 180°sin) 0.008°C/W R th(c-h) (double sided cooled) 0.013°C/W Weight 1.2kg Clamping Force 60 - 70kN Factory Pack Qty 12 Certification ROHS IXYS Headquarters USA Datasheet Product Datasheet Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse W2052NC300 (SW30CXC820), Rectifier Diode PUK 560Amp, 3000V, 58/26 Features Very low forward voltage drop Very low leakage current International standard package 58/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Westcode-IXYS-Littlefuse Part Number W2052NC300 (SW30CXC820) Vrrm 3000V SCR Configuration Diode Capsule PUK IF(av) @ 100 Deg C 560 Amp Package Size ø58 x 26mm Itsm 19 kA VF(to) .87V Tj(max) 175°C rF 0.28mΩ Gate Terminals N/A R th(j-k) (double sided cooled 180°sin) R th(c-h) (double sided cooled) Weight 440g Clamping Force 10 - 20kN Factory Pack Qty 12 Certification ROHS Westcode-IXYS-Littlefuse Headquarters USA Datasheet Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Infineon M2837VC180, Fast Recovery Diode Capsule Rectifier, 1858 Amp, 1800V, 101/33mm Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode - IXYS Part Number M2837VC180 Vrrm 1800V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 1858 Amp Package Size ø101 x 33mm Itsm 23 kA VF(to) 1.63V Tj(max) 180°C Trr 7uS Qrr 2100uC rT 0.17mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.016°C/W R th(c-h) (double sided cooled) 0.032°C/W Weight 1000g Clamping Force 27 - 24kN Factory Pack Qty 12 Certification ROHS Westcode - IXYS Headquarters USA Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse W121CEC220, Diode Capsule, 9020 Amp 2200V, 124/26 Features Very low forward voltage drop Very low leakage current International standard package 124/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode-IXYS-Littlefuse Part Number W121CEC220 Vrrm 2200V Diode Configuration Diode Capsule (PUK) IF(av) @ 100 Deg C 9020 Amp Package Size ø124 x 26mm Itsm 94.5 kA VF(to) 0.726V Tj(max) 150°C rF 0.042mΩ Gate Terminals N/A R th(j-k) (double sided cooled 180°sin) 0.005°C/W Weight 2.2kg Clamping Force 76 - 93kN Factory Pack Qty 2 Certification ROHS Westcode-IXYS-Littlefuse Headquarters UK Datasheet Product Datasheet Alternatives DRD4460V24 Heatsink Heatsink Profiles

Read more less

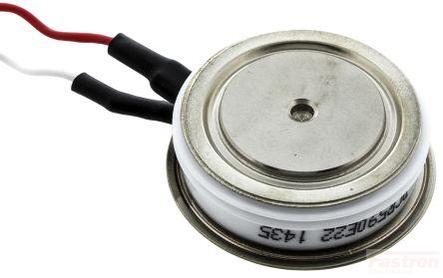

Dynex DCR3650Y28, Thyristor(SCR) 2450 Amp, 2800V 111/35, w/ 400mm Hard Soldered Gate Leads Features Very low forward voltage drop Very low leakage current International standard package 111/35 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Dynex IXYS Part Number DCR3650Y28 Vrrm 2800V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 85 Deg C 2450 Amp Package Size ø111 x 35mm Itsm 50.2 kA VF(to) 0.97V Tj(max) 125°C rF 0.11mΩ Gate Terminals Hard wired Gate leads R th(j-c) (double sided cooled 180°sin) 0.01°C/W R th(c-h) (double sided cooled) 0.003°C/W Weight 1.5kg Clamping Force 48 - 59kN Factory Pack Qty 12 Certification ROHS Dynex Headquarters UK Datasheet Product Datasheet Alternatives N3533ZC220 Dynex 2022 Shorform Catalogue Heatsink Heatsink Profiles

Read more less

Dynex DCR3060V24, Thyristor(SCR) 2320 Amp, 2400V 111/26, w/ 400mm Hard Soldered Gate Leads Features Very low forward voltage drop Very low leakage current International standard package 111/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Dynex IXYS Part Number DCR3060V24 Vrrm 2400V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 85 Deg C 2320 Amp Package Size ø111 x 26mm Itsm 45 kA VF(to) 0.9V Tj(max) 125°C rF 0.137mΩ Gate Terminals Hard wired Gate leads R th(j-c) (double sided cooled 180°sin) 0.01°C/W R th(c-h) (double sided cooled) 0.003°C/W Weight 1.2kg Clamping Force 50 - 62kN Factory Pack Qty 12 Certification ROHS Dynex Headquarters UK Datasheet Product Datasheet Alternatives N3533ZC220 Dynex 2022 Shorform Catalogue Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse N3533ZC220, Thyristor(SCR) 2320 Amp, 2200V 111/35, w/ 400mm Hard Soldered Gate Leads Features Very low forward voltage drop Very low leakage current International standard package 111/38 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode IXYS Part Number N3533ZC220 Vrrm 2200V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 85 Deg C 2320 Amp Package Size ø111 x 38mm Itsm 50 kA VF(to) 0.93V Tj(max) 125°C rF 0.11mΩ Gate Terminals Hard wired Gate leads R th(j-c) (double sided cooled 180°sin) 0.0125°C/W R th(c-h) (double sided cooled) 0.003°C/W Weight 1.2kg Clamping Force 27 - 47kN Factory Pack Qty 12 Certification ROHS IXYS Headquarters USA Datasheet Product Datasheet Alternatives DCR3060V24 DCR3650Y28 Heatsink Heatsink Profiles

Read more less

Reliance NL-410403-78AZ, Thyristor(SCR) PUK, 550 Amp, 1800V, 41/14 Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package (14.5mm unclamped Thickness) Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Drop In Replacement for NL-410403-78AZ (Reliance) Specification Reliance Part Number Reliance Vrrm 1800V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 550 Amp Package Size ø41 x 14mm Itsm 9 kA VF(to) 0.925V Tj(max) 125°C rF 0.45mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.047°C/W R th(c-h) (double sided cooled) 0.012°C/W Weight 140g Clamping Force 5.2-8 kN Factory Pack Qty 12 Certification ROHS Semikron Headquarters Germany Alternatives SKKT551/18E Heatsink Heatsink Profiles

Read more less

IXYS-Westcode-Littlefuse W2058LC060, Diode PUK 1508 Amp @ Tc = 100°C, 600V 58/26 Rectifier Diode Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode-IXYS Part Number W2058LC060 Vrrm 600V Diode Configuration Diode Capsule (PUK) IF(av) @ 100 Deg C 1508 Amp Package Size ø58 x 26mm Itsm 19.5 kA VF(to) 0.79V Tj(max) 175°C rF 0.192mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.033°C/W R th(c-h) (double sided cooled) 0.00°C/W Weight 340g Clamping Force 10 - 20kN Factory Pack Qty 12 Certification ROHS IXYS Headquarters USA Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

MS Power MSKP964C_A26, Thyristor(SCR) PUK 964 Amp, 2600V, 80/16 Features Very low forward voltage drop Very low leakage current International standard package 80/16 unique and hard to find Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Field Supply for DC Motors Water Cooled Rectifiers Phase Controllers Power Factor Correction Specification MS Power Part Number MSKP964C_A26 Vrrm 2600V Diode Configuration Diode Capsule (PUK) IF(av) @ 68 Deg C 964 Amp Package Size ø80 x 16.5mm Itsm 16.5 kA VF(to) 1.05V Tj(max) 125°C rF 0.5mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.027°C/W R th(c-h) (double sided cooled) 0.0031°C/W Weight 520g Clamping Force 22 - 24kN Factory Pack Qty 12 MS Power Headquarters China Datasheet Product Datasheet Heatsink Note this item requires a special clamp. Heatsink Profiles

Read more less
