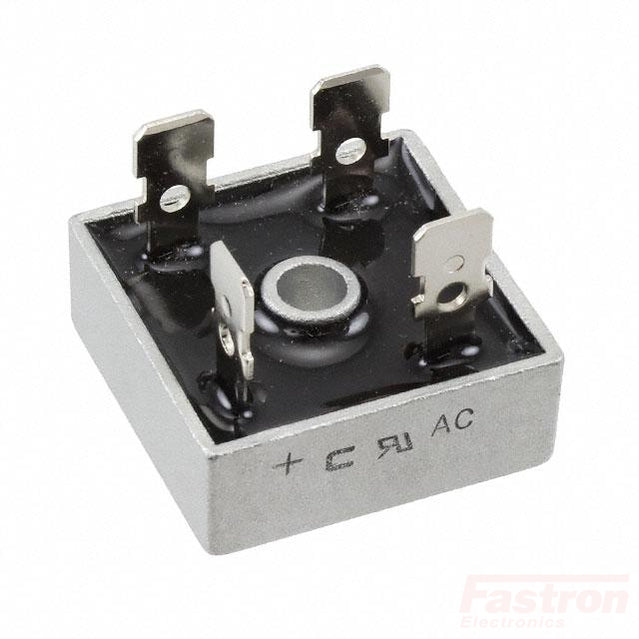

Single Phase Bridge Rectifier, 35 Amp, 1000V, Metal Housing Product datasheet

Read more less

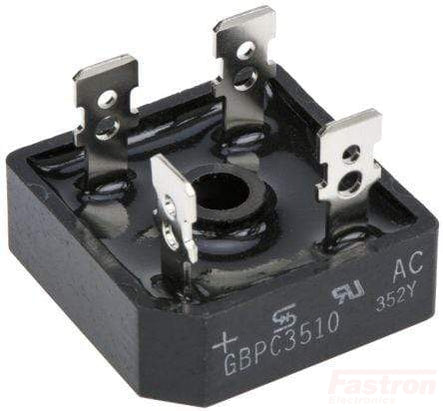

Single Phase Bridge Rectifier, 50 Amp, 600V Product datasheet

Read more less

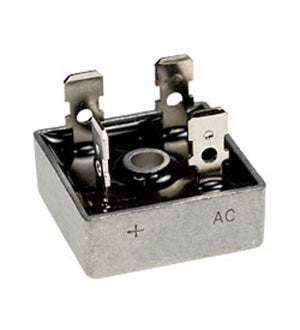

KBPC5010, Single Phase Bridge Rectifier, 50 Amp, 1000V Product datasheet

Read more less

Single Phase Bridge Rectifier, 35 Amp, 1000V Product datasheet

Read more less

SQL50A 1000V, 3 Phase Diode rectifier Bridge, 50 Amp @ TC = 55 Deg C, 35 Amp @ Tc = 85 Deg C, 1000V Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Part Number SKB 35/16 AC Line voltage 533V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 62 Deg C 25 Amp Package Size W:55mm L:45mm D:24mm Itsm 380 A VF(to) 0.85V Tj(max) 150°C rF 12mΩ Terminals Faston (6.3mm) Hole Centres Single M5 Gate Terminals N/A R th(j-c) 9.3°C/W R th(c-h) 0.9°C/W Weight 22g Isolation 3kV Factory Pack Qty 10   Datasheet Product Datasheet Alternatives See PSD51/18 for higher rated equivalent

Read more less

SKB 35/16, Single Phase Diode rectifier Bridge, 25 Amp, 1600V replaces Powersem PSD25T/16  Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Semikron Part Number SKB 35/16 AC Line voltage 533V Device Configuration Single Phase Diode Rectifier Bridge DC Output @ 62 Deg C 25 Amp Package Size W:55mm L:45mm D:24mm Itsm 380 A VF(to) 0.85V Tj(max) 150°C rF 12mΩ Terminals Faston (6.3mm) Hole Centres Single M5 Gate Terminals N/A R th(j-c) 9.3°C/W R th(c-h) 0.9°C/W Weight 22g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Semikron Headquarters Germany   Datasheet Product Datasheet

Read more less

VS-36MT120, 3 Phase Diode rectifier Bridge, 36 Amp, 1200V Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Vishay Part Number VS-36MT120 AC Line voltage 400V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 60 Deg C 35 Amp Package Size W:55mm L:45mm D:24mm Itsm 550 A VF(to) 0.86V Tj(max) 150°C rF 6.3mΩ Terminals Faston (6.3mm) Hole Centres Single M5 Gate Terminals N/A R th(j-c) 1.35°C/W R th(c-h) 0.2°C/W Weight 22g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Vishay Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD36/16 for direct equivalent

Read more less

Powersem PSD36T/16 Single Phase Half Controlled Rectifier Bridge, Replaces Semikron SKD31/16 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSD36/16 AC Line voltage 533V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 62 Deg C 35 Amp Package Size W:55mm L:45mm D:24mm Itsm 550 A VF(to) 0.8V Tj(max) 150°C rF 7.4mΩ Terminals Faston (6.3mm) Hole Centres Single M5 Gate Terminals N/A R th(j-c) 7.4°C/W R th(c-h) 1.1°C/W Weight 22g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD51/18 for higher rated equivalent

Read more less

Powersem PSBZ36/08 Single Phase Half Controlled Rectifier Bridge, Replaces Semikron SKBZ28/08 Features Package with DCB ceramic base plate Isolation voltage 2500 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Supplies for DC power equipment Input rectifier for PWM inverter Battery DC power supplies Field supply for DC motors Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Small and light weight Specification Powersem Part Number PSBZ36/08 AC Line voltage 267V Device Configuration Single Phase Half Controlled Rectifier Bridge DC Output @ 85 Deg C 36 Amp Package Size W:47mm L:30mm D:20mm Itsm 300 A VF(to) 0.9V Tj(max) 125°C rF 15mΩ Terminals Press fit Hole Centres 48.2mm (M5) Gate Terminals Press Fit R th(j-c) 1.4°C/W R th(c-h) 0.9°C/W Weight 18g Isolation 2.5kV Factory Pack Qty 20 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives See PSDH70/16 for higher rated equivalent

Read more less

SKD 31/16, Three Phase Diode rectifier Bridge, 31 Amp, 1600V replaces Powersem PSD25T/16 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Semikron Part Number SKD 31/16 AC Line voltage 533V Device Configuration Single Phase Diode Rectifier Bridge DC Output @ 85 Deg C 4 Amp Package Size W:63mm L:32mm D:26mm Itsm 370 A VF(to) 0.85V Tj(max) 150°C rF 12mΩ Terminals Faston (6.3mm) Hole Centres Single M5 Gate Terminals N/A R th(j-c) 2°C/W R th(c-h) 0.3°C/W Weight 66g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Semikron Headquarters Germany   Datasheet Product Datasheet

Read more less

KZL-060-010-02D2, Single Phase Diode Rectifier Bridge, Switchable, 0.6Amp, 600V, for Uin max 270VAC rms Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Part Number KZL-060-010-02D2 AC Line voltage 333V Device Configuration Phase Diode Rectifier Bridge DC Output @ 85 Deg C 0.6 Amp Package Size W13 x L:33 x H:23mm, 40mm Hole centers (Overall Length 46mm) Itsm 750 A VF(to) 0.85V Tj(max) 150°C rF 11mΩ Terminals M5 (5Nm) Switching Terminals screw Weight 150g Isolation 3kV Factory Pack Qty 10
