Bridge Rectifier Diode

Powersem PSBH25/12 Single Phase Half Controlled Rectifier Bridge, Replaces Semikron SKBH28/12 Features Package with DCB ceramic base plate Isolation voltage 2500 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Supplies for DC power equipment Input rectifier for PWM inverter Battery DC power supplies Field supply for DC motors Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Small and light weight Specification Powersem Part Number PSBH25/12 AC Line voltage 400V Device Configuration Single Phase Half Controlled Rectifier Bridge DC Output @ 85 Deg C 32 Amp Package Size W:47mm L:30mm D:20mm Itsm 200 A VF(to) 0.8V Tj(max) 125°C rF 27mΩ Terminals Press fit Hole Centres 48.2mm (M5) Gate Terminals Press Fit R th(j-c) 1.8°C/W R th(c-h) 0.5°C/W Weight 16g Isolation 2.5kV Factory Pack Qty 20 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives See PSDH70/16 for higher rated equivalent

Read more less

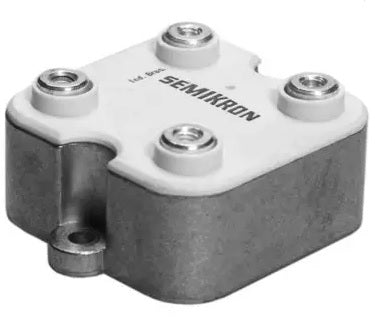

Semikron SKB 30/16 A1, Single Phase Diode rectifier Bridge, 30Amp, 1600V Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Semikron Part Number SKB 30/16 A1 AC Line voltage 533V Device Configuration Phase Diode Rectifier Bridge DC Output @ 85 Deg C 30 Amp Package Size W:55mm L:45mm D:24mm Itsm 370 A VF(to) 0.85V Tj(max) 150°C rF 12mΩ Terminals M5 (5Nm) Hole Centres 60mm (M5) Gate Terminals N/A R th(j-c) 0.7°C/W R th(c-h) 0.1°C/W Weight 125g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Semikron Headquarters Germany Datasheet Product Datasheet

Read more less

Powersem PSD35T/16 Single Phase Half Controlled Rectifier Bridge, Replaces Semikron SKD30/16 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSD35T/16 AC Line voltage 533V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 85 Deg C 38 Amp Package Size W:55mm L:45mm D:24mm Itsm 400 A VF(to) 0.85V Tj(max) 150°C rF 12mΩ Terminals M4 (1.5Nm) Hole Centres 45mm (M4) Gate Terminals N/A R th(j-c) 2.8°C/W R th(c-h) 0.6°C/W Weight 110g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD55T/16 or PSD51/18 for higher rated equivalent

Read more less

Powersem PSD35T/18 Single Phase Half Controlled Rectifier Bridge, Replaces Semikron SKD30/18 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSD35T/18 AC Line voltage 600V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 85 Deg C 38 Amp Package Size W:55mm L:45mm D:24mm Itsm 400 A VF(to) 0.85V Tj(max) 150°C rF 12mΩ Terminals M4 (1.5Nm) Hole Centres 45mm (M4) Gate Terminals N/A R th(j-c) 2.8°C/W R th(c-h) 0.6°C/W Weight 110g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD55T/16 or PSD51/18 for higher rated equivalent

Read more less

SKD 30/16A1, 3 Phase Diode rectifier Bridge, 30 Amp, 1600V Replaces PSD35T/16  Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Semikron Part Number SKD 30/16A1 AC Line voltage 533V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 85 Deg C 35 Amp Package Size W:55mm L:45mm D:24mm Itsm 370 A VF(to) 0.85V Tj(max) 150°C rF 12mΩ Terminals M4 (1.5Nm) Hole Centres 45mm (M4) Gate Terminals N/A R th(j-c) 2.8°C/W R th(c-h) 0.6°C/W Weight 110g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Semikron Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD55T/16 or PSD51/18 for higher rated equivalent

Read more less

Littlefuse-IXYS, Single Phase Diode rectifier Bridge, 50Amp, 1200V, Single Phase Diode Rectifier Bridge, 50Amp, 1200V, Replaces Semikron SKB52/12 SKB50/12 IXYS PSB55/12 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification IXYS Part Number VBO50-12N07 AC Line voltage 400V Device Configuration Phase Diode Rectifier Bridge DC Output @ 85 Deg C 50 Amp Package Size W:72mm L:60mm D:28mm Itsm 750 A VF(to) 0.85V Tj(max) 150°C rF 11mΩ Terminals M5 (5Nm) Hole Centres 60mm (M5) Gate Terminals N/A R th(j-c) 2.6°C/W R th(c-h) 0.24°C/W Weight 260g Isolation 3kV Factory Pack Qty 10 Certification UL Listed IXYS Headquarters USA   Datasheet Product Datasheet Alternatives See PSD51/18 for Fastron Terminal equivalent

Read more less

Powersem PSB82T/18 Single Phase Diode Rectifier Bridge, Replaces Semikron SKB60/18 SKB72/18, IXYS VBO72-08NO7 VBO72-12NO7 VBO72-18NO7 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSB82T/18 AC Line voltage 600V Device Configuration Single Phase Diode Rectifier Bridge DC Output @ 100 Deg C 72 Amp Package Size W:72mm L:42mm D:30mm Itsm 750 A VF(to) 0.8V Tj(max) 125°C rF 5mΩ Terminals M5 (1.5Nm) Hole Centres 60mm (M5) Gate Terminals N/A R th(j-c) 1.1°C/W R th(c-h) 0.52°C/W Weight 160g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet Alternatives See PSD82/16 for lower rated equivalent

Read more less

Powersem PSB82/12 Single Phase Diode Rectifier Bridge, Replaces Semikron SKB60/12 SKB72/12, IXYS VBO72-08NO7 VBO72-12NO7 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSB82/12 AC Line voltage 400V Device Configuration Single Phase Diode Rectifier Bridge DC Output @ 100 Deg C 72 Amp Package Size W:72mm L:42mm D:30mm Itsm 750 A VF(to) 0.8V Tj(max) 125°C rF 5mΩ Terminals M5 (1.5Nm) Hole Centres 60mm (M5) Gate Terminals N/A R th(j-c) 1.1°C/W R th(c-h) 0.52°C/W Weight 160g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD82/16 for higher rated equivalent

Read more less

Powersem PSB35/16 Single Phase Diode Rectifier Bridge Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSB35/16 AC Line voltage 533V Device Configuration Single Phase Diode Rectifier Bridge DC Output @ 85 Deg C 35 Amp Package Size W:55mm L:45mm D:24mm Itsm 400 A VF(to) 0.85V Tj(max) 125°C rF 12mΩ Terminals M4 (1.5Nm) Hole Centres 45mm (M4) Gate Terminals N/A R th(j-c) 2.8°C/W R th(c-h) 0.6°C/W Weight 135g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet Alternatives See PSB55T/16 for higher rated equivalent

Read more less

Powersem PSB35/18 Single Phase Diode Rectifier Bridge Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSB35/18 AC Line voltage 600V Device Configuration Single Phase Diode Rectifier Bridge DC Output @ 85 Deg C 35 Amp Package Size W:55mm L:45mm D:24mm Itsm 400 A VF(to) 0.85V Tj(max) 125°C rF 12mΩ Terminals M4 (1.5Nm) Hole Centres 45mm (M4) Gate Terminals N/A R th(j-c) 2.8°C/W R th(c-h) 0.6°C/W Weight 135g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet Alternatives See PSB55T/16 for higher rated equivalent

Read more less
