AC Surge Protection Device (SPD) for AC
-

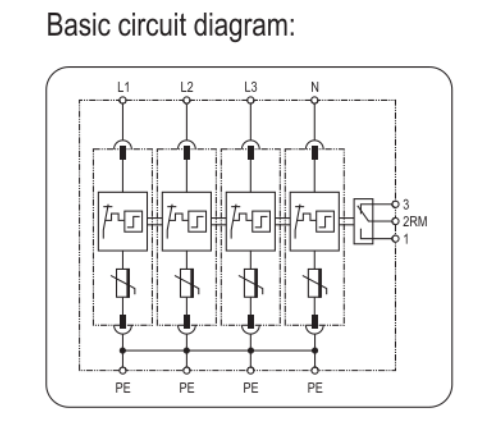

FBT P BCM12.5 275 RM (4+0), Class I,II / Type 1,2 / B,C, AC Surge Protection Device (SPD) with Remote Contacts, 3 Pole 37.5kA,440VAC, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV Type
Trent FBT P BCM12.5 275 RM (4+0), Class I,II / Type 1,2 / B,C, AC Surge Protection Device (SPD) with Remote Contacts, 3 Pole 37.5kA,440VAC, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV Type Specifications Trent part number FBT P BCM12.5 275 RM (4+0) Nominal Voltage 440VAC No of Poles 4 Category IEC / EN / VDE Class I,II / Type 1,2 / B,C Location of use Main Distribution Boards Protection modes L/N-PE, L-PEN, L-N, N-PE High Energy MOV Additional Remote Contacts YES Protective element MOV Surge discharge rating Imax up to 37.5 kA(10/350us) / 100kA(8/20us) or 12.5kA(10/350us) / 60kA(8/20us) per pole Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$189.00
$223.02 inclGST -

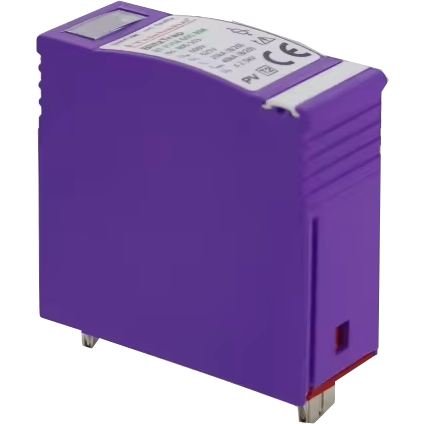

FBT P BCM12.5 275 RM (3+0 Modules), MODULES ONLY for Class I,II / Type 1,2 / B,C, AC Surge Protection Device (SPD), 12.5KA/60kA per Pole
Trent FBT P BCM12.5 275 RM (3+0) (Modules), MODULES ONLY for Class I,II / Type 1,2 / B,C, AC Surge Protection Device (SPD), 12.5KA/60kA per Pole Specifications Trent part number FBT P BCM12.5 275 RM (3+0 Modules) Nominal Voltage 440VAC No of Poles 3 Category IEC / EN / VDE Class I,II / Type 1,2 / B,C Location of use Main Distribution Boards Protection modes L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT Additional Remote Contacts YES Protective element MOV Surge discharge rating Imax up to 37.5 kA(10/350us) / 100kA(8/20us) or 12.5kA(10/350us) / 60kA(8/20us) per pole Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$224.40
$264.79 inclGST -
ISPRO-K BSR 75/440 (3+0), Class I,II / Type 1,2 / B,C, Surge Protection Device (SPD) with Remote Contact, 3 Pole 75kA,440VAC, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT
Iskra ISPRO-K BSR 75/440 (3+0), Class I,II / Type 1,2 / B,C, Surge Protection Device (SPD) with Remote Contact, 3 Pole 75kA,440VAC, DIN Rail Mount Specifications Iskra Doo part number ISPRO-K BSR 75/440 (3+0) Nominal Voltage 440VAC No of Poles 3 Category IEC / EN / VDE Class I,II / Type 1,2 / B,C Location of use Main Distribution Boards Protection modes L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT Protective element MOV + GDT Surge discharge rating Imax up to 75 kA, or 25kA per pole Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$419.00
$494.42 inclGST -

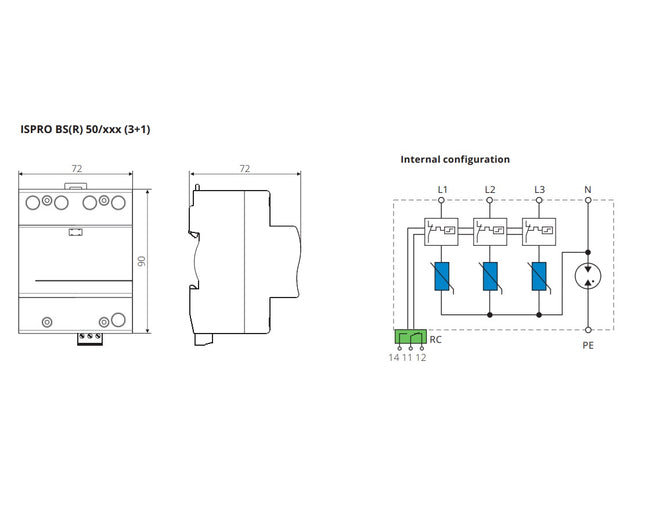

ISPRO-K BSR 100/440 (3+1), Class I,II / Type 1,2 / B,C, Surge Protection Device (SPD) with Remote Contacts, 3 Pole 100kA, 440VAC, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT
Iskra ISPRO-K BSR 100/440 (3+1), Class I,II / Type 1,2 / B,C, Surge Protection Device (SPD) with Remote Contacts, 3 Pole 100kA, 440VAC, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT Specifications Iskra Doo part number ISPRO-K BSR 100/440 (3+1) Nominal Voltage 440VAC No of Poles 3 Category IEC / EN / VDE Class I,II / Type 1,2 / B,C Location of use Overhead power lines Protection modes L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT Additional Remote Contacts YES Protective element MOV + GDT Surge discharge rating Imax up to 75 kA Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$612.00
$722.16 inclGST -

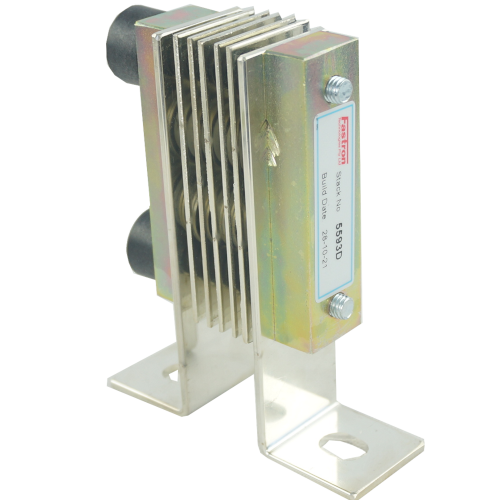

ST5593D, Surge Protection Device (SPD), 400VAC, Panel Mount with PE Wire, for Direct Lightning strikes
ST5593D, Surge Protection Device (SPD), 400VAC, Panel Mount with PE Wire, for Direct Lightning strikes Specifications Fastron part number ST5593D Category IEC / EN / VDE Class II / Type 2 / A Location of use Substation Protection modes L/N-PE Protective element Back to Back Diodes Surge discharge rating Imax up to 200 kA Internal protection and safety N/A Diode fails to short or open ciruit Standards IEC/EN 61643-11
$1,149.00
$1,355.82 inclGST
