AC Surge Protection Device (SPD) for AC
-
ISPRO CR 40/440, Class II / Type 2 / C, Modular Surge Protection Device (SPD) with Remote Contacts, 1 Pole 40kA, 440VAC, DIN Rail Mount. For Sub Distribution Boards
Iskra ISPRO CR 40/440, Class II / Type 2 / C, Modular Surge Protection Device (SPD) with Remote Contacts, 1 Pole 40kA, 440VAC, DIN Rail Mount. For Sub Distribution Boards Specifications Iskra Doo part number ISPRO CR 40/440 Nominal Voltage 440VAC No of Poles 1 (modular, stackable) Category IEC / EN / VDE Class II / Type 2 / C Location of use Sub Distribution Boards Additional Remote Contacts YES Protection modes L/N-PE Protective element MOV Surge discharge rating Imax up to 40 kA Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$48.00
$56.64 inclGST -
FRS4-C40 320V 2P (2+0) (R), Class II/Type 2, AC Surge Protection Device (SPD) with Remote Contacts, 2 Pole In = 20/50kA L-N, 230VAC, DIN Rail Mount, L/N-PE, High Energy MOV Type
Trent FRS4-C40 320V 2P (2+0) (R), Class II/Type 2, AC Surge Protection Device (SPD) with Remote Contacts, 2 Pole In = 20/50kA L-N, Un = 230VAC, Uc = 320VAC, DIN Rail Mount, L/N-PE, High Energy MOV Type Specifications Trent part number FRS4-C40 320V 2P (2+0) (R) Nominal Voltage (Un) 230VAC Maximum Operating Voltage (Uc) 320VAC Voltage Protection Level (Up) <1.5kV No of Poles 2 Category IEC / EN / VDE Class II / Type 2 Location of use Sub Distribution Boards Protection modes L/N-PE, High Energy MOV Additional Remote Contacts YES Protective element MOV Surge discharge rating Imax up to 40kA(8/20us) L/N-PE 320VAC Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$55.00
$64.90 inclGST -
FGS1-C/2-275-20, 275VAC 2 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA (max)
FGS1-C/2-275-20, 275VAC 2 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA Specifications Trent part number FGS1-C/2-275-20 Nominal Voltage 275VAC No of Poles 2 Category IEC / EN / VDE Class II, Type 2 Location of use Sub Distribution Board Protection modes L-N,L-L Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Standards IEC50539-11 Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$60.00
$70.80 inclGST -
FGS1-C/2-320-20, 320VAC 2 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA (max)
FGS1-C/2-320-20, 320VAC 2 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA Specifications Trent part number FGS1-C/2-320-20 Nominal Voltage 320VAC No of Poles 2 Category IEC / EN / VDE Class II, Type 2 Location of use Sub Distribution Board Protection modes L-N,L-L Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Standards IEC50539-11 Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$60.00
$70.80 inclGST -

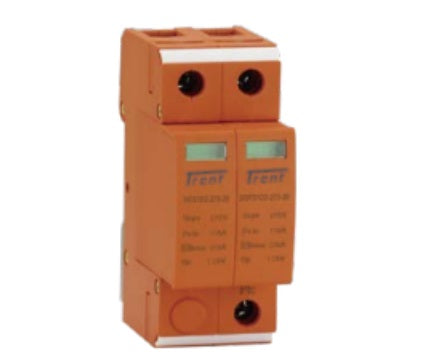

FGS1-C/2-385-20, 385VAC 2 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA (max)
FGS1-C/2-385-20, 385VAC 2 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA Specifications Trent part number FGS1-C/2-385-20 Nominal Voltage 385VAC No of Poles 2 Category IEC / EN / VDE Class II, Type 2 Location of use Sub Distribution Board Protection modes L-N,L-L Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Standards IEC50539-11 Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$60.00
$70.80 inclGST -
FGS1-C/2-440-20, 440VAC 2 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA (max)
FGS1-C/2-440-20, 440VAC 2 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA Specifications Trent part number FGS1-C/2-440-20 Nominal Voltage 440VAC No of Poles 2 Category IEC / EN / VDE Class II, Type 2 Location of use Sub Distribution Board Protection modes L-N,L-L Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Standards IEC50539-11 Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$60.00
$70.80 inclGST -
FGS1-C/3-275-20, 275VAC 3 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA (max)
FGS1-C/3-275-20, 275VAC 3 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA Specifications Trent part number FGS1-C/3-275-20 Nominal Voltage 275VAC No of Poles 3 Category IEC / EN / VDE Class II, Type 2 Location of use Sub Distribution Board Protection modes L-N,L-L Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Standards IEC50539-11 Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$90.00
$106.20 inclGST -
FGS1-C/3-320-20, 320VAC 3 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA (max)
FGS1-C/3-320-20, 320VAC 3 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA Specifications Trent part number FGS1-C/3-320-20 Nominal Voltage 320VAC No of Poles 3 Category IEC / EN / VDE Class II, Type 2 Location of use Sub Distribution Board Protection modes L-N,L-L Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Standards IEC50539-11 Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$90.00
$106.20 inclGST -

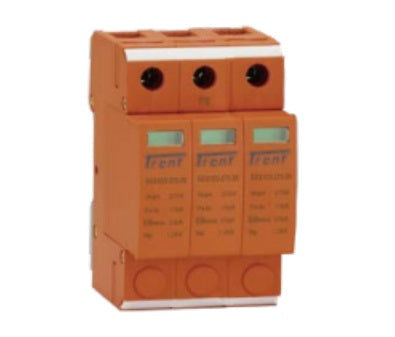

FGS1-C/3-385-20, 385VAC 3 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA (max)
FGS1-C/3-385-20, 385VAC 3 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA Specifications Trent part number FGS1-C/3-385-20 Nominal Voltage 385VAC No of Poles 3 Category IEC / EN / VDE Class II, Type 2 Location of use Sub Distribution Board Protection modes L-N,L-L Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Standards IEC50539-11 Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$90.00
$106.20 inclGST -
FGS1-C/3-440-20, 440VAC 3 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA (max)
FGS1-C/3-440-20, 440VAC 3 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA Specifications Trent part number FGS1-C/3-440-20 Nominal Voltage 440VAC No of Poles 3 Category IEC / EN / VDE Class II, Type 2 Location of use Sub Distribution Board Protection modes L-N,L-L Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Standards IEC50539-11 Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$90.00
$106.20 inclGST -

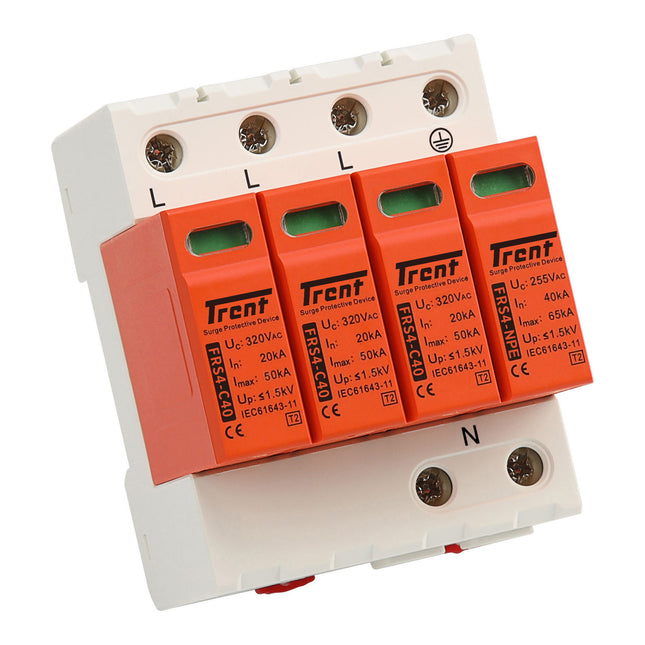

FRS4-C40 3P+N 230V (R), Class II/Type 2, AC Surge Protection Device (SPD) with Remote Contacts, 3 Pole In = 20/50kA L-N ,440VAC, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV Type
Trent FRS4-C40 3P+N 230V (R), Class II/Type 2, AC Surge Protection Device (SPD) with Remote Contacts, 3 Pole In = 20/50kA L-N, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV Type Specifications Trent part number FRS4-C40 3P+N 230V (R) Nominal Voltage (Un) 230VAC L-N, 400VAC L-L Maximum Operating Voltage (Uc) 320VAC L-N Voltage Protection Level (Up) <1.5kV No of Poles 3 + 1 Category IEC / EN / VDE Class II / Type 2 Location of use Sub Distribution Boards Protection modes L/N-PE, L-PEN, L-N, N-PE High Energy MOV Additional Remote Contacts YES Protective element MOV Surge discharge rating Imax up to 50kA(8/20us) L-N 320VAC / 65kA(8/20us) 255VAC N-PE Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$109.00
$128.62 inclGST -

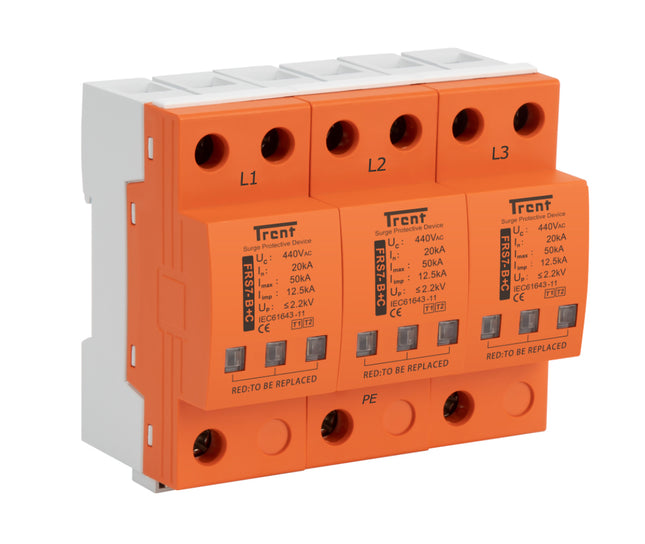

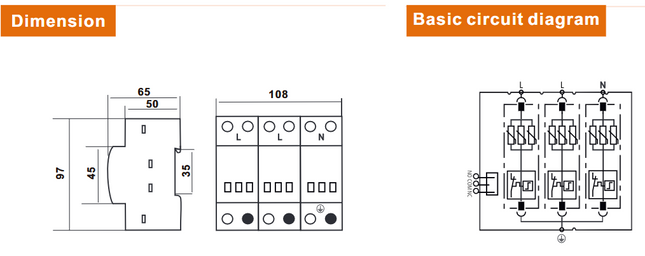

FRS7-B+C 37.5/440 (3+0), Class I,II / Type 1,2 / B,C, Surge Protection Device (SPD), 3 Pole 37.5kA (12.5kA per pole), 440VAC, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT
Trent FRS7-B+C 37.5/440 (3+0), Class I,II / Type 1,2 / B,C, Surge Protection Device (SPD), 3 Pole 37.5kA (12.5kA per pole), 440VAC, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT Specifications Trent part number FRS7-B+C 37.5/440 (3+0) Nominal Voltage (Un) L-L 400VAC Maximum Voltage (Uc) L-L 440VAC Voltage Protection Level (Up) <2.2kV No of Poles 3 Category IEC / EN / VDE Class I,II / Type 1,2 / B,C Location of use Main Distribution Boards Protection modes L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT Additional Remote Contacts YES Protective element MOV + GDT Surge discharge rating Imax up to 50 kA, or 12.5kA per pole Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$109.00
$128.62 inclGST
