AC Surge Protection Device (SPD) for AC
-

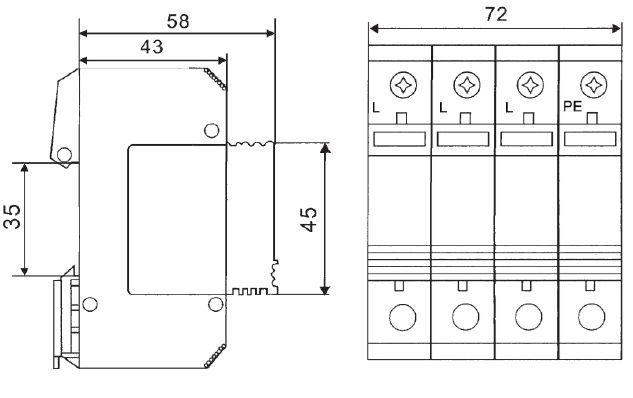

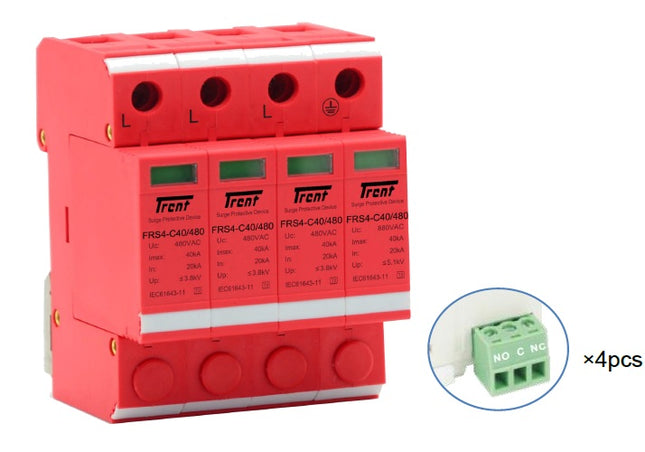

FRS4-C40/480VAC (R), 4 Pole, Uc = 480VAC L-L 960VAC, L-PE 1360VAC, Type 2 (Class II) Surge Protection Device In 20kA, Imax 40kA, Pluggable, With 4 x Remote Contacts
Trent FRS4-C40/480VAC (R),4 Pole, Uc = 480VAC L-L 960VAC, L-PE 1360VAC, Type 2 (Class II) Surge Protection Device In 20kA, Imax 40kA, Pluggable, With 4 x Remote Contacts Specifications Trent part number FRS4-C40 3P+N 480VAC (R) Nominal Voltage (Un) 480VAC Maximum Operating Voltage (Uc) L-L : 960 V AC ; L-PE : 880VAC Voltage Protection Level (Up) L-L: ≤ 3.8kV; L-PE: ≤ 5.1kV No of Poles 3 + 0 Category IEC / EN / VDE Class II / Type 2 Location of use Sub Distribution Boards Protection modes L-L L-PE, High Energy MOV Additional Remote Contacts YES (4x) Protective element MOV Surge discharge rating Imax up to 40kA(8/20us) L-PE/L-L 320VAC / 20kA(8/20us) L-PE/L-L Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$119.00
$140.42 inclGST -

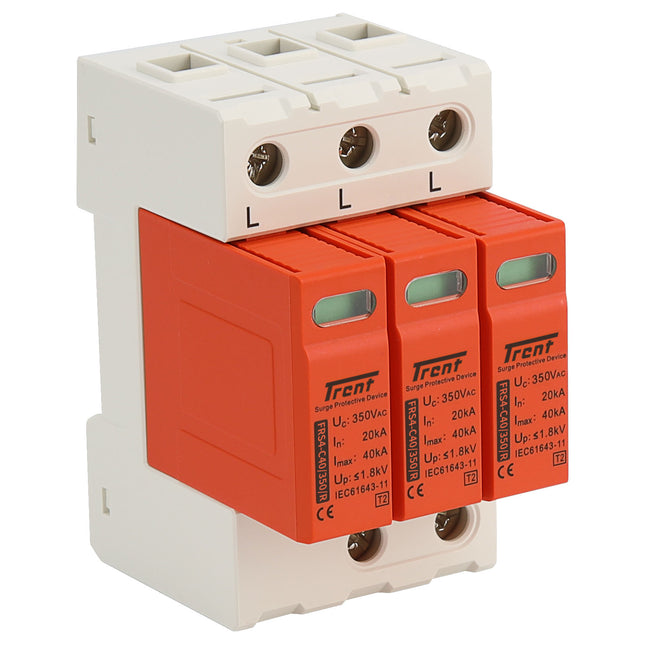

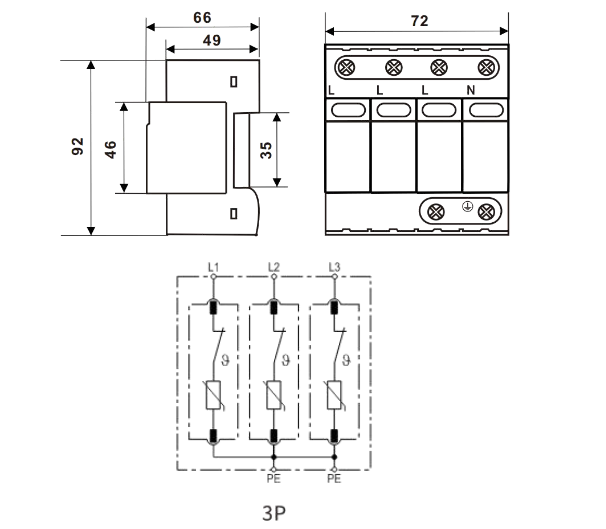

FRS4-C40/350VAC (R), 4 Pole, Un = 240VAC, Uc = 350VAC, Type 2 (Class II) Surge Protection Device In 20kA, Imax 40kA, Pluggable, With Remote Contacts
Trent FRS4-C40/350VAC (R), 4 Pole, Un = 240VAC, Uc = 350VAC, Type 2 (Class II) Surge Protection Device In 20kA, Imax 40kA, Pluggable, With Remote Contacts Specifications Trent part number FRS4-C40/350VAC (R) Nominal Voltage (Un) 240VAC Maximum Operating Voltage (Uc) 350VAC Voltage Protection Level (Up) <1.75kV No of Poles 4 Category IEC / EN / VDE Class II / Type 2 Location of use Sub Distribution Boards Protection modes L-L L-PE, High Energy MOV Additional Remote Contacts YES (1 x CO) Protective element MOV Surge discharge rating Imax up to 40kA(8/20us) L-PE/L-L 350VAC / 20kA(8/20us) L-PE/L-L Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$119.00
$140.42 inclGST -

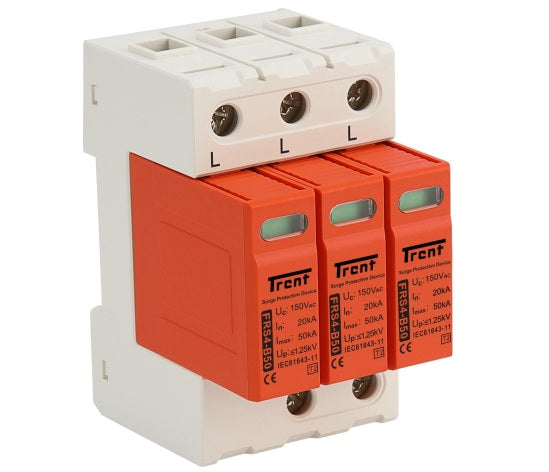

FRS4-B50/150/R 3P+N, 4 Pole, Un = 120VAC, Uc = 150VAC, Type 2 (Class II) Surge Protection Device In 20kA, Imax 50kA, Pluggable, With Remote Contacts
Trent FRS4-B50/150/R 3P+N, 4 Pole, Un = 120VAC, Uc = 150VAC, Type 2 (Class II) Surge Protection Device In 20kA, Imax 50kA, Pluggable, With Remote Contacts Specifications Trent part number FRS4-B50/150/R 3P+N Nominal Voltage (Un) 120VAC Maximum Operating Voltage (Uc) 150VAC Voltage Protection Level (Up) <1.25kV No of Poles 4 Category IEC / EN / VDE Class II / Type 2 Location of use Sub Distribution Boards Protection modes L-L, L-PE, High Energy MOV Additional Remote Contacts YES (1 x CO) Protective element MOV Surge discharge rating Imax up to 40kA(8/20us) L-PE/L-L 350VAC / 20kA(8/20us) L-PE/L-L Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$119.00
$140.42 inclGST -
FGS1-C/4-275-20, 275VAC 4 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA (max)
FGS1-C/4-275-20, 275VAC 4 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA Specifications Trent part number FGS1-C/4-275-20 Nominal Voltage 275VAC No of Poles 4 Category IEC / EN / VDE Class II, Type 2 Location of use Sub Distribution Board Protection modes L-N,L-L Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Standards IEC50539-11 Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$120.00
$141.60 inclGST -
FGS1-C/4-320-20, 320VAC 4 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA (max)
FGS1-C/4-320-20, 320VAC 4 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA Specifications Trent part number FGS1-C/4-320-20 Nominal Voltage 320VAC No of Poles 4 Category IEC / EN / VDE Class II, Type 2 Location of use Sub Distribution Board Protection modes L-N,L-L Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Standards IEC50539-11 Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$120.00
$141.60 inclGST -
FGS1-C/4-385-20, 385VAC 4 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA (max)
FGS1-C/4-385-20, 385VAC 4 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA Specifications Trent part number FGS1-C/4-385-20 Nominal Voltage 385VAC No of Poles 4 Category IEC / EN / VDE Class II, Type 2 Location of use Sub Distribution Board Protection modes L-N,L-L Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Standards IEC50539-11 Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$120.00
$141.60 inclGST -

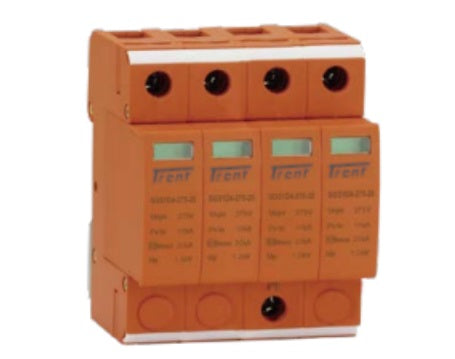

FGS1-C/4-440-20, 440VAC 4 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA (max)
FGS1-C/4-440-20, 440VAC 4 Pole Surge Protection Device for Sub Distribution Boards, Class II, Type 2, 40kA Specifications Trent part number FGS1-C/4-440-20 Nominal Voltage 440VAC No of Poles 4 Category IEC / EN / VDE Class II, Type 2 Location of use Sub Distribution Board Protection modes L-N,L-L Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Standards IEC50539-11 Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$120.00
$141.60 inclGST -
ISPRO C 120/275 (3+0), Class II / Type 2 / C, Modular Surge Protection Device (SPD) 3 Pole 40kA,275VAC, DIN Rail Mount. For Sub Distribution Boards
ISPRO C 120/275 (3+0),Class II / Type 2 / C, Modular Surge Protection Device (SPD) 3 Pole 40kA,275VAC, DIN Rail Mount. For Sub Distribution Boards Specifications Iskra Doo part number ISPRO C 120/275 (3+0) Nominal Voltage 275VAC No of Poles 3 (via 3 modules) Category IEC / EN / VDE Class II / Type 2 / C Location of use Sub Distribution Boards Additional Remote Contacts NO Protection modes L/N-PE Protective element MOV + GDT Surge discharge rating Imax up to 40 kA Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$129.00
$152.22 inclGST -
ISPRO BSR 25/440, Class I, II / Type 1,2 / B, C, Surge Protection Device (SPD) with Remote Contacts, 1 Pole 25kA,440VAC, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT
Iskra ISPRO BSR 25/440, Class I, II / Type 1,2 / B, C, Surge Protection Device (SPD) with Remote Contacts, 3 Pole 37.5kA,440VAC, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT Specifications Iskra Doo part number ISPRO BSR 25/440 Nominal Voltage 440VAC No of Poles 3 Category IEC / EN / VDE Class I,II / Type 1,2 / B,C Location of use Main Distribution Boards Protection modes L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT Additional Remote Contacts YES Protective element MOV + GDT Surge discharge rating Imax up to 25 kA Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$138.70
$163.67 inclGST -
T2 Protec T2-750-3+0-R, 750VAC Surge Protection Device for 600VAC Systems, Type 1, Type 2/Open Type 1CA, SPD Listed, with Remote Contact
Protec Protec T1-750-3+0-R, 750VAC Surge Protection Device for 600VAC Systems, Type 1, Type 2/Open Type 1CA, SPD Listed, with Remote Contact Specifications Raycap part number Protec Protec T2 Protec T2-750-3+0-R Nominal Voltage 750VAC (for 600VAC systems) No of Poles 3 Category IEC / EN / VDE Type 1, Type 2/Open Type 1CA SPD Listed Location of use Sub Distribution Boards Protection modes L-PEN Additional Remote Contacts YES Protective element MOV + GDT No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 20kA (10/350uS), 60kA(8/20uS) Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$152.00
$179.36 inclGST -

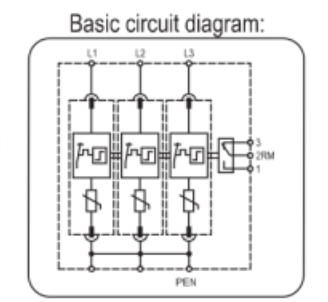

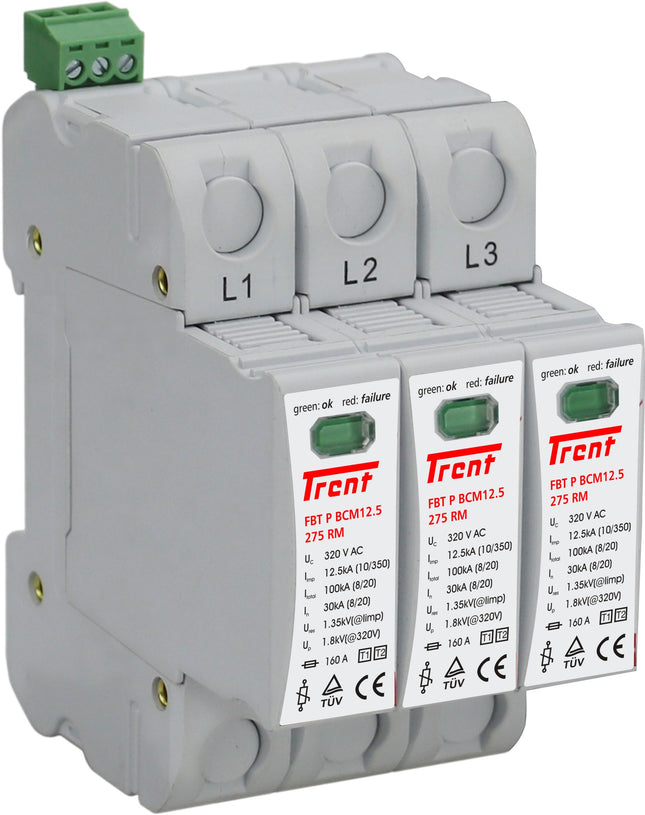

FBT P BCM12.5 275 RM (3+0), Class I,II / Type 1,2 / B,C, AC Surge Protection Device (SPD) with Remote Contacts, 3 Pole 37.5kA,440VAC, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV Type
Trent FBT P BCM12.5 275 RM (3+0), Class I,II / Type 1,2 / B,C, AC Surge Protection Device (SPD) with Remote Contacts, 3 Pole 37.5kA,440VAC, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV Type Specifications Trent part number FBT P BCM12.5 275 RM Nominal Voltage 440VAC No of Poles 3 Category IEC / EN / VDE Class I,II / Type 1,2 / B,C Location of use Main Distribution Boards Protection modes L/N-PE, L-PEN, L-N, N-PE High Energy MOV Additional Remote Contacts YES Protective element MOV Surge discharge rating Imax up to 37.5 kA(10/350us) / 100kA(8/20us) or 12.5kA(10/350us) / 60kA(8/20us) per pole Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$169.00
$199.42 inclGST -
FRS7-B+C 37.5/440 (3+0)R, Class I,II / Type 1,2 / B,C, Surge Protection Device (SPD), 3 Pole 37.5kA (12.5kA per pole), 440VAC, DIN Rail Mount, With Remote Contacts, L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT
Trent FRS7-B+C 37.5/440 (3+0)R, Class I,II / Type 1,2 / B,C, Surge Protection Device (SPD), 3 Pole 37.5kA (12.5kA per pole), 440VAC, DIN Rail Mount, With Remote Contacts, L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT Specifications Trent part number FRS7-B+C 37.5/440 (3+0)R Nominal Voltage (Un) L-L 400VAC Maximum Voltage (Uc) L-L 440VAC No of Poles 3 Voltage Protection Level (Up) < 2.2kV Category IEC / EN / VDE Class I,II / Type 1,2 / B,C Location of use Main Distribution Boards Protection modes L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT Additional Remote Contacts YES Protective element MOV + GDT Surge discharge rating Imax up to 50 kA, or 12.5kA per pole Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$169.00
$199.42 inclGST
