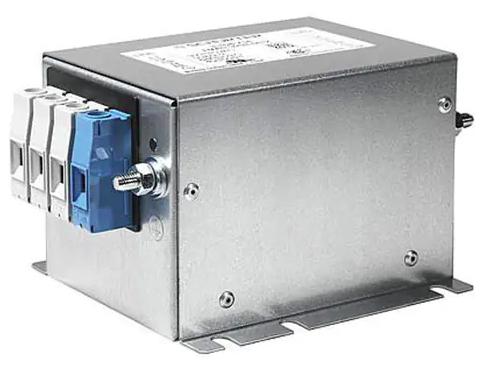

Schurter 3-108-716, 1 Stage 3 Phase + N EMC (RFI) Line Filter, 110 Amp, FMAD NEO, 520VAC, Very High Attenuation Features Line filter suitable for 3 Phase + N systems Wide Temperature Range Characteristics Designed for demanding applications Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated Suitable for use in equipment according to IEC/UL 60950 Line filter suitable for low current Inverter such as PV or battery storage systems Specification Schurter Part Number 3-108-716 Rated Voltage 520V 3 Phase Rated Current 110A Filter Stages 1 Stage Operating Temperature -40°C to 100°C Filter Type Very High Symmetrical and Asymmetrical Attenuation Leakage Current N/A Mounting Panel Mount - Case FF Material Metal Termination Style Screw Weight 2.5kg Factory Pack Qty 4 Protection Class Suitable for equipment according to IEC/UL 60950 Isolation 1.3 - 2.75kV VDE/UL/CSA/ROHS Yes Datasheet Product Datasheet

Read more less

Schurter 3-108-715, 1 Stage 3 Phase + N EMC (RFI) Line Filter, 80 Amp, FMAD NEO, 520VAC, Very High Attenuation Features Line filter suitable for 3 Phase + N systems Wide Temperature Range Characteristics Designed for demanding applications Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated Suitable for use in equipment according to IEC/UL 60950 Line filter suitable for low current Inverter such as PV or battery storage systems Specification Schurter Part Number 3-108-715 Rated Voltage 520V 3 Phase Rated Current 80A Filter Stages 1 Stage Operating Temperature -40°C to 100°C Filter Type Very High Symmetrical and Asymmetrical Attenuation Leakage Current N/A Mounting Panel Mount - Case FF Material Metal Termination Style Screw Weight 1.45kg Factory Pack Qty 4 Protection Class Suitable for equipment according to IEC/UL 60950 Isolation 1.3 - 2.75kV VDE/UL/CSA/ROHS Yes Datasheet Product Datasheet

Read more less

Schurter 3-108-712, 1 Stage 3 Phase + N EMC (RFI) Line Filter, 36 Amp, FMAD NEO, 520VAC, Very High Attenuation Features Line filter suitable for 3 Phase + N systems Wide Temperature Range Characteristics Designed for demanding applications Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated Suitable for use in equipment according to IEC/UL 60950 Line filter suitable for low current Inverter such as PV or battery storage systems Specification Schurter Part Number 3-108-712 Rated Voltage 520V 3 Phase Rated Current 36A Filter Stages 1 Stage Operating Temperature -40°C to 100°C Filter Type Very High Symmetrical and Asymmetrical Attenuation Leakage Current 0.5mA Mounting Panel Mount - Case FF Material Metal Termination Style Screw Weight 1.3kg Factory Pack Qty 4 Protection Class Suitable for equipment according to IEC/UL 60950 Isolation 1.3 - 2.75kV VDE/UL/CSA/ROHS Yes Datasheet Product Datasheet

Read more less

Schurter 3-110-816, 1 Stage 3 Phase + N EMC (RFI) Line Filter, 20 Amp, FMAD CP, 520VAC, Standard Attenuation, Low Leakage Features Schaffner FN 355-20-03 Drop In replacmeent Line filter suitable for 3 Phase systems Low Leakage Wide Temperature Range For ultra low leakage medical version see 3-110-820 (stocked) Characteristics Designed for standard applications Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated Suitable for use in equipment according to IEC/UL 60950 Line filter suitable for low current Inverter such as PV or battery storage systems Specification Schurter Part Number 3-110-816 Rated Voltage 520V 3 Phase Rated Current 20A Filter Stages 1 Stage Operating Temperature -40°C to 100°C Filter Type Very High Symmetrical and Asymmetrical Attenuation Leakage Current 0.5mA Mounting Panel Mount - Case FF Material Metal Termination Style Screw Weight 210g Factory Pack Qty 4 Protection Class Suitable for equipment according to IEC/UL 60950 Isolation 1.3 - 2.75kV VDE/UL/CSA/ROHS Yes Datasheet Product Datasheet Stocked Equivalent 3-110-82

Read more less
