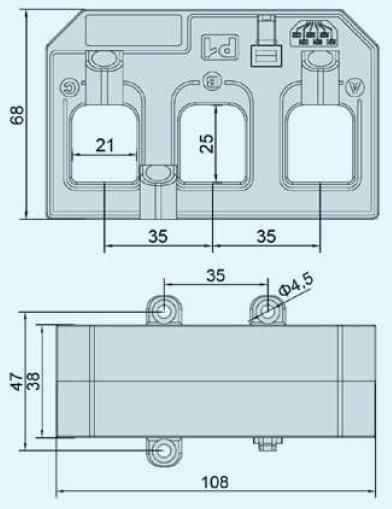

Eastron Europe ESCT-RJ335-125A/100mA, 3 Phase Current Transformer, Class 1, 0.5VA 125 Amp, 100mA Output, Panel Mount Features RJ12 EasyClick CT Connections to suit EasyClick SDM630MCT-ML Series 1M RJ12 Cable Supplied Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Eastron Part Number ESCT-RJ335-125A/100mA Technology 3 Phase AC Current Transformer Ratio 125/100mA Aperture Size 21 x 25mm VA Rating 0.5VA Accuracy Class Class 1 Output 100mAmp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 125Amp x 1.2 Termination Style RJ12 Unit Weight 450g Factory Pack Qty 9 Datasheet Product Datasheet

Read more less

Rishabh 3PH140-31(40) 500, Class 1 2.5VA 500 Amp, 5 Amp Output, 3 Phase Current Transformer, Panel Mount, Busbar Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number 3PH105-31(40) 500 Technology AC Current Transformer Ratio 500/5 Aperture Size 30 x 36mm VA Rating 2.5VA Accuracy Class Class 1 / Class 2 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 500Amp x 1.2 Termination Style Screw Unit Weight 1500g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Rishabh 3PH140-31(40) 400, Class 1 2.5VA 400 Amp, 5 Amp Output, 3 Phase Current Transformer, Panel Mount, Busbar Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number 3PH105-31(40) 400 Technology AC Current Transformer Ratio 400/5 Aperture Size 30 x 36mm VA Rating 2.5VA Accuracy Class Class 0.5  / Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 400Amp x 1.2 Termination Style Screw Unit Weight 1500g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Eastron Europe ESCT-RJ335-63A/100mA, 3 Phase Current Transformer, Class 1, 0.25VA 63 Amp, 100mA Output, Panel Mount Features RJ12 EasyClick CT Connections to suit EasyClick SDM630MCT-ML Series 1M RJ12 Cable Supplied Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Eastron Part Number ESCT-RJ335-63A/100mA Technology 3 Phase AC Current Transformer Ratio 63/100mA Aperture Size 21 x 25mm VA Rating 0.25VA Accuracy Class Class 1 Output 100mAmp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 65Amp x 1.2 Termination Style RJ12 Unit Weight 450g Factory Pack Qty 9 Datasheet Product Datasheet

Read more less

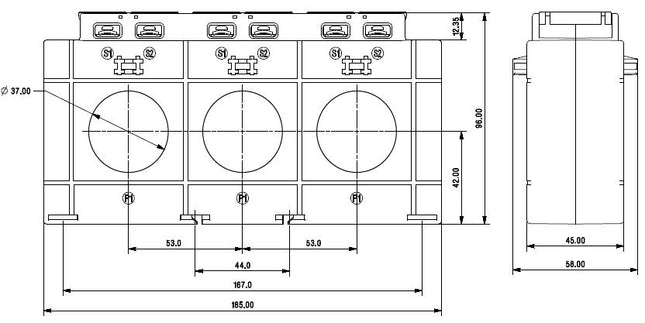

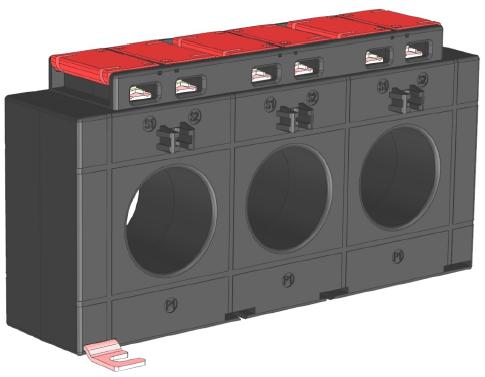

Rishabh 3PH185-37(45) 630, Class 1, 5VA 630 Amp, 5 Amp Output, 3 Phase Current Transformer, Panel Mount, Busbar Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number 3PH185-37(45) 630 Technology AC Current Transformer Ratio 630/5 Aperture Size ⌀37mm VA Rating 5VA Accuracy Class Class 1 / Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 630Amp x 1.2 Termination Style Screw Unit Weight 1500g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

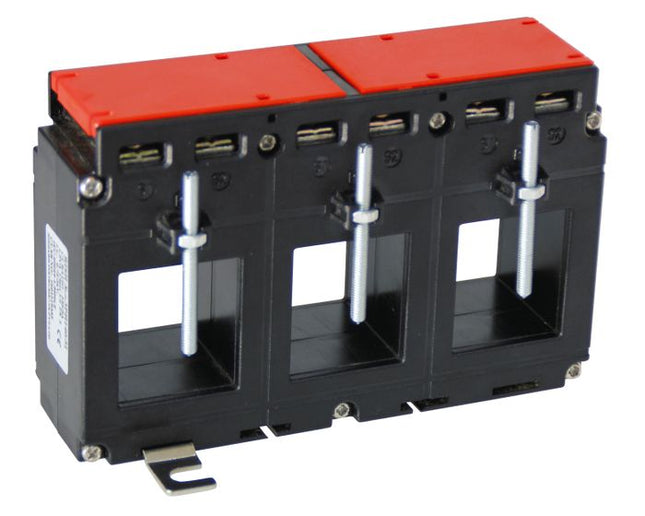

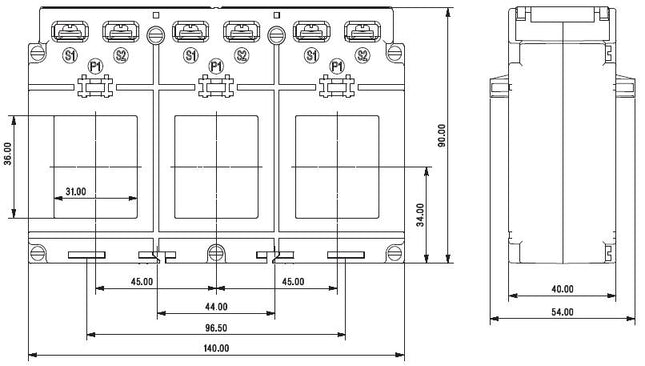

Rishabh 3PH140-31(40) 300, Class 1 2.5VA 300 Amp, 5 Amp Output, 3 Phase Current Transformer, Panel Mount, Busbar Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number 3PH105-31(40) 300 Technology AC Current Transformer Ratio 300/5 Aperture Size 30 x 36mm VA Rating 2.5VA Accuracy Class Class 0.5 / Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 300Amp x 1.2 Termination Style Screw Unit Weight 1500g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

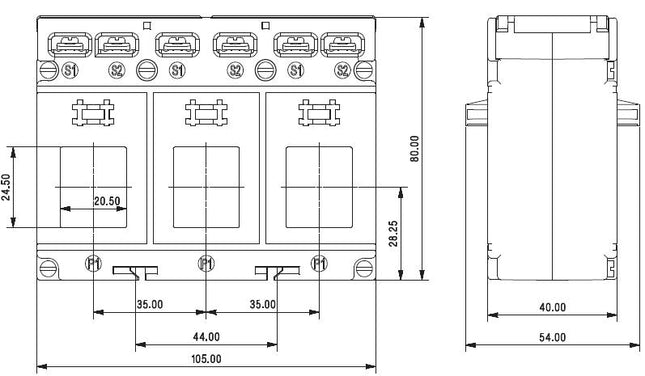

Rishabh 3PH105-21(40) 250, Class 1 1.5VA 250 Amp, 5 Amp Output, 3 Phase Current Transformer, Panel Mount, Busbar Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number 3PH105-21(40) 250 Technology AC Current Transformer Ratio 250/5 Aperture Size 20 x 24mm VA Rating 1.5VA Accuracy Class Class 0.5 , Class 1  Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 250Amp x 1.2 Termination Style Screw Unit Weight 1000g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

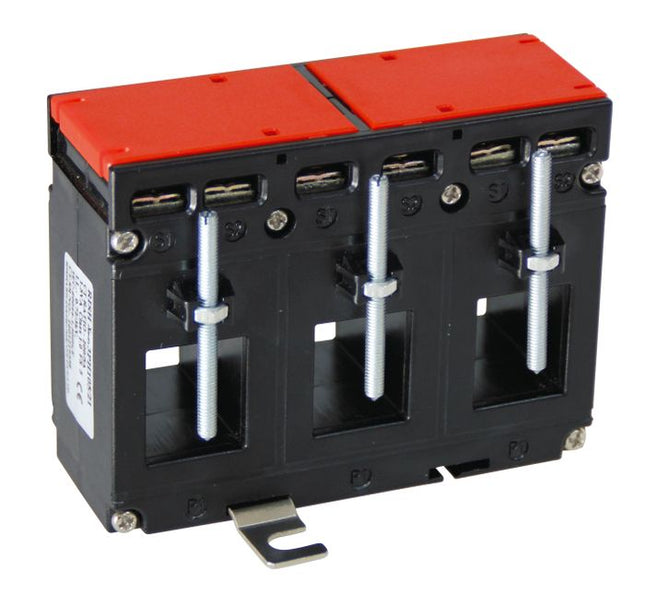

Rishabh 3PH105-21(40) 125, Class 1, 1.5VA 125 Amp, 5 Amp Output, 3 Phase Current Transformer, Panel Mount, Busbar Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number 3PH105-21(40) 125 Technology AC Current Transformer Ratio 125/5 Aperture Size 20 x 24mm VA Rating 1.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 125Amp x 1.2 Termination Style Screw Unit Weight 1000g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

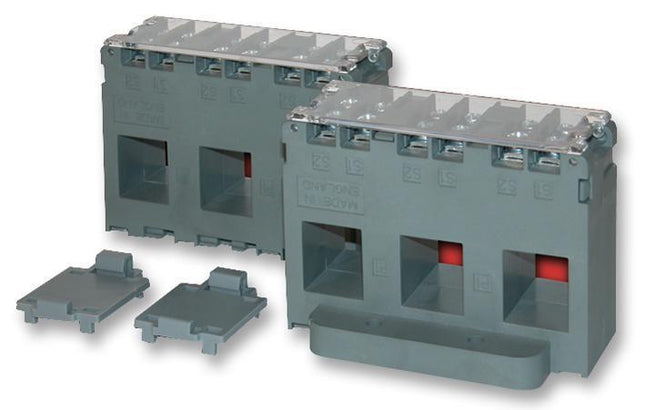

Hobut CT105F-250/5-2.5/1 Class 1, 2.5VA 250 Amp, 5 Amp Output, 3 Phase Current Transformer, With Feet Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Hobut Part Number CT105F-250/5-2.5/1 Technology AC Current Transformer Ratio 250/5 Aperture Size 21 x 25mm VA Rating 2.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Over Current (max) 250 Amp x 1.2 Termination Style Screw Unit Weight 450g Factory Pack Qty 9 Datasheet Product Datasheet

Read more less

Hobut CT105F-160/5-2.5/1 Class 1, 2.5VA 160 Amp, 5 Amp Output, 3 Phase Current Transformer, With Feet Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (45mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Hobut Part Number CT105F-160/5-2.5/1 Technology AC Current Transformer Ratio 160/5 Aperture Size 21 x 25mm VA Rating 2.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 160Amp x 1.2 Termination Style Screw Unit Weight 450g Factory Pack Qty 9 Datasheet Product Datasheet

Read more less

Hobut CT105D-100/5-2.5/1 Class 1, 2.5VA 100 Amp, 5 Amp Output, 3 Phase Current Transformer, Din Rail Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Hobut Part Number CT105D-100/5-2.5/1 Technology AC Current Transformer Ratio 100/5 Aperture Size 21 x 25mm VA Rating 2.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 100Amp x 1.2 Termination Style Screw Unit Weight 450g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Eastron Europe ESCT-RJ335-100A/100mA, 3 Phase Current Transformer, Class 1, 0.5VA 100 Amp, 100mA Output, Panel Mount Features RJ12 EasyClick CT Connections to suit EasyClick SDM630MCT-ML Series 1M RJ12 Cable Supplied Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Eastron Part Number ESCT-RJ335-100A/100mA Technology 3 Phase AC Current Transformer Ratio 100/100mA Aperture Size 21 x 25mm VA Rating 0.5VA Accuracy Class Class 1 Output 100mAmp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 125Amp x 1.2 Termination Style RJ12 Unit Weight 450g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less
