ESCT-RJ335-125A/100mA, 3 Phase Current Transformer, Class 1, 0.5VA 125 Amp, 100mA Output, Panel Mount
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

ESCT-RJ335-125A/100mA, 3 Phase Current Transformer, Class 1, 0.5VA 125 Amp, 100mA Output, Panel Mount

Secure
Available: Out of Stock
$69.50
$76.45 inclGST
This product: ESCT-RJ335-125A/100mA, 3 Phase Current Transformer, Class 1, 0.5VA 125 Amp, 100mA Output, Panel Mount
$69.50 6950 76.45 inclGST
SDM630MCT-4L, Quad 3 Phase DIN Rail Mount kWh Meter with Easyclick, 4 x 3 Phase or 12 x Single Phase, 240VAC aux, Class 1, 100mA RJ12 CT Connect, w/RS485 Modbus RTU Comms
$524.00 52400 576.4 inclGST
SDM630MCT-2L, Dual 3 Phase DIN Rail Mount kWh Meter with Easyclick, 2 x 3 Phase or 6 x Single Phase, 240VAC aux, Class 1, 100mA RJ12 CT Connect, w/RS485 Modbus RTU Comms
$284.00 28400 312.4 inclGST
$877.50 965.25 inclGST

Eastron Europe ESCT-RJ335-125A/100mA, 3 Phase Current Transformer, Class 1, 0.5VA 125 Amp, 100mA Output, Panel Mount

Features

  • RJ12 EasyClick CT Connections to suit EasyClick SDM630MCT-ML Series
  • 1M RJ12 Cable Supplied
  • Mounting Feet Supplied
  • Self Powered
  • Rated System Voltage 0.72/3kV
  • IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1

    Applications

    • Metering Equipment
    • Energy Monitoring
    • AC Power Control Systems
    • Power Factor Correction
    • Power Quality Measurements



    Eastron Europe ESCT-RJ335-125A/100mA, 3 Phase Current Transformer, Class 1, 0.5VA 125 Amp, 100mA Output, Panel Mount

    Features

    • RJ12 EasyClick CT Connections to suit EasyClick SDM630MCT-ML Series
    • 1M RJ12 Cable Supplied
    • Mounting Feet Supplied
    • Self Powered
    • Rated System Voltage 0.72/3kV
    • IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1

      Applications

      • Metering Equipment
      • Energy Monitoring
      • AC Power Control Systems
      • Power Factor Correction
      • Power Quality Measurements

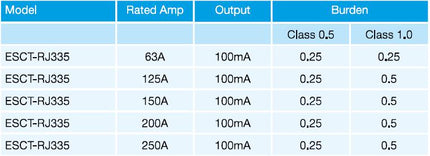

      Eastron Part Number ESCT-RJ335-125A/100mA
      Technology 3 Phase AC Current Transformer
      Ratio 125/100mA

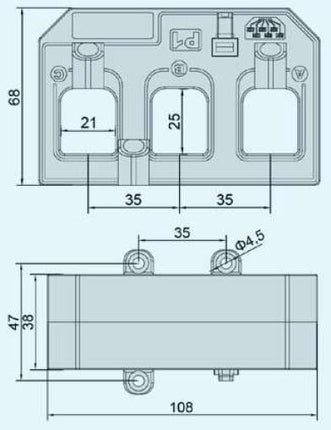

      Aperture Size 21 x 25mm
      VA Rating 0.5VA
      Accuracy Class Class 1
      Output 100mAmp AC (+20%)
      Isolation 3kV (AC, 50Hz, 1 min)
      Bandwidth 50-60Hz
      Mounting Style Panel Mount
      Operating Temperature Range -30°C / 85°C
      Continuous Current (max) 125Amp x 1.2
      Termination Style RJ12
      Unit Weight 450g
      Factory Pack Qty 9
