Rishabh 3PH185-37(45) 500, Class 1, 5VA 500 Amp, 5 Amp Output, 3 Phase Current Transformer, Panel Mount, Busbar Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number 3PH185-37(45) 500 Technology AC Current Transformer Ratio 500/5 Aperture Size ⌀37mm VA Rating 5VA Accuracy Class Class 1 / Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 500Amp x 1.2 Termination Style Screw Unit Weight 1500g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Rishabh 3PH185-37(45) 600, Class 1, 5VA 600 Amp, 5 Amp Output, 3 Phase Current Transformer, Panel Mount, Busbar Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number 3PH185-37(45) 600 Technology AC Current Transformer Ratio 600/5 Aperture Size ⌀37mm VA Rating 5VA Accuracy Class Class 1 / Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 600Amp x 1.2 Termination Style Screw Unit Weight 1500g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Rishabh 3PH105-21(40) 150, Class 1, 1.5VA 125 Amp, 5 Amp Output, 3 Phase Current Transformer, Panel Mount, Busbar Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number 3PH105-21(40) 150 Technology AC Current Transformer Ratio 150/5 Aperture Size 20 x 24mm VA Rating 1.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 150Amp x 1.2 Termination Style Screw Unit Weight 1000g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Rishabh 3PH185-37(45) 800, Class 1, 5VA 800 Amp, 5 Amp Output, 3 Phase Current Transformer, Panel Mount, Busbar Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number 3PH185-37(45) 800 Technology AC Current Transformer Ratio 800/5 Aperture Size ⌀37mm VA Rating 5VA Accuracy Class Class 1 / Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 800Amp x 1.2 Termination Style Screw Unit Weight 1500g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Rishabh 3PH140-31(40) 250, Class 1 2.5VA 250 Amp, 5 Amp Output, 3 Phase Current Transformer, Panel Mount, Busbar Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number 3PH140-31(40) 250 Technology AC Current Transformer Ratio 250/5 Aperture Size 30 x 36mm VA Rating 1.5VA/2.5VA Accuracy Class Class 0.5 1.5VA, Class 1 2.5VA Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 250Amp x 1.2 Termination Style Screw Unit Weight 1500g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

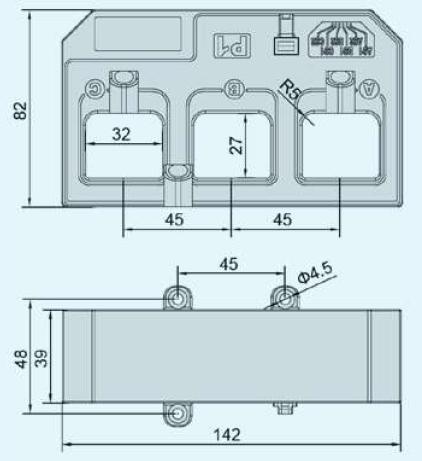

Eastron Europe ESCT-RJ345-630A/100mA, 3 Phase Current Transformer, Class 1, 0.5VA 630 Amp, 100mA Output, Panel Mount Features RJ12 EasyClick CT Connections to suit EasyClick SDM630MCT-ML Series 1M RJ12 Cable Supplied Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Eastron Part Number ESCT-RJ345-630A/100mA Technology 3 Phase AC Current Transformer Ratio 630/100mA Aperture Size 27 x 32mm VA Rating 0.5VA Accuracy Class Class 1 Output 100mAmp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 630Amp x 1.2 Termination Style RJ12 Unit Weight 1.6kg Factory Pack Qty 9 Datasheet Product Datasheet

Read more less

Eastron Europe ESCT-RJ345-500A/100mA, 3 Phase Current Transformer, Class 1, 0.5VA 500 Amp, 100mA Output, Panel Mount Features RJ12 EasyClick CT Connections to suit EasyClick SDM630MCT-ML Series 1M RJ12 Cable Supplied Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Eastron Part Number ESCT-RJ345-500A/100mA Technology 3 Phase AC Current Transformer Ratio 500/100mA Aperture Size 27 x 32mm VA Rating 0.5VA Accuracy Class Class 1 Output 100mAmp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 500Amp x 1.2 Termination Style RJ12 Unit Weight 1.6kg Factory Pack Qty 9 Datasheet Product Datasheet

Read more less

Eastron Europe ESCT-RJ345-400A/100mA, 3 Phase Current Transformer, Class 1, 0.5VA 400 Amp, 100mA Output, Panel Mount Features RJ12 EasyClick CT Connections to suit EasyClick SDM630MCT-ML Series 1M RJ12 Cable Supplied Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Eastron Part Number ESCT-RJ345-400A/100mA Technology 3 Phase AC Current Transformer Ratio 400/100mA Aperture Size 27 x 32mm VA Rating 0.5VA Accuracy Class Class 1 Output 100mAmp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 400Amp x 1.2 Termination Style RJ12 Unit Weight 1.6kg Factory Pack Qty 9 Datasheet Product Datasheet

Read more less

Eastron Europe ESCT-RJ345-300A/100mA, 3 Phase Current Transformer, Class 1, 0.5VA 300 Amp, 100mA Output, Panel Mount Features RJ12 EasyClick CT Connections to suit EasyClick SDM630MCT-ML Series 1M RJ12 Cable Supplied Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Eastron Part Number ESCT-RJ345-300A/100mA Technology 3 Phase AC Current Transformer Ratio 300/100mA Aperture Size 27 x 32mm VA Rating 0.5VA Accuracy Class Class 1 Output 100mAmp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 300Amp x 1.2 Termination Style RJ12 Unit Weight 1.6kg Factory Pack Qty 9 Datasheet Product Datasheet

Read more less

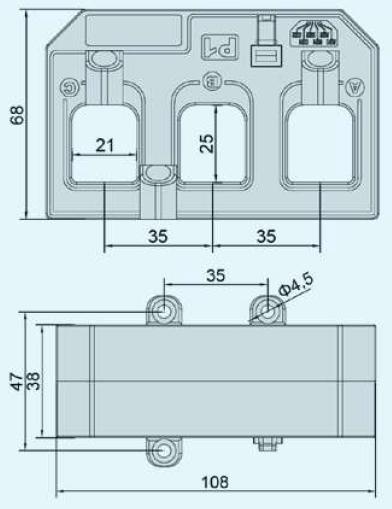

Eastron Europe ESCT-RJ335-250A/100mA, 3 Phase Current Transformer, Class 1, 0.5VA 250 Amp, 100mA Output, Panel Mount Features RJ12 EasyClick CT Connections to suit EasyClick SDM630MCT-ML Series 1M RJ12 Cable Supplied Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Eastron Part Number ESCT-RJ335-250A/100mA Technology 3 Phase AC Current Transformer Ratio 250/100mA Aperture Size 21 x 25mm VA Rating 0.5VA Accuracy Class Class 1 Output 100mAmp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 250Amp x 1.2 Termination Style RJ12 Unit Weight 650g Factory Pack Qty 9 Datasheet Product Datasheet

Read more less

Eastron Europe ESCT-RJ335-200A/100mA, 3 Phase Current Transformer, Class 1, 0.5VA 200 Amp, 100mA Output, Panel Mount Features RJ12 EasyClick CT Connections to suit EasyClick SDM630MCT-ML Series 1M RJ12 Cable Supplied Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Eastron Part Number ESCT-RJ335-200A/100mA Technology 3 Phase AC Current Transformer Ratio 200/100mA Aperture Size 21 x 25mm VA Rating 0.5VA Accuracy Class Class 1 Output 100mAmp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 200Amp x 1.2 Termination Style RJ12 Unit Weight 650g Factory Pack Qty 9 Datasheet Product Datasheet

Read more less
