Crydom DC60S3-B, NORMALLY CLOSED Solid State Relay, DC 3-32VDC control, 3A, 60VDC Load Features Ratings from 3A to 40 Amp @ 3-60VDC Transistor output UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number DC60S3-B Switching Type DC Load ROHS Yes (Details) Control Voltage 3-32VDC Load Current 3 Amp DC Surge Capability (10ms) 6 Amp DC Special Feature Normally Closed Mounting Style Panel Mount Load Voltage Range 3 - 60VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20 Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here Equivalent See D1D40K with raised terminals (Gen 3) for alternative or DC60S7, D1D20, D1D40, D1D80 for higher current alternatives App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom DC60S5-B, NORMALLY CLOSED Solid State Relay, DC 3-32VDC control, 5A, 60VDC Load Features Ratings from 3A to 40 Amp @ 3-60VDC Transistor output UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number DC60S5-B Switching Type DC Load ROHS Yes (Details) Control Voltage 3-32VDC Load Current 5 Amp DC Surge Capability (10ms) 10 Amp DC Special Feature Normally Closed Mounting Style Panel Mount Load Voltage Range 3 - 60VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20 Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here Equivalent See D1D40K with raised terminals (Gen 3) for alternative or DC60S7, D1D20, D1D40, D1D80 for higher current alternatives App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Electronicon E50.S29-435NTO 4320uF 700VDC, DC Link, 120Amp, H:295mm x D:136mm, M12 Mounting Stud, M6 Terminals, MOQ = 50pcs Characteristics and utility 4320uF, 700VDC0.0kvar 20kvar DC Link Film Capacitor Connector type - Stud inserts Indoor mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E50.S29-435NTO 4320uF 700VDC Technology DC Link Dimensions H:295mm x D:136mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 700VDC Inom 120 Amps Capacitance 4320uF Tolerance On Capacitance +/- 10% Lifetime 200,000 Hours Termination Style M6 Screw Inserts Unit Weight 4.6kg Factory Pack Quantity 2   Datasheet Product Datasheet (page 9)

Read more less

Infineon DDB6U145N16L, 3 Phase Diode Rectifier Bridge, 145 Amp, 1600V, 42 x 94mm Package Features Package with DCB ceramic base plate Isolation voltage 3600 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Infineon Part Number DDB6U145N16L AC Line voltage 533V Device Configuration Three Phase Half Controlled Rectifier Bridge DC Output @ 100 Deg C 145 Amp Package Size W:94mm L:42mm D:30mm Itsm 1200 A VF(to) 0.75V Tj(max) 150°C rF 3.1mΩ Terminals M5 (4Nm) Hole Centres 68mm (M5) Gate Terminals N/A R th(j-c) 0.148°C/W R th(c-h) 0.33°C/W Weight 220g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD192T/16 for alternative

Read more less

Fastron Electronics GT-AAO(0-1.5)-D-1, Signal Isolator/AC Current Transducer 0-1.5 Amp AC Average RMS input, 22-60VAC/DC aux, 4-20mA output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GT-AAO(0-1.5)-D-1 Control Output 4-20mA Average RMS Input 0-1.5 Amp Rms Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 22 - 60VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Replacement for Omron E5C2-R20KAC100-240 0-200, DIN-sized (48 x 48 mm) Temperature Controller with Analogue Dial Setting, Type K Thermocouple 0-200°C, 240VAC, 50/60Hz Product Datasheet

Read more less

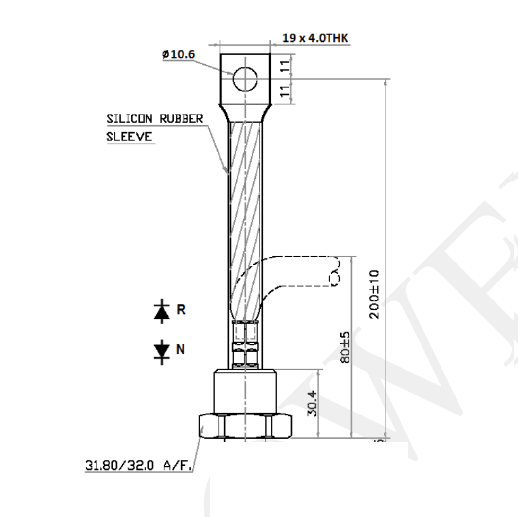

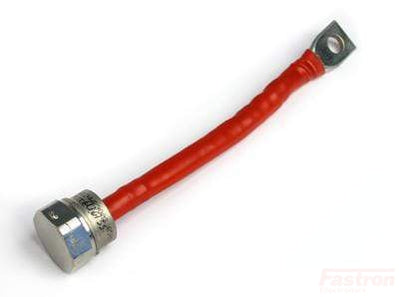

MSD401R16FB-NEW, Rectifier Diode 400 Amp, 1600V, NEW TYPE MSD403 with GROUIND and MIlled Flat Base, Anode Base Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD401R16FB-NEW Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C IF(av) @ 125 Deg C 400 Amp Itsm 7.4 kA VF(to) 0.75V Tj(max) 180°C rF 0.35mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) Flat Base Ground ad milled stud from MSD403 as per drawing Tail Length to Base 245mm R th(j-c) 0.125°C/W R th(c-h) 0.05°C/W Weight 250g Mounting Torque 20 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

MS Power MST400S16MB, Thyristor (SCR) 1600VAC, 400Amp, M24 x 1.5P Solder Bonded type, Anode to stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MST400S16MB Special Feature Solder Bonded Vrrm 1600V SCR Configuration Anode Stud IF(av) @ Tc = 70 Deg C 400 Amp Itsm 9 kA VF(to) 0.85V I(gt) 200mA Tj(max) 125°C rF 0.60mΩ Termination Style (Tail) 11mm Round Lug Termination Style (Stud) M24 x 1.5P Tail Length to Stud 255mm R th(j-c) 0.088°C/W R th(c-h) 0.04°C/W Weight 520g Mounting Torque 2.5 - 2.7 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

Westcode-IXYS-Littlefuse MCC56-16io1B, Dual Thyristor (SCR) Module, 56 Amp, 1600V Features Package with DCB ceramic Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Westcode-IXYS-Littlefuse Part Number MCC56-16io1B Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 60 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 1.5 kA VF(to) 0.85V Tj(max) 125°C rF 3.7mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.45°C/W R th(c-h) 0.2°C/W Weight 85g Mounting Torque 3.25 Nm (3.25 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS IXYS Headquarters United States Datasheet Product Datasheet Alternatives See VSKT56/14 for Vishay replacement.

Read more less

Gigavac Contactor HX21CAC, Contactor SPST-NO 350 AMP, 1500VDC, 24VDC Coil, 38cm Flying leads, with SPST-NC Auxiliary Contact Continuous Duty, IP67, IP69 Features Hermetically Sealed (Patented) UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 IP69 SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Integrated safety cover Specification Gigavac Part Number HX21CAC Main Contact Type SPST-NO Auxiliary Contact Type SPST-NC Coil Voltage 24VDC Load Current 350+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 4.3kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 1000VDC Standards UL1604, IP67, IP69 Termination Style M8 Unit Weight 440g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Advanced Energy 8.000.006.763, Din Rail Mount Adaptor for Thyro A1A, Thyro S1S, 16 Amp and 30 Amp models only Optional Din Rail Adaptor for Din Rail Mounting of 16 A,mp and 30 Amp THyro A1A and Thyro S1S Models Datasheet Product Datasheet

Read more less

Semikron SKKT106/18E, Dual Thyristor Module, 105 Amp, 1800V, with Aux Cathode Connection Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Semikorn Part Number SKKT106/18E Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 105 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Faston A2.8 x 0.8mm (with Aux Cathode ) Weight 110g Mounting Torque 5 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin Hungary   Datasheet Datasheet Alternatives See VSKT105/16 TT92N16K or TT104N14K for Infineon Pressure Contact Alternative, or for IXYS solder bonded Alternative MCC95-16

Read more less
