Crydom D1D80, 3-32VDC Input, 100V, 80Amp DC Output Solid State Relay Features Ratings from 7A to 100 Amp @ 100-500VDC Mosfet output for reliable DC switching Multiple modules can be wired in parallel for higher currents UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number D1D80 Switching Type DC Load ROHS Yes (Details) Control Voltage 3.5-32VDC Load Current 80 Amp DC Surge Capability (10ms) 220 Amp DC Special Feature None Mounting Style Panel Mount Load Voltage Range 0 - 100VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20 Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

IP55 Cover for 72x72 Controllers

Read more less

Taisuo TMD-N7611 PID Controller, 100-240VAC with 1 Alarm, RS485, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and  PT100/Cu20 RTD Input, 72x72mm, SCR Trigger Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Taisuo Part Number TMD-N7611 Control Output SCR/AC Switch Trigger (Single Phase)  Input Multirange Type,E,J,N,T,S,R,B, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 1 Alarm Mounting Style 72x72mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 250ms Weight 150-270g Factory Pack Qty 1   Datasheet FC5 Datasheet and User Manual

Read more less

Crydom CKRD4830, Solid State Relay, Single Phase 3.5 - 32VDC Control, 30A, 48-530VAC Load, Din Rail Features Ratings from 10A to 30 Amp @ 48-530 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number CKRD4830 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 4 - 32VDC Load Current 30 Amp (rms) @ 25 Deg C Ambient, 25.5 Amp (rms) @ 40 Deg C Ambient Surge Capability 1200 Amp (peak) Special Feature None Mounting Style DIN Rail Mount Load Voltage Range 48 - 530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 280g Factory Pack Qty 20   Datasheet Product Datasheet Alternatives Contactor Style DR2260D35V App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Fastron Electronics AM5H-A-A-V6-D-NVN, 96x48mm Digital Voltmeter 0-300VAC with 0-10V output, 22-60VAC/DC Aux Digital Panel Meter & Transmitter, 5 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 5 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 0-10V output (for voltage output type) Each unit needs just 96 x 48mm Panel Space 90mm Depth Specification Fastron Electronics Part Number AM5H-A-A-V6-D-NVN Conditioner Output 0-10V (Average RMS) Input 0 - 300VAC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Display Type 5 Digit RED LED Termination Style Screw Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Fastron Electronics FESCT-055-150-5-IP65, 150Amp Measurement, 5 Amp Output Split Core CT's, Class 1, w/10M Flying leads, ø 55mm Aperture Features Quick Release Split Core System 10m Flying Leads ø 55mm Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurement, 5 Amp Outputs   Specification Fastron Electronics Part Number FESCT-055-150-5-IP65 Technology Split Core AC Current Transformer Ratio 150/5A Aperture Size ø 55mm VA Rating 2.5VA Accuracy Class Class 1 Output 5 Amp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Dimensions 180x138x52mm Mounting Style Panel Mount Operating Temperature Range -35°C / 55°C Continuous Current (max) 150Amp x 1.2 Termination Style 10M Twisted Pair 0.34mm^2 Unit Weight 2000g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Fastron Electronics FESCT-055-300-5-IP65, 300Amp Measurement, 5 Amp Output Split Core CT's, Class 1, w/10M Flying leads, ø 55mm Aperture Features Quick Release Split Core System 10m Flying Leads ø 55mm Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurement, 5 Amp Outputs   Specification Fastron Electronics Part Number FESCT-055-300-5-IP65 Technology Split Core AC Current Transformer Ratio 300/5A Aperture Size ø 55mm VA Rating 2.5VA Accuracy Class Class 1 Output 5 Amp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Dimensions 180x138x52mm Mounting Style Panel Mount Operating Temperature Range -35°C / 55°C Continuous Current (max) 300Amp x 1.2 Termination Style 10M Twisted Pair 0.34mm^2 Unit Weight 2000g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

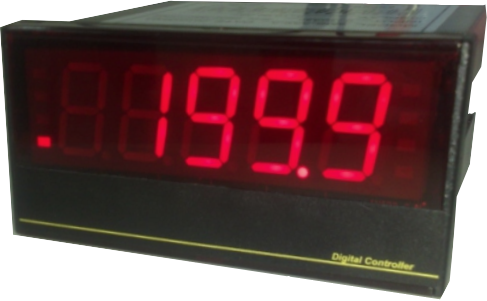

Fastron Electronics AMB-D-V7-D-N, 96x48mm DC Voltmeter, Panel Mount, 0-600V DC Input, 24-60VDC supply, Large 4.1 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 90mm Depth CE Approved Specification Fastron Electronics Part Number AMB-D-V7-D-N Conditioner Output N/A Input 600VDC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 22-60VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

Crydom CKRD2430P, Solid State Relay, Single Phase 4-32VDC Control, 30A, 24-280VAC Load, w/Varistor, Din Rail Features • Ratings from 10A to 30 Amp @ 24-280 VAC • SCR output for heavy industrial loads • Zero voltage or instantaneous turn-on outputs • UL/CSA/VDE Approved, CE Compliant to EN60950-1 • Improved SEMS screw and washer • Redesigned housing with anti-rotation barriers • AC & DC control types • Direct bond copper substrate • EMC compliant to Level 3 • Direct power lead frame • Epoxy free design Spec Crydom Part Number CKRD2430P Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 4-32VDC Load Current 30 Amp (rms) @ 25 Deg C Ambient, 25.5 Amp (rms) @ 40 Deg C Ambient Surge Capability 1200 Amp (peak) Special Feature Varistor for Overvoltage Protection Mounting Style DIN Rail Mount Load Voltage Range 24-280VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 280g Factory Pack Qty 20   Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Fastron Electronics BTCR/R-M-A2-DR, PID Controller 48x96mm, 85-265VAC, Relay Output, Relay Cooling Output, 2 Alarms, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Dust-proof IP56 (front panel only) Optional 32-step pattern (for SV and time) is a standard feature CE Approved Each unit needs just 80 mm depth panel space Specification Fastron Electronics Part Number BTCR/R-M-A2-DR Control Output Relay 3 Amp (Resistive) Input Multirange TC/RTD/4-20mA (Optional Linear voltage/current other than 4-20mA. Refer to datasheet) Option 1 2nd Alarm Option 2 Relay Cooling Mounting Style 48 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 450g Factory Pack Qty 1 Yes UL Yes CE Yes   Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCR/R-M-A3-EI, PID Controller 48x96mm, 85-265VAC, Relay Output 2 Alarms, Event input (2xSV ), Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Dust-proof IP56 (front panel only) Optional 32-step pattern (for SV and time) is a standard feature CE Approved Each unit needs just 80 mm depth panel space Specification Fastron Electronics Part Number BTCR/R-M-A3-EI Control Output Relay 3 Amp (Resistive) Input Multirange TC/RTD/4-20mA (Optional Linear voltage/current other than 4-20mA. Refer to datasheet) Option 1 2nd and 3rd Alarm Option 2 Event Input (2 x SV) Mounting Style 48 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 450g Factory Pack Qty 1 Yes UL Yes CE Yes   Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Eastron Europe DCM230 1-1-1-1 V2, DIN Rail Mount DC kWh Meter, 1000VDC, 85-265VAC aux, Class 1, 45/60/75mV Shunt Connect, w/ 1 x pulse outputs and RS485 Modbus RTU Comms, Single Tariff, MID Approved 45/60/75mV Shunt Connect RS 485 communication up to 38,400 bit/s as standard 1 x Pulse Outputs (1 Configurable) Bidirectional Measurement   The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records DC Current and Voltage (DC Power) value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, energy, power) from the measured signals.   Features : Accuracy class 1 Measurement of Active and Reactive Power Modbus RTU communication up to 38,400 bit/s communication Pulse output as standard Graphic LCD with illumination Specification Eastron Europe Part Number DCM230 1-1-1-1 V2 Functions DC Energy Meter Supply Voltage 85-265VAC Nominal Measurement Range 5-300VDC,5-600VDC,5-1000VDC (See version 1 Maximum Measurement Range 5-1000VDC Nominal Current Input Shunt up to 2000Amp See our DC Current Shunt Section for Suitable Shunt Pulse Output 1 x Configurable 60/100/200ms Tariff Input N/A Accuracy Class 1 (I,U,kW,kWh) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 36mm x 100mm x 66mm (2 modules wide) Isolation 4kV RS485 2400-38400 b/s Weight 250g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Safety IP51(Indoor) Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Enclosure Size DIN 42880 4 Modules Operating Temperature -20 →+70 °C   Documents Product Datasheet User Manual Modbus Utility EEM Meter Setting Software Utility

Read more less
