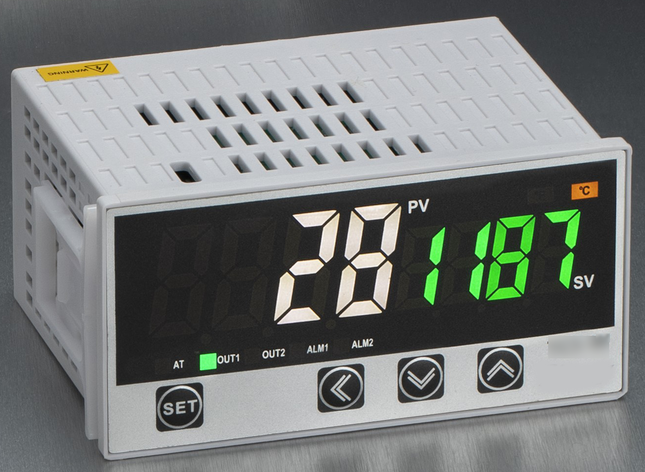

Fastron FC5-W-W-2-A-2 PID Controller 100-240VAC, with 2 Relay Alarms, 4-20mA Input, 96x48mm, Relay + 12VDC Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-W-W-2-A-2 Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)/ 12VDC @20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 Relay Alarms standard (Excludes 96x48mm with SSR/Relay output) Mounting Style 96x48mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet Datasheet User Manual Modbus Protocol FC5 Communication Protocol

Read more less

Fastron FC5-H-W-2-G-2, 100-240VAC PID Controller with 2 Relay Alarms, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x96mm,Relay + 12VDC Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-H-W-2-G-2 Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)/12VDC @ 20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 Relay Alarms standard (Excludes 48x96mm with SSR/Relay output) Mounting Style 48x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10 Approvals CE   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

Fastron FC5-W-S-2-G-4 PID Controller, 24VDC with 2 x Relay Alarms, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 96x48mm,Relay + 12VDC Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-W-S-2-G-4 Control Output 12VDC @ 20mA Input Multirange K,E,J,N,T,S,R,B Thermocouple, PT100/Cu20 RTD Input/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 2 x Relay Alarms standard (Excludes 96x48mm with SSR/Relay output) Mounting Style 96x48mm Panel Mount Supply Voltage 24VDC +/-15% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet Datasheet User Manual Modbus Protocol FC5 Communication Protocol

Read more less

Fastron FC5-S-1A-2-G-2 PID Controller, 100-240VAC with 2 Relay Alarms, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x48mm,4-20mA Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-S-1A-2-G-2 Control Output 4-20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 Relay Alarms standard (Excludes 48x48mm with SSR/Relay output) Mounting Style 48 x 48mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet Datasheet User Manual Modbus Protocol FC5 Communication Protocol

Read more less

Fastron FC5-S-W-1-G-2, 100-240VAC PID Controller with 1 Alarm, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and  PT100/Cu20 RTD Input, Relay + 12VDC Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-S-W-1-G-2 Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)/SSR 12VDC @20mA Input Multirange Type K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input Option 1 1 Alarm standard Mounting Style 48 x 48 Panel Mount Supply Voltage 100-240VAC +/-15% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet Datasheet User Manual Modbus Protocol FC5 Communication Protocol

Read more less

E62.L95-253G10, 25uF, 65 x 95mm Heavy Duty AC Film Power Capacitor w/Stud -25 to 85 °C 200,000 hrs, 850VAC/1200VDC Characteristics and utility 25uF 640VAC/1000VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.L95-253G10 Technology Metalized Polypropylene Film Capacitor Dimensions ø65 x 95mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 850VAC/1200VDC Operating Temperature Range -25 to 85 °C Capacitance 25uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M6 x 12 studs Unit Weight 0.18kg Factory Pack Quantity 21 (MOQ = 105)   Datasheet Product Datasheet

Read more less

Fastron FTH6053ZD3, Solid State Relay, 3 Phase 3-32VDC Control, 60A, 70-530VAC Load, with IP20 Cover Ratings from 25 to 120 Amp @ 70-480 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs IP20 Cover Included AC & DC control types Direct bond copper substrate Direct power lead frame Includes IP20 Cover Specification Fastron Part Number FTH6053ZD3 Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC Load Current 60 Amp (rms) per Phase Surge Capability 630 Amp (peak) Special Feature LED Status Indicator, with IP20 Cover Mounting Style Panel Mount Load Voltage Range 70-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 315g Factory Pack Qty 10   Datasheet Product Datasheet Equivalent Parts Contact Us for Possible Replacement

Read more less

Semikron SKM200GB125D, IGBT Half Bridge, 200 Amp, 1200V Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 61.4mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SKM200GB125D Vces 1200V Transistor Configuration Single IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 160 Amp Package Size W:61.4mm L:106mm D:26mm V(isol) 2.5 kV Vf @ 25 Deg C Tj(max) 150°C Td(on) @ 25 Deg C 0.220uS Td(off) @ 25 Deg C 0.600uS I(ces) @ 25 Deg C 0.1mA Rcc 1mOhm Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Faston 2.8 x 0.5mm R th(j-c) R th(c-h) 0.018°C/W Weight 325g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany   Datasheet Product Datasheet

Read more less

Semikron SKKD162/18, Dual Diode Module, 195 Amp, 1800V, 34mm package Features Direct copper bonded Al2 O3 -ceramic base plate Electrically insulated base plate Planar passivated chips International standard package 3600V Isolation 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Semikron Part Number SKKD162/18 Vrrm 1800V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 195 Amp Package Size W:34mm L:94mm D:30mm Itsm 6 kA VF(to) 0.85V Tj(max) 150°C rF 1.2mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.18°C/W R th(c-h) 0.10°C/W Weight 165g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 8 Certification UL Listed IXYS Headquarters United States   Datasheet Product Datasheet Alternatives See DD180N16S or MDD172-18N1 for Solder Contact, or DD171N12K Infineon Pressure Contact Technology replacement

Read more less

Techsem MDC300-36-415F3, Dual Diode Module, 300 Amp, 3600V, 62mm Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 3600V Isolation 62mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Techsem Part Number MDC300-36-413F3D Vrrm 3600V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 300 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.1 kA VF(to) 0.75V Tj(max) 150°C rF 0.56mΩ Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 6 Certification ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives See MDD312-16N1 for alternative IXYS solder contact alternative

Read more less

FTH12053ZA4 + HS212F, Solid State Relay, and Heatsink Assembly, 3 Phase 90-280VAC Control, 36 Amp per phase @ 40 Deg C, 48-530VAC Load, LED Status Indicator, with IP20 Cover Features Ratings from 25A to 50 Amp @ 70-530 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Fastron Part Number FTH12053ZA4 + HS212F Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 90-280VAC Load Current 3 x 36 Amp (rms) per Phase Surge Capability 597 Amp (peak) Special Feature LED Status Indicator, with IP20 Cover Mounting Style Din Rail Mount Load Voltage Range 48-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 315g Factory Pack Qty 10   Datasheet HS103DR Product Datasheet 3 Phase SSR and Heatsink Mounted App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

FTH2553ZA4 + HS212, Solid State Relay, and Heatsink Assembly, 3 Phase 90-280VAC Control, 20 Amp per phase @ 40 Deg C, 48-530VAC Load, LED Status Indicator, with IP20 Cover Features Ratings from 25A to 50 Amp @ 70-530 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Fastron Part Number FTH2553ZA4 + HS212 Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 90-280VAC Load Current 3 x 20 Amp (rms) per Phase Surge Capability 350 Amp (peak) Special Feature LED Status Indicator, with IP20 Cover Mounting Style Panel Mount Load Voltage Range 48-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 315g Factory Pack Qty 10   Datasheet HS103DR D53TP Series 3 Phase SSR and Heatsink Mounted App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less
