Fastron FTM1-A80-V2-W0, Single Phase, Phase Angle/Burst Controller for Primary Control of Transformer (Phase Angle mode only), Voltage/Current/Power Limit Modes, For Single Phase Loads, 230VAC, 64 Amps @ 50 Deg C, Modbus RTU Features Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions Made in China, Low cost Single Phase, Angle/Burst Controller 4-20mA/0-10V/0-5V input Proportional Control Phase Angle or Burst switching Digital Display and Controls Modbus RTU Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FTM1-A80-V2-W0 Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Voltage 4-20mA/0-10V/0-5V/POT Load Current  64 Amps Per Phase @ 50 Deg C  Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO Relay Contacts Special Feature Internal Fuse, Current Limit, Power Limit Comms Modbus RTU Mounting Style Panel Mount Switching Voltage Range 230VAC +/-10% Supply Voltage 230VAC +/-10% Dimensions H:260mm W:94mm D:187mm Soft Start N/A Termination Style Screw Unit Weight 2.5kg (4kg Packed) Factory Pack Qty 1   Technical Docs User Manual Brochure Video for How to Set Current/Voltage/Power limit

Read more less

Rishabh CT 200/5 Class 1 15VA 86/40 (45), Current Transformer 300/5Amp CT 15VA HIGH BURDEN, Class 0.5, 36mm Aperture or 11x41mm Busbar Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (45mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number CT 200/5 Class 1 15VA 86/40 (45) Technology AC Current Transformer Ratio 200/5 Aperture Size 36mm or 11x41mm Busbar VA Rating 15VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 200Amp x 1.2 Termination Style Screw Unit Weight 300g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Protec T1-1500PV-3+0-S(-R), 1500VDC Surge Protection Device for Photovoltaic Systems, Type 1, Type 2/Open Type 1 SPD Listed, with Remote Contact Specifications   Raycap part number T1-1500PV-3+0-S(-R) Nominal Voltage 1500VDC No of Poles 3 Category IEC / EN / VDE Type 1, Type 2/Open Type 1 SPD Listed Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES Protective element MOV + GDT No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 12.5kA (10/350uS), 60kA(8/20uS) Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

AMB-DVO(0-15)-A, 96x48mm DC Voltmeter, Bipolar 0-15VDC Input, 240VAC supply, Large 4.1 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 90mm Depth CE Approved Specification Alish Part Number AMB-DVO(0-15)-A, Conditioner Output N/A Input 0-15VDC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 110-240VAC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

Fastron FTCK Series Type K Thermocouples MIMS Class A, Standard Sizes and Lengths 3mm or 5mm Shaft, Braided SS/Fibreglass/Teflon Tail, 304 Stainless Steel Sheath, CE ANSI ROHS Approved, -20 to 800 Deg C Class A Accuracy CE, ANSI, ROHS Approved Kink proof Fiberglass Reinforced SS Braided Cable Low Long Term Drift Rated for -20 to 800 Deg C Max Spring Cable Connection 50 - 500mm or custom Sheath Thickness 3/5/9mm or custom MIMS Recommended to use BSP Fitting for mounting Specification Fastron Part Number FTCK Series Sensor Type Type K Thermocouple No of Wires 2 Probe Length 50-500mm or custom Sheath Thickness 3/6/9mm or custom Sheath Material SS 304 Stainless Steel Aprovals CE, ANSI, ROHS Accuracy Class A Cable length 3 Meters (Standard) or custom Cable Type Teflon/Fibreglass/Braided Stainless Steel Temperature Range -20 to 800 Deg C Special Feature Spring Cable Strain Relief Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 300-500g Factory Pack Qty 1 Datasheet Type K Datasheet Type K 100mm Datasheet Type K 50mm Datasheet

Read more less

F930 Series Programmable True RMS AC or DC Versions, Various Ranges 100mA - 250 Amp AC/DC Current Transducer with 4 Digit LED Display, Selectable Process Level Outputs, Optional RS485 and/or 2 x Relay Outputs Features Following on from the success of F916,F921,F920,F922,,F923 Series AC/DC Current Transducers & Trip Modules. We designed a new microcontroller based transducer to take advantage of modern digital methods and the latest generation of LEM ASIC based current sensors. Our transducer can adjust zero, span, and optional Alarms, including dual flasher outputs in both Traditional Relay or Solid State types. Ultimately, there will also be a Power Transducer with one or two analogue outputs & RS485 Comms for import export control applications.  Our Transducers are widely used in rail and several other industrial control and automation industries. Datasheet Product Datasheet

Read more less

Rishabh CT 150/5 Class 0.5 3.75VA 62/30 (40) Series Current Transformer Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (45mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number CT 150/5 Class 0.5 3.75VA 62/30 (40) Technology AC Current Transformer Ratio 150/5 Aperture Size ⌀ 30mm or 26x10mm Busbar VA Rating 3.75VA Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 150Amp x 1.2 Termination Style Screw Unit Weight 300g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Rishabh CT 40/5 Class 1 1VA 50/14 (50) Current Transformer Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (45mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number CT 40/5 Class 1 1VA 50/14 (50)) Technology AC Current Transformer Ratio 40/5 Aperture Size ⌀ 14mm VA Rating 1VA Accuracy Class Class 01 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 40Amp x 1.2 Termination Style Screw Unit Weight 300g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Fastron Electronics GA5-A-V7-D-N, 96x48mm 5 DIGIT Digital Ammeter 0-600VAC input, 22-60VAC/DC Supply, Large 5 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 5 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 96 x 48mm Panel Space 90mm Depth Specification Fastron Electronics Part Number GA5-A-V7-D-N Conditioner Output N/A Input 4-20mA Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style 96 x 48mm Panel Mount (60mm depth) Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

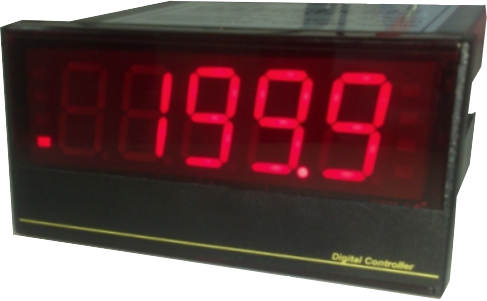

Fastron Electronics GA5-D-V7-D-N, 96x48mm 5 DIGIT Digital Ammeter 0-600VDC input, 100-240VAC/DC Supply Adjustable Zero and Span Setting Adjustable Display Scaling Large 5 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 96 x 48mm Panel Space 60mm Depth Specification Fastron Electronics Part Number GA5-D-V7-D-N Conditioner Output N/A Input 0-600VDC Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style 96 x 48mm Panel Mount (60mm depth) Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

Fastron Electronics FESCT-6000-4000-0.333V, 4000Amp 0.333V Class 1 Measurement Split Core CT's, w/terminals, 153x157mm Aperture Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Electronics Part Number FESCT-6000-4000-0.333V Technology Split Core AC Current Transformer Ratio 4000/0.333V Aperture Size 153x157mm VA Rating N/A Accuracy Class Class 1 Output 0.333VAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 4000Amp x 1.2 Termination Style Terminals Unit Weight 3000g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Trent ROT-FGM6-250, Extended Rotary Handle for 3 POLE MCCB FGM6-250 Frame Size Rotary Extended Handle for Miniature Circuit Breakers is used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Rotary handle mounts directly on MCCB with screws (included) without removal of midcover Clear ON/OFF/TRIP SuDirect access to push to trip button with rotary handle mounted Datasheet Product Datasheet
