Fastron FSCR3L-100A, Three Phase Proportional Phase Control Module, 4-20mA,0-10V,1-5V,500K POT Input, 400VAC, 100 Amp Per Phase, Also referred to as 3 Phase Voltage Regulator 4-20mA,0-10V, or 1500K POT Proportional Phase Control Input Ratings from 25A to 120 Amp @ 180-280 VAC SCR output for heavy industrial loads Instantaneous turn-on output Direct bond copper substrate Direct power lead frame Epoxy free design Specification Trent part Number FSCR3L-100A Switching Type Phase Angle (Random Crossing) Control Voltage 4-20mA,0-10V,1-5V,10K POT Proportional Input Load Current 100 Amp (rms) @ 40 Deg C Surge Capability 890Amp (peak) Special Feature 3 Phase Proportional Controller + SSR/3 Phase Voltage Regulator Mounting Style Panel Mount Load Voltage Range 180-400VAC +10% Max Non Repetitive Peak Voltage 600 Vp Termination Style Barrier Strip Screw Dimensions L:105 x W:80 x D:75mm Unit Weight 400g Factory Pack Qty 20   Datasheet FSCR3L-100A

Read more less

FSQF480D60, Solid State Relay, 3 Phase 4-32VDC Control, 60Amp, 24-530VAC Load, IP20 Ratings from 25 to 80 Amp @ 24-530 VAC SCR output for heavy industrial loads Zero voltage turn-on IP20 Cover Integrated AC & DC control types Direct bond copper substrate Direct power lead frame Includes IP20 Cover Specification Trent Part Number FSQF480D60 Switching Type Zero Crossing ROHS/CE Yes Control Voltage 4-32VDC Load Current 60 Amp (rms) per Phase Surge Capability 700 Amp (peak) Special Feature LED Status Indicator, with IP20 Cover Mounting Style Panel Mount Load Voltage Range 24-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 530g Factory Pack Qty 10   Datasheet Product Datasheet Equivalent Parts Contact Us for Possible Replacement

Read more less

Rotating Diode for Generators, 309URA160, Rotating Diode, 3/8" Top Stud, 3/4" Bottom Stud, Anode Stud User for Rotating Generator or Motor Applicatons 330 Amp Rating Datasheet Product Datasheet

Read more less

FAST ONE SLIM AHF-5A-400-4W, Active Harmonic Filter & Static Var Generator, 3.5Kvar/5 Amp, 3 Phase 4 Wire, 380VAC +/-20%, RACK MOUNT ONLY For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. and for the filtering or control of Harmonic Distortion Features Automatic Power Factor Correction up to Cos φ = 0.99 Overtemperature Alarm Optional RS485 Comms 3 Year Fastron Electronics Warranty Modular Construction for Rack or Wall Mount Installtions Perfect for Residential Applications Stack multiple modules for larger Power Factor Correction Requirements   Specification Fastron Part Number Fast ONE AHF 5A-400V-4W Function Reactive Power Correction & Rack Mounted Active Harmonic Filter Rating 5 Amp @ 50 Deg C /3.5Kvar Nominal Voltage (Un) 380VAC Line to Line 50Hz Switch Delay Time Instant Correction/Inverter Based Desired Harmonic 0.99 IND - 0.99 CAP LCD Display Accuracy IGBT Temp, Grid Current Grid THDi, Grid PF, Grid Imbalance PCurrent imbalance < 5%  Comms RS485 (Optional) Mounting Style Rack Mount Only Termination Style Screw Dimensions D:400x88.2x448.5 Weight 17kg Certification EN 61000-6-4:2007+A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 Enclosure protection IP21 Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet User Manual Datasheet

Read more less

Fastron FTH12053ZD3, Solid State Relay, 3 Phase 4-32VDC Control, 120A, 70-530VAC Load 3 Phase Solid State Relays, with IP20 Cover Ratings from 25 to 120 Amp @ 70-480 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs IP20 Cover Included AC & DC control types Direct bond copper substrate Direct power lead frame Includes IP20 Cover Specification Fastron Part Number FTH12053ZD3 Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 120 Amp (rms) per Phase Surge Capability 597 Amp (peak) Special Feature LED Status Indicator, with IP20 Cover Mounting Style Panel Mount Load Voltage Range 70-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 315g Factory Pack Qty 10   Datasheet Product Datasheet Equivalent Parts Contact Us for Possible Replacement

Read more less

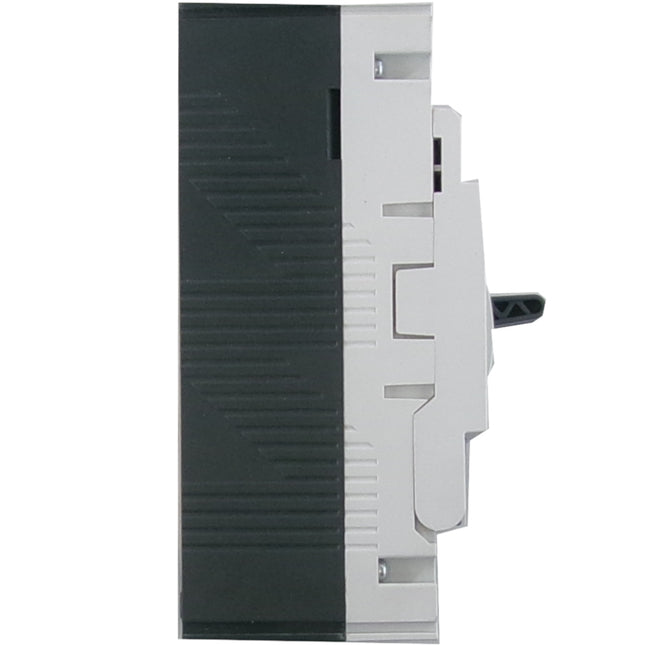

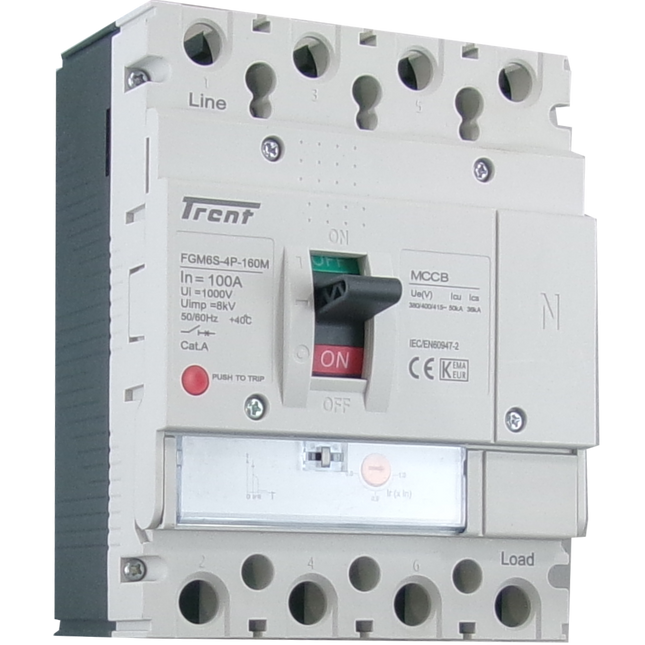

Trent FGM6S-4P-160M 100A, 4 Pole Moulded Case Circuit Breaker (MCCB) Thermal, Adjustable Type 36kA 100 Amp, 400/690VAC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : 4 Pole Disconnect 36kA Short Circuit Rating @400VAC Suitable for Main Incoming Breaker Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGM6S-4P-160M 100A Functions 4 Pole MCCB Nominal Voltage 400/690VAC @ 50/60Hz Nominal Current Range 100 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 8kV Operating Temperature -25 to 50 Deg C Mechanical Operations 20,000 Ops Insulation Voltage 800V Short Circuit Current 36kA Approvals KEMA EUR, CE Standards IEC/EN 60898-1,IEC/EN 60947-3, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 1.2kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

LEM AP 200 B420L, Split Core AC Current Sensor, selectable 100, 150, 200 Amp, Average RMS 4-20mA output, Infinite Overload Capability Compact and versatile Split Core AC current sensor, selectable 100, 150, 200 Amp Average RMS 4-20mA output Features Split Core Average RMS output 4-20mA current output Busbar, or Din Rail mounting Isolated plastic case recognised according to UL94-V0 Advantages Large aperture for busbar/cable up to 18.5mm x 18.5mm High isolation between primary and secondary circuits Easy installation DIN Rail Mount Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Self Powered. Will not drain data logger batteries -Panel Meters Simple connection displays power consumption Specification LEM Part Number AP 200 B420L Technology AC Current Transformer with Process Output ROHS Yes Supply Voltage 24VDC @ 30mA Nominal Current (RMS + DC) 50,100, 200 Amp Selectable Overload Infinite Output 4-20mA Average RMS Isolation 5kV (AC, 50Hz, 1 min) Bandwidth 30-2000Hz Mounting Style Din Rail mount or Busbar mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style Spring Terminal Block (Female Included) Unit Weight 90g Factory Pack Qty 6   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

DR6760DR75P, Solid State Relay, and Heatsink Assembly, 3 Phase 4-32VDC Control, Random Crossing, 75 Amp per phase @ 40 Deg C, 48-600VAC Load, LED Status Indicator, Overvoltage Protection Features Ratings from 60A to 75 Amp @ 70-530 VAC Motor Control SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Crydom Part Number DR6760DR75P Switching Type Random Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 3 x 75 Amp (rms) per Phase @ 30 DeG C Surge Capability 1290 Amp (peak) Special Feature LED Status Indicator, Overvoltage Protection Mounting Style Din Rail Mount Load Voltage Range 48-600VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 961g Factory Pack Qty 10   Datasheet DR6760D75P 3 Phase SSR and Heatsink Mounted   App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement

Read more less

Crouzet Pneumatic Sequencer with Maintain Function 2 to 8 Bar 2.7mm 150Nl/m -5 to 50 Deg C Weight 70g Datasheet Product Datasheet

Read more less

LEM AP 400 B420L, Split Core AC Current Sensor, selectable 200, 300, 400 Amp, Average RMS 4-20mA output, Infinite Overload Capability Compact and versatile Split Core AC current sensor, selectable 200, 300, 400 Amp Average RMS 4-20mA output Features Split Core Average RMS output 4-20mA current output Busbar, or Din Rail mounting Isolated plastic case recognised according to UL94-V0 Advantages Large aperture for busbar/cable up to 18.5mm x 18.5mm High isolation between primary and secondary circuits Easy installation DIN Rail Mount Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Self Powered. Will not drain data logger batteries -Panel Meters Simple connection displays power consumption Specification LEM Part Number AP 400 B420L Technology AC Current Transformer with Process Output ROHS Yes Supply Voltage 24VDC @ 30mA Nominal Current (RMS + DC) 200,300,400 Amp Selectable Overload Infinite Output 4-20mA Average RMS Isolation 5kV (AC, 50Hz, 1 min) Bandwidth 30-2000Hz Mounting Style Din Rail mount or Busbar mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style Spring Terminal Block (Female Included) Unit Weight 90g Factory Pack Qty 6   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

Fastron HS103DR + FTH6053ZD3, 4-32VDC Control, 3 x 21Amp, 48-530VAC Load, LED Status Indicator 3 Phase Solid State Relays + Heatsink, with IP20 Cover Ratings from 25A to 70 Amp @ 70-530 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Includes IP20 Cover Specification Crydom Part Number HS103DR + FTH6053ZD3 Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC Load Current 3 x 23 Amp (rms) per Phase Surge Capability 597 Amp (peak) Special Feature LED Status Indicator, with IP20 Cover Mounting Style Din Rail Mount Load Voltage Range 70-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 900g Factory Pack Qty 10   Datasheet HS103DR Product Datasheet

Read more less

DR6760D25P, Solid State Relay, and Heatsink Assembly, 3 Phase 4-32VDC Control, Zero Crossing, 25 Amp per phase @ 40 Deg C, 48-600VAC Load, LED Status Indicator, Overvoltage Protection Features Ratings from 25A to 30 Amp @ 70-530 VAC Motor Control SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Crydom Part Number DR6760D25P Switching Type Random Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 3 x 25 Amp (rms) per Phase @ 30 DeG C Surge Capability 716 Amp (peak) Special Feature LED Status Indicator, Overvoltage Protection Mounting Style Din Rail Mount Load Voltage Range 48-600VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 961g Factory Pack Qty 10   Datasheet DR6760D30P 3 Phase SSR and Heatsink Mounted App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement

Read more less
