Xmer CT Split 93/30SC 100/5 Class 1 1.5VA, 23 x 33mm Aperture
Features
Quick Release Split Core System
Built In Sealable Terminal Covers
Mounting Feet Supplied
Self Powered
Rated System Voltage 0.72/3kV
IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1
Applications
Metering Equipment
Energy Monitoring
AC Power Control Systems
Power Factor Correction
Power Quality Measurements
Specification
Rishabh Part Number
Xmer CT Split 93/30SC 100/5 Class 1 1.5VA
Technology
Split Core AC Current Transformer
Ratio
100/5
Aperture Size
23 x 33mm
VA Rating
1.5VA
Accuracy Class
Class 1
Output
5 Amp AC (+20%)
Isolation
3kV (AC, 50Hz, 1 min)
Bandwidth
50-60Hz
Mounting Style
Panel Mount/Busbar Mount
Operating Temperature Range
-30°C / 85°C
Continuous Current (max)
100Amp x 1.2
Termination Style
Screw
Unit Weight
600g
Factory Pack Qty
9
Datasheet
Product Datasheet
VX4-UCNA-A2, Temp Controller, 48x48mm, 100-240VAC, Multirange Input, 4-20mA Output, 2 Alarms
Multirange Input (Programmable)
4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response)
Drip-proof / Dust-proof IP66 (front panel only)
UL/CE Approved
Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type)
Each unit needs just 60 mm depth panel space
EC Compliant
Specification
Hanyoung Nux Part Number
VX4-UCNA-A2T
Control Output 1 (Heat)
4-20mA
Control Output 2 (Cool)
N/A
Input
Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals.
Alarm
Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)
Option 1
2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)
Option 2
N/A
Mounting Style
48 x 48mm Panel Mount
Supply Voltage
85 - 265VAC
Termination Style
Screw
Weight
350g
Factory Pack Qty
1
ROHS
Yes
UL
Yes
CE
Yes
Datasheet
VX Series Brochure
VX Series Instruction Manual
Free Software
Hanyoung Nux TCS Software
Hanyoung Nux TCS Software User Manual
VX Series SB Driver (Windows 7) Not required for Windows 10 or 11
Rishabh CT 100/5 Class 1 2.5VA 50/21 (30) Series Current Transformer
Features
DIN Rail Mounting Clip Included
Built In Sealable Terminal Covers
Mounting Feet Supplied
Narrow Width (45mm)
Self Powered
Rated System Voltage 0.72/3kV
IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1
Applications
Metering Equipment
Energy Monitoring
AC Power Control Systems
Power Factor Correction
Power Quality Measurements
Specification
Rishabh Part Number
CT 100/5 Class 1 2.5VA 50/21 (30)
Technology
AC Current Transformer
Ratio
100/5
Aperture Size
⌀ 21mm or 20x10mm Busbar
VA Rating
2.5VA
Accuracy Class
Class 1
Output
5 Amp AC (+20%)
Isolation
3kV (AC, 50Hz, 1 min)
Bandwidth
50-60Hz
Mounting Style
Panel Mount/Din Rail Mount
Operating Temperature Range
-30°C / 85°C
Continuous Current (max)
Ipn x 1.2
Termination Style
Screw
Unit Weight
300g
Factory Pack Qty
9
Datasheet
Product Datasheet
Fastron Electronics SCT-F16-100-50mA, 50mA, 100Amp Measurement, Class 1 Split Core Current Transformer
Features
Quick Release Split Core System
Cable Mount
50 mAmp Output
Self Powered
Rated System Voltage 0.60/3kV
0.5M Flying Leads
Applications
US Based Metering Equipment
Energy Monitoring
AC Power Control Systems
Power Factor Correction
Power Quality Measurements
Specification
Fastron Part Number
SCT-F16-100-50mA
Technology
Split Core AC Current Transformer
Ratio
100/50mA
Aperture Size
ø 15 mm
VA Rating
N/A
Accuracy Class
Class 0.5
Output
50 mAmp (+20%)
Isolation
3kV (AC, 50Hz, 1 min)
Bandwidth
50-60Hz
Mounting Style
Cable Mount/Busbar Mount
Operating Temperature Range
-15°C / 45°C
Continuous Current (max)
100Amp x 1.2
Termination Style
0.5M Flying leads
Unit Weight
100g
Factory Pack Qty
9
Datasheet
Product Datasheet
Application Notes
Installation Guide
Perspex Cover for F Series Power Controllers up to 100 Amp
See the following brochures for dimensions of each controller
F330 Brochure
F431 Brochure
F430 Brochure

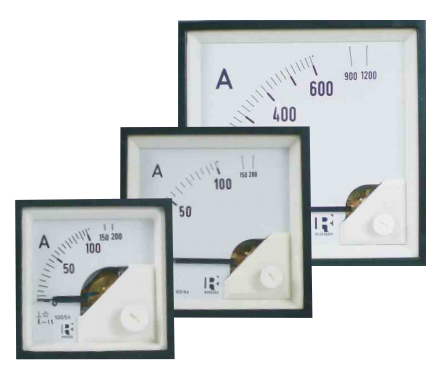

Rishabh DE96/100/1A, Moving Iron Ammeter, 100/1A, 96 × 96mm, Class 1.5
Features
Adjustable Display Scaling
PC 94 UL V0
For robust Measurement
Each unit needs just 96 x 96mm Panel Space
65mm Depth
Specification
Rishabh Part Number
DE96/100/1A
Nominal Measurement Range
0 - 100 Amp AC
Maximum Measurement Range
100 Amp
Over Range
Isn x 2
Operating Temperature
0 - 50°C
Frequency
15...100Hz
Safety Rating
IP52 case, IP20 terminals wiht back cover
Termination Style
Screw
Mounting Style
96 x 96mm Panel Mount
Case Material
PC - UL 94 V0
Weight
320g
Factory Pack Qty
1
Datasheet
Product Datasheet
SQ96 100-110VAC, Genset Synchroscope (Synchronoscope), 100-110VAC, for Generators
Measurement of phase difference between bus bar and generator
Standard 96x96 mm DIN housing
LED Indicators with backlight
High immunity to EMC disturbances
Specification
Rishabh Part Number
SQ96 100-110VAC
Function
Phase Difference (∆ϕ) Measurement
Nominal Voltage (Un)
100-110VAC ± 20 % Line to Line
Digital Output
N/A
Status Output
N/A
Switch On Delay Time Range
N/A
Phase Difference Setting Range
N/A
Voltage Difference Setting Range
N/A
Dead Busbar Noise Rejection Range
N/A
Power Consumption
< 6VA
Short Term Overload
N/A
LCD Display Accuracy
N/A
Synchronisation Accuracy
N/A
Termination Style
Screw
Weight
530g
Certification
CE
Factory Pack Qty
1
Material of housing
PC/ABS Unflammable, according to UL 94 V-0
Enclosure protection
IP52 for case, IP20 for terminals with protective cover
Safety
According to EN 61 010-1 400 V, installation category III Pollution degree 2
Operating Temperature
-20...55 °C
Datasheet
Product Datasheet
HC5FW 100-S/SP1, Automotive Open Loop Current Sensor for Low Voltage, +/-100 Amp, 5VDC Supply
Features
Open Loop Transducer using Hall Effect
Low Voltage Application
Unipolar +5V Power Supply
Primary Current Measuring Range, +/-100 to +/-900 Models
Advantages
Good Accuracy for High and Low Current Range
Good Linearity
Low Thermal Offset Drift
Low Thermal Sensitivity Drift
Hermetic Package
Automotive Applications
Battery Pack Monitoring
Hybrid Vehicles
EV and Utility Vehicles
Specification
LEM Part Number
HC5FW 100-S/SP1
Technology
Open Loop Hall Effect
ROHS
Yes
Supply Voltage
5 VDC
Load Current (Ipn) (RMS)
+/-100 Amp
Output
0.5(-Ipn) to 4.5V(+Ipn)
Bandwidth
DC - 40kHz
Isolation
2.5kV (AC, 50Hz, 1 min)
Special Feature
SP1 = Cover without Sleeve (Reduced Insulation)
Mounting Style
Busbar Mount
Termination Style
3 Pin
Unit Weight
25g
Factory Pack Qty
6
Datasheet
Product Datasheet
Automotive 2022 Web Brochure

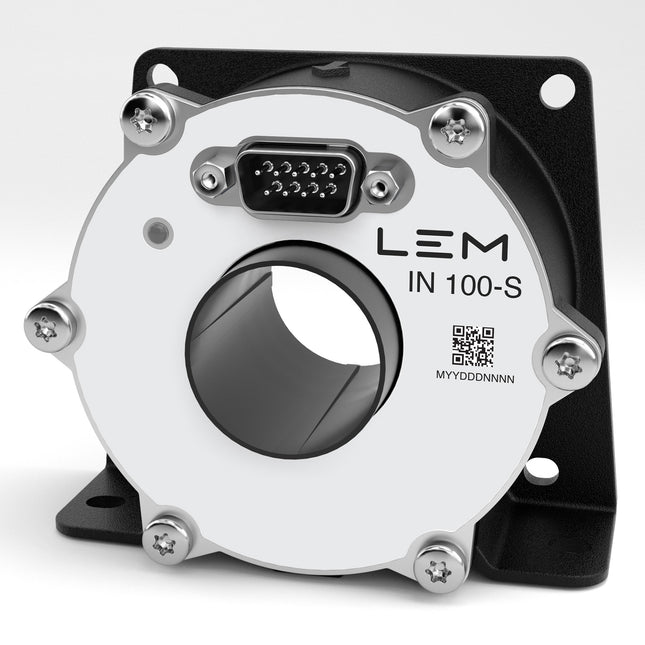

IN 100-S High Precision Hall Effect Current Sensor, 100 Amp, 200mA Output, 28.2mm Aperture, +/-15V Supply
Features
Closed loop (compensated) current transducer using an
extremely accurate zero flux detector
9-pin D-Sub male secondary connector
Status signal to indicate the transducer state
LED indicator confirms normal operation
Metal housing to improve immunity to EMC & power
dissipation
Operating temperature ?40 °C to 85 °C.
Advantages
Very high accuracy
Excellent linearity
Extremely low temperature drift
Wide frequency bandwidth
High immunity to external fields
No insertion losses
Very low noise on output signal
Low noise feedback to primary conductor.
Applications
Feedback element in high performance gradient amplifiers for MRI
Feedback element in high-precision, high-stability power supplies
Calibration unit
Energy measurement
Medical equipment.
Standards
EN 61000-6-2: 2005
EN 61000-6-3: 2007
EN 61010-1: 2010.
Application Domain
Industrial
Laboratory
Medical.
Specification
Insulation coordination
Parameter Symbol Unit Value Comment
RMS voltage for AC insulation test, 50 Hz, 1 min UdkV 4.2
Between primary and
secondary + shield
Impulse withstand voltage 1.2/50 ?s ÛWkV 8
Clearance (pri. - sec.) dCImm 11.5
Shortest distance through air
Creepage distance (pri. - sec.) dCpmm 11.9
Shortest path along device body
Comparative tracking index CTI600
Rated insulation RMS voltage UNmV 1000
Basic insulation
according to IEC 61010-1
CAT III, PD2
Rated insulation RMS voltage 1000
Reinforced insulation
according to IEC 61010-1
CAT II, PD2
Environmental and mechanical characteristics
Parameter Symbol Unit Min Typ Max Comment
Ambient operating temperature TA°C ?40 85
Ambient storage temperature TS°C ?40 85
Relative humidity RH% 20 80
Dimensions See drawing in page 8
Mass mkg 1.3
Electrical data
At TA = 25 °C, ±UC = ±15 V DC, unless otherwise noted. Lines with a * in the comment column apply over the ?40 … 85 °C ambient temperature range.
Parameter Symbol Unit Min Typ Max Comment
Primary continuous direct current DC IP NA ?100 100 *
Primary nominal RMS current AC IP NA ?100 100 *
Peak primary current, measuring range ÎP MA ?150 150 *
Measuring resistance RM? 0 1
See graph page 5
for other value
Secondary current nominal IS NA ?0.200 0.200 *
Number of secondary turns NS500
Resistance of secondary winding RS? 8
Overload capability 1)ÎPkA ?5 5 @ pulse of 100 ms
Supply voltage DC
+UCV 14.25 15 15.75
?UC?14.25 ?15 ?15.75
Current consumption positive DC +ICA
0.12 @ IP = 0
1.12
Current consumption positive DC ?ICA
0.07 @ IP= 0
1.07
Output RMS noise current 0 … 10 Hz 2)
Inoppm
0.05 0.1
Output RMS noise current 0 … 10 kHz 2)1.5 4
Output RMS noise current 0 … 160 kHz 2)3.5 10
Output peak-to-peak noise current 2)Ino ppppm 18 34
Electrical offset current + self
magnetization + effect of earth magnetic
field 2)
IO Eppm ?10 10 *
Temperature coefficient of IO E@ IP = 0 A TCIO Eppm/K ?0.3 0.3
Linearity error 2)?Lppm
?2 1 2
?3 1 3 *
Step response time to 90 % of IPN DCtrµs 1 di/dt of 100 A/?s
Frequency bandwidth (±1 dB) BWkHz 230 Small-signal
bandwidth, 1.5 %
of IP NFrequency bandwidth (±3 dB) BWkHz 2000
Start-up time tstarts 15
Notes: 1) Single pulse only, not AC. The transducer may require a few seconds to return to
normal operation when autoreset system is running
2) All ppm figures refer to full-scale which corresponds to a secondary nominal RMS current.
Datasheet
Product Datasheet
Rishabh DE48/100/1A Moving Coil Ammeter
Features
Adjustable Display Scaling
PC 94 UL V0
For robust Measurement
Each unit needs just 48 x 48mm Panel Space
65mm Depth
Specification
Rishabh Part Number
DE48/100/5A
Nominal Measurement Range
0 - 100 Amp AC
Maximum Measurement Range
100 Amp
Over Range
Isn x 2 (10 Amp)
Operating Temperature
0 - 50°C
Frequency
15...100Hz
Safety Rating
IP52 case, IP20 terminals wiht back cover
Termination Style
Screw
Mounting Style
48 x 48mm Panel Mount
Case Material
PC - UL 94 V0
Weight
320g
Factory Pack Qty
1
Datasheet
Product Datasheet
