LEM DVL 50 Digital Voltage Transducer, Vpn = 50V, 50mA output, +/-15...24VDC powered, 8.5kV Isolation Features Bandwidth DC to 14kHz Digital Transducer (ASIC based) Closed loop transducer using Hall effect Compact and versatile Panel Mount Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Voltage overload capability Low power consumption Applications Railway substation or locomotive AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number DVL 50 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/-15..24 VDC Bipolar, Isolated Primary Nominal Voltage (RMS + DC) +/- 50V Measurement Range +/- 75V Output 50 mA @Vpn Isolation 8.5 kV Bandwidth DC-14 kHz Mounting Style Panel Mount Operating Temperature Range -40°C / 70°C Accuracy 1% Termination Style M5 Screw Unit Weight 270g Factory Pack Quantity 4   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

Gigavac G64B771, HV Relay, 50kVDC, 10A, SPST-NC, 12VDC Coil, 1,000,000 Cycles, 55kV Isolation, 72" Flying leads Features Hermetically Sealed (Patented) rated to 85 Deg C High Efficiency DC Coils Gas filled Small and lightweight Flexible package for installation Specification Gigavac Part Number G64B771 Main Contact Type SPST-NC Auxiliary Contact Type N/A Coil Voltage 12VDC Load Current 10 Amp Mechanical Life @ 0 Amp 1,000,000 Operations Nominal Load Voltage 50kV rms Control Input Terminals 72" Flying Leads Special Feature N/A Mounting Style Panel Mount (M4) Peak Voltage 55kVDC Standards UL508, NEC 690.11 and 690.12 DC Termination Style Screw Unit Weight 335g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

RTR Energia EA0525250500000 Power Factor Correction Capacitor, Single Phase, Dry Type 2.5 KVAR, 28.87uF, 525V, 50HZ, 60 x 150mm Characteristics and utility 2.5 kVar @ 525V @ 50 Hz, 28.87uF.0kvar 10kvar Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification RTR Energia Part Number EA0525250500000 Technology Dry Type, Low Loss, Self Healing Dimensions 60 x 150mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 2.5 Kvar Capacitance 28.87uF Tolerance On Capacitance -5% + 10% Current (In) 4.76 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 0.5kg Factory Pack Quantity 25   Datasheet Product Datasheet

Read more less

Fastron Electronics HF121-12/0.4-50-7%K, 50kVar 400VAC(0.76mH) 7% Detuned Reactor for Power Factor Correction Capacitor Banks, 0.76mH(400VAC) 1.229mH(525VAC) Specification Technical Features HF121-12/0.4-50-7%K Electrical Voltage 400V/525V Network Frequency 50/60Hz Inductance (mH) @ 400VAC 0.76mH Inductance (mH) @ 525VAC 1.229mH Nominal Power 50kvar Value of p% 7% (189Hz) Type of Conductor Aluminium/Copper(optional) Tolerance L 5% Linearity (5% L) 1.8 x In Isolation Voltage kV Maximum Room Temperature -10 to 45 Deg C Internal isolation Class F(155°C), Class H (180°C Optional) Maximum Overload Permanent 1.17 x In Temporary 2 x In Safety Protection Thermostat Opens at 90 °C Degree Protection IP00 Installation Indoor Standards EN-60289, IEC60076 Weight 38kg Datasheet Product Datasheet Installation Guide HF121 Series Installation Guide

Read more less

Thermocouple Cable 100 Meter PVC 7.0/0.2mm Twisted and Screened, ANSI Standard Features CE, ANSI, ROHS Approved Colour Codes Datasheet Thermocouple Cable Brochure

Read more less

Infineon D749N42T, Rectifier Diode Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D749N42T, Vrrm 4200V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 750 Amp Package Size ø58 x 26mm Itsm 14 kA VF(to) 0.85V Tj(max) 180°C rF 0.65mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.039°C/W R th(c-h) (double sided cooled) 0.005°C/W Weight 280g Clamping Force 10 - 24kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

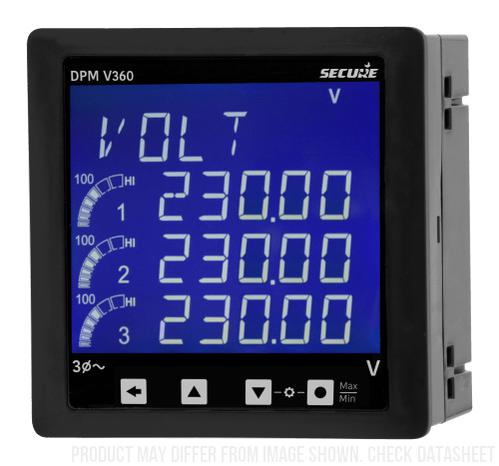

Secure Meters DPM96V360-2, 96mm x 96mm LCD Digital Voltmeter, 3 Phase 0-500VAC Input, 0.5% Accuracy, 40 to 300VAC/DC Supply, IP54 (Optional IP65)   Features LCD Dual Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 96mm Panel Space 52mm Depth CE Approved ROHS and REACH Specification Secure Part Number DPM96V360-2 Frequency Range 45-65 Hz Accuracy 0.5% Input 100-500VAC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 40-300VAC/DC Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Standards IP54 (IP65 Optional) Protection Degree IEC / EN 61010-1; IEC / EN 61010-2-0301 Weight 450g Factory Pack Qty 1   Datasheet Product Datasheet Manual DPM Series User Manual Application Notes Panel Meters Blog Articles

Read more less

Secure Meters DPM96R360-2, 96mm x 96mm LCD Reactive Power Meter, 3 Phase 100-500VAC, 0-6 Amp Inputs, 0.5% Accuracy, 40 to 300VAC/DC Supply, IP54 (Optional IP65)   Features LCD Dual Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 96mm Panel Space 52mm Depth CE Approved ROHS and REACH Specification Secure Part Number DPM96R360-2 Frequency Range 45-65 Hz Accuracy 0.5% Input 5/6 Amp 3 Phase CT inputs, 100-500VAC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 40-300VAC/DC Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Standards IEC / EN 61010-1; IEC / EN 61010-2-030, IEC / EN 62053-21 Protection Degree IP54 (IP65 Optional) Weight 450g Factory Pack Qty 1   Datasheet Product Datasheet Manual DPM Series User Manual Application Notes Panel Meters Blog Articles

Read more less

LEM DVL 1500/SP5, Digital Voltage Transducer, Vpn = 1000V, 50mA output, +/-15...24VDC powered, 8.5kV Isolation, All Terminals From the Side, No Top Terminals Features Bandwidth DC to 14kHz Digital Transducer (ASIC based) Closed loop transducer using Hall effect Compact and versatile Panel Mount Insulated plastic case recognized according to UL 94-V0 All Terminals From the Side, No Top Terminals Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Voltage overload capability Low power consumption Applications Railway substation or locomotive AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number DVL 1500/SP5 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/-15..24 VDC Bipolar, Isolated Primary Nominal Voltage (RMS + DC) +/- 1000V Measurement Range +/- 1500V Output 50 mA @Vpn Isolation 8.5 kV Bandwidth DC-14 kHz Mounting Style Panel Mount Operating Temperature Range -40°C / 70°C Accuracy 1% Termination Style Threaded inserts output, Short input studs Unit Weight 270g Factory Pack Quantity 4   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

ART-B22-D70-SP3 + AI-P1A- 3 Pcs, 3 Phase Rogowski Coils & Universal Multi Range Integrator with Signal Conditioner The universal Rogowski coil integrator AI-P1A complements LEM’s flexible clip-around coil ART and ARU range. The design is based on digital processing to give combined dynamic range, accuracy and versatility of use. It offers a wide range of output signals both RMS and instantaneous. AI-P1A is DIN rail mounted and can be stacked for multiphase application without spacing thanks to its low power dissipation. Input signal Accuracy Class 1 (IEC 61869-2) [1]. Linearity error ≤ 0.10 %. Protection degree IP2X. 35 mm DIN rail mounted. Push-in terminals. 1 Amp instantaneous output. 6 selectable sensitivities depending on Rogowski coil: 22.5, 70, 80, 85, 100, 120 mV/kA at 50 Hz. 12 selectable ranges: 100, 200, 300, 400, 500, 600, 800, 1000, 1500, 2000, 4000, 5000 A. Ambient operating temperature −25...+70 °C. Advantages Compact design for DIN rail assembly High accuracy Class 1 (IEC 61869-2) Setup by user via Select / Edit buttons Clear status indication via bi-color led Applications MV/LV substations on LV side: Transformer Condition Monitoring Power metering: current measurement for active power calculation Building sub-metering: energy efficiency monitoring, consumption analysis and cost allocation Power quality monitoring: electrical loads and distribution system equipment Fault Detection, Isolation and Repair (FDIR): isolate the site of the fault Remote Terminal Units (RTU) Phasor Measurement Units (PMU) Standards IEC 61010-1: 2010 UL EMC: IEC 61326-1:2012 Included Options Cross Power Plug-in: side contacts to stack up to 3 Integrator modules and use only one power supply. Specification LEM Part Number ART-B22-D70-SP3 + AI-P1A- 3 Pcs Function 3 Phase AC Current Measurement Measuring Range Selectable 5000,4000,2000,1500,1000,800,600,500,400,300,200,100Amp Sensitivity Selectable 22.5,70,80,85,100,120mV/kA @ 50 Hz Output 1 Amp output Frequency Measuring Range 50-1500Hz (15th Harmonic) Operating Voltage 10-32VDC Accuracy 1% from 25 to 5000 Amp Current Consumption 100mA (max) Dimensions 100mm x 78mm x 15mm (Integrator), 7cm Diameter (Coils) Mounting Din Rail Mount Integrator to Coil cable 3M Twisted and Screened Integrator to Meter cable User Supplied Shielded cable 1.5mm sqr, up to 6m long Operating Temperature -25°C - 70°C Storage Temperature -45°C to 80°C Isolation (50Hz, 1 min) 1.5kV True RMS Response Time 160-190ms Termination Style Push-in for 1.5mm sqr wire Weight 58g Factory Pack Qty 1 Certifications   UL, ROHS Datasheet AI-P1A Datasheet ART Series Datasheet Applicaton Notes User Notice 1) The Rogowski coil can measure any primary current as there is no saturation effect. 2) Not tested given that in the worst case (load = 0 Ohm i.e. short circuit on the output) the peak dissipated power remains low (< 2 Watts) 3) Frequency bandwidth and phase shift modelling schematic can be provided on request. 4) Referring to the main phase offset of 90 ° (a Rogowski coil is a derivative current transducer) 5) Considering a primary conductor of at least ⌀ 15 mm, perpendicular and in contact with the Rogowski coil. 6) Considering an external conductor of at least ⌀ 15 mm the same current level than internal conductor, perpendicular and in contact with the Rogowski coil.

Read more less

RTR Energia EA0525660500000 Power Factor Correction Capacitor, Single Phase, Dry Type 8.33 KVAR, 96.2uF, 525V, 50HZ, 85 x 225mm Characteristics and utility 8.33 kVar @ 525V @ 50 Hz, 96.2uF Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification RTR Energia Part Number EA0525833050000 Technology Dry Type, Low Loss, Self Healing Dimensions 85 x 225mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 8.33 Kvar Capacitance 96.2uF Tolerance On Capacitance -5% + 10% Current (In) 18.5 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 0.7kg Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

RTR Energia EA5252000500000 Power Factor Correction Capacitor, Single Phase, Dry Type 20 KVAR, 525V, 230.97uF, 50HZ, 120 x 225mm Characteristics and utility 20 kVar @ 525V @ 50 Hz, 230.97uF Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification RTR Energia Part Number EA5252000500000 Technology Dry Type, Low Loss, Self Healing Dimensions 120 x 225mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 20 Kvar Capacitance 230.97uF Tolerance On Capacitance -5% + 10% Current (In) 38 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 1.2kg Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less
