Search results for "digital-mustimeter"

HOBUT M850-LDD, DC kWh Meter 96x96mm, 800VDC, 75mV Shunt Connected, RS485, Lockable,100-240VAC or 100-420VDC 0-10 Amp direct connect, or 50,75mV Shunt Backlit LCD Lockable Optional RS485 communication up to 19,200 bit/s Universal Supply 100-440VAC, or 100-420VDC Accuracy class 1 The meter is intended for measuring, and monitoring DC electrical power networks. The meter records DC power according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands. Features : Measurement of DC kWh Power Optional Pulse Output Graphic LCD with illumination Specification HOBUT Part Number M850-LDD Functions DC Energy Meter Supply Voltage 100-440VAC, or 100-420VDC 0.5VA Nominal Measurement Range 15-150VDC or 30-300VDC, or 80-800VDC Maximum Measurement Range 15-800VDC Nominal Current Input 1A-10A or 50mV/75mV Shunt Infra Red Output N/A Tariff Input N/A (Optional) Accuracy Class 1 (I,U) Mounting Panle Mount Real Time Clock 1min/month (30ppm) Dimensions 96 x 96 x 82mm (2 DIN) Pulse Output Optional Isolation 4kV RS485 Optional Weight 500g Certification CE Factory Pack Qty 1 Safety Protection Class II 600V rms, installation category II 300V rms, installation category III Pollution Degree 2 in compliance with SIST EN 61010-1:2002 Enclosure Material PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0 Enclosure Protection IP52 (IP00 for terminals) in compliance with SIST EN 60529:1997 Operating Temperature -20 →+60 °C Datasheet Product Datasheet

Read more less

Rishabh DE48/400VAC, 48x48mm, 0-400VAC Input Voltmeter, 500VAC Range Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 48 x 48mm Panel Space 65mm Depth Specification Rishabh Part Number DE48-500V Nominal Measurement Range 0 - 400VAC Maximum Measurement Range 500VAC Over Range x 1.2 (600VAC) Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 48 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

VA Instruments VA315, 1000Amp AC Clamp-On Meter. For True RMS Power Measurements, Ranges 1000VDC/700VAC/1000 Amp AC/600/1000uF/100Khz, with Diode test, Continuity Test, AUTO & MANUAL RANGING   For Testing of: 1000Amp AC Clamp-On Meter For True RMS Power Measurements. Ranges: DC Voltage 6/60/1000VAC +/-0.8%+5) AC Voltage 6/60/600/700VAC AC Current 600/1000A +/-3%+5 Resistance 600 Ohm/6Kohm/60KOhm/600KOhm +/-1%+3 Capacitance 600nF/6uF/60uF/600uF/1000uF +/-4%+5 Frequency 40/600/6K/60K/100KHz +/-0.1%+2 ADP Measurement 600mV +/-3%+5 Diode Test Continuity Test AUTO RANGING 225x86x32mm 40mm Diameter Jaw Requires 3 x AAA Batteries Specification   Datasheet Datasheet

Read more less

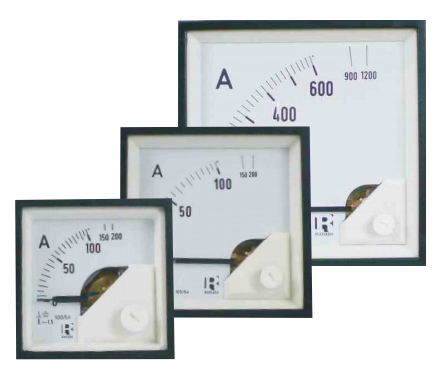

Rishabh DS96/50A/75mV, Moving Coil Ammeter 50Amp for 50A/75mVDC Shunt Connect Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DS96/50A/75mV Nominal Measurement Range 0 - 50 Amp DC Shunt Input 0-75mV Unipolar Maximum Measurement Range 100 Amp DC Over Range Ipn x 2 Operating Temperature 0 - 50??C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

Rishabh DS96/250A/4-20mA, Moving Coil Ammeter 150Amp for 150A/4-20mADC Analogue Input Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96x96mm Panel Space 65mm Depth Specification Rishabh Part Number DS96/250A/4-20mA Nominal Measurement Range 0 - 250 Amp DC Shunt Input 0-4-20mA Unipolar Maximum Measurement Range 250 AmpDC Over Range Ipn x 2 Operating Temperature 0 - 50??C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

VA Instruments VA701, Portable Volt and mA Calibrator For Input/Output Voltage, with USB and Free software, Optional External AC Adaptor, WITH 10 Group Recall/Store Function   For Testing of: Volt and mA Calibrator For; Input/Output Voltage Range -10mV to 100mV Voltage Resolution 0.01mV Voltage Accuracy +/-(0.025%+2) Input/Output Current Range 6 x AAA Batteries 205 x 97 x 45mm with USB and Free software Optional External AC Adaptor WITH 10 Groups Store and Recall Feature Specification Datasheet Datasheet

Read more less

Rishabh DE96/750/1A, Moving Iron Ammeter, 750/1A, 96 × 96mm, Class 1.5 Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DE96/1000/1A Nominal Measurement Range 0 - 1000 Amp AC Maximum Measurement Range 1000 Amp Over Range Isn x 2  Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

LEM DV 4200/SP3 Digital Voltage Transducer, Vpn = 4200V, +/-15...24VDC, 50mA output, 18.5kV Isolation, SP3 has extra long thread terminals Features Bandwidth DC to 12kHz Closed loop transducer using Hall effect Digital Transducer (ASIC based) Compact and versatile Panel Mount Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Voltage overload capability Low power consumption Applications Railway substation or locomotive AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number DV 4200/SP3 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/-15..24 VDC Bipolar, Isolated Primary Nominal Voltage (RMS + DC) +/- 4200V Measurement Range +/- 6000V Output 50 mA @Vpn Isolation 18.5 kV Bandwidth DC-13 kHz Mounting Style Panel Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style M5 Screw Unit Weight 1000g Factory Pack Quantity 4   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

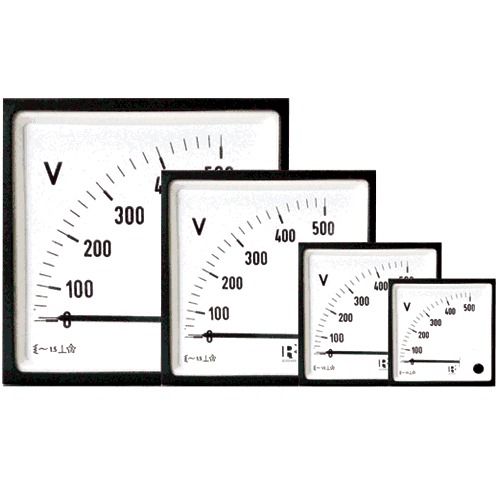

Rishabh DS72/30VDC, Moving Coil Voltmeter 30VDC, 72 x 72mm Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DS72/30VDC Nominal Measurement Range 30VDC Maximum Measurement Range 36VDC Over Range Ipn x 2 Operating Temperature 0 - 30°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 120g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Iskra BQ0207 0-150V Moving Coil Voltmeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Iskra Part Number BQ0207 0-150V Nominal Measurement Range 0 - 150VAC Maximum Measurement Range 150VAC Over Range N/A Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

LEM DVL 2000/SP1 Digital Voltage Transducer, Vpn = 2000V, 50mA output, +/-15...24VDC powered, 8.5kV Isolation, SMS6GE6 Burndy connector output, DTR0000333181 Features Bandwidth DC to 14kHz Digital Transducer (ASIC based) Closed loop transducer using Hall effect Compact and versatile Panel Mount Insulated plastic case recognized according to UL 94-V0 SMS6GE6 Burndy connector output, DTR0000333181 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Voltage overload capability Low power consumption Applications Railway substation or locomotive AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number DVL 2000/SP1 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/-15..24 VDC Bipolar, Isolated Primary Nominal Voltage (RMS + DC) +/- 2000V Measurement Range +/- 3000V Output 50 mA @Vpn Isolation 8.5 kV Bandwidth DC-14 kHz Mounting Style Panel Mount Operating Temperature Range -40°C / 70°C Accuracy 1% Termination Style SMS6GE6 Burndy connector output, DTR0000333181 Unit Weight 270g Factory Pack Quantity 4   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

VA Instruments VA311B, 1000Amp AC/DC Clamp Meter. For True RMS Power Measurements, Ranges 1000VDC/700VAC/1000 Amp AC/1000Amp DC/600/1000uF/100Khz, with Diode test, Continuity Test, AUTO RANGING   For Testing of: 1000Amp AC/DC Clamp-On Meter For True RMS Power Measurements. Ranges: DC Voltage 6/60/1000VAC +/-0.8%+5) AC Voltage 6/60/600/700VAC AC Current 600/1000A +/-3%+5 Resistance 600 Ohm/6Kohm/60KOhm/600KOhm +/-1%+3 Capacitance 600nF/6uF/60uF/600uF/1000uF +/-4%+5 Frequency 40/600/6K/60K/100KHz +/-0.1%+2 ADP Measurement 600mV +/-3%+5 Diode Test Continuity Test AUTO & MANUAL RANGING 225x86x32mm 40mm Diameter Jaw Requires 3 x AAA Batteries Specification   Datasheet Datasheet

Read more less
