FP160125P G2, 1600/5 Amp Split Core CT, Class 0.5, 7.5VA Series Clip On Current Transformer Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Electronics Part Number FP160125P G2 Technology Split Core AC Clip On Current Transformer Ratio 1600/5 Aperture Size 85 x 120mm VA Rating 7.5VA Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10°C / 50°C Continuous Current (max) 1500Amp x 1.2 Termination Style Screw Approvals CE Unit Weight 1150g Factory Pack Qty 1   Datasheet Product Datasheet Installation Guide

Read more less

FP160160P G2, 1600/5 Amp Split Core CT, Class 0.5, 15VA, 83 x 163.5mm Aperture, Dimensions 197 x 245 x 57mm Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Electronics Part Number FP160160P G2 Technology Split Core AC Clip On Current Transformer Ratio 1600/5 Aperture Size 83 x 163.5mm VA Rating 15VA Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 1600Amp x 1.2 Certifications CE Termination Style Screw Unit Weight 3.5kg Factory Pack Qty 1   Datasheet Product Datasheet Installation Guide

Read more less

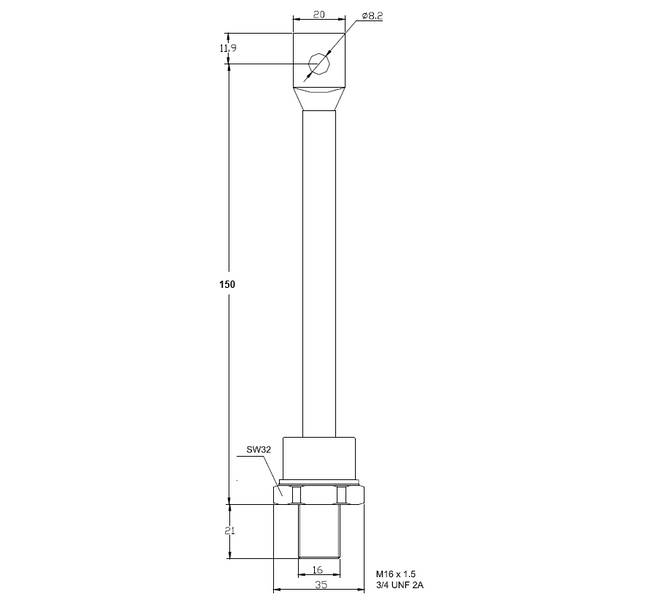

A1A-260-12X-MFG, Rectifier Diode 260Amp, 1200V, M16, 150MM TAIL LENTH CLEARANCE STOCK Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification AEGIS Part Number A1A-260-12X-MFG Vrrm 1200V Diode Configuration Anode Stud IF(av) @ 100 Deg C 320 Amp IF(av) @ 125 Deg C 260 Amp Itsm 5.046 kA VF(to) 0.82V Tj(max) 180°C rF 0.45mΩ Termination Style (Tail) 8.3mm Round Lug Termination Style (Stud) M16 Tail Length to Stud 170mm R th(j-c) 0.120°C/W R th(c-h) 0.03°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China AEGIS Headquarters Brazil   Datasheet

Read more less

MSD401N16FB Rectifier Diode 400 Amp, 1600V, Round Flat Base, Cathode Base Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD401N16FB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C IF(av) @ 125 Deg C 400 Amp Itsm 7.4 kA VF(to) 0.75V Tj(max) 180°C rF 0.35mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) Flat Base ⌀41 x 6.5 x ⌀33mm Tail Length to Base 245mm R th(j-c) 0.125°C/W R th(c-h) 0.05°C/W Weight 250g Mounting Torque 20 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

MSD403R18M M18, Rectifier Diode 400 Amp, 1800V, M18 x 1.5, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD403R18M M18 Vrrm 1800V Diode Configuration Anode Stud IF(av) @ 100 Deg C 480 Amp IF(av) @ 120 Deg C 400 Amp Itsm 9.2 kA VF(to) 0.85V Tj(max) 180°C rF 0.51mΩ Termination Style (Tail) 10.6mm Round Lug Termination Style (Stud) M18 x 1.5 Tail Length to Stud 200mm R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China MS Power Headquarters Germany   Datasheet

Read more less

MSD403N18M M18, Rectifier Diode 400 Amp, 1800V, M18 x 1.5, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD403N18M M18 Vrrm 1800V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 480 Amp IF(av) @ 120 Deg C 400 Amp Itsm 9.2 kA VF(to) 0.85V Tj(max) 180°C rF 0.51mΩ Termination Style (Tail) 10.6mm Round Lug Termination Style (Stud) M18 x 1.5 Tail Length to Stud 200mm R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

MS Power MSD240R16MB M18, Rectifier Diode 240 Amp, 1600V, M18 x 1.5, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD240R16MB M18 Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C 320 Amp IF(av) @ 125 Deg C 240 Amp Itsm 6 kA VF(to) 0.85V Tj(max) 180°C rF 0.6mΩ Termination Style (Tail) 8.3mm Round Lug Termination Style (Stud) M18 x 1.5P Tail Length to Stud 200mm R th(j-c) 0.19°C/W R th(c-h) 0.03°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

FP120125P/0.333V, 1200/0.333V Amp Split Core CT, Class 0.5, 80 x 120mm Aperture, Dimensions 145 x 37 x 200mm Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Electronics Part Number FP120125P/0.333V Technology Split Core AC Clip On Current Transformer Ratio 1200/0.333V Aperture Size 85 x 120mm VA Rating 7.5VA Accuracy Class Class 0.5 Output 0.333V AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10°C / 50°C Continuous Current (max) 1200Amp x 1.2 Termination Style Screw Approvals CE Unit Weight 1150g Factory Pack Qty 1   Datasheet Product Datasheet Installation Guide

Read more less

OEM +/-15VDC Bipolar Power Supply Open frame solution Din Rail Mount RMS Output with Galvanic Isolation Opitons Include 24AC/DC, 110VAC,240VAC,415VAC Output Current 160mA RMS Open frame solution Delivery in 3-5 days for small qty, Otherwise 3-4 weeks Operating Temperature Range: 0 to 50 Deg C Datasheet Product Datasheet

Read more less

F921-A-XX-XX-XX Signal Conditioner and +/-15VDC Bipolar Power Supply with Adjustable High and Low C/O Relay Alarm. +/- 4V Bipolar Input, For External LEM Hall Effect Sensor Features Isolated measurement of AC or DC currents using a Hall effect transducer with external aperture Incorporates an integrated input level display and power supply Wide measurement range available Choice of standard outputs Wide range isolated DC input supply DIN Rail mounting Signal Conditioned AC Average RMS or DC measurement output On board bar graph display User adjustable zero offset and span controls Zero insertion loss in current measurement path Earth leakage via differential Ipn for nominal Input ‘01’ Applications Process control Transportation Petrochemical Industrial Earth Leakage Energy Monitoring/Measurement Automation Delivery Delivery in 3-5 days for small qty, Otherwise 4-6 weeks Specification Oztherm Part Number F921-X-XX-DC-XX-XX Functions Single Phase AC Current Transducer Supply Voltage 9-36VDC Nominal Measurement Range 0-20000 Amp (Sensor dependant) Maximum Measurement Range 0-20000 Amp with External Sensor Alarm C/O Relay 4Amp @ 30VDC, 0.5Amp @ 150VAC Response Time 250mS Accuracy @ 25 Deg C Class 1 Bandwidth DC - 1kHz linearity < 0.15% Isolation 2.5kV Comms N/A Weight 250g Enclosure Size 79 x 60 x 85mm Factory Pack Qty 1 EU Directives N/A Safety Protection Class II 600V rms, installation category II 300V rms, installation category III Pollution Degree 2 in compliance with SIST EN 61010-1:2002 Enclosure Material Polyamide non combustable-self-extinguishability, complying with UL 94 V-0 Enclosure Protection IP40   Shock Withstand 300g 8ms Pulse . 6 Shocks in each of 3 axes Vibration Withstand 0.7g, 3...100Hz, 1oct/min 10 cycles in each of three axes Operating Temperature -20 →+70 °C   Datasheet Product Datasheet

Read more less

F921 Series DC Current Transducer with Process Outputs & High and Low Sold State Alarm Features Isolated measurement of DC currents using a Hall effect transducer with external aperture. Incorporates an integrated input level display and power supply. Wide measurement range available Choice of standard outputs Wide range isolated DC input supply DIN Rail mounting Signal Conditioned DC measurement output On board bar graph display User adjustable zero offset and span controls Zero insertion loss in current measurement path Earth leakage via differential Ipn for nominal Input ‘01’ Applications Process control Transportation Petrochemical Industrial Earth Leakage Energy Monitoring/Measurement Automation Delivery Delivery in 3-5 days for small qty. Otherwise 4-6 weeks Specification Oztherm Part Number F921-X-XX-DC-XX-XX Functions Single Phase AC Current Transducer Supply Voltage 9-36VDC Nominal Measurement Range 0-400 Amp (Sensor dependant) Maximum Measurement Range 2500 Amp with External Sensor Alarm C/O Relay 2Amp @ 40VDC, 2Amp @ 60VAC Response Time 250mS Accuracy @ 25 Deg C Class 1 Bandwidth DC - 1kHz linearity < 0.15% Isolation 2.5kV Comms N/A Weight 250g Enclosure Size 79 x 60 x 85mm Factory Pack Qty 1 EU Directives N/A Safety Protection Class II 600V rms, installation category II 300V rms, installation category III Pollution Degree 2 in compliance with SIST EN 61010-1:2002 Enclosure Material Polyamide non combustable-self-extinguishability, complying with UL 94 V-0 Enclosure Protection IP40 Shock Withstand 300g 8ms Pulse . 6 Shocks in each of 3 axes Vibration Withstand 0.7g, 3...100Hz, 1oct/min 10 cycles in each of three axes Operating Temperature -20 →+70 °C Datasheet Product Datasheet

Read more less

F923 Series DC Current Transducer with Process Outputs & High and Low C/O Alarm Features Isolated measurement of DC currents using internal Hall effect transducer. Incorporates an integrated input level display and power supply. Wide measurement range available Choice of standard outputs Wide range isolated DC input supply DIN Rail mounting Signal Conditioned DC measurement output On board bar graph display User adjustable zero offset and span controls Zero insertion loss in current measurement path Earth leakage via differential Ipn for nominal Input ‘01’ Applications Process control Transportation Petrochemical Industrial Earth Leakage Energy Monitoring/Measurement Automation Delivery Delivery in 3-5 days for small qty. Otherwise 4-6 weeks Specification Oztherm Part Number F923-X-XX-DC-XX Functions Single Phase AC Current Transducer Supply Voltage 9-36VDC Nominal Measurement Range 0-8 Amp (Sensor dependant) Maximum Measurement Range 8 Amp Alarm C/O Relay 4Amp @ 30VDC, 0.5Amp @ 150VAC Response Time 250mS Accuracy @ 25 Deg C Class 1 Bandwidth DC - 1kHz linearity < 0.15% Isolation 2.5kV Comms N/A Weight 250g Enclosure Size 79 x 60 x 85mm Factory Pack Qty 1 EU Directives N/A Safety Protection Class II 600V rms, installation category II 300V rms, installation category III Pollution Degree 2 in compliance with SIST EN 61010-1:2002 Enclosure Material Polyamide non combustable-self-extinguishability, complying with UL 94 V-0 Enclosure Protection IP40 Shock Withstand 300g 8ms Pulse . 6 Shocks in each of 3 axes Vibration Withstand 0.7g, 3...100Hz, 1oct/min 10 cycles in each of three axes Operating Temperature -20 →+70 °C Datasheet Product Datasheet
