Fastron FDV-500-V05-24, DC Voltage Transducer, Din Rail Mount, 0-500VDC, 5V output, 24VDC Supply Voltage, 150mS Response 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 5V DC output (for voltage output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Part Number FDV-500-V05-24 Analogue Output 5V Input 0 - 500VDC Measurement Range 120% Overload 150% Continuous Operating Temperature -30 - 70°C Operating Voltage 24VDC +/-15% Accuracy 1% Response Time 150mS Voltage Isolation (1 min) 2.5kV Termination Style Screw Mounting Style DIN Rail Mount Safety CE, UL94V0 Weight 170g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Fastron FDV-15-V10-24, Battery DC Voltage Transducer, Din Rail Mount, 0-15VDC, 0-10V output, 24VDC Supply Voltage, 150mS Response 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 5V DC output (for voltage output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Part Number FDV-15-V10-24 Analogue Output 0-10V Input 0-15VDC Measurement Range 120% Overload 150% Continuous Operating Temperature -30 - 70°C Operating Voltage 24VDC +/-15% Voltage Isolation (1 min) 2.5kV Accuracy 1% Response Time 150mS Termination Style Screw Mounting Style DIN Rail Mount Safety CE, UL94V0 Weight 170g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Crouzet Syr-Line Single Pole Multifunction Timer With SP-NO/NC Contacts MDE Timers Syrline 48x48mm - 1 Relay 5A : Large LED or LCD Screen (13.2 mm) Multi-function and single-function Basic & Advance configuration modes Multi-range (0.05 s – 9999 h) Multi-voltage (24-240 V AC/DC) 1 or 2 relay outputs (Changeover) Memory option in event of a break in supply (Note Memory available for A function only in LCD models) Lock function › Up or down timing DIN Sized (48x48 mm) Housing Compact body (63 mm long) Water & Dust-proof (IP66) 8-Pin Multifunction Timers Include The Following : Function A Delay on energisation 1 relay (With or without Memory) Function B Timing on impulse one shot 1 relay Function C Timing after impulse 1 relay Function H Timing on energisation 1 relay Function D Symmetrical Flashing (OFF start) with Memory 1 relay Function Di Symmetrical Flashing (ON start) with Memory 1 relay Specification Crouzet Part Number MDE1R05MVA (Syr-Line Timer Single Pole 5A Multifunction, 100 - 240VAC, 48x48mm) Function Multifunction Timer A - B - C - H - D - Di Nominal Voltage 100 → 240 VAC Digital Output 1 x C/O (SPDT) (Changeover -Single Pole Double Throw), 250VAC/DC @ 5 Amp Min Breaking Current 10mA/12VDC Timing Ranges Selectable 0.05→9999h Minimum Pulse Duration 30ms/100ms with load Repeatability 0.5% Reset Time 120ms Memory YES -> Function A only for MDE (LCD display) series Isolation 1kV Repetition Accuracy 0.5% Threshold Adjustment Range 10 → 100 % of the range Termination Style 8 Pin Base Weight 80g Certification CE, cULus,CCC, ROHS, Reach, WEEE Factory Pack Qty 1 Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP66 (Front), IP40 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 Datasheet Product Datasheet

Read more less

Iskra TRE 712 UNI 24-240 V AC/DC, Multifunction T1-T2 Time Relay, 1s - 500hrs, 24 - 240VAC/DC, Din Rail Mount, 3 x SPDT 8 Amp Relay Features : Multi-range (0.1s - 10 days) Multi-voltage 12 →240 V AC/DC LED status indicator Possibility of external load connection in parallel to the control input 3-wire PNP sensor compatible Replaces TRE 702.1 Specification Crouzet Part Number TRE 712 UNI 24-240 V AC/DC Function Multifunction Time Relay Nominal Voltage 24 → 240 V AC/DC Digital Output 3 x C/O (SPST) (Changeover -Single Pole Double Throw-), 250VAC/DC @ 8 Amp Min Breaking Current 10mA/12VDC Timing Ranges Selectable 1s - 500hrs Minimum Pulse Duration 30ms/100ms with load Repeatability 0.5% Reset Time 120ms Isolation 4kV Repetition Accuracy 0.5% Threshold Adjustment Range 10 → 100 % of the range Termination Style Screw Weight 80g Factory Pack Qty 1 Certification CE Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP40 (Front), IP20 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22   Datasheet Product Datasheet Catalogue

Read more less

Fastron Electronics GA5-D-A6-D-N, 96x48mm 5 DIGIT DC Ammeter DC Voltmeter 4-20mA input, 22-60VAC/DC Supply Adjustable Zero and Span Setting Adjustable Display Scaling Large 5 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 96 x 48mm Panel Space 90mm Depth Specification Fastron Electronics Part Number GA5-D-A6-D-N Conditioner Output N/A Input 4-20mA Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style 96 x 48mm Panel Mount (60mm depth) Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

VX4-UMNA-A2, Temp Controller, 48x48mm, 100-240VAC, Multirange Input, Relay Output, 2 Alarms Multirange Input (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number VX4-UMNA-A2 Control Output 1 (Heat) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Control Output 2 (Cool) N/A Input Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals. Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 N/A Mounting Style 48 x 48mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 250g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet VX Series Brochure VX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

Shinko PCA1R10010 Series Digital Indicating Controllers Program control, Fixed Point Control function are standard features 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Time Signal Output Drip-proof / Dust-proof IP66 (front panel only) 16-step, 16 Patterns with Interlinking pattern is a standard feature UL/CSA Approved Each unit needs just 60 mm depth panel space EC Compliant (Details) Applications Kiln Controller Timed Heatsink Process Food Industry Oven Controller Furnace Controller Specification Shinko Part Number PCA1R10010 Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Number of Steps 16 Number of Patterns 16 Interlinkable Yes Input Multirange (refer to datasheet) Option 1 4-20mA Retransmission Output Option 2 None Mounting Style 96 x 96mm Panel Mount Load Voltage Range 24VAC/DC Termination Style Screw Weight 270g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet PCA Series Brochure PCA Series User Manual Shinko Product Guide Fine Tuning Adjustments

Read more less

Crydom DRC3P48D420R Series AC Motor Controller & Solid State Contactor Features 7.6 Amp AC Semiconductor Motor Controller Load voltage range up to 600VAC Fits standard 35mm DIN Rail LED input status indicator AC or DC control Zero Voltage (resistive loads) or instantaneous (inductive loads) turn-on output C-UL-US Listed, CCC Certified, IEC Rated, CE & RoHS Compliant, Horsepower Rated Built-in Overvoltage Protection Ultra-efficient thermal management design (Patented) Spec Crydom Part Number DRC3R48D420 Switching Type DC Load Approvals ROHS,UL,CE,IEC Control Voltage 18-30VAC/DC Load Current 7.6 Amp (rms) Surge Capability (10ms) 716 Amp (peak) Auxiliary Contacts 2 x NO 1 Amp Solid State Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 48-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 197g Factory Pack Qty 20 Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Risbabh EM94-Z-V3-M-D, Panel Mount DC kWh Meter, Class 0.5, 50-150mV Shunt input, 201-1000VDC, 2 Alarm/Pulse Outputs, RS485 & USB Comms, Single Line LCD Display,10-60VAC/DC Aux Supply, Internal Logging 2 Pulse/Alarm Outputs 50-150mV Shunt Input, and nominal voltage 201-1000VDC RS 485 communication up to 57,600 bit/s USB Port 8MB Internal Storage DC Measurement Only   The meter is intended for measuring, analysing and monitoring DC Power. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current,, energy, power.) from the measured signals.   Features : 96 x 96mm Panel Mount Accuracy class 0.5 Simple Menu RS 485 communication up to 57,600 bit/s USB Comms 8MB Internal Logger 10-60VAC/DC power supply Specification Rishabh Part Number EM94-Z-V1-M-D Functions kWh Meter, Energy Meter Supply Voltage 10-60VAC/DC Nominal Measurement Range 201-1000VDC Maximum Measurement Range 60-300VDC Display Single Line LCD Pulse/Relay Output 2 Accuracy Class 0.5 (Energy) USB YES Real Time Clock 1min/month (30ppm) Isolation 3.5kV RS485 Modbus RTU YES 57,600bps Weight 450g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Environment   IP54   Safety Protection Class II Enclosure Material Mablex with fire protection to UL94-V-O. Self extinguishing EnclosureSize 96 x 96mm x 83.5mm (72mm behind panel)   Terminals Rising Cage 4mm² (12 AWG) cable max Humidity < 75% Non Condensing Operating Temperature -20 →+70 °C   Datasheet Product Datasheet Software Software User Manual Software Download Link Application Notes 1)Reading Data from Registers -> Download file 2)Maximum Memory Size -> Read below Max Available Memory Locations in 8MB Size = 273030 Actual parameter stored in Each log (Memory locations used) = Date +time+Number of parameter selected by user Considering your example for 2 parameters: Number of parameter selected by user = 2 (kwh & kVA) Actual parameter stored in Each log = 1(Date) +1(time)+ 2 (Parameters) = 4 (memory locations used per log) Maximum log that can be stored = Max Memory Location/Actual parameter stored in Each log =273030/4= 68257 Timelog Interval setting = 15 minutes Log in one day = (60 /Timelog Interval setting) * 24 =(60/15)*24 = 96 Logs Max Days = Maximum log that can be stored / log in one day = 68257 / 96 = 711 days = 1 Year & 11 Months = 23 Months.

Read more less

Meanwell Universal Input MDR-40-12, Universal Din Rail Mount Power Supply, 85-264VAC or 120-370VDC input, 12VDC @ 3.3Amp output Supply Voltage: 85-264VAC or 120-370VDC Output Voltage: 12V Output Current: 3.33Amp Short Circuit, Overload, Overcurrent, Overvoltage Protected Suited to Rogowski Coils, FCR, FCY-1, FCY-3 Power Regulators Auxiliary Supply Datasheet Product Datasheet

Read more less

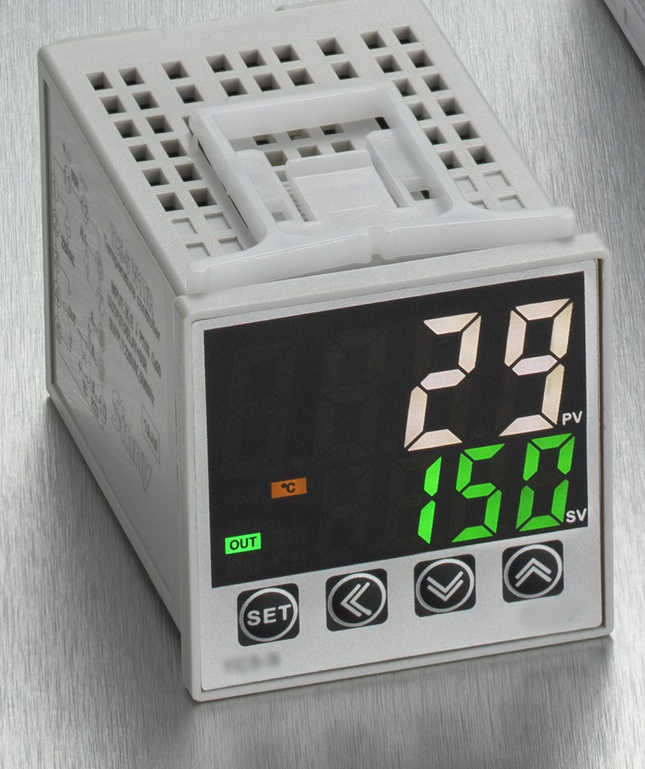

Fastron FC5-S-W-1-G-4-C, 24VDC PID Controller with 1 Alarm, RS485 K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and  PT100/Cu20 RTD Input, Relay + 12VDC Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-S-W-1-G-4-C Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)/SSR 12VDC @20mA Input Multirange Type K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input Option 1 1 Alarm standard Mounting Style 48 x 48 Panel Mount Supply Voltage 24VDC +/-15% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet Datasheet User Manual Modbus Protocol FC5 Communication Protocol

Read more less

Northern Design Power Rail PR350-M2-C-0.333V, kWh Meter, 3 Phase, DIN Rail, 240VAC aux, Class 1, 0.333V input, w/ pulse output and RS485 Comms, Power quality measurements 0.333V CT Input Optional RS 485 communication up to 19,200 bit/s True RMS values of currents and voltages Power Quality Measurements   The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, Hours Run, Peak Demand etc to the 30th Harmonic) from the measured signals.   Features : Accuracy class 1 Measurement of Active and Reactive Power Optional MODBUS RS 485 communication up to 19,200 bit/s communication Pulse output as standard Graphic LCD with illumination Specification Northern Design Part Number Power Rail PR350-M2-C-0.333V Functions Three Phase Energy Meter Supply Voltage 230V L-N, 5 Amp +/-15% < 5VA Nominal Measurement Range 415V L-L 230V L-N, 5 Amp +/-15% Maximum Measurement Range 480V L-L 230V L-N, 5 Amp +/-15% Nominal Current Input 0.333 Volt AC Pulse Output 3 x NO Voltage Free Contacts 100mA @ 100VAC/DC Tariff Input N/A (Optional) Accuracy Class 1 (I,U,F,PF,) Class 2 (Reactive) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 106mm x 90mm x 58mm (6 modules wide) Isolation 3.5kV RS485 1200-19200 b/s Weight 150g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Enclosure Size DIN 42880 6 Modules Operating Temperature -20 →+70 °C   Datasheet Product Datasheet Product Manual Product Comms Manual Option Links Application Notes CT Cable Losses Meter Accuracy at Low Current Current Input Isolation
