Trent F170M1308 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 10 Amp, 690VAC, Panel Mount 200kA, Size 000 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of I^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I??t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M1308 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I??t Rating (660V) 25.5 A^2/s Nominal Current (RMS DC) 10 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 000) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent F170M1309 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 16 Amp, 690VAC, Panel Mount 200kA, Size 000 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of I^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I??t Short Circuit Protection DC or AC Motor Protection Battery Fuse Specification Trent Part Number F170M1309 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I??t Rating (660V) 48 A^2/s Nominal Current (RMS DC) 16 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 000) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent F170M1310 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 20 Amp, 690VAC, Panel Mount 200kA, Size 000 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of I^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I??t Short Circuit Protection DC or AC Motor Protection Battery Fuse Specification Trent Part Number F170M1310 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I??t Rating (660V) 78 A^2/s Nominal Current (RMS DC) 20 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 000) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent F170M1311 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 25 Amp, 690VAC, Panel Mount 200kA, Size 000 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of I^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I??t Short Circuit Protection DC or AC Motor Protection Battery Fuse Specification Trent Part Number F170M1311 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I??t Rating (660V) 130 A^2/s Nominal Current (RMS DC) 25 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 000) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent F170M1312 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 32 Amp, 690VAC, Panel Mount 200kA, Size 000 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of I^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I??t Short Circuit Protection DC or AC Motor Protection Battery Fuse Specification Trent Part Number F170M1312 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I??t Rating (660V) 270 A^2/s Nominal Current (RMS DC) 32 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 000) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent F170M1313 Series 690V Semiconductor I??t (aR) Fuse Square Body DIN 43 653 Style, 40 Amp, 690VAC, Panel Mount 200kA, Size 000 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of ^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I??t Short Circuit Protection DC or AC Motor Protection Battery Fuse Specification Trent Part Number F170M1313 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I??t Rating (660V) 460 A^2/s Nominal Current (RMS DC) 40 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 000) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent F170M1314 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 50 Amp, 690VAC, Panel Mount 200kA, Size 000 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of I^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I??t Short Circuit Protection DC or AC Motor Protection Battery Fuse Specification Trent Part Number F170M1315 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I??t Rating (660V) 770 A^2/s Nominal Current (RMS DC) 50 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 000) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent F170M1315 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 63 Amp, 690VAC, Panel Mount 200kA, Size 000 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of I^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I??t Short Circuit Protection DC or AC Motor Protection Battery Fuse Specification Trent Part Number F170M1315 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I??t Rating (660V) 1450 A^2/s Nominal Current (RMS DC) 63 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 000) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent F170M1316 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 80 Amp, 690VAC, Panel Mount 200kA, Size 000 (78mm Hole Centers) Features Square Body DIN 43 653 Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I??t Short Circuit Protection DC or AC Motor Protection Battery Fuse Specification Trent Part Number F170M1316 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I??t Rating (660V) 2550 A^2/s Nominal Current (RMS DC) 80 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 000) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40??C / 125??C Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

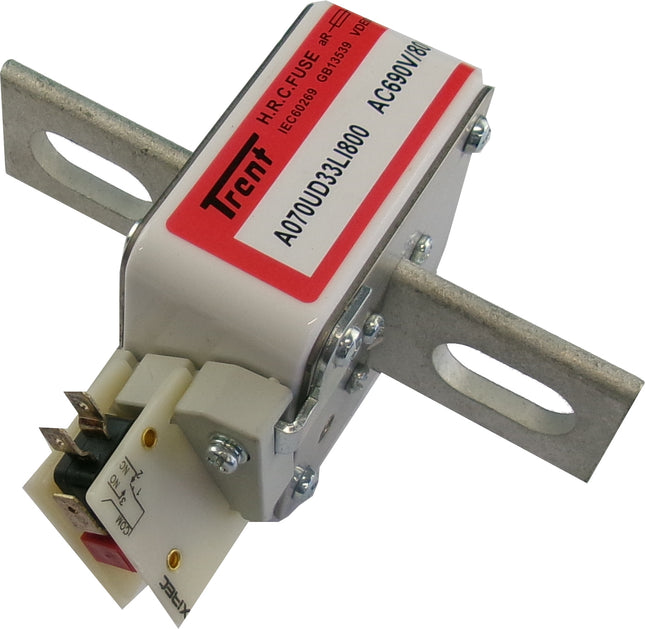

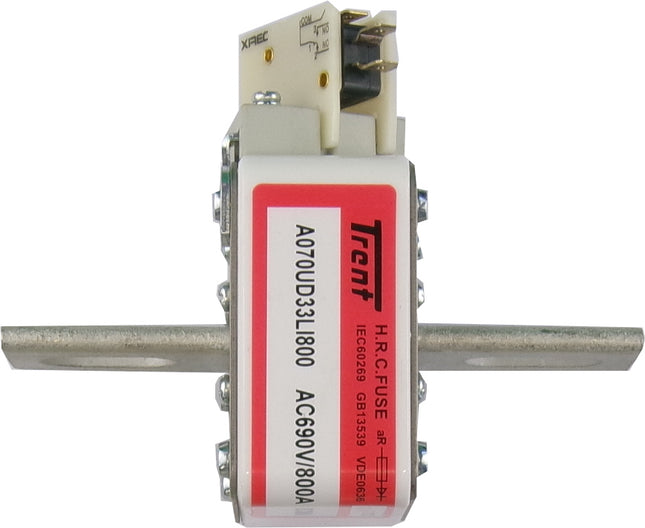

Trent NBR-A070UD33LI800, Semiconductor Fuse, 800 Amp, 690VAC, Size 33 Type KI, 200kA with Indicator and Microswitch Features Square Body Size 33 Type KI Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-A070UD33LI800 Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (660V) 540000A²/s Nominal Current (RMS + DC) 800 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 134 x 73 x 78.5mm Hole Centers 91.5mm +/- 16.1mm Mounting Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watts Dissipation 130W Termination M10 Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent NBR-FR22GR69V50T + RT18-125L Series 50 Amp 690V Semiconductor I²t gR Fuse & DIn Rail Fuse Holder Cartridge Style Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 50 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V50T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 1600 A²/s Nominal Current (RMS + DC) 50 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 22.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet

Read more less

Trent NBR-FR22GR69V90T + RT18-125L Series 90 Amp 690V Semiconductor I²t gR Fuse & DIn Rail Fuse Holder Cartridge Style Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 90 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V90T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 7500 A²/s Nominal Current (RMS + DC) 90 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 22.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet
