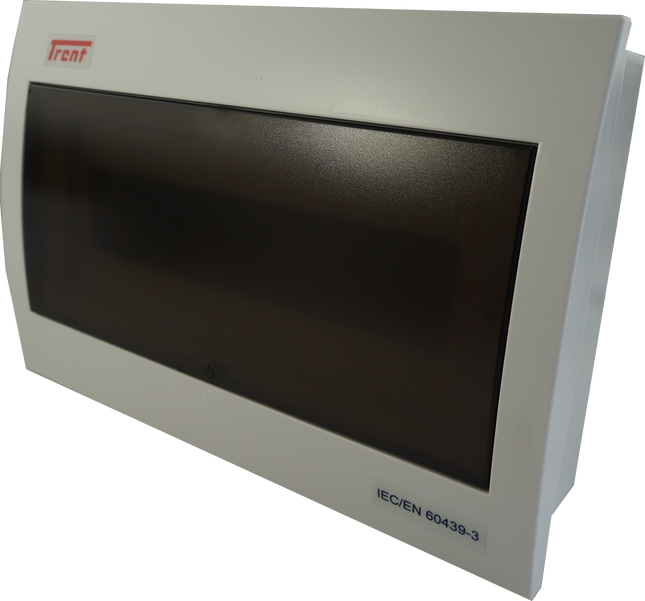

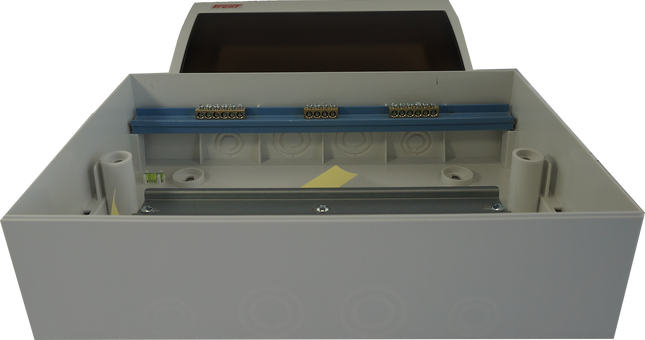

Trent DF12, 12 Module Compact Distribution Boards, Flush Mounted IP40 with Terminal Block, Neutral Bar and DIN Rail Features Latching Door/Window IP40 Protection Class RAL 7035 Double Insulation IEC 60670-1, IEC 60670-24 Installation Temperature -20 to 60 Deg C Glow Wire Test 650 Deg C 10 x PE and 10 x N Conductor Terminals Datasheet Product Datasheet

Read more less

Trent 110NAF Series 690V, 110 Amp, aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 2.5 URZ 17/100 Y085558, ETI BS17UQ/41/100A/240V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 110NAF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 5200 A²/s Nominal Current (RMS + DC) 110 Amp Tested Breaking Capacity 200kA @ 250VAC Dimensions 54 x 18mm Hole Centers 38 x 42.8mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 12W Termination Style M6 Unit Weight 30g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent NBR-CH14/UQ/25A/690V + RT18-63L (3pcs), 25 Amp 690V Semiconductor I²t gR Fuse Cartridge Style 51 x 14mm with Din Rail Mount Fuse Holder Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 51 x 14mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/25A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 320 A²/s Nominal Current (RMS + DC) 25 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 7.6W DC Breaking Capacity 50kA Unit Weight 42g Factory Pack Qty 10   Datasheet RT18-63L Fuse Datasheet

Read more less

Trent NBR-A15QS3000-128, Amp Trap Semiconductor Fuse, 3000 Amp, 150V, Capsule Style, 100kA Features Capsule Style Low I²t Ratings up to 6000 Amp Busbar Mounted Form 101 150 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-A15QS3000-128 Fuse Type I²t Amp Trap Form 101 Nominal Voltage 150VAC @ 50Hz /150VDC I²t Rating (660V) 640000A²/s Nominal Current (RMS + DC) 3000 Amp Tested Breaking Capacity 100kA @ 150VAC/DC Dimensions ⌀41.4 x 47.8 Hole Centers 38.1mm Mounting Style Busbar Mount Operating Temperature Range -40°C / 125°C Watts Dissipation Termination Style 1/2" 20 UNF, 1/2" Deep Unit Weight 500g Factory Pack Qty 3   Datasheet Product Datasheet

Read more less

Trent NBR-A070UD33LI1100, Semiconductor Fuse, 1100 Amp, 690VAC, Size 33 Type KI, 200kA with Indicator and Microswitch Features Square Body Size 33 Type KI Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-A070UD33LI1100 Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (660V) 1390000A²/s Nominal Current (RMS + DC) 1100 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 134 x 73 x 78.5mm Hole Centers 91.5mm +/- 16.1mm Mounting Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watts Dissipation 160W Termination M10 Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent NBR-A070UD33LI1000, Semiconductor Fuse, 1000 Amp, 690VAC, Size 33 Type KI, 200kA with Indicator and Microswitch Features Square Body Size 33 Type KI Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-A070UD33LI1000 Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (660V) 990000A²/s Nominal Current (RMS + DC) 1000 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 134 x 73 x 78.5mm Hole Centers 91.5mm +/- 16.1mm Mounting Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watts Dissipation 155W Termination M10 Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent NBR-A070UD33LI900, Semiconductor Fuse, 900 Amp, 690VAC, Size 33 Type KI, 200kA with Indicator and Microswitch Features Square Body Size 33 Type KI Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-A070UD33LI900 Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (660V) 770000A²/s Nominal Current (RMS + DC) 900 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 134 x 73 x 78.5mm Hole Centers 91.5mm +/- 16.1mm Mounting Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watts Dissipation 135W Termination M10 Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent NBR-A070UD33LI700, Semiconductor Fuse, 700 Amp, 690VAC, Size 33 Type KI, 200kA with Indicator and Microswitch Features Square Body Size 33 Type KI Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-A070UD33LI700 Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (660V) 330000A²/s Nominal Current (RMS + DC) 700 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 134 x 73 x 78.5mm Hole Centers 91.5mm +/- 16.1mm Mounting Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watts Dissipation 120W Termination M10 Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent NBR-A070UD33LI630, Semiconductor Fuse, 630 Amp, 690VAC, Size 33 Type KI, 200kA with Indicator and Microswitch Features Square Body Size 33 Type KI Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-A070UD33LI630 Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (660V) 230000A²/s Nominal Current (RMS + DC) 630 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 134 x 73 x 78.5mm Hole Centers 91.5mm +/- 16.1mm Mounting Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watts Dissipation 120W Termination M10 Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent NBR-A069UD33LI500, Semiconductor Fuse, 500 Amp, 690VAC, Size 33 Type KI, 200kA with Indicator and Microswitch Features Square Body Size 33 Type KI Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-A069UD33LI500 Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (660V) 110000A²/s Nominal Current (RMS + DC) 500 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 134 x 73 x 78.5mm Hole Centers 91.5mm +/- 16.1mm Mounting Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watts Dissipation 105W Termination M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

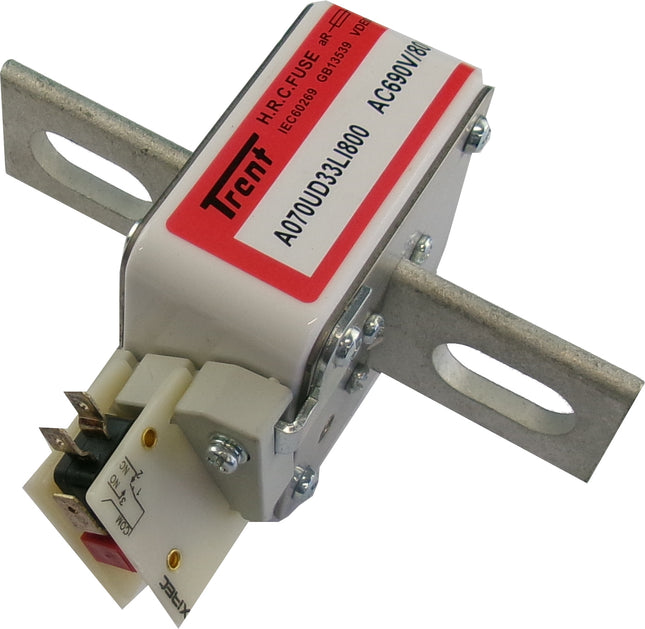

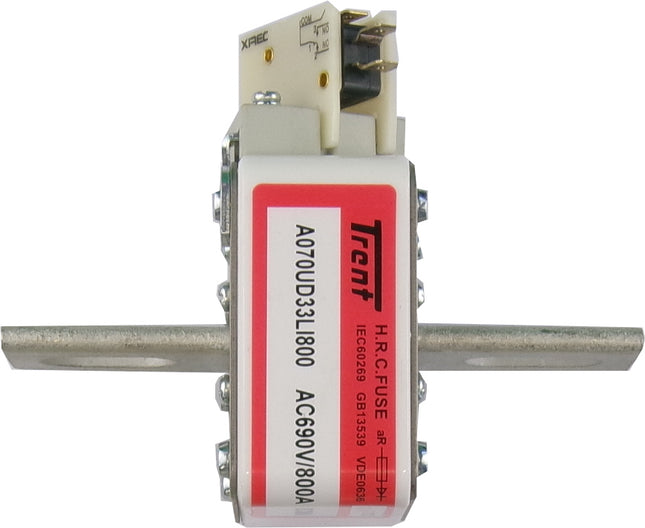

Trent NBR-A070UD33LI800, Semiconductor Fuse, 800 Amp, 690VAC, Size 33 Type KI, 200kA with Indicator and Microswitch Features Square Body Size 33 Type KI Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-A070UD33LI550 Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (660V) 155000A²/s Nominal Current (RMS + DC) 550 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 134 x 73 x 78.5mm Hole Centers 91.5mm +/- 16.1mm Mounting Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watts Dissipation 110W Termination M10 Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent NBR-A069UD33LI450, Semiconductor Fuse, 450 Amp, 690VAC, Size 33 Type KI, 200kA with Indicator and Microswitch Features Square Body Size 33 Type KI Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-A069UD33LI450 Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (660V) 87000A²/s Nominal Current (RMS + DC) 450 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 134 x 73 x 78.5mm Hole Centers 91.5mm +/- 16.1mm Mounting Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watts Dissipation 95W Termination M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less
