Trent OEM Pricing Collection
-
FGM6S-3P-160H 63A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal, Adjustable Type ICS=50kA 63 Amp, 400/690VAC
Trent MOD1 3NM 63A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal, Adjustable Type 50kA 63 Amp, 400/690VAC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time Disconnect 50kA Short Circuit Rating @400VAC Suitable for Main Incoming Breaker Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGM6S-3P-160H 63A Functions MCCB Nominal Voltage 400/690VAC @ 50/60Hz Nominal Current Range 63 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 8kV Operating Temperature -25 to 50 Deg C Mechanical Operations 20,000 Ops Insulation Voltage 800V Short Circuit Current 50kA Approvals KEMA EUR, CE Standards IEC/EN 60898-1,IEC/EN 60947-3, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 1.2kg Enclosure Material UL94 Factory Pack Qty 1 Â Datasheet Product Datasheet
$179.00
$211.22 inclGST -

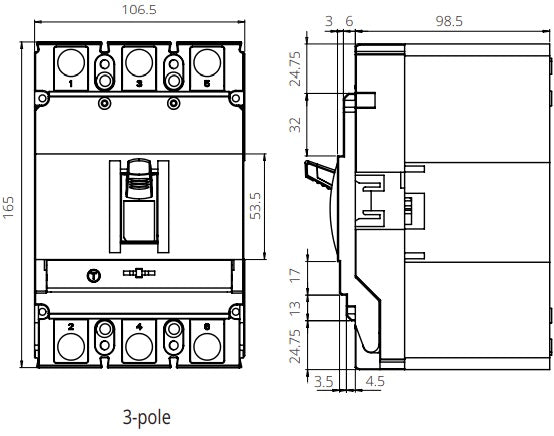

FGM6S-3P-160H 80A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal, Adjustable Type ICS=50kA 40 Amp, 400/690VAC
Trent FGM6S-3P-160H 80A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal, Adjustable Type 50kA 80 Amp, 400/690VAC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Disconnect 50kA Short Circuit Rating @400VAC Suitable for Main Incoming Breaker Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGM6S-3P-160H 80A Functions MCCB Nominal Voltage 400/690VAC @ 50/60Hz Nominal Current Range 80 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 8kV Operating Temperature -25 to 50 Deg C Mechanical Operations 20,000 Ops Insulation Voltage 800V Short Circuit Current 50kA Approvals KEMA EUR, CE Standards IEC/EN 60898-1,IEC/EN 60947-3, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 1.2kg Enclosure Material UL94 Factory Pack Qty 1 Â Datasheet Product Datasheet
$205.00
$241.90 inclGST -

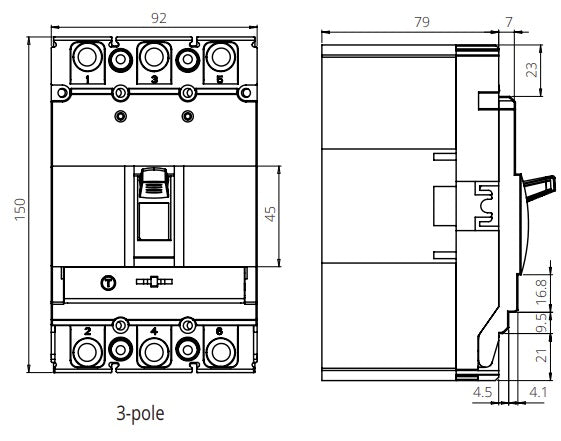

FGM6S-3P-160H 100A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal, Adjustable Type ICS=50kA 100 Amp, 400/690VAC
Trent FGM6S-3P-160H 100A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal, Adjustable Type 50kA 100 Amp, 400/690VAC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Disconnect 50kA Short Circuit Rating @400VAC Suitable for Main Incoming Breaker Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGM6S-3P-160H 100A Functions MCCB Nominal Voltage 400/690VAC @ 50/60Hz Nominal Current Range 100 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 8kV Operating Temperature -25 to 50 Deg C Mechanical Operations 20,000 Ops Insulation Voltage 800V Short Circuit Current 50kA Approvals KEMA EUR, CE Standards IEC/EN 60898-1,IEC/EN 60947-3, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 1.2kg Enclosure Material UL94 Factory Pack Qty 1 Â Datasheet Product Datasheet
$205.00
$241.90 inclGST -
CHA-HT 8WAYS IP65, 8 Module Compact Distribution Boards, ABS/PC, Panel Mounted IP65, 5 x PE and 5 x N Conductor Terminals
Trent CHA-HT 8WAYS IP65, 8 Module Compact Distribution Boards, ABS/PC, Panel Mounted IP65, 5 x PE and 5 x N Conductor Terminals Features IP65 Protection Class RAL 7035 Double Insulation IEC 60670-1, IEC 60670-24 Installation Temperature -20 to 60 Deg C CE and ROHS Compliant 5 x PE and 5 x N Conductor Terminals Datasheet Product Datasheet
$30.50
$35.99 inclGST -
CHA-HT 12WAYS IP65, 12 Module Compact Distribution Boards, ABS/PC, Panel Mounted IP65, 8 x PE and 8 x N Conductor Terminals
Trent CHA-HT 12WAYS IP65, 12 Module Compact Distribution Boards, ABS/PC, Panel Mounted IP65, 8 x PE and 8 x N Conductor Terminals Features IP65 Protection Class RAL 7035 Double Insulation IEC 60670-1, IEC 60670-24 Installation Temperature -20 to 60 Deg C CE and ROHS Compliant 8 x PE and 8 x N Conductor Terminals Datasheet Product Datasheet
$38.00
$44.84 inclGST -
TG-63H 1P/6/C/10kA, 1 Pole Miniature Circuit Breaker C Curve 6 Amp, 10kA, 230VAC
TRENT TG-63H 1P/6/C/10kA, 1 Pole Miniature Circuit Breaker C Curve 6 Amp, 10kA, 230VAC Miniature Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB Specification TRENT Part Number TG-63H 1P/6/C/10kA Functions 1 Pole MCB - C Curve Nominal Voltage 230VAC @ 50/60Hz Nominal Current Range 10 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia  Datasheet Product Datasheet
$49.90
$58.88 inclGST -

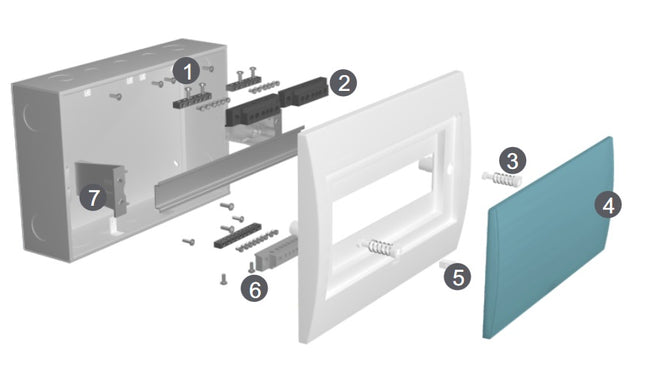

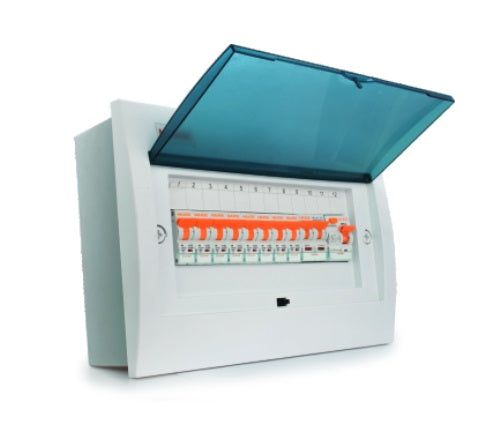

DFM18, 18 Module Compact Distribution Boards, ABS/PC/Metal(Base Only), Flush Mounted IP40 with Terminal Block, Neutral bar and DIN Rail
Trent DFM18, 18 Module Compact Distribution Boards, ABS/PC/Metal(Base Only), Flush Mounted IP40 with Terminal Block, Neutral bar and DIN Rail Features Winnner of 2022 UK Design Awards Latching Door/Window IP40 Protection Class Plastic Shroud, Polycarbonate Window, Power Coated Metal Base Frame RAL 7035 Double Insulation IEC 60670-1, IEC 60670-24 Installation Temperature -20 to 60 Deg C Glow Wire Test 650 Deg C 10 x PE and 10 x N Conductor Terminals Datasheet Product Datasheet
$62.00
$73.16 inclGST -
150NBF, 690V, 1050 Amp aR Semiconductor I²t Fuse BS88 Style
Trent 150NBF, 690V, 100 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 150NBF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 7400 A²/s Nominal Current (RMS + DC) 150 Amp Tested Breaking Capacity 100kA @ 250VAC Dimensions 82 x 47.3mm Hole Centers 65.5 - 48.2mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 27W Termination Style M6 Unit Weight 170g Factory Pack Qty 10  Datasheet Product Datasheet Cross Reference Chart
$36.80
$43.42 inclGST -
GYM10 3P C20, 3 Pole Miniature Circuit Breaker C Curve 25 Amp, 6kA, 400VAC
TRENT GYM10 3P C20, 3 Pole Miniature Circuit Breaker C Curve 25 Amp, 6kA, 400VAC Miniature Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 3 Pole Disconnect 6kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB Specification TRENT Part Number GYM10 3P C20 Functions 3 Pole MCB - C Curve Nominal Voltage 400VAC @ 50/60Hz Nominal Current Range 20 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 6kA Approvals CE,CB Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia  Datasheet Product Datasheet
$49.90
$58.88 inclGST -
GFP425A, DC Contactor Gigafuse, 400 Amp, 10kA, 1000VDC, 2500 Amp Trip Current, For FAST BATTERY DISCONNECT, Upright Mounted
Gigavac GFP425A, DC Contactor Gigafuse, 400 Amp, 10kA, 1000VDC, 2500 Amp Trip Current, For FAST BATTERY DISCONNECT, Upright Mounted Features Isolated Fuse Trip Ratings up to 2500 Amp Panel Mount, Uprighted IEC Standard 60269.1 AND 4 1000 V Voltage Rating 400 Amp Nominal Rating Applications Fast <3ms Clearance time Short Circuit Protection DC Contactor Fuse, DC Motor Fuse Battery Fuse Specification Trent Part Number GFP425B Fuse Type DC Contactor / Batttery Disconnect Fuse Nominal Voltage 1000VDC Current Trip Point 2500 Amp Nominal Current (DC) 400 Amp Tested Breaking Capacity 10kA Dimensions 103.5 x 91.27 x 61.33mm Hole Centers 88.9mm Mounting Panel Mount, Upright, Side Mounted Operating Temperature Range -40°C / 85°C Termination M8 x 1.25 Female Unit Weight 790g Factory Pack Qty 10  Datasheet Product Datasheet
$337.50
$398.25 inclGST -
GFP422A, DC Contactor Gigafuse, 400 Amp, 10kA, 1000VDC, 2200 Amp Trip Current, For FAST BATTERY DISCONNECT, Upright Mounted
Gigavac GFP422A, DC Contactor Gigafuse, 400 Amp, 10kA, 1000VDC, 2200 Amp Trip Current, For FAST BATTERY DISCONNECT, Upright Mounted Features Isolated Fuse Trip Ratings up to 2500 Amp Panel Mount, Uprighted IEC Standard 60269.1 AND 4 1000 V Voltage Rating 400 Amp Nominal Rating Applications Fast <3ms Clearance time Short Circuit Protection DC Contactor Fuse, DC Motor Fuse Battery Fuse Specification Trent Part Number GFP422B Fuse Type DC Contactor / Batttery Disconnect Fuse Nominal Voltage 1000VDC Current Trip Point 2200 Amp Nominal Current (DC) 400 Amp Tested Breaking Capacity 10kA Dimensions 103.5 x 91.27 x 61.33mm Hole Centers 88.9mm Mounting Panel Mount, Upright, Side Mounted Operating Temperature Range -40°C / 85°C Termination M8 x 1.25 Female Unit Weight 790g Factory Pack Qty 10  Datasheet Product Datasheet
$337.50
$398.25 inclGST -
GFP420A, DC Contactor Gigafuse, 400 Amp, 10kA, 1000VDC, 2000 Amp Trip Current, For FAST BATTERY DISCONNECT, Upright Mounted
Gigavac GFP420A, DC Contactor Gigafuse, 400 Amp, 10kA, 1000VDC, 2000 Amp Trip Current, For FAST BATTERY DISCONNECT, Upright Mounted Features Isolated Fuse Trip Ratings up to 2500 Amp Panel Mount, Uprighted IEC Standard 60269.1 AND 4 1000 V Voltage Rating 400 Amp Nominal Rating Applications Fast <3ms Clearance time Short Circuit Protection DC Contactor Fuse, DC Motor Fuse Battery Fuse Specification Trent Part Number GFP420B Fuse Type DC Contactor / Batttery Disconnect Fuse Nominal Voltage 1000VDC Current Trip Point 2000 Amp Nominal Current (DC) 400 Amp Tested Breaking Capacity 10kA Dimensions 103.5 x 91.27 x 61.33mm Hole Centers 88.9mm Mounting Panel Mount, Upright Operating Temperature Range -40°C / 85°C Termination M8 x 1.25 Female Unit Weight 790g Factory Pack Qty 10  Datasheet Product Datasheet
$337.50
$398.25 inclGST
