Trent OEM Pricing Collection
-
F170M2613, Square Body Semiconductor Fuse, 80 Amp, 690VAC, Panel Mount 200kA, Size 00 (78mm Hole Centres)
Trent F170M2613 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 80 Amp, 690VAC, Panel Mount 200kA, Size 00 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of I^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M2613 Fuse TypeI^2t I^2t AR Class Nominal Voltage 690VAC @ 50Hz Nominal Current (RMS DC) 80 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 00) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10 Datasheet Product Datasheet
$39.00
$46.02 inclGST -
F170M2612, Square Body Semiconductor Fuse, 63 Amp, 690VAC, Panel Mount 200kA, Size 00 (78mm Hole Centres)
Trent F170M2612 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 63 Amp, 690VAC, Panel Mount 200kA, Size 00 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of I^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M2612 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz Nominal Current (RMS DC) 63 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 00) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10 Datasheet Product Datasheet
$39.00
$46.02 inclGST -
F170M2611, Square Body Semiconductor Fuse, 50 Amp, 690VAC, Panel Mount 200kA, Size 00 (78mm Hole Centres)
Trent F170M2611 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 50 Amp, 690VAC, Panel Mount 200kA, Size 00 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of I^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M2611 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz Nominal Current (RMS DC) 50 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 00) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10 Datasheet Product Datasheet
$39.00
$46.02 inclGST -
F170M2610, Square Body Semiconductor Fuse, 40 Amp, 690VAC, Panel Mount 200kA, Size 00 (78mm Hole Centres)
Trent F170M2610 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 40 Amp, 690VAC, Panel Mount 200kA, Size 00 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of I^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I??t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M2610 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz Nominal Current (RMS DC) 40 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 00) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10 Datasheet Product Datasheet
$39.00
$46.02 inclGST -
F170M2609, Square Body Semiconductor Fuse, 32 Amp, 690VAC, Panel Mount 200kA, Size 00 (78mm Hole Centres)
Trent F170M2609 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 32 Amp, 690VAC, Panel Mount 200kA, Size 00 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of I^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I??t Short Circuit Protection Motor Protection Battery Fuse Specification Trent Part Number F170M2609 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz Nominal Current (RMS DC) 32 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 00) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10 Datasheet Product Datasheet
$39.00
$46.02 inclGST -
F170M2608, Square Body Semiconductor Fuse, 25 Amp, 690VAC, Panel Mount 200kA, Size 00 (78mm Hole Centres)
Trent F170M2608 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 25 Amp, 690VAC, Panel Mount 200kA, Size 00 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of I^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I??t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M2608 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz Nominal Current (RMS DC) 25 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 00) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10 Datasheet Product Datasheet
$39.00
$46.02 inclGST -
FGC1-F800-230VAC, AC Contactor, 240VAC Control Voltage, 3 Pole NO, Nominal Current = 800 Amps(AC-3) @ 240/400/500/690V
Fastron Electronics FGC1-F800-230VAC, AC Contactor, 240VAC Control Voltage, 3 Pole NO, Nominal Current = 800 Amps(AC-3) @ 240/400/500/690V Contactors are designed to meet the requirements of heavy Duty applications. Contactors may be fitted with auxiliary contacts. Peak current is limited to the value within the contactor making capacity. Features : High contact reliability at low voltages High electrical and mechanical endurance and high switching capacity Four and Three-pole contactors Optional auxiliary contacts Ratings from 6 Amp to 1000 Amp CE, CB Approved Advantages : Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 240 V 50/60 Hz, 415 V 50/60 Hz Specification Fastron Electronics Part Number FGC1-F800-230VAC Functions 3 Pole Contactor Nominal Voltage 230/400/500/690VAC @ 50/60Hz Current Carrying Capacity as per UL 800 Amp Continuous @ 55 Deg C Main Contacts 3 x NO Aux Contacts None Trip Delay Time 2-10ms Electrical Life 1,000,000 Ops Operating Temperature -25 to 55 Deg C Mechanical Operations 6,000,000 Ops Control Voltage 240VAC Pole Resistance (avg) 0.35m Ohm Approvals CE, CB, TUV, LVD Standards IEC/EN 60947-4-1, AS/NZ 61009-1 Weight 2kg Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$875.00
$1,032.50 inclGST -
FGC1-F630-230VAC, AC Contactor, 240VAC Control Voltage, 3 Pole NO, Nominal Current = 630 Amps(AC-3) @ 240/400/500/690V
Fastron Electronics FGC1-F630-230VAC, AC Contactor, 240VAC Control Voltage, 3 Pole NO, Nominal Current = 630 Amps(AC-3) @ 240/400/500/690V Contactors are designed to meet the requirements of heavy Duty applications. Contactors may be fitted with auxiliary contacts. Peak current is limited to the value within the contactor making capacity. Features : High contact reliability at low voltages High electrical and mechanical endurance and high switching capacity Four and Three-pole contactors Optional auxiliary contacts Ratings from 6 Amp to 1000 Amp CE, CB Approved Advantages : Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 240 V 50/60 Hz, 415 V 50/60 Hz Specification Fastron Electronics Part Number FGC1-F630-230VAC Functions 3 Pole Contactor Nominal Voltage 230/400/500/690VAC @ 50/60Hz Current Carrying Capacity as per UL 630 Amp Continuous @ 55 Deg C Main Contacts 3 x NO Aux Contacts None Trip Delay Time 2-10ms Electrical Life 1,000,000 Ops Operating Temperature -25 to 55 Deg C Mechanical Operations 6,000,000 Ops Control Voltage 240VAC Pole Resistance (avg) 0.35m Ohm Approvals CE, CB, TUV, LVD Standards IEC/EN 60947-4-1, AS/NZ 61009-1 Weight 2kg Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$775.00
$914.50 inclGST -
FGC1-F500-230VAC, AC Contactor, 240VAC Control Voltage, 3 Pole NO, Nominal Current = 500 Amps(AC-3) @ 240/400/500/690V
Fastron Electronics FGC1-F500-230VAC, AC Contactor, 240VAC Control Voltage, 3 Pole NO, Nominal Current = 500 Amps(AC-3) @ 240/400/500/690V Contactors are designed to meet the requirements of heavy Duty applications. Contactors may be fitted with auxiliary contacts. Peak current is limited to the value within the contactor making capacity. Features : High contact reliability at low voltages High electrical and mechanical endurance and high switching capacity Four and Three-pole contactors Optional auxiliary contacts Ratings from 6 Amp to 1000 Amp CE, CB Approved Advantages : Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 240 V 50/60 Hz, 415 V 50/60 Hz Specification Fastron Electronics Part Number FGC1-F500-230VAC Functions 3 Pole Contactor Nominal Voltage 230/400/500/690VAC @ 50/60Hz Current Carrying Capacity as per UL 500 Amp Continuous @ 55 Deg C Main Contacts 3 x NO Aux Contacts None Trip Delay Time 2-10ms Electrical Life 1,000,000 Ops Operating Temperature -25 to 55 Deg C Mechanical Operations 6,000,000 Ops Control Voltage 240VAC Pole Resistance (avg) 0.35m Ohm Approvals CE, CB, TUV, LVD Standards IEC/EN 60947-4-1, AS/NZ 61009-1 Weight 2kg Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$675.00
$796.50 inclGST -
FGC1-F330-230VAC, AC Contactor, 240VAC Control Voltage, 3 Pole NO, Nominal Current = 330 Amps(AC-3) @ 240/400/500/690V
Fastron Electronics FGC1-F330-230VAC, AC Contactor, 240VAC Control Voltage, 3 Pole NO, Nominal Current = 330 Amps(AC-3) @ 240/400/500/690V Contactors are designed to meet the requirements of heavy Duty applications. Contactors may be fitted with auxiliary contacts. Peak current is limited to the value within the contactor making capacity. Features : High contact reliability at low voltages High electrical and mechanical endurance and high switching capacity Four and Three-pole contactors Optional auxiliary contacts Ratings from 6 Amp to 1000 Amp CE, CB Approved Advantages : Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 240 V 50/60 Hz, 415 V 50/60 Hz Specification Fastron Electronics Part Number FGC1-F330-230VAC Functions 3 Pole Contactor Nominal Voltage 230/400/500/690VAC @ 50/60Hz Current Carrying Capacity as per UL 330 Amp Continuous @ 55 Deg C Main Contacts 3 x NO Aux Contacts None Trip Delay Time 2-10ms Electrical Life 1,000,000 Ops Operating Temperature -25 to 55 Deg C Mechanical Operations 6,000,000 Ops Control Voltage 240VAC Pole Resistance (avg) 0.35m Ohm Approvals CE, CB, TUV, LVD Standards IEC/EN 60947-4-1, AS/NZ 61009-1 Weight 2kg Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$575.00
$678.50 inclGST -
TGD-22SM-R-230, 22mm RED LED Flasher/Indicator and Audible Alarm Buzzer, 240VAC, Plastic
TGD-22SM-R-230, 22mm RED LED Flasher/Indicator and Audible Alarm Buzzer, 240VAC, Plastic LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 240VAC Supply LED Illumination Ø 22.5mm Cutout Long Life LED Replacement Beads Available RED, GREEN, AMBER, BLUE, or Clear\White Colour Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TGD-22SM-R-230 Functions LED Indicator and Audible Alarm Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type RED LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet
$15.00
$17.70 inclGST -

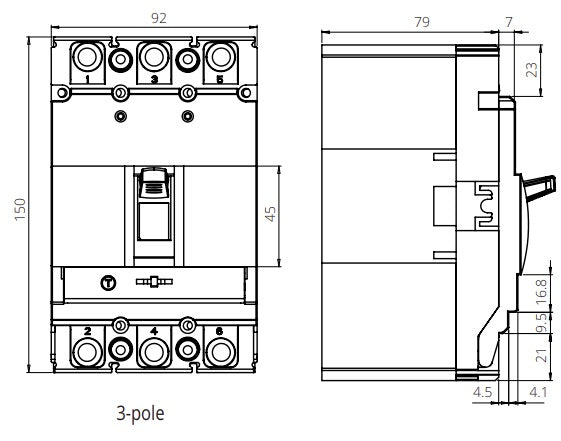

FGM6S-3P-160H 125A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal, Adjustable Type ICS=50kA 125 Amp, 400/690VAC
Trent FGM6S-3P-160H 125A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal, Adjustable Type 50kA 125 Amp, 400/690VAC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Disconnect 50kA Short Circuit Rating @400VAC Suitable for Main Incoming Breaker Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGM6S-3P-160H 125A Functions MCCB Nominal Voltage 400/690VAC @ 50/60Hz Nominal Current Range 125 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 8kV Operating Temperature -25 to 50 Deg C Mechanical Operations 20,000 Ops Insulation Voltage 800V Short Circuit Current 50kA Approvals KEMA EUR, CE Standards IEC/EN 60898-1,IEC/EN 60947-3, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 1.2kg Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$205.00
$241.90 inclGST
