Split Core Current Transformers
-

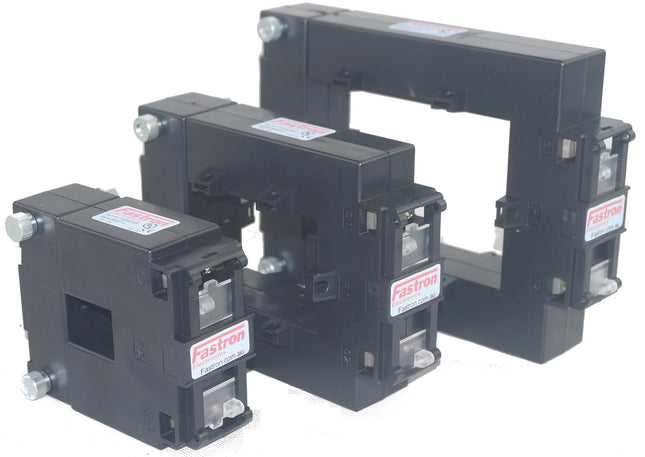

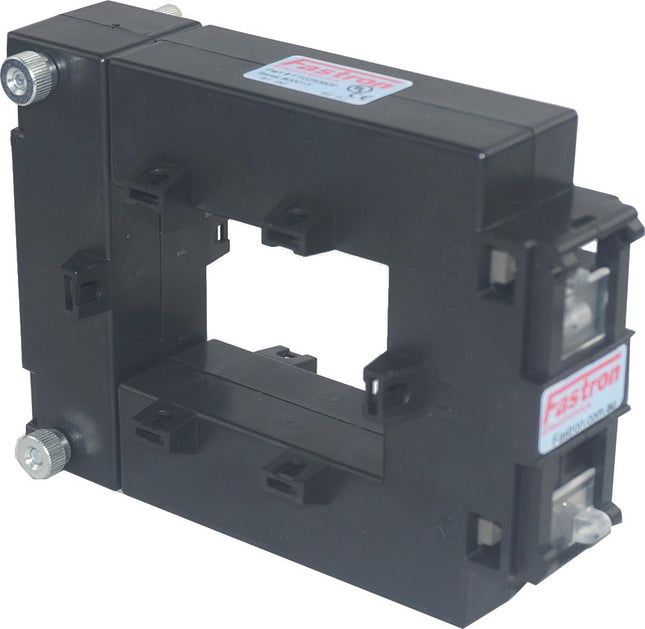

FT025080P, 250/5 Amp Split Core CT, Class 1 1.5VA AC Current Transformer, 50 x 80mm Aperture, Dimension 145 x 159 x 37mm
FT025080P, 250/5 Amp Split Core CT, Class 1 1.5VA Series Current Transformer Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FT025080P Technology Split Core AC Current Transformer Ratio 250/5 Aperture Size 50 x 80mm VA Rating 1.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10°C / 50°C Continuous Current (max) 250Amp x 1.2 Termination Style Screw Approvals UL, CE Unit Weight 1150g Factory Pack Qty 1 Datasheet Product Datasheet Installation Guide
$102.00
$120.36 inclGST -
FESCT-19-100-0.333V, 100Amp measurement Split Core CT's, Class 1, w/1M Flying leads, 19x19mm Aperture
Fastron Electronics FESCT-19-100-0.333V, 100Amp measurement Split Core CT's, w/1M Flying leads, 19x19mm Aperture, 0.333v Class 1 Series Current Transformer Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FESSCT-19-100-0.333V Technology Split Core AC Current Transformer Ratio 100/0.333V Aperture Size 19 x 19mm VA Rating N/A Accuracy Class Class 1 Output 0.333VAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 100Amp x 1.2 Termination Style 1M Twisted Pair 0.34mm^2 Unit Weight 350g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$69.00
$81.42 inclGST -
FESCT-19-150-0.333V, 150Amp measurement Split Core CT's, Class 1, w/1M Flying leads, 19x19mm Aperture
Fastron Electronics FESCT-19-150-0.333V, 150Amp measurement Split Core CT's, Class 1, w/1M Flying leads, 19x19mm Aperture, Current Transformer Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FESSCT-19-150-0.333V Technology Split Core AC Current Transformer Ratio 150/0.333V Aperture Size 19 x 19mm VA Rating N/A Accuracy Class Class 1 Output 0.333VAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 150Amp x 1.2 Termination Style 1M Twisted Pair 0.34mm^2 Unit Weight 350g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$69.00
$81.42 inclGST -

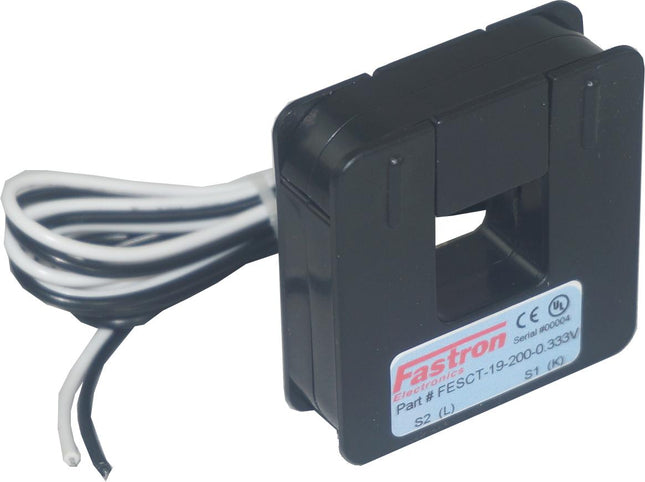

FESCT-19-250-0.333V, 250Amp measurement Split Core CT's, Class 1, w/1M Flying leads, 19x19mm Aperture
Fastron Electronics FESCT-19-250-0.333V, 250Amp measurement Split Core CT's, w/1M Flying leads, 19x19mm Aperture, 0.333v Class 1 Series Current Transformer Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FESSCT-19-250-0.333V Technology Split Core AC Current Transformer Ratio 250/0.333V Aperture Size 19 x 19mm VA Rating N/A Accuracy Class Class 1 Output 0.333VAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 250Amp x 1.2 Termination Style 1M Twisted Pair 0.34mm^2 Unit Weight 350g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$69.00
$81.42 inclGST -

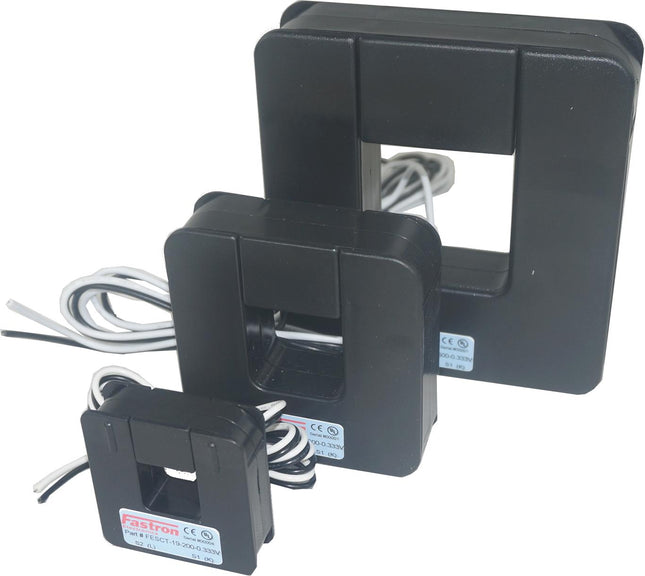

FESCT-19-300-0.333V, 300Amp measurement Split Core CT's, Class 1, w/1M Flying leads, 19x19mm Aperture
Fastron Electronics FESCT-19-300-0.333V, 300Amp measurement Split Core CT's, w/1M Flying leads, 19x19mm Aperture, 0.333v Class 1 Series Current Transformer Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FESSCT-19-300-0.333V Technology Split Core AC Current Transformer Ratio 300/0.333V Aperture Size 19 x 19mm VA Rating N/A Accuracy Class Class 1 Output 0.333VAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 300Amp x 1.2 Termination Style 1M Twisted Pair 0.34mm^2 Unit Weight 350g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$69.00
$81.42 inclGST -

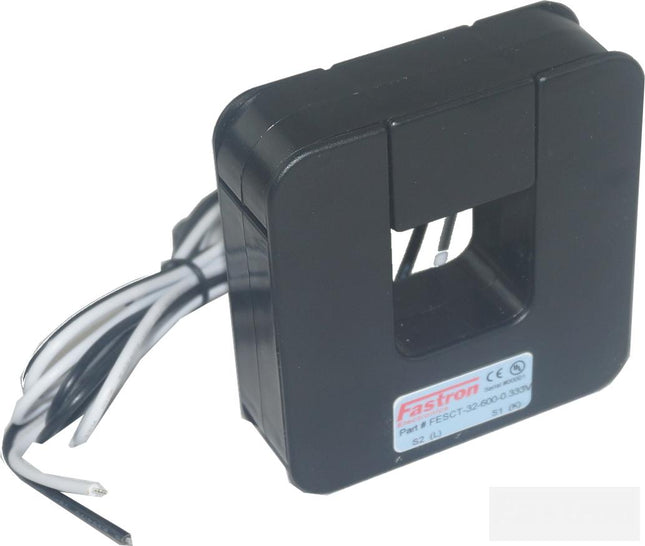

FESCT-32-400-0.333V, 400Amp measurement Split Core CT's, Class 1, w/1M Flying leads, 32x32mm Aperture
Fastron Electronics FESCT-32-400-0.333V, 400Amp measurement Split Core CT's, w/1M Flying leads, 32x32mm Aperture, 0.333v Class 1 Series Current Transformer Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/2kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FESCT-32-400-0.333V Technology Split Core AC Current Transformer Ratio 400/0.333V Aperture Size 32 x 32mm VA Rating N/A Accuracy Class Class 1 Output 0.333VAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 400Amp x 1.2 Termination Style 1M Twisted Pair 0.34mm^2 Unit Weight 350g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$80.00
$94.40 inclGST -

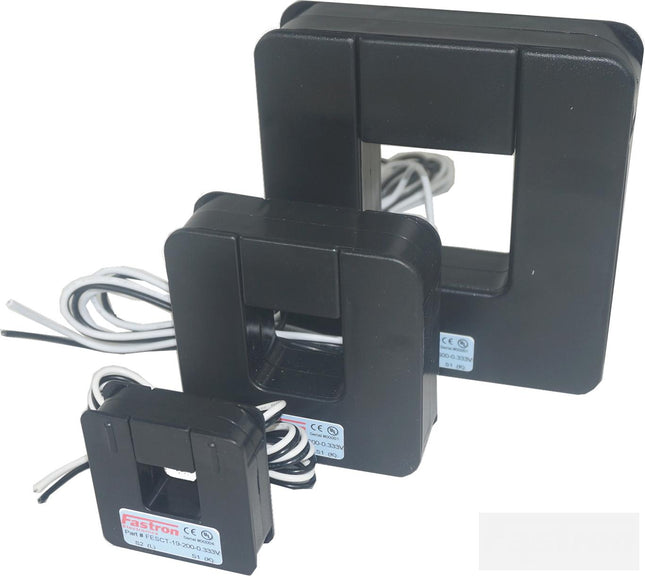

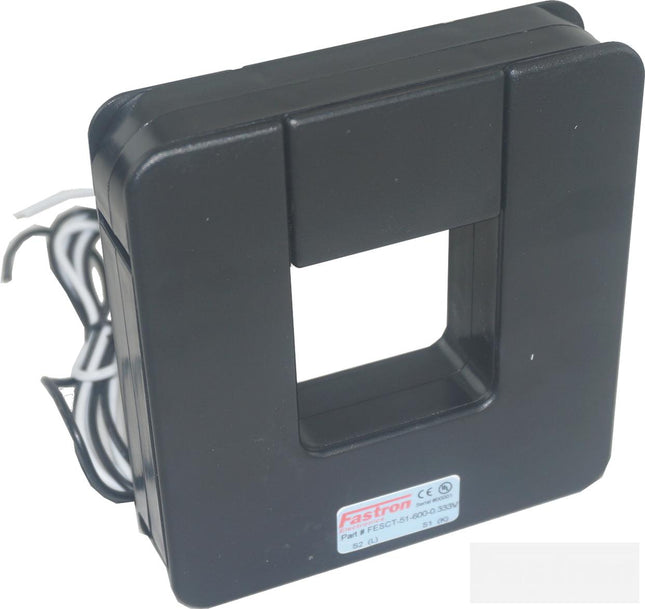

FESCT-51-800-0.333V, 800Amp measurement Split Core CT's, Class 1, w/1M Flying leads, 51x51mm Aperture
Fastron Electronics FESCT-51-800-0.333V, 800Amp measurement Split Core Current Transformer, w/1M Flying leads, 51x51mm Aperture, Class 1 Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Electronics Part Number FESCT-51-800-0.333V Technology Split Core AC Current Transformer Ratio 800/0.333V Aperture Size 51 x 51mm VA Rating N/A Accuracy Class Class 1 Output 0.333VAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 800Amp x 1.2 Termination Style 1M Twisted Pair 0.34mm^2 Unit Weight 950g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$105.00
$123.90 inclGST -

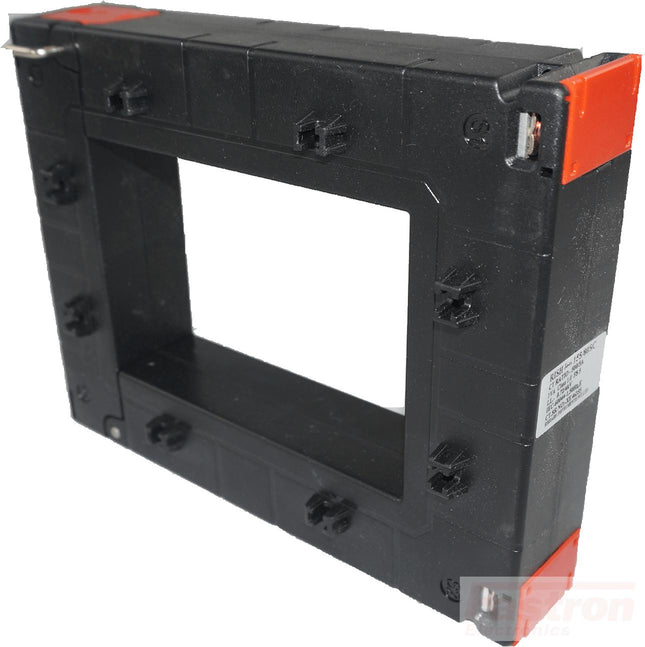

Rish Xmer 155/80 1000/5 Split Core CT Class 0.5 10VA, 85 x 125mm Aperture
Rishabh Xmer CT Split 155/80 1000/5 Class 0.5 10 VA Series Current Transformer Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number Rish Xmer 155/80 1000/5 SCCT Class 0.5 10VA Technology Split Core AC Current Transformer Ratio 1000/5 Aperture Size 85 x 125mm VA Rating 10VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 1000Amp x 1.2 Termination Style Screw Unit Weight 1000g Factory Pack Qty 9 Datasheet Product Datasheet
$295.00
$348.10 inclGST -

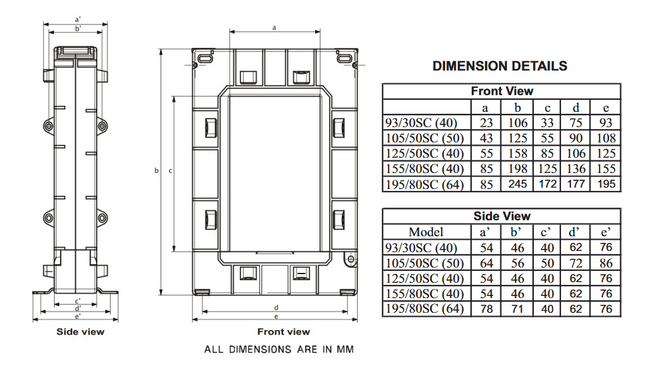

Rish Xmer 155/80 1200/5 Split Core CT Class 1 30VA, 85 x 125mm Aperture
Rishabh Xmer CT Split 155/80 1200/5 Class 1 30VA Series Current Transformer Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number Rish Xmer 155/80 1200/5 SCCT Class 1 30VA Technology Split Core AC Current Transformer Ratio 1200/5 Aperture Size 85 x 125mm VA Rating 30VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 1200Amp x 1.2 Termination Style Screw Unit Weight 1000g Factory Pack Qty 9 Datasheet Product Datasheet
$295.00
$348.10 inclGST -
Rish Xmer 155/80 1500/5 Split Core CT Class 0.5 20VA, 85 x 125mm Aperture
Rishabh Xmer CT Split 155/80 1500/5 Class 0.5 20VA Series Current Transformer Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number Rish Xmer 155/80 1500/5 SCCT Class 0.5 20VA Technology Split Core AC Current Transformer Ratio 1500/5 Aperture Size 85 x 125mm VA Rating 20VA Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 1500Amp x 1.2 Termination Style Screw Unit Weight 1000g Factory Pack Qty 9 Datasheet Product Datasheet
$295.00
$348.10 inclGST -

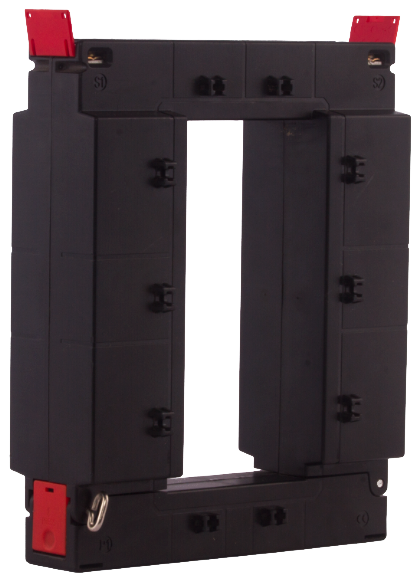

Rish Xmer 195/80 2500/5 Split Core CT Class 0.5 25VA, 85 x 172mm Aperture
Rish Xmer Split Core 2500/5 Amp 195/80 Class 0.5, 25VA Series Current Transformer, 85 x 172mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Electronics Part Number Rish Xmer Split Core 2500/5 195/80 Technology Split Core AC Current Transformer Ratio 2500/5 Aperture Size 172 x 85mm VA Rating 25VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -25°C / 40°C Continuous Current (max) Ipn x 1.2 Termination Style Screw Unit Weight 2kg Factory Pack Qty 9 Datasheet Product Datasheet
$383.00
$451.94 inclGST -

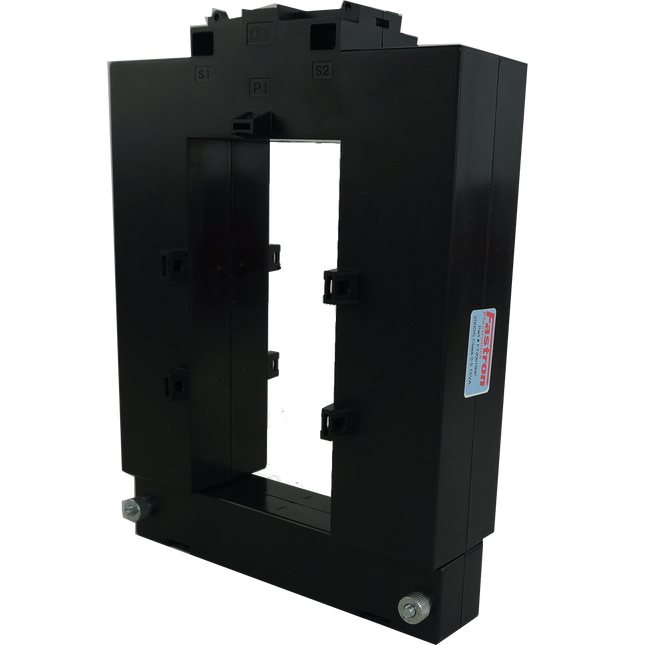

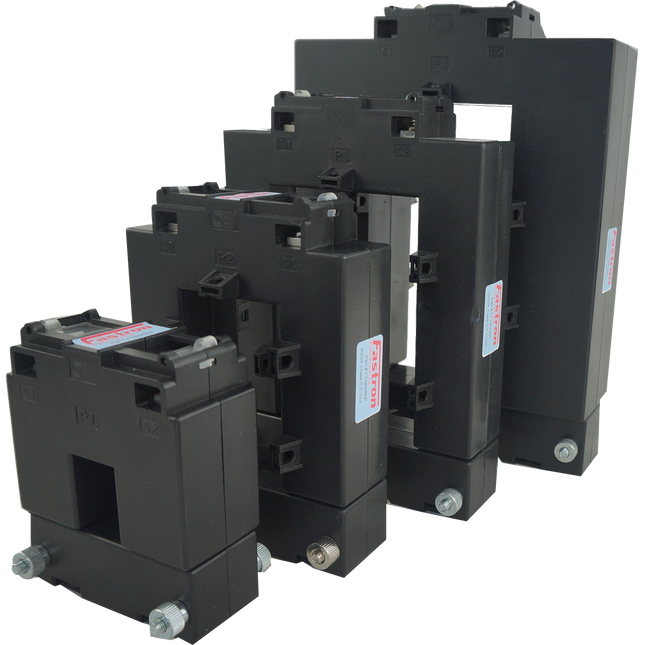

FT150160P, 1500/5 Amp Split Core CT, Class 0.5 15VA, 80 x 160mm Aperture, Dimensions 185 x 53 x 248mm
FT150160P, 1500/5 Amp Split Core CT, Class 0.5 15VA Series Current Transformer Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Electronics Part Number FT150160P Technology Split Core AC Current Transformer Ratio 1500/5 Aperture Size 80 x 160mm VA Rating 15VA Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 1500Amp x 1.2 Termination Style Screw Unit Weight 2.7kg Factory Pack Qty 1 Datasheet Product Datasheet Installation Guide
$281.00
$331.58 inclGST
