Fuses for DC Applications

Schurter 0090.0015 ASO 10.3x38mm GpV Fast Blow Solar Fuse 15Amp, 1000VDC, 20kA, IEC 61730-2 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 20 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Schurter Part Number 0090.0015 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 505 kA²/s Nominal Current (DC) 15 Amp Tested Breaking Capacity 20kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.91W DC Breaking Capacity 20kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Fuse Holder FSO Fuse Holders

Read more less

Schurter 0090.0020 ASO 10.3x38mm GpV Class Solar Fuse 20Amp, 1000VDC, 20kA, IEC 61730-2 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 20 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Schurter Part Number 0090.0025 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 1313 kA²/s Nominal Current (DC) 20 Amp Tested Breaking Capacity 20kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 2.81W DC Breaking Capacity 20kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Fuse Holder FSO Fuse Holders

Read more less

Schurter 0090.0012 ASO 10.3x38mm GpV Fast Blow Solar Fuse 12Amp, 1000VDC, 20kA, IEC 61730-2 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 20 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Schurter Part Number 0090.0012 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 642 kA²/s Nominal Current (DC) 12 Amp Tested Breaking Capacity 20kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.97W DC Breaking Capacity 20kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Fuse Holder FSO Fuse Holders

Read more less

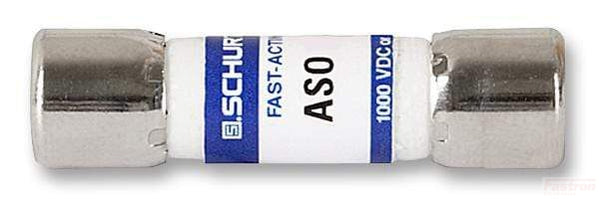

Schurter 0090.0005 ASO 10.3x38mm GpV Fast Blow Solar Fuse 5Amp, 1000VDC, 20kA, IEC 61730-2 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 20 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Schurter Part Number 0090.0005 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 42.6 kA²/s Nominal Current (DC) 5 Amp Tested Breaking Capacity 20kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.47W DC Breaking Capacity 20kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders

Read more less

Schurter 0090.0001 ASO 10.3x38mm GpV Fast Blow Solar Fuse 1Amp, 1000VDC, 20kA, IEC 61730-2 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 20 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Schurter Part Number 0090.0001 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 554 A²/s Nominal Current (DC) 1 Amp Tested Breaking Capacity 20kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 0.6W DC Breaking Capacity 20kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Fuse Holder FSO Fuse Holders

Read more less

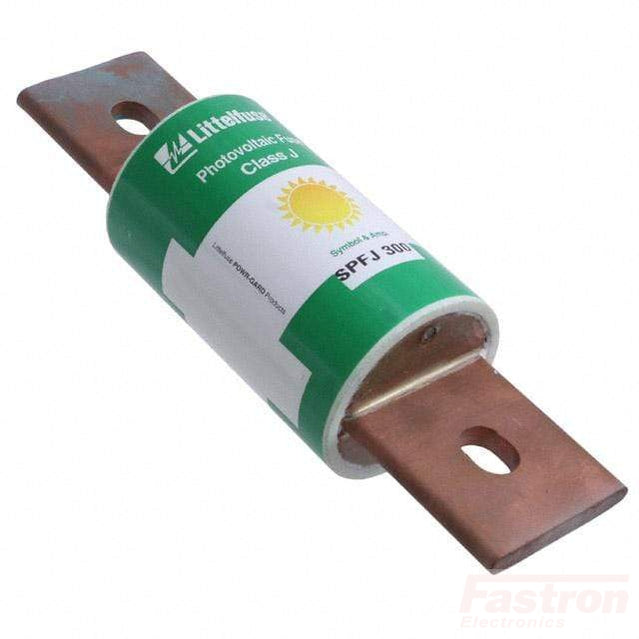

Class J PhotoVoltaic Fuse 1000VDC 300A

Read more less
