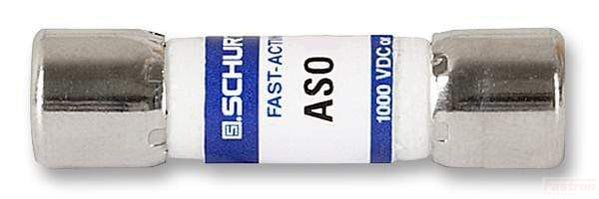

Schurter 0090.0006 ASO 10.3x38mm Solar Fuse 6Amp, 1000VDC, 20kA, IEC 61730-2

Features

  • Meets the new UL and IEC photovoltaic standards
  • UL Recognized for 1000 VDC
  • High breaking capacity of 20 kA @ 1000 VDC
  • Low min. interrupting rating of 1.35 x In
  • Meets the requirements of IEC 61730-2 for PV module safety

Applications

  • All photovoltaic applications
  • Inverters
  • Battery charge controllers
  • In-line protection
  • String fuses

Schurter 0090.0006 ASO 10.3x38mm Solar Fuse 6Amp, 1000VDC, 20kA, IEC 61730-2

Features

  • Meets the new UL and IEC photovoltaic standards
  • UL Recognized for 1000 VDC
  • High breaking capacity of 20 kA @ 1000 VDC
  • Low min. interrupting rating of 1.35 x In
  • Meets the requirements of IEC 61730-2 for PV module safety

Applications

  • All photovoltaic applications
  • Inverters
  • Battery charge controllers
  • In-line protection
  • String fuses

Schurter Part Number 0090.0006
Fuse Type I²t  GpV Class
Nominal Voltage 1000VDC
I²t Rating (Pre-Arcing) 80.25 kA²/s
Nominal Current (DC) 6 Amp
Tested Breaking Capacity 20kA @1000VDC
Dimensions 10.3 x 38mm
Fuse Holder FSO Fuse Holders
Mounting Style Requires fuse holder
Operating Temperature Range -40°C / 125°C
Watt Loss 1.35W
DC Breaking Capacity 20kA
Unit Weight 8g
Factory Pack Qty 10
