Fuses for DC Applications
-
PV10-8A1000VDCgPV, AEO 10.3x38 GpV Solar Fuse 8Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539
PV10-8A1000VDCgPV, AEO 10.3x38 GpV Solar Fuse 8Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number PV10-8A1000VDCgPV Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 400 A²/s Nominal Current (DC) 10 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders, VCB10-30 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W Standards UL2579, IEC 60269, GB13539 DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders VCB10-30
$9.50
$11.21 inclGST -

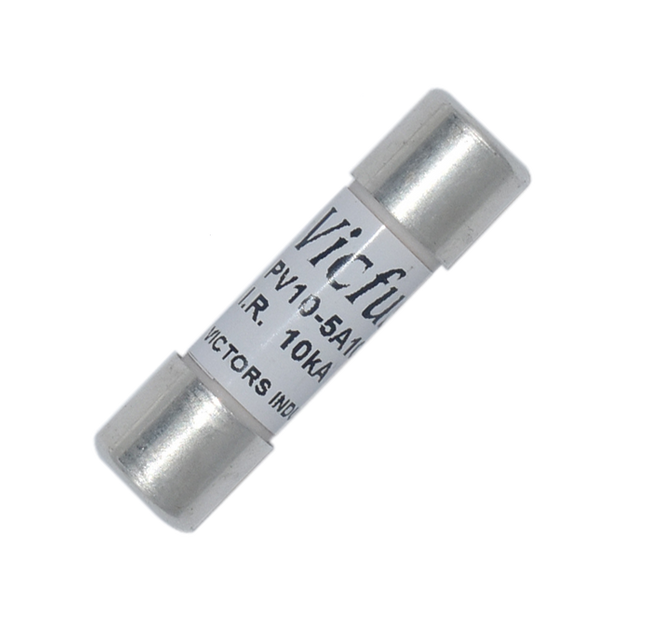

PV10-12A1000VDCgPV, AEO 10.3x38 GpV Solar Fuse 12Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539
PV10-12A1000VDCgPV, AEO 10.3x38 GpV Solar Fuse 12Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number PV10-12A1000VDCgPV Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 400 A²/s Nominal Current (DC) 10 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders, VCB10-30 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W Standards UL2579, IEC 60269, GB13539 DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders VCB10-30
$9.50
$11.21 inclGST -
PV10-1A1500VDCgPV, GpV Solar Fuse 1Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539
PV10-1A1500VDCgPV, GpV Solar Fuse 1Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number 8020.2053 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC, 275VAC I²t Rating (Pre-Arcing) 3150 A²/s Nominal Current (DC) 30 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder VCB10-30X15 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder VCB10-30X15
$13.90
$16.40 inclGST -
PV10-2A1500VDCgPV, GpV Solar Fuse 2Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539
PV10-2A1500VDCgPV, GpV Solar Fuse 2Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number 8020.2053 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC, 275VAC I²t Rating (Pre-Arcing) 3150 A²/s Nominal Current (DC) 30 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder VCB10-30X15 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder VCB10-30X15
$13.90
$16.40 inclGST -
PV10-3A1500VDCgPV, GpV Solar Fuse 3Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539
PV10-3A1500VDCgPV, GpV Solar Fuse 3Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number 8020.2053 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC, 275VAC I²t Rating (Pre-Arcing) 3150 A²/s Nominal Current (DC) 30 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder VCB10-30X15 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder VCB10-30X15
$13.90
$16.40 inclGST -
PV10-4A1500VDCgPV, GpV Solar Fuse 4Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539
PV10-4A1500VDCgPV, GpV Solar Fuse 4Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number 8020.2053 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC, 275VAC I²t Rating (Pre-Arcing) 3150 A²/s Nominal Current (DC) 30 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder VCB10-30X15 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder VCB10-30X15
$13.90
$16.40 inclGST -
PV10-5A1500VDCgPV, GpV Solar Fuse 5Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539
PV10-5A1500VDCgPV, GpV Solar Fuse 5Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number 8020.2053 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC, 275VAC I²t Rating (Pre-Arcing) 3150 A²/s Nominal Current (DC) 30 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder VCB10-30X15 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder VCB10-30X15
$13.90
$16.40 inclGST -
PV10-8A1500VDCgPV, GpV Solar Fuse 8Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539
PV10-8A1500VDCgPV, GpV Solar Fuse 8Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number 8020.2053 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC, 275VAC I²t Rating (Pre-Arcing) 3150 A²/s Nominal Current (DC) 30 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder VCB10-30X15 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder VCB10-30X15
$13.90
$16.40 inclGST -
PV10-6A1500VDCgPV, GpV Solar Fuse 6Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539
PV10-6A1500VDCgPV, GpV Solar Fuse 6Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number 8020.2053 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC, 275VAC I²t Rating (Pre-Arcing) 3150 A²/s Nominal Current (DC) 30 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder VCB10-30X15 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder VCB10-30X15
$13.90
$16.40 inclGST -
PV10-15A1500VDCgPV, GpV Solar Fuse 15Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539
PV10-15A1500VDCgPV, GpV Solar Fuse 15Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number 8020.2053 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC, 275VAC I²t Rating (Pre-Arcing) 3150 A²/s Nominal Current (DC) 30 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder VCB10-30X15 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder VCB10-30X15
$13.90
$16.40 inclGST -
PV10-25A1500VDCgPV, GpV Solar Fuse 25Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539
PV10-25A1500VDCgPV, GpV Solar Fuse 25Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number 8020.2053 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC, 275VAC I²t Rating (Pre-Arcing) 3150 A²/s Nominal Current (DC) 30 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder VCB10-30X15 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder VCB10-30X15
$13.90
$16.40 inclGST -
PV10-20A1500VDCgPV, GpV Solar Fuse 20Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539
PV10-20A1500VDCgPV, GpV Solar Fuse 20Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number 8020.2053 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC, 275VAC I²t Rating (Pre-Arcing) 3150 A²/s Nominal Current (DC) 30 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder VCB10-30X15 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder VCB10-30X15
$13.90
$16.40 inclGST
