Infineon DD89N12K Dual Diode Module Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current International standard package 3000V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification infineon Part Number DD89N12K Vrrm 1200V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 89 Amp Package Size W:20mm L:94mm D:30mm Itsm 2.8 kA VF(to) 0.75V Tj(max) 150°C rF 0.215mΩ Terminals M10 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.225°C/W R th(c-h) 0.10°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives See DD104N14K for Pressure Contact, and MDD95-16N1B or DD100N16SOF for Solder Bonded Devices

Read more less

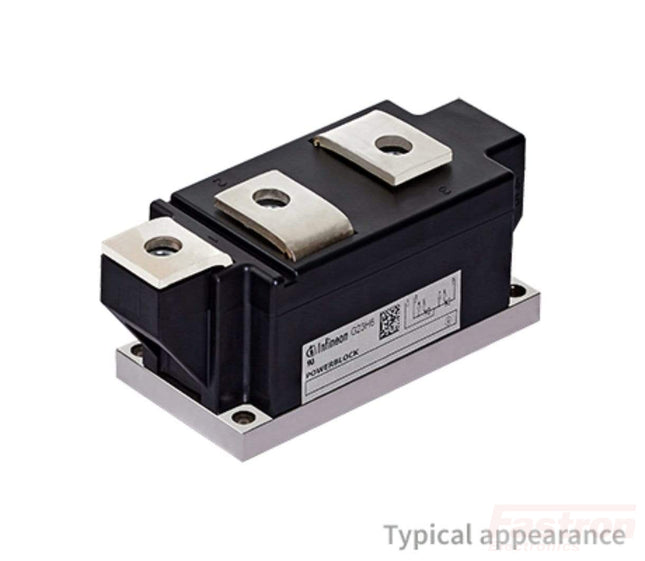

Infineon ND260N12K Single Diode Module Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 3600V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Infineon Part Number ND260N12K Vrrm 1200V Diode Configuration Single Diode Module IF(av) @ 100 Deg C 260 Amp Package Size W:50mm L:92mm D:52mm Itsm 9.5 kA VF(to) 0.7V Tj(max) 150°C rF 0.68mΩ Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.17°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 6 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives See MDD312-16N1 for alternative IXYS solder contact alternative

Read more less

Infineon ND171N12K Single Diode Module Features Pressure Contact Technology Electrically insulated base plate International standard package 3000V Isolation 34mm Base Width Applications Power Supplies Deep Power Cycling Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Infineon Part Number ND171N12K Vrrm 1200V Diode Configuration Single Diode Module IF(av) @ 100 Deg C 171 Amp Package Size W:34mm L:94mm D:30mm Itsm 6.6 kA VF(to) 0.75V Tj(max) 150°C rF 0.8mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.26°C/W R th(c-h) 0.06°C/W Weight 310g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed IXYS Headquarters United States Datasheet Product Datasheet Alternatives See MDD172-16N1 or Contact Us for Possible Replacement for urgent replacement

Read more less

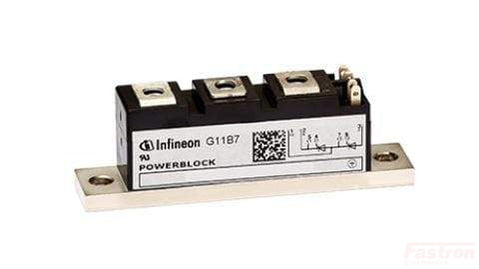

Infineon ND104N12K, Single Diode Module, 104 Amp, 1200V, 20mm Package Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Infineon Part Number ND104N12K Vrrm 1200V Diode Configuration Single Diode Module IF(av) @ 100 Deg C 104 Amp Package Size W:20mm L:93mm D:30mm Itsm 2.9 kA VF(to) 0.7V Tj(max) 150°C rF 2.1mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.195°C/W R th(c-h) 0.10°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See VSKE91/14 for Solder Contact alternative of Contact Us for Possible Replacement for alternative part
