Single Diode Modules

Techsem MD500-36-410F2, Single Diode Module, 500 Amp, 3600V, 77mm Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current International standard package 3600V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Techsem Part Number MD500-36-410F2 Vrrm 3600V Diode Configuration Single Diode Module IF(av) @ 150 Deg C 500 Amp Package Size W:50mm L:101mm D:52mm Itsm 15 kA VF(to) 0.85V Tj(max) 150°C rF 0.50mΩ Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.06°C/W R th(c-h) 0.024°C/W Weight 3300g Mounting Torque 7 Nm (13 Nm Terminals) Factory Pack Qty 3 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet

Read more less

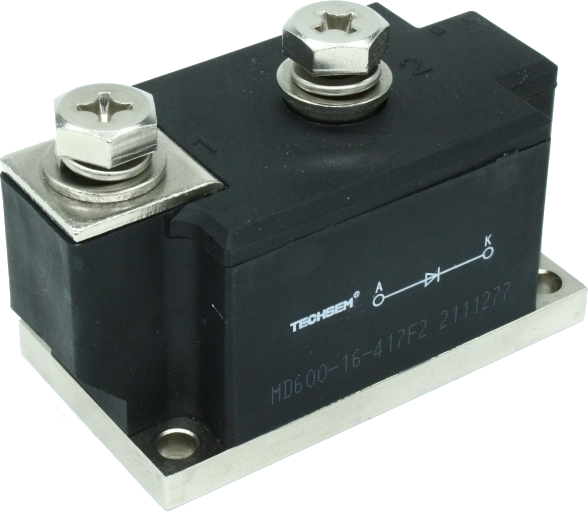

Techsem MD600-16-417F2, Single Diode Module, 600 Amp, 1600V Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current International standard package 3600V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Techsem Part Number MD600-16-417F2 Vrrm 1600V Diode Configuration Single Diode Module IF(av) @ 150 Deg C 500 Amp Package Size W:50mm L:101mm D:52mm Itsm 19 kA VF(to) 0.75V Tj(max) 150°C rF 0.28mΩ Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.065°C/W R th(c-h) 0.024°C/W Weight 765g Mounting Torque 7 Nm (13 Nm Terminals) Factory Pack Qty 3 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives Replaces Techsem DZ600N16K or similar item IXYS MDO600-16N1

Read more less

Techsem MTC110-16-223F3, Dual Thyristor Module, 110 Amp, 1600V, 22mm Package Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 22mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Techsem Part Number MTC110-16-223F3 Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 100 Deg C 110 Amp Package Size W:20mm L:93mm D:30mm Itsm 2.6 kA VF(to) 0.8V Tj(max) 125°C rF 1.74mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.27°C/W R th(c-h) 0.20°C/W Weight 175g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Techsem Headquarters China   Datasheet Product Datasheet Alternatives See VSKH91/14 for Solder Contact alternative of Contact Us for Possible Replacement for alternative part

Read more less

Techsem MD250-16-413F3D, Single Diode Module, 250 Amp, 1600V, 50mm Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 3600V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Techsem Part Number MD250-16-413F3D Vrrm 1600V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 250 Amp Package Size W:50mm L:115mm D:52mm Itsm 8.5 kA VF(to) 0.75V Tj(max) 150°C rF 0.76mΩ Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 6 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet

Read more less

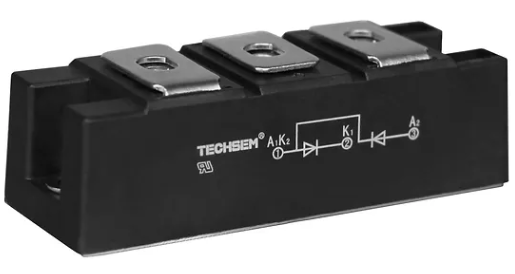

Techsem MD182-16-216F3B, 162 Amp, 1600V, Single Diode Module, To Replace ND171N Features Pressure Contact Technology Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Techsem Part Number MD182-16-216F3B Vrrm 1600V Diode Configuration Single Diode Module IF(av) @ 85 Deg C 181 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 6.4 kA VF(to) 0.80V Tj(max) 150°C rF 0.96mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.22°C/W R th(c-h) 0.08°C/W Weight 320g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet

Read more less

Techsem MD110-16-223F3, Single Diode Module, 110 Amp, 1600V, 22mm Package Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Techsem Part Number MD110-16-223F3 Vrrm 1600V Diode Configuration Single Diode Module IF(av) @ 100 Deg C 110 Amp Package Size W:20mm L:93mm D:30mm Itsm 2.6 kA VF(to) 0.8V Tj(max) 150°C rF 1.74mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.27°C/W R th(c-h) 0.20°C/W Weight 175g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Techsem Headquarters China   Datasheet Product Datasheet Alternatives See VSKE91/14 for Solder Contact alternative of Contact Us for Possible Replacement for alternative part

Read more less

Techsem MD1100-20-432F2, Single Diode Module, 1100 Amp, 2000V Features Diode for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 70mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications High Powered Rectifiers DC Blocking Diodes Flywheel Diodes Specification Techsem Part Number MD1100-24-432F2 Vrrm 2000V Diode Configuration Single Diode Module IF(av) @ 85 Deg C 1100 Amp Package Size W:70mm L:146mm D:90mm Itsm 34 kA VF(to) 0.7V Tj(max) 125°C rF 0.12mΩ Terminals M12 Screw Hole Centres 80mm x 58mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.042°C/W R th(c-h) 0.02°C/W Weight 2.8kg Mounting Torque 6 Nm (13 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives DZ1070N18K Contact Us for Possible Replacement

Read more less

Semikron SKKE212/16 H2, 213 Amp, 1600V, Single Diode Module, 34mm Package Features Solder Contact Technology Electrically insulated base plate International standard package 3000V Isolation 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Semikron Part Number SKKE212/16 H2 Vrrm 1600V Diode Configuration Single Diode Module IF(av) @ 100 Deg C 165 Amp Package Size W:34mm L:94mm D:30mm Itsm 6 kA VF(to) 0.75V Tj(max) 135°C rF 1.05mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.18°C/W R th(c-h) 0.18°C/W Weight 165g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed Semikron Headquarters Germany Datasheet Product Datasheet

Read more less

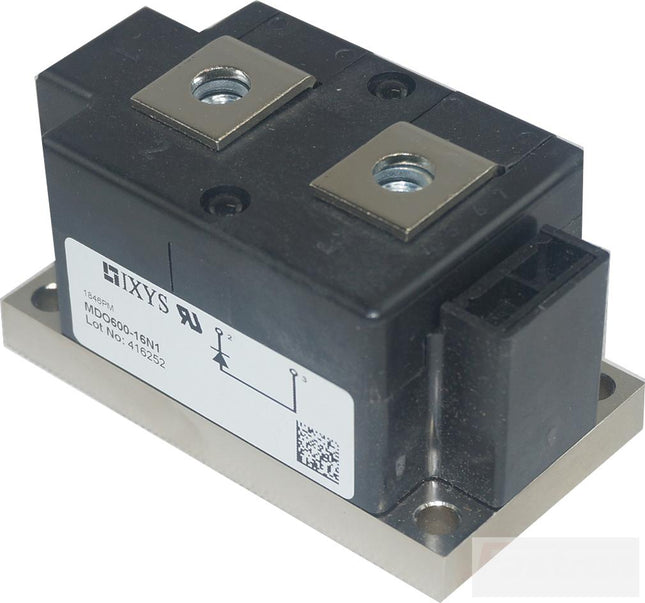

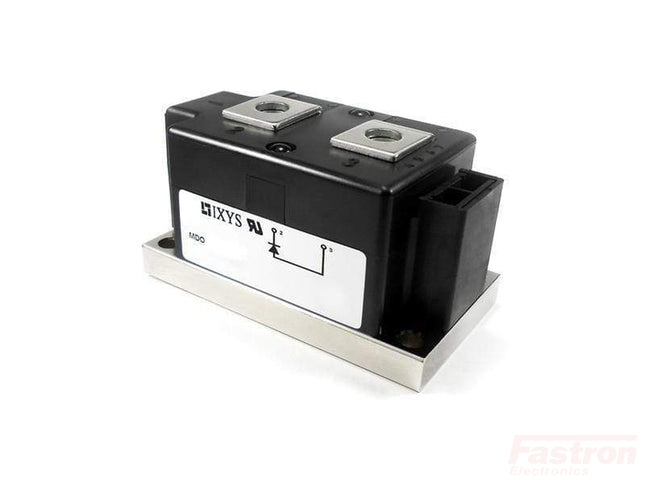

Westcode-IXYS-Littlefuse MDO600-16N1, Single Diode Module, 600 Amp, 1600V Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current International standard package 3600V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification IXYS Part Number MDO600-16N1 Vrrm 1600V Diode Configuration Single Diode Module IF(av) @ 85 Deg C 608 Amp Package Size W:50mm L:101mm D:52mm Itsm 15 kA VF(to) 0.76V Tj(max) 140°C rF 0.32mΩ Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.072°C/W R th(c-h) 0.024°C/W Weight 650g Mounting Torque 7 Nm (13 Nm Terminals) Factory Pack Qty 3 Certification UL Listed, ROHS IXYS Headquarters United States Datasheet Product Datasheet Alternatives Replaces Infineon DZ600N16K

Read more less

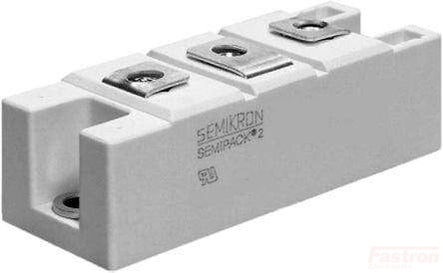

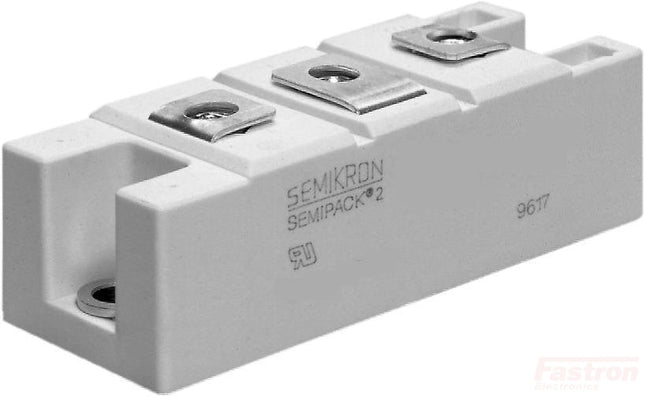

Semikron SKKE162/16, 162 Amp, 1600V, Single Diode Module Features Solder Contact Technology Electrically insulated base plate International standard package 3000V Isolation 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Semikron Part Number SKKE162/16 Vrrm 1600V Diode Configuration Single Diode Module IF(av) @ 100 Deg C 150 Amp Package Size W:34mm L:94mm D:30mm Itsm 6 kA VF(to) 0.85V Tj(max) 135°C rF 1.2mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.09°C/W R th(c-h) 0.05°C/W Weight 165g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed Semikron Headquarters Germany Datasheet Product Datasheet
