Fastron Electronics GT-P-P1-D-4, Signal Transmitter/Conditioner, 10K POT input, 0-10V output, 22-60VAC/DC supply Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GT-P-P1-D-4 Control Output 0-10V Input 10K Potentiometer Over Range N/A Operating Temperature 0 - 60°C Load Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron Electronics GT-P-P1-A-4, Signal Transmitter/Conditioner, 10K POT input, 0-10V output, 100-240VAC/DC supply Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GT-P-P1-A-1 Control Output 4-20mA Input 10K Potentiometer Over Range N/A Operating Temperature 0 - 60°C Load Voltage 100 - 240VAC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron Electronics GTD-2A6-D-11, Signal Isolator/Conditioner, 4-20mA Loop Supplied Input, Dual 4-20mA Outputs, 22-60VAC/DC Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted from 4 to 20 mA DC Loop Supply (Sensor Input) to insulated 4-20mA Standard Process Output Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GTD-2A6-D-11 Control Output 2 x 4-20mA Input 4-20mA Sensor Input (Loop Powered) Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

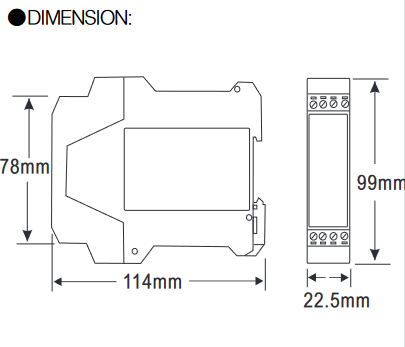

Fastron Electronics GT-II3-D-1, Resistance Transducer, 0-1kOhm  input, 22-60VAC/DC aux, 4-20mA output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GT-II3-D-1 Control Output 4-20mA Input 0-1 k Ohm Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 22 - 60VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

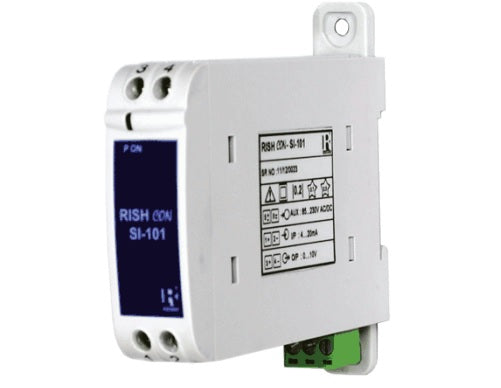

SI01-5555L00000000 (SI-101-1-2-L), Signal Isolator/Conditioner, 4-20mA input, 20-60VAC/DC aux, 4-20mA output, Fixed zero and span Fixed Zero and Span Setting Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number SI01-5555L00000000 Control Output 4-20mA Input 4-20mA Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 20-60VAC/DC Span Adjustment Range Fixed Zero Adjustment Range Fixed Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron Electronics FTD-420-420-24, Signal Isolator/Conditioner, 4-20mA Input, 4-20mA Output, 24VDC Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted from 4 to 20 mA DC Loop Supply (Sensor Input) to insulated 4-20mA Standard Process Output Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number FTD-420-420-24 Control Output 4-20mA Input 4-20mA Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 24VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Signal Transmitter ATM-DAO(20-4mA)-D-1, Signal Converter, 20-4mA Input, 22-60VAC/DC Aux, 4-20mA output Adjustable Zero and Span Setting Digital DIsplay 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number ATM-DAO(20-4mA)-D-1 Control Output 4-20mA Input 20-4mA Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 24VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron Electronics GTD-V5-D-44, Signal Isolator/DC Voltage Transducer, 0-36VDC Input, 2 x 0-10V Output, 22-60VAC/DC Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted from 4 to 20 mA DC Loop Supply (Sensor Input) to insulated 4-20mA Standard Process Output Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GTD-V5-D-44 Control Output 2 x 0-10V Input 0-36VDC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

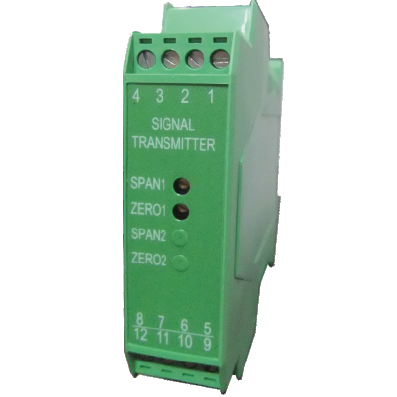

Fastron Electronics GT-AV(0-230)-A-VO(0-5), AC Voltage Transducer, 0-230V AC input, 100-240VAC/DC aux, 0-5V Average RMS output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GT-AV(0-230)-A-VO(0-5) Control Output 0-5V Average RMS Input 0-230VAC Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

SI01-5H55H00000000(SI-101-4-2-H) , Signal Isolator/Conditioner, 0-10V input, 85-300VAC/DC aux, 4-20mA output, Fixed zero and span, Fixed zero and span Fixed Zero and Span Setting 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number SI01-5H55H00000000 Control Output 4-20mA Input 0-10V Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 85-300VAC/DC Span Adjustment Range Fixed Zero Adjustment Range Fixed Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

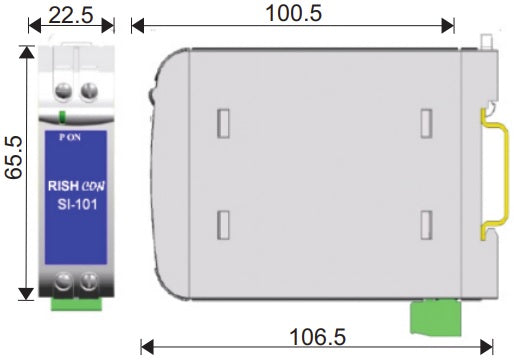

SI01-5H55L00000000 (SI-101-4-2-L), Signal Isolator/Conditioner, 0-10V input, 20-60VAC/DC aux, 4-20mA output, Fixed zero and span Fixed Zero and Span Setting 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number SI01-5H55L00000000 Control Output 4-20mA Input 0-10V Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 20-60VAC/DC Span Adjustment Range Fixed Zero Adjustment Range Fixed Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

SI01-5555H00000000(SI-101-1-2-H), Signal Isolator/Conditioner, 4-20mA input, 85-300VAC/DC aux, 4-20mA output, Fixed zero and span Fixed Zero and Span Setting 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number SI01-5555H00000000 Control Output 4-20mA Input 4-20mA Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 85-300VAC/DC Span Adjustment Range Fixed Zero Adjustment Range Fixed Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less
