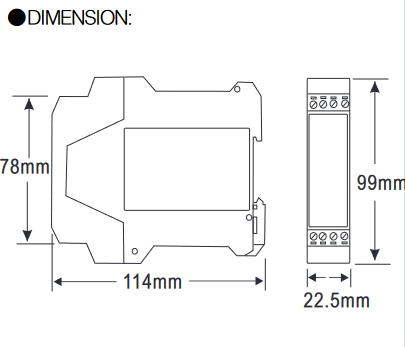

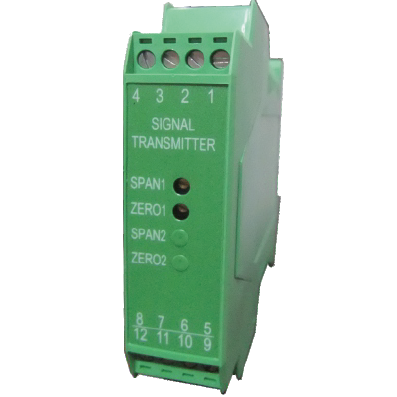

Fastron Electronics GTD-TT1-D-11, DC Voltage Transducer, - 50 to 50 Deg C input, 22-60VAC/DC aux, Dual 4-20mA Outputs Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GTD-TT1-D-11 Conditioned Output 2 x 4-20mA (Average RMS) Input - 50 Deg C to 50 Deg C Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron Electronics GTD-DV6-D-11, DC Voltage Transducer, 0-300VDC input, 22-60VAC/DC aux, Dual 4-20mA outputs Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GTD-DV6-D-11 Conditioned Output 2 x 4-20mA (Average RMS) Input 0 - 300VDC Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

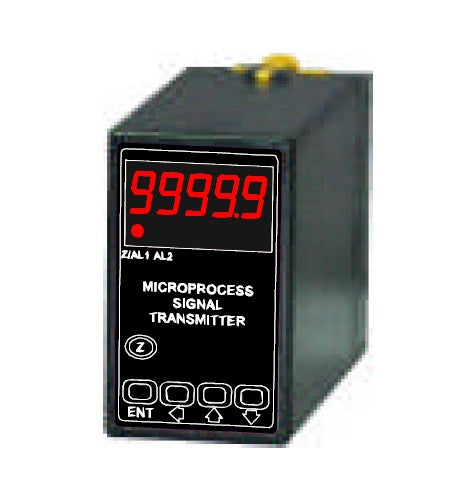

ATM-T-K-A-1, Signal Converter/Transmitter, Type K Thermocouple, -200 to 1360 Deg C Input, 100-240VAC/DC Aux Adjustable Zero and Span Setting Digital DIsplay 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number ATM-T-K-A-1 Control Output 4-20mA Input Type K Thermocouple -200 to 1360 Deg C Over Range N/A Operating Temperature 0 - 60°C Load Voltage 2100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

ATM-T-K-D-1, Signal Converter/Transmitter, Type K Thermocouple, -200 to 1800 Deg C Input, 20-60VAC/DC Aux Adjustable Zero and Span Setting Digital DIsplay 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number ATM-T-K-D-1 Control Output 4-20mA Input Type K Thermocouple -200 to 1360 Deg C Over Range N/A Operating Temperature 0 - 60°C Load Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

ATM-T-B-D-1, Signal Converter/Transmitter, Type B Thermocouple, 200-1800 Deg C Input, 20-60VAC/DC Aux Adjustable Zero and Span Setting Digital DIsplay 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number ATM-T-B-D-1 Control Output 4-20mA Input Type B Thermocouple -200 to 1800 Deg C Over Range N/A Operating Temperature 0 - 60°C Load Voltage 20-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron Electronics GT-D-V4-A-1, Signal Isolator/Conditioner, 0-10VDC input, 100-240VAC/DC aux, 4-20mA output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GT-D-V4-A-1 Control Output 4-20mA Input 0 - 10VDC Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 100-240VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

ATM-R-CT-H-A-1, Frequency Transducer, 0.001Hz to 10kHz Contact Input, 100-240VAC/DC Aux, 4-20mA output Adjustable Zero and Span Setting Digital DIsplay 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number ATM-R-CT-H-A-1 Control Output 4-20mA Input Contact 0.001Hz to 10kHz Over Range N/A Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

ATM-R-CT-H-D-1, Frequency Transducer, 0.001Hz to 10kHz Contact Input, 22-60VDC Aux, 4-20mA output Adjustable Zero and Span Setting Digital DIsplay 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number ATM-DAO(20-4mA)-C-1 Control Output 4-20mA Input Contact 0.001Hz to 10kHz Over Range N/A Operating Temperature 0 - 60°C Load Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

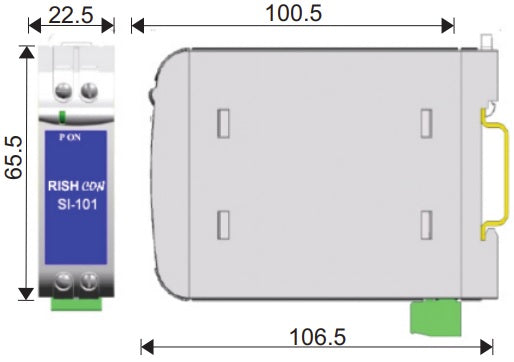

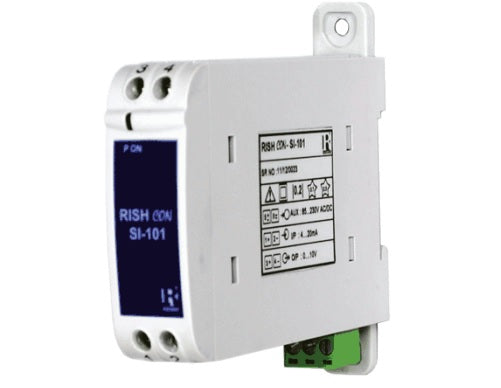

SI-102-4-1-H, Signal Isolator/Conditioner, 0-10V input, 85-300VAC/DC aux, 2 x 0-10V outputs, Fixed zero and span Fixed Zero and Span Setting 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number SI-102-4-1-H Control Output 2 x 0-10V Input 0-10V Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 85-300VAC/DC Span Adjustment Range Fixed Zero Adjustment Range Fixed Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

SI-102-4-1-L, Signal Isolator/Conditioner, 0-10V input, 20-40VAC/20-60VDC aux, 2 x 0-10V outputs, Fixed zero and span Fixed Zero and Span Setting 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number SI-102-4-1-L Control Output 2 x 0-10V Input 0-10V Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 20-40VAC/20-60VDC Span Adjustment Range Fixed Zero Adjustment Range Fixed Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

SI-102-3-2-L, Signal Isolator/Conditioner, 4-20mA input, 20-40VAC/20-60VDC aux, 2 x 4-20mA outputs, Fixed zero and span Fixed Zero and Span Setting 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number SI-102-3-2-L Control Output 2 x 4-20mA Input 4-20mA Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 20-40VAC/20-60VDC Span Adjustment Range Fixed Zero Adjustment Range Fixed Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

SI02-555555H000000 (SI-102-3-2-H), Signal Isolator/Conditioner, 4-20mA input, 85-300VAC/DC aux, 2 x 4-20mA outputs, Fixed zero and span Fixed Zero and Span Setting 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number SI02-555555H000000 Control Output 2 x 4-20mA Input 4-20mA Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 85-300VAC/DC Span Adjustment Range Fixed Zero Adjustment Range Fixed Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less
