A1B-22-02C Rectifier Diode, 22Amp, 200V w/tail, M6, Cathode stud Replaces SKR 20/02 Product Datasheet

Read more less

Rectifier Diode Press Fit 35 Amp, 400V, Terminal End, Anode stud Product Datasheet

Read more less

Powersem PSD82T/16 Three Phase Diode Rectifier Bridge, Replaces Semikron SKD62/16, equivalent to IXYS VUO 82-16 NO7 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSD82T/16 AC Line voltage 533V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 110 Deg C 88 Amp Package Size W:72mm L:42mm D:30mm Itsm 800 A VF(to) 0.8V Tj(max) 150°C rF 5mΩ Terminals M5 (1.5Nm) Hole Centres 60mm (M5) Gate Terminals M3 (5Nm) R th(j-c) 1.1°C/W R th(c-h) 0.52°C/W Weight 160g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD95/16 for higher rated equivalent

Read more less

Powersem PSD162/16 Three Phase Diode Rectifier Bridge, Replaces Semikron SKD160, and IXYS VUO160-16 N07 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSD162/16 AC Line voltage 533V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 85 Deg C 175 Amp Package Size W:94mm L:54mm D:30mm Itsm 1800 A VF(to) 0.8V Tj(max) 150°C rF 3mΩ Terminals M6 (5Nm) Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.65°C/W R th(c-h) 0.18°C/W Weight 270g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD192T/16 for higher rated equivalent

Read more less

Powersem PSB82/12 Single Phase Diode Rectifier Bridge, Replaces Semikron SKB60/12 SKB72/12, IXYS VBO72-08NO7 VBO72-12NO7 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSB82/12 AC Line voltage 400V Device Configuration Single Phase Diode Rectifier Bridge DC Output @ 100 Deg C 72 Amp Package Size W:72mm L:42mm D:30mm Itsm 750 A VF(to) 0.8V Tj(max) 125°C rF 5mΩ Terminals M5 (1.5Nm) Hole Centres 60mm (M5) Gate Terminals N/A R th(j-c) 1.1°C/W R th(c-h) 0.52°C/W Weight 160g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD82/16 for higher rated equivalent

Read more less

Rectifier Diode Press Fit 35 Amp, 400V, Terminal End, Cathode stud Product Datasheet

Read more less

Powersem PSD36T/16 Single Phase Half Controlled Rectifier Bridge, Replaces Semikron SKD31/16 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSD36/16 AC Line voltage 533V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 62 Deg C 35 Amp Package Size W:55mm L:45mm D:24mm Itsm 550 A VF(to) 0.8V Tj(max) 150°C rF 7.4mΩ Terminals Faston (6.3mm) Hole Centres Single M5 Gate Terminals N/A R th(j-c) 7.4°C/W R th(c-h) 1.1°C/W Weight 22g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD51/18 for higher rated equivalent

Read more less

A1B-50-04C Rectifier Diode 50 Amp, 400V w/tail, M8, Cathode stud Ref S04BN50M Replaces Semikron SKR 50/04   Product Datasheet

Read more less

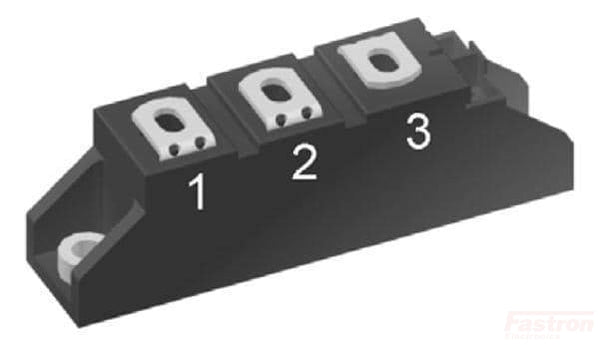

Westcode-IXYS-Littlefuse MCC95-16io1B, Dual Thyristor (SCR) Module, 95 Amp, 1600V Features Package with DCB ceramic Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Westcode-IXYS-Littlefuse Part Number MCC95-16io1B Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 116 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 2.25 kA VF(to) 0.8V Tj(max) 125°C rF 2.4mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.22°C/W R th(c-h) 0.42°C/W Weight 85g Mounting Torque 3.25 Nm (3.25 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS IXYS Headquarters United States   Datasheet Product Datasheet Alternatives See VSKT56/14 for Vishay replacement.

Read more less

Westcode-IXYS-Littlefuse MCC312-18io1, Dual Thyristor Module, 330 Amp, 1800V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Soft start AC motor control AC power control Lighting and temperature control Specification Westcode-IXYS-Littlefuse Part Number MCC312-18io1 Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 320 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.6 kA VF(to) 0.8V Tj(max) 125°C rF 0.68mΩ I(gt) @ 25 Deg C 150mA Terminals M8 Screw Hole Centres 80mm x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.12°C/W R th(c-h) 0.04°C/W Weight 680g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS IXYS Headquarters United States   Datasheet Product Datasheet

Read more less

Semikron SKKD100/18, Dual Diode Module, 100 Amp, 1800V Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Semikron Part Number SKKD100/18 Vrrm 1900V Diode Configuration Dual Diode Module IF(av) @ 112 Deg C 100 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Tj(max) 150°C I(gt) @ 25 Deg C N/A Terminals M5 Screw Hole Centres 80mm (M6) Weight 75g Mounting Torque 4 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin India   Datasheet Product Datasheet Alternatives See VSKD91/16 DD89N14K or DD104N14K for Infineon Alternative

Read more less

Powersem PSD35T/18 Single Phase Half Controlled Rectifier Bridge, Replaces Semikron SKD30/18 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSD35T/18 AC Line voltage 600V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 85 Deg C 38 Amp Package Size W:55mm L:45mm D:24mm Itsm 400 A VF(to) 0.85V Tj(max) 150°C rF 12mΩ Terminals M4 (1.5Nm) Hole Centres 45mm (M4) Gate Terminals N/A R th(j-c) 2.8°C/W R th(c-h) 0.6°C/W Weight 110g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD55T/16 or PSD51/18 for higher rated equivalent

Read more less
