Rectifier Diode Press Fit 35 Amp, 400V, Wire End, Cathode stud Product Datasheet

Read more less

Rectifier Diode 50 Amp, 600V, M8, Anode stud ref S06AR50M Product Datasheet

Read more less

SKD 31/16, Three Phase Diode rectifier Bridge, 31 Amp, 1600V replaces Powersem PSD25T/16 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Semikron Part Number SKD 31/16 AC Line voltage 533V Device Configuration Single Phase Diode Rectifier Bridge DC Output @ 85 Deg C 4 Amp Package Size W:63mm L:32mm D:26mm Itsm 370 A VF(to) 0.85V Tj(max) 150°C rF 12mΩ Terminals Faston (6.3mm) Hole Centres Single M5 Gate Terminals N/A R th(j-c) 2°C/W R th(c-h) 0.3°C/W Weight 66g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Semikron Headquarters Germany   Datasheet Product Datasheet

Read more less

Semikron SKKT162/16E, 162 Amp, 1600V, Dual Thyristor Module Features Package with DCB ceramic Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification SemikronPart Number SKKT162/16E Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 181 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 6 kA VF(to) 0.88V Tj(max) 125°C rF 1.15mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.155°C/W R th(c-h) 0.07°C/W Weight 150g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS IXYS Headquarters United States   Datasheet Product Datasheet Alternatives See TT162N16KOF or MTC182-16-216F3B for Infineon or Techsem  Pressure Contact alternative, or MCC162-16 for IXYS Solder Bonded alternative

Read more less

Powersem PSB82T/18 Single Phase Diode Rectifier Bridge, Replaces Semikron SKB60/18 SKB72/18, IXYS VBO72-08NO7 VBO72-12NO7 VBO72-18NO7 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSB82T/18 AC Line voltage 600V Device Configuration Single Phase Diode Rectifier Bridge DC Output @ 100 Deg C 72 Amp Package Size W:72mm L:42mm D:30mm Itsm 750 A VF(to) 0.8V Tj(max) 125°C rF 5mΩ Terminals M5 (1.5Nm) Hole Centres 60mm (M5) Gate Terminals N/A R th(j-c) 1.1°C/W R th(c-h) 0.52°C/W Weight 160g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet Alternatives See PSD82/16 for lower rated equivalent

Read more less

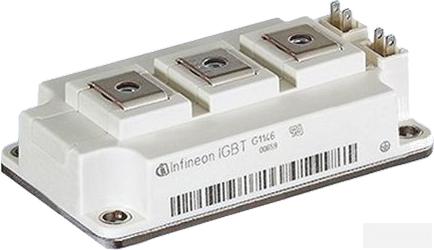

Infineon BSM300GB120DLC, IGBT Dual, 300Amp, 1200V Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Wide Temperature Range Medium Switching Speed 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number BSM300GB120DLC Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 300 Amp Package Size W:61.4mm L:106.4mm D:30mm V(isol) 2.5 kV Vf @ 25 Deg C 1.25 - 1.6V Tj(max) 150°C Td(on) @ 25 Deg C 0.11uS Td(off) @ 25 Deg C 0.55uS I(ces) @ 25 Deg C 5mA Rcc 0.7mOhm Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.125°C/W R th(c-h) 0.05°C/W Weight 340g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative

Read more less

Infineon BSM200GB60DLC, IGBT Dual, 200Amp, 600V Module, May be able to replace SKM 195GB066D (Check datasheet) Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Wide Temperature Range Medium Switching Speed 2500V Isolation 34mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number BSM200GB60DLC Vces 600V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 200 Amp Package Size W:34mm L:106.4mm D:30mm V(isol) 2.5 kV Vf @ 25 Deg C 1.25 - 1.6V Tj(max) 150°C Td(on) @ 25 Deg C 0.163uS Td(off) @ 25 Deg C 0.253uS I(ces) @ 25 Deg C 4mA Rcc 0.9mOhm Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.4°C/W R th(c-h) 0.02°C/W Weight 180g Mounting Torque 5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives , Obsolete. Contact Us for Possible Replacement for alternative

Read more less

Semikron SKD160/18, 3 Phase Diode Rectifier Bridge, 205Amp, 1600V, Replaces Powersem PSD162T/16, and IXYS VUO160-16 N07 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Semikron Part Number SKD160/18 AC Line voltage 1800V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 85 Deg C 160 Amp Package Size W:94mm L:54mm D:30mm Itsm 1800 A VF(to) 0.8V Tj(max) 150°C Terminals M6 (5Nm) Hole Centres 80mm (M6) Gate Terminals N/A Weight 270g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Semikron Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD192T/16 for higher rated equivalent

Read more less

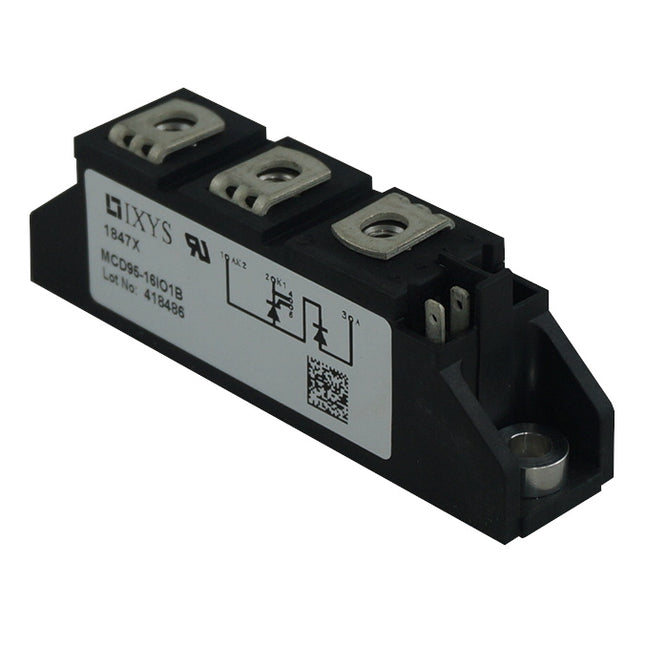

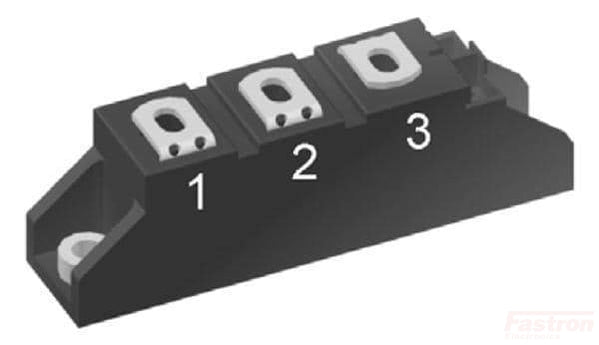

Westcode-IXYS-Littlefuse MCD95-16io1B, 95 Amp, 1600V, Thyristor Diode Module Features Thyristor for line frequency Direct Copper Bonded Al2O3-ceramic Planar passivated chip Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 20mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Soft start AC motor control AC power control Lighting and temperature control Specification Westcode-IXYS-Littlefuse Part Number MCD95-16io1B Vrrm 1600V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 116 Amp Package Size W:20mm L:93mm D:30mm TO-240AA Itsm 2.25 kA VF(to) 0.8V Tj(max) 125°C rF 2.4mΩ I(gt) @ 25 Deg C 150mA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.22°C/W R th(c-h) 0.42°C/W Weight 85g Mounting Torque 3 Nm (3 Nm Terminals) Factory Pack Qty 12 Certification UL Listed, ROHS IXYS Headquarters United States   Datasheet Product Datasheet Alternatives See TD120N16SOF Solder Contact or TD122N22KOF Infineon Alternative

Read more less

Westcode-IXYS-Littlefuse MCC312-16io1, Dual Thyristor Module, 330 Amp, 1600V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Soft start AC motor control AC power control Lighting and temperature control Specification Westcode-IXYS-Littlefuse Part Number MCC312-16io1 Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 320 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.6 kA VF(to) 0.8V Tj(max) 125°C rF 0.68mΩ I(gt) @ 25 Deg C 150mA Terminals M8 Screw Hole Centres 80mm x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.12°C/W R th(c-h) 0.04°C/W Weight 680g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS IXYS Headquarters United States   Datasheet Product Datasheet Alternatives TT330N16KOF
