High Power Semiconductors

Infineon D448N08T Rectifier Diode Capsule Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D448N08T Vrrm 800V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 450 Amp Package Size ø41 x 14mm Itsm 6.3 kA VF(to) 0.7V Tj(max) 180°C rF 0.51mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.102°C/W R th(c-h) (double sided cooled) 0.015°C/W Weight 75g Clamping Force 2.6 - 4.6kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives D770N20T D770N16T Heatsink Heatsink Profiles

Read more less

Infineon Technologies D251K14B Series Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Infineon Part Number D251K14B Vrrm 1400V Diode Configuration Cathode Stud IF(av) @ 130 Deg C 250 Amp IF(av) @ 129 Deg C 255 Amp Itsm 6.3kA VF(to) 0.80V Tj(max) 180°C rF 0.50mΩ Termination Style (Tail) 8.4mm Round Lug Termination Style (Stud) M12 x 1.75 Stud Length 18mm Tail Length to Stud 210mm R th(j-c) 0.151 °C/W R th(c-h) 0.04 °C/W Weight 175g Mounting Torque 20 Nm Factory Pack Qty 6 Country Of Origin Germany Infineon Headquarters Germany Datasheet Product Datasheet

Read more less

Infineon D2450N04T, Rectifier Diode PUK 2050 Amp, 400V 58/14 Rectifier Diode Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D2450N04T Vrrm 400V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 2450 Amp Package Size ø58 x 14mm Itsm 33 kA VF(to) 0.7V Tj(max) 180°C rF 0.0975mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.0253°C/W R th(c-h) (double sided cooled) 0.005°C/W Weight 160g Clamping Force 12 - 24kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Infineon DDB6U85N16L, 3 Phase Diode Rectifier Bridge, 85 Amp, 1600V, 42 x 94mm Package Features Package with DCB ceramic base plate Isolation voltage 3600 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Infineon Part Number DDB6U85N16L AC Line voltage 533V Device Configuration Three Phase Half Controlled Rectifier Bridge DC Output @ 100 Deg C 85 Amp Package Size W:94mm L:42mm D:30mm Itsm 650 A VF(to) 0.75V Tj(max) 150°C rF 5.5mΩ Terminals M5 (4Nm) Hole Centres 68mm (M5) Gate Terminals N/A R th(j-c) 1.54°C/W R th(c-h) 0.20°C/W Weight 220g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See DDB6U145N16L or PSD192T/16 for alternative

Read more less

Thyristor(SCR), 250Amp, 1600V, M24, Anode stud Product Datasheet

Read more less

Thyristor(SCR), 250Amp, 1400V, M24, Anode stud Product Datasheet

Read more less

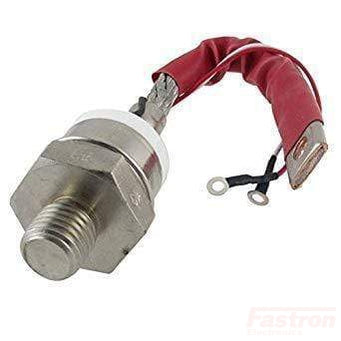

Thyristor(SCR), 200Amp, 1600V, M16 x 1.5, Anode stud Product Datasheet

Read more less

Rectifier Diode 260 Amp, 1600V, 3/4" 16UNF 2A, Anode stud Product Datasheet

Read more less

Rectifier Diode 260 Amp, 1600V, M16 x 1.5, Anode stud Product Datasheet

Read more less

Rectifier Diode 150 Amp, 1600V, 1/2" 20UNF 2A, Anode stud Product Datasheet

Read more less

S16HNS260M Rectifier Diode 260 Amp, 1600V, M16 x 1.5, Cathode stud Product Datasheet

Read more less

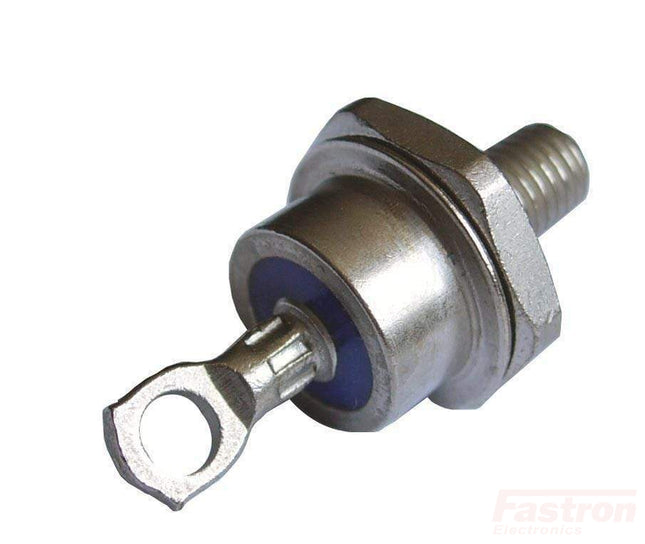

Rectifier Diode 26 Amp, 1600V, 10/32" UNF, Cathode stud Product Datasheet

Read more less
