Infineon DD180N16S, Dual Diode Module, 180 Amp, 1600V Features Solder-Solder Technology Electrically insulated base plate Industrial standard package 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Specification Infineon Part Number DD180N16S Vrrm 1600V Diode Configuration Dual Diode Module IF(av) @ 85 Deg C 192 Amp Package Size W:34mm L:94mm D:30mm Itsm 5.75 kA VF(to) 0.85V Tj(max) 130°C rF 0.95mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.16°C/W R th(c-h) 0.08°C/W Weight 165g Mounting Torque 5 Nm (5 Nm Terminals) Factory Pack Qty 8 Certification UL Listed Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See MDD172-16N1 for IXYS replacement, or DD171N12K Infineon Pressure Contact Technology replacement

Read more less

Infineon DD171N12K-K Dual Diode Module Features Pressure Contact Technology Electrically insulated base plate International standard package 3000V Isolation 34mm Base Width Applications Power Supplies Deep Power Cycling Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Infineon Part Number DD171N12K-K Vrrm 1200V Diode Configuration Common Cathode Dual Diode Module IF(av) @ 100 Deg C 171 Amp Package Size W:34mm L:94mm D:30mm Itsm 6.6 kA VF(to) 0.75V Tj(max) 150°C rF 0.8mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.26°C/W R th(c-h) 0.06°C/W Weight 310g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed IXYS Headquarters United States   Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative

Read more less

Infineon DD171N12K Dual Diode Module Features Pressure Contact Technology Electrically insulated base plate International standard package 2500V Isolation 34mm Base Width Applications Power Supplies Deep Power Cycling Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Infineon Part Number DD171N12K Vrrm 1200V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 171 Amp Package Size W:34mm L:94mm D:30mm Itsm 6.6 kA VF(to) 0.75V Tj(max) 150°C rF 0.8mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.26°C/W R th(c-h) 0.06°C/W Weight 310g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed IXYS Headquarters United States   Datasheet Product Datasheet Alternatives See DD180N16S or MDD172-16N1 for Solder Contact, or DD171N12K Infineon Pressure Contact Technology replacement

Read more less

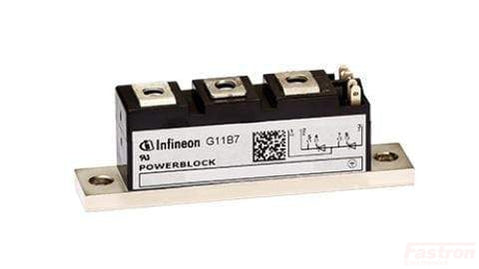

Infineon DD104N12K-K Dual Diode Module Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Infineon Part Number DD104N12K-K Vrrm 1200V Diode Configuration Common Cathode Dual Diode Module IF(av) @ 100 Deg C 104 Amp Package Size W:20mm L:93mm D:30mm Itsm 2.9 kA VF(to) 0.7V Tj(max) 150°C rF 2.1mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.195°C/W R th(c-h) 0.10°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative part

Read more less

Infineon D970N06T, Rectifier Diode PUK 970 Amp, 600V 41/14, Replaces D650N06T Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D970N06T Vrrm 600V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 900 Amp Package Size ø41 x 14mm Itsm 103 kA VF(to) 0.7V Tj(max) 180°C rF 0.31mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.057°C/W R th(c-h) (double sided cooled) 0.015°C/W Weight 75g Clamping Force 3.8 - 7.6kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative suggestion

Read more less

Infineon D798N12T Rectifier Diode Capsule Features Very low forward voltage drop Very low leakage current International standard package 48/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D798N12T Vrrm 1200V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 800 Amp Package Size ø48 x 14mm Itsm 14.8 kA VF(to) 0.81V Tj(max) 180°C rF 0.51mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.046°C/W R th(c-h) (double sided cooled) 0.0075°C/W Weight 110g Clamping Force 6 - 15kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives D820N20T D798N16T Heatsink Heatsink Profiles

Read more less

Infineon D770N16T Rectifier Diode Capsule Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D770N16T Vrrm 1600V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 770 Amp Package Size ø41 x 14mm Itsm 7.7 kA VF(to) 0.81V Tj(max) 180°C rF 0.54mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.057°C/W R th(c-h) (double sided cooled) 0.015°C/W Weight 75g Clamping Force 3.8 - 7.6kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives D770N20T Heatsink Heatsink Profiles

Read more less

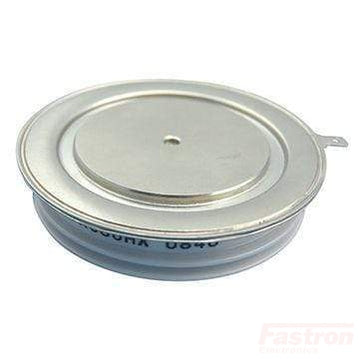

Infineon D749N42T, Rectifier Diode Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D749N42T, Vrrm 4200V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 750 Amp Package Size ø58 x 26mm Itsm 14 kA VF(to) 0.85V Tj(max) 180°C rF 0.65mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.039°C/W R th(c-h) (double sided cooled) 0.005°C/W Weight 280g Clamping Force 10 - 24kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Infineon D4709N22T Rectifier Diode Capsule Features Very low forward voltage drop Very low leakage current International standard package 111/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D4709N22T Vrrm 2200V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 4700 Amp Package Size ø111 x 26mm Itsm 71 kA VF(to) 0.83V Tj(max) 180°C rF 0.07mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.008°C/W R th(c-h) (double sided cooled) 0.0025°C/W Weight 1.2kg Clamping Force 42 - 95kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Infineon D448N08T Rectifier Diode Capsule Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D448N08T Vrrm 800V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 450 Amp Package Size ø41 x 14mm Itsm 6.3 kA VF(to) 0.7V Tj(max) 180°C rF 0.51mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.102°C/W R th(c-h) (double sided cooled) 0.015°C/W Weight 75g Clamping Force 2.6 - 4.6kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives D770N20T D770N16T Heatsink Heatsink Profiles

Read more less

Infineon Technologies D251K14B Series Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Infineon Part Number D251K14B Vrrm 1400V Diode Configuration Cathode Stud IF(av) @ 130 Deg C 250 Amp IF(av) @ 129 Deg C 255 Amp Itsm 6.3kA VF(to) 0.80V Tj(max) 180°C rF 0.50mΩ Termination Style (Tail) 8.4mm Round Lug Termination Style (Stud) M12 x 1.75 Stud Length 18mm Tail Length to Stud 210mm R th(j-c) 0.151 °C/W R th(c-h) 0.04 °C/W Weight 175g Mounting Torque 20 Nm Factory Pack Qty 6 Country Of Origin Germany Infineon Headquarters Germany Datasheet Product Datasheet
