Semiconductor Fuses

Trent NBR-20 001 13-160A-500V-120kA-NH00, Semiconductor Type gG/gL Fuse, 160 Amp, 120kA, 500VAC, NH00, 78 x 46 x 29.5mm Square Body Size NH00 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-20 001 13-160A-500V-120kA-NH00 Fuse Type I²t gG/gL Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC) 160 Amp Tested Breaking Capacity 120kA @ 690VAC Dimensions 78 x 46 x 29.5mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I²t Semiconductor Fuse, NBR-FWP-600A 700V AC/DC, Semiconductor Fuse, 600 Amp, 700VAC/DC, Round Barrel 7.09 x 2.0 x 2.5 Inches. Clearing I2t 250kA, Breaking Capacity 200kAand Microswitch Features Square Body DIN 43 653 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FWP-600A 700V AC/DC Fuse Type I²t AR Class Nominal Voltage 700VAC @ 50Hz I²t Rating (660V) 250000A²/s Nominal Current (RMS + DC) 600 Amp Tested Breaking Capacity 200kA @ 700VAC/DC Dimensions 138 x 61 x 50mm Hole Centers 108mm + Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watts Dissipation 75W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent NBR-A15QS3000-128, Amp Trap Semiconductor Fuse, 3000 Amp, 150V, Capsule Style, 100kA Features Capsule Style Low I²t Ratings up to 6000 Amp Busbar Mounted Form 101 150 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-A15QS3000-128 Fuse Type I²t Amp Trap Form 101 Nominal Voltage 150VAC @ 50Hz /150VDC I²t Rating (660V) 640000A²/s Nominal Current (RMS + DC) 3000 Amp Tested Breaking Capacity 100kA @ 150VAC/DC Dimensions ⌀41.4 x 47.8 Hole Centers 38.1mm Mounting Style Busbar Mount Operating Temperature Range -40°C / 125°C Watts Dissipation Termination Style 1/2" 20 UNF, 1/2" Deep Unit Weight 500g Factory Pack Qty 3   Datasheet Product Datasheet

Read more less

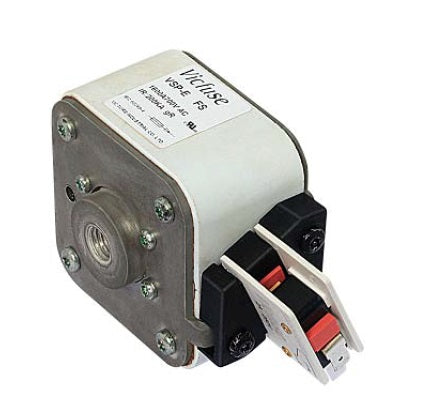

Vicfuse VSP-C800A690VACF5-KaR, Semiconductor Fuse, 800 Amp, 690VAC, Terminal Type FS, 200kA with Indicator and Microswitch Features Square Body Size_Body Size 33 Type KI Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Vicfuse Part Number VSP-C800A690VACF5-KaR Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (660V) 548000A²/s Nominal Current (RMS + DC) 800 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 61 x 51mm Hole Centers 91.5mm +/- 16.1mm Mounting Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watts Dissipation 116W Termination M10 Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent 175AAF Series 690V, 175 Amp aR Semiconductor I²t Fuse BS88 Style 200kA Breaking Features Equivalent to Mersen 6.9 URT 217/175 K075909, Bussman 160EET, ETI BS17D/70/160A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 175AAF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 22800 A²/s Nominal Current (RMS + DC) 175 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 90.2 x 30 x 36.7mm Hole Centers 62.4 - 76mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 26W Termination Style M6 Unit Weight 61g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent NBR-20 003 13-250A-500V-120kA-NH1, Semiconductor Type gG/gL Fuse, 250 Amp, 120kA, 500VAC, NH1, 150 x 46 x 29.5mm Features Square Body Size NH1 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-20 003 13-200A-500V-120kA-NH1 Fuse Type I²t gG/gL Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC) 200 Amp Tested Breaking Capacity 120kA @ 690VAC Dimensions 150 x 75 x 65mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent 110AAF Series 690V, 110 Amp aR Semiconductor I²t Fuse BS88 Style 200kA Breaking Features Equivalent to Mersen 6.9 URT 217/110 B099959, 6.9 URT 217/90 A099958, Bussman 110EET, ETI BS17D/70/110A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 110AAF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 5450 A²/s I²t Rating (IP > 30IN) 6850 A²/s Nominal Current (RMS + DC) 100 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 90.2 x 30 x 36.7mm Hole Centers 62.4 - 76mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 25W Termination Style M6 Unit Weight 61g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent NBR-CS5F-400, HRC Semiconductor Protection Fuse, 400 Amp, 500VAC, 200kA 51 x 51 x 72mm + Microswitch (Replaces Fuji CS5F-400) Features Wide Range of I²t Ratings up to 2000 Amp Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CS5F-400 Fuse Type I²t AR Class HRC Nominal Voltage 500VAC @ 50Hz I²t Rating (660V) Nominal Current (RMS + DC) 400 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 51 x 51 x 72mm + Microswitch Indicator Tag Mounting Style Fuse Holder Operating Temperature Range -40°C / 125°C Watts Dissipation 57W Termination Style Blade Fuse Holder Unit Weight 800g Factory Pack Qty 3   Datasheet Product Datasheet

Read more less

Trent 150NBF, 690V, 100 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 150NBF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 7400 A²/s Nominal Current (RMS + DC) 150 Amp Tested Breaking Capacity 100kA @ 250VAC Dimensions 82 x 47.3mm Hole Centers 65.5 - 48.2mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 27W Termination Style M6 Unit Weight 170g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

FHR17-160/3, NH00 00C,NT00/00C,RT16-00/000 3 Pole Fuse Disconnect Switch 690VAC, 160 Amp Max Datasheet Product Datasheet

Read more less

Trent F170M2608 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 25 Amp, 690VAC, Panel Mount 200kA, Size 00 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of I^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I??t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M2608 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz Nominal Current (RMS DC) 25 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 00) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent F170M2609 Series 690V Semiconductor I^2t (aR) Fuse Square Body DIN 43 653 Style, 32 Amp, 690VAC, Panel Mount 200kA, Size 00 (78mm Hole Centers) Features Square Body DIN 43 653 Wide Range of I^2t Ratings up to 400 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I??t Short Circuit Protection Motor Protection Battery Fuse Specification Trent Part Number F170M2609 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz Nominal Current (RMS DC) 32 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 40 x 100 x 20mm (Size 00) Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 24W Termination Style M8 Unit Weight 134g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less
