Sealed DC Contactors up to IP67K and from 450 Amp up to 1000 Amp
-
GV200DAB-1, Contactor SPST-NO, 500+ AMP, 12-800VDC, 48VDC Coil, 38cm Flying leads, SPST-NO Auxiliary Contact, IP67
Gigavac GV200DAB-1, Contactor SPST-NO, 500+ AMP, 12-800VDC, 48VDC Coil, 38cm Flying leads, SPST-NO Auxiliary Contact, IP67 Features Hermetically Sealed UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 - Temporary water immersion (30 Min) SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Specification Gigavac Part Number GV200DAB-1 Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 48VDC Load Current 500+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals 38cm Flying Leads Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 12 - 800VDC Standards CE, UL1604, IP67, SAEJ1171, UL508 Termination Style M8 Unit Weight 450g Factory Pack Qty 1 Datasheet Product Datasheet
$269.50
$318.01 inclGST -
GV200BA-1, Contactor SPST-NO, 500+ AMP, 12-800VDC, 12VDC Coil, 38cm Flying leads, WITHOUT Auxiliary Contact, IP67
Gigavac GV200BA-1, Contactor SPST-NO, 500+ AMP, 12-800VDC, 12VDC Coil, 38cm Flying leads, WITHOUT Auxiliary Contact, IP67 Features PWM Rated Coil Hermetically Sealed UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 - Temporary water immersion (30 Min) SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Specification Gigavac Part Number GV200BA-1 Main Contact Type SPST-NO Auxiliary Contact Type None Coil Voltage 12/24VDC (PWM) Load Current 500+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals 38cm Flying Leads Special Feature PWM Rated Coil Mounting Style Panel Mount (M5) Load Voltage Range 12 - 800VDC Standards CE, UL1604, IP67, SAEJ1171, UL508 Termination Style M8 Unit Weight 450g Factory Pack Qty 1 Datasheet Product Datasheet
$277.00
$326.86 inclGST -
HX460CAA, Contactor SPST-NO 1000 AMP, 1500VDC, 24VDC Coil, 38cm Flying leads, with SPDT Auxiliary Contact 5000 Cycles, IP67, IP69
Gigavac HX460CAA, Contactor SPST-NO 1000 AMP, 1500VDC, 24VDC Coil, 38cm Flying leads, with SPDT Auxiliary Contact 5000 Cycles, IP67, IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69 SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Specification Gigavac Part Number HX460CAA Main Contact Type SPST-NO Auxiliary Contact Type SPDT 1NO+1NC Coil Voltage 24VDC Load Current 1000 Amp Mechanical Life @ 0 Amp 100,000 Operations Dielectric at Sea Level (leakage <1mA) 5.375kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature N/A Mounting Style Panel Mount (M6) Load Voltage Range 1500VDC Standards UL1604, IP67, IP69, SAE J1171, ISO8846 Termination Style M12 Unit Weight 4.17kg Factory Pack Qty 1 Datasheet Product Datasheet
$1,349.00
$1,591.82 inclGST -
MX46CDB, Contactor SPST-NO, 600+ AMP, 12-48VDC, 24VDC Coil, M4 Coil Screw, SPST-NO Auxiliary Contact, IP67, IP69K
MX46CDB, Contactor SPST-NO, 600+ AMP, 12-48VDC, 24VDC Coil, M4 Coil Screw, SPST-NO Auxiliary Contact, IP67, IP69K Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number MX46CDB Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 24VDC Load Current 600+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals M4 Screw Aux Contact Terminals M4 Coil Screw Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 12-48VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M8 Unit Weight 900g Factory Pack Qty 1 Datasheet Product Datasheet
$754.00
$889.72 inclGST -

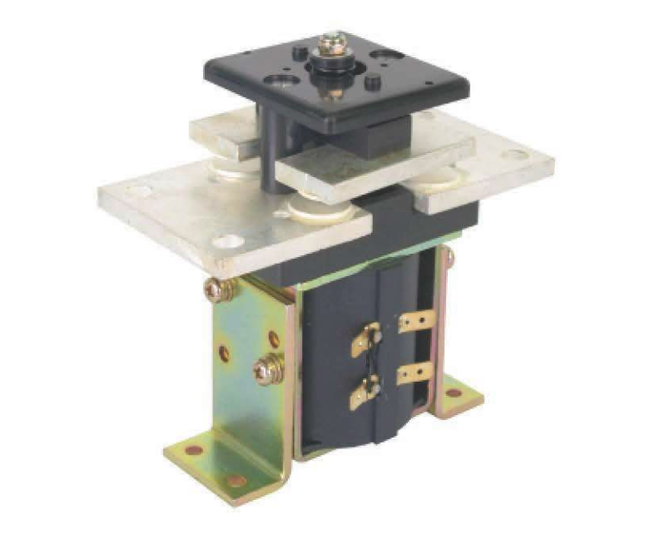

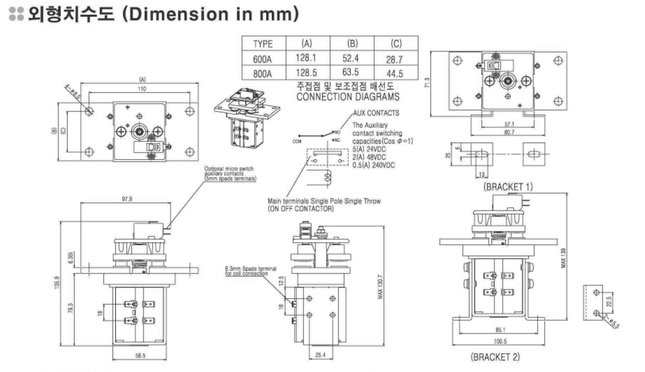

CTS800-12S, Contactor SPST-NO, 800 AMP, 6-110VDC, 12VDC Coil, SPDT Auxiliary Contact
Fastron CTS800-12S, Contactor SPST-NO, 800 AMP, 6-110VDC, 12VDC Coil, SPDT Auxiliary Contact Features Ideal for switching solenoids Flexible package for installation Specification Fastron Part Number CTS800-12S Main Contact Type SPST-NO Auxiliary Contact Type SPDT Coil Voltage 12VDC Nominal, 1.2V Drop out Voltage, 9V Pickup Voltage Coil Power Consumption 13 - 25 Watts Max Load Current 1200A @ 60VDC Mechanical Life @ 0 Amp 1,000,000 Operations Load Voltage Range 6-110VDC Termination Style Busbar Operating Temperature -40 to 60 Deg C Unit Weight 1600g Factory Pack Qty 1 Datasheet Datasheet
$439.00
$518.02 inclGST -

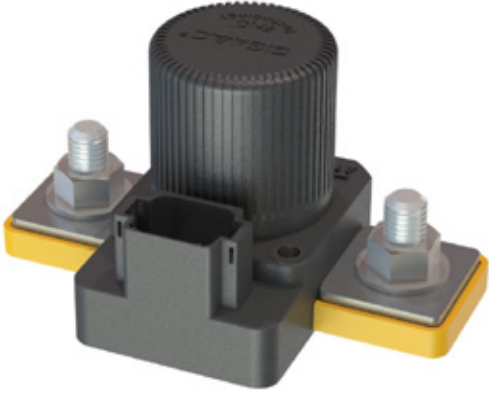

GXC16CEBX, CAN Bus Contactor SPST-NO, 600+ AMP, 12-800VDC, 24VDC Coil, 8 Pin Deutsch Connector, SPST-NO Auxiliary Contact, IP67, IP69K
Gigavac GXC16CEBX, CAN Bus Contactor SPST-NO, 600 AMP, 12-800VDC, 24VDC Coil, 8 Pin Deutsch Connector, SPST-NO Auxiliary Contact, IP67, IP69K Features CAN Bus Comms Voltage Sensing Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number GXC16CEBX Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 24VDC Load Current 600 Amp Voltage Sensing NO Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Voltage Sensing YES Comms CAN BUS Load Voltage Range 12-800VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M8 & Deutsch 8 Pin Connector Unit Weight 440g Factory Pack Qty 1 Datasheet Product Datasheet
$655.00
$772.90 inclGST -
GXC16CEBV, CAN Bus Contactor SPST-NO, 600+ AMP, 12-800VDC, 24VDC Coil, 8 Pin Deutsch Connector, SPST-NO Auxiliary Contact, IP67, IP69K, with Voltage Sensing
Gigavac GXC16CEBV, CAN Bus Contactor SPST-NO, 600+ AMP, 12-800VDC, 24VDC Coil, 8 Pin Deutsch Connector, SPST-NO Auxiliary Contact, IP67, IP69K, with Voltage Sensing Features CAN Bus Comms Voltage Sensing Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number GXC16CEBV Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 24VDC Load Current 600 Amp Voltage Sensing YES Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Voltage Sensing YES Comms CAN BUS Load Voltage Range 12-800VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M8 & Deutsch 8 Pin Connector Unit Weight 440g Factory Pack Qty 1 Datasheet Product Datasheet
$670.00
$790.60 inclGST -
GX23FA, Contactor SPST-NO, 350+ AMP, 12-800VDC, 48VDC Coil, 38cm Flying leads, IP67, IP69K
Gigavac GX23FA, Contactor SPST-NO, 350+ AMP, 12-800VDC, 48VDC Coil, 38cm Flying leads, IP67, IP69K Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number GX23FA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 48VDC Load Current 350+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 12-800VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M8 Unit Weight 580g Factory Pack Qty 1 Datasheet Product Datasheet
$241.12
$284.52 inclGST -
GX66CDB, Contactor SPST-NO, 600+ AMP, 12-800VDC, 24VDC Coil, M4 Coil Screw, SPST-NO Auxiliary Contact, IP67, IP69K
Gigavac GX66CDB, Contactor SPST-NO, 600+ AMP, 12-800VDC, 24VDC Coil, M4 Coil Screw, SPST-NO Auxiliary Contact, IP67, IP69K Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number GX66CDB Main Contact Type SPST-NO Auxiliary Contact Type None Coil Voltage 48VDC Load Current 600+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals M4 Screw Aux Contact Terminals M4 Coil Screw Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 12-800VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M8 Unit Weight 750g Factory Pack Qty 1 Datasheet Product Datasheet
$654.50
$772.31 inclGST -
GXSA16BEB, Contactor with Overcurrent Trip, SPST-NO, 600+ AMP, 12-800VDC, 12VDC Coil, 8 Pin Deutch Connector, SPST-NO Auxiliary Contact, IP67, IP69K
Gigavac GXSA16BEB, Contactor with Overcurrent Trip, SPST-NO, 600+ AMP, 12-800VDC, 12VDC Coil, 8 Pin Deutch Connector, SPST-NO Auxiliary Contact, IP67, IP69K Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number GXSA16BEB Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 12VDC Load Current 600+ Amp Over Current Detection Yes Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 8 Pin Deutch Connector Aux Contact Terminals 8 Pin Deutch Connector Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 12-800VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M12 Unit Weight 900g Factory Pack Qty 1 Datasheet Product Datasheet
$595.00
$702.10 inclGST -
GXSA16CEB, Contactor with Overcurrent Trip, SPST-NO, 600+ AMP, 12-800VDC, 24VDC Coil, 8 Pin Deutch Connector, SPST-NO Auxiliary Contact, IP67, IP69K
Gigavac GXSA16CEB, Contactor with Overcurrent Trip, SPST-NO, 600+ AMP, 12-800VDC, 24VDC Coil, 8 Pin Deutch Connector, SPST-NO Auxiliary Contact, IP67, IP69K Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number GXSA16CEB Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 24VDC Load Current 600+ Amp Over Current Detection Yes Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 8 Pin Deutch Connector Aux Contact Terminals 8 Pin Deutch Connector Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 12-800VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M12 Unit Weight 900g Factory Pack Qty 1 Datasheet Product Datasheet
$595.00
$702.10 inclGST -
GX23CAB, Contactor SPST-NO, 350+ AMP, 12-800VDC, 24VDC Coil, 38cm Flying leads, SPST-NO Auxiliary Contact, IP67, IP69K
Gigavac GX23CAB, Contactor SPST-NO, 350+ AMP, 12-800VDC, 24VDC Coil, 38cm Flying leads, SPST-NO Auxiliary Contact, IP67, IP69K Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number GX23CAB Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 24VDC Load Current 350+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 12-800VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M8 Unit Weight 580g Factory Pack Qty 1 Datasheet Product Datasheet
$325.00
$383.50 inclGST
