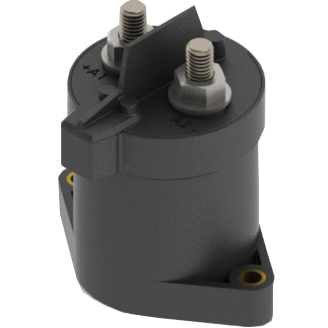

Gigavac GXV600P, Contactor SPST-NO, 600+ AMP, 12-900VDC, 12/24VDC EXTERNAL PWM Coil, Coil Termination to SCPT-A021GF-0.5, IP67 Features Hermetically Sealed UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 - Temporary water immersion (30 Min) SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved 12/24VDC Internal or External PWM Coils Flexible package for installation Specification Gigavac Part Number GXV600P Main Contact Type SPST-NO Auxiliary Contact Type None Coil Voltage 12/24VDC External PWM Load Current 600+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals JST Connector: 02CPT-B-2A JST Terminal: SCPT-A021GF-0.5 Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 12 - 900VDC Standards CE, UL1604, IP67, SAEJ1171, UL508 Termination Style M8 Unit Weight 450g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac GXV600M, Contactor SPST-NO, 600+ AMP, 12-900VDC, 12/24VDC INTERNAL PWM Coil, Coil Termination to SCPT-A021GF-0.5, IP67 Features Hermetically Sealed UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 - Temporary water immersion (30 Min) SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved 12/24VDC Internal or External PWM Coils Flexible package for installation Specification Gigavac Part Number GXV600M Main Contact Type SPST-NO Auxiliary Contact Type None Coil Voltage 12/24VDC Internal PWM Load Current 600+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals JST Connector: 02CPT-B-2A JST Terminal: SCPT-A021GF-0.5 Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 12 - 900VDC Standards CE, UL1604, IP67, SAEJ1171, UL508 Termination Style M8 Unit Weight 450g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac HX360FFB, Contactor SPST-NO 800 AMP, 1500VDC, 48VDC Coil, Molex 5 PIn Connector 39-01-4050, with SPDT Auxiliary Contact 3750 Cycles, IP67, IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69 SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Specification Gigavac Part Number HX360FFB Main Contact Type SPST-NO Auxiliary Contact Type SPDT-NO Coil Voltage 48VDC Load Current 800 Amp Mechanical Life @ 0 Amp 300,000 Operations Dielectric at Sea Level (leakage <1mA) 5.375kV rms Control Input Terminals Molex 5 PIn Connector 39-01-4050 Aux Contact Terminals Molex 5 PIn Connector 39-01-4050 Special Feature N/A Mounting Style Panel Mount (M6) Load Voltage Range 1500VDC Standards UL1604, IP67, IP69, SAE J1171, ISO8846 Termination Style M12 Unit Weight 3kg Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

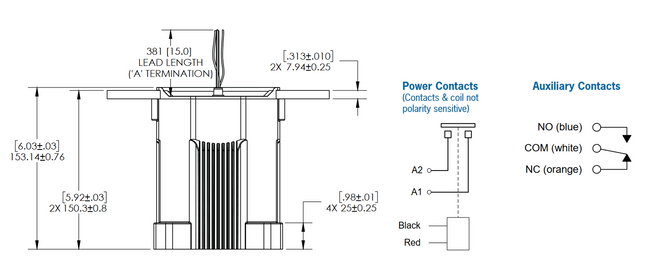

Gigavac HX360BFB, Contactor SPST-NO 800 AMP, 1500VDC, 12VDC Coil, Molex 5 PIn Connector 39-01-4050, with SPDT Auxiliary Contact 3750 Cycles, IP67, IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69 SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Specification Gigavac Part Number HX360BFB Main Contact Type SPST-NO Auxiliary Contact Type SPDT-NO Coil Voltage 12VDC Load Current 800 Amp Mechanical Life @ 0 Amp 300,000 Operations Dielectric at Sea Level (leakage <1mA) 5.375kV rms Control Input Terminals Molex 5 PIn Connector 39-01-4050 Aux Contact Terminals Molex 5 PIn Connector 39-01-4050 Special Feature N/A Mounting Style Panel Mount (M6) Load Voltage Range 1500VDC Standards UL1604, IP67, IP69, SAE J1171, ISO8846 Termination Style M12 Unit Weight 3kg Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac HX360CFB, Contactor SPST-NO 800 AMP, 1500VDC, 24VDC Coil, Molex 5 PIn Connector 39-01-4050, with SPDT Auxiliary Contact 3750 Cycles, IP67, IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69 SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Specification Gigavac Part Number HX360CFB Main Contact Type SPST-NO Auxiliary Contact Type SPDT-NO Coil Voltage 24VDC Load Current 800 Amp Mechanical Life @ 0 Amp 300,000 Operations Dielectric at Sea Level (leakage <1mA) 5.375kV rms Control Input Terminals Molex 5 PIn Connector 39-01-4050 Aux Contact Terminals Molex 5 PIn Connector 39-01-4050 Special Feature N/A Mounting Style Panel Mount (M6) Load Voltage Range 1500VDC Standards UL1604, IP67, IP69, SAE J1171, ISO8846 Termination Style M12 Unit Weight 3kg Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

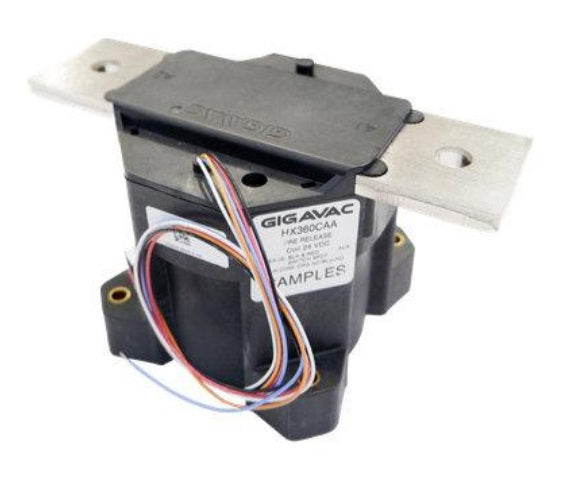

Gigavac HX360FAB, Contactor SPST-NO 800 AMP, 1500VDC, 48VDC Coil, 38cm Flying leads, with SPDT Auxiliary Contact 3750 Cycles, IP67, IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69 SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Specification Gigavac Part Number HX360FAB Main Contact Type SPST-NO Auxiliary Contact Type SPDT-NO Coil Voltage 48VDC Load Current 800 Amp Mechanical Life @ 0 Amp 300,000 Operations Dielectric at Sea Level (leakage <1mA) 5.375kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature N/A Mounting Style Panel Mount (M6) Load Voltage Range 1500VDC Standards UL1604, IP67, IP69, SAE J1171, ISO8846 Termination Style M12 Unit Weight 3kg Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac HX360BAB, Contactor SPST-NO 800 AMP, 1500VDC, 12VDC Coil, 38cm Flying leads, with SPDT Auxiliary Contact 3750 Cycles, IP67, IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69 SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Specification Gigavac Part Number HX360BAB Main Contact Type SPST-NO Auxiliary Contact Type SPDT-NO Coil Voltage 12VDC Load Current 800 Amp Mechanical Life @ 0 Amp 300,000 Operations Dielectric at Sea Level (leakage <1mA) 5.375kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature N/A Mounting Style Panel Mount (M6) Load Voltage Range 1500VDC Standards UL1604, IP67, IP69, SAE J1171, ISO8846 Termination Style M12 Unit Weight 3kg Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac HX360CAB, Contactor SPST-NO 800 AMP, 1500VDC, 24VDC Coil, 38cm Flying leads, with SPDT Auxiliary Contact 3750 Cycles, IP67, IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69 SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Specification Gigavac Part Number HX360CAB Main Contact Type SPST-NO Auxiliary Contact Type SPDT-NO Coil Voltage 24VDC Load Current 800 Amp Mechanical Life @ 0 Amp 300,000 Operations Dielectric at Sea Level (leakage <1mA) 5.375kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature N/A Mounting Style Panel Mount (M6) Load Voltage Range 1500VDC Standards UL1604, IP67, IP69, SAE J1171, ISO8846 Termination Style M12 Unit Weight 3kg Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac GXC16BEBX, CAN Bus Contactor SPST-NO, 600 AMP, 12-800VDC, 12VDC Coil, 8 Pin Deutsch Connector, SPST-NO Auxiliary Contact, IP67, IP69K Features CAN Bus Comms Voltage Sensing Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number GXC16BEBX Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 12VDC Load Current 600 Amp Voltage Sensing NO Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Voltage Sensing YES Comms CAN BUS Load Voltage Range 12-800VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M8 & Deutsch 8 Pin Connector Unit Weight 440g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

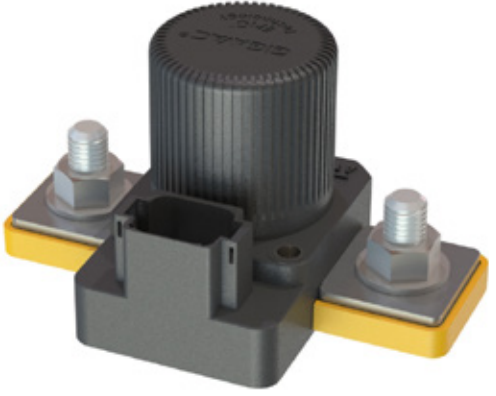

Gigavac GXC16BEBV, CAN Bus Contactor SPST-NO, 600+ AMP, 12-800VDC, 12VDC Coil, 8 Pin Deutsch Connector, SPST-NO Auxiliary Contact, IP67, IP69K, with Voltage Sensing Features CAN Bus Comms Voltage Sensing Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number GXC16BEBV Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 12VDC Load Current 600 Amp Voltage Sensing YES Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Voltage Sensing YES Comms CAN BUS Load Voltage Range 12-800VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M8 & Deutsch 8 Pin Connector Unit Weight 440g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac GV200NAB-1, Contactor SPST-NO, 500+ AMP, 12-800VDC, 48VDC PWM Coil, 38cm Flying leads, SPST-NO Auxiliary Contact, IP67 Features PWM Rated Coil Hermetically Sealed UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 - Temporary water immersion (30 Min) SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Specification Gigavac Part Number GV200NAB-1 Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 48VDC (PWM) Load Current 500+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals 38cm Flying Leads Special Feature PWM Rated Coil Mounting Style Panel Mount (M5) Load Voltage Range 12 - 800VDC Standards CE, UL1604, IP67, SAEJ1171, UL508 Termination Style M8 Unit Weight 450g Factory Pack Qty 1 Datasheet Product Datasheet
