Schurter Rewirable IEC Plugs
-

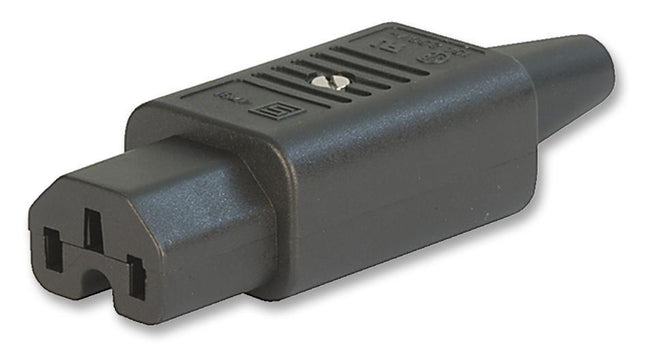

4781.0100, IEC Appliance Plug C15/F, Rewirable, Black, for 3 x 1.5m sqr/14AWG Maximum wire size, 10mm Type
Schurter 4781.0100, IEC Appliance Plug C15/F, Rewirable, Black, for 3 x 1.5m sqr/14AWG Maximum wire size, 10mm Type Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C15/F Plug acc to IEC 60320-1 Screw On Mounting 120 °C Operating Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1 Specification Schurter Part Number 4781.0100 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 120°C Mounting Wire Screw Mount Material Thermoplastic, black, UL 94V-0 Termination Style C15 Female to Screw Terminal Weight 40g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes Datasheet Product Datasheet
$8.15
$9.62 inclGST -

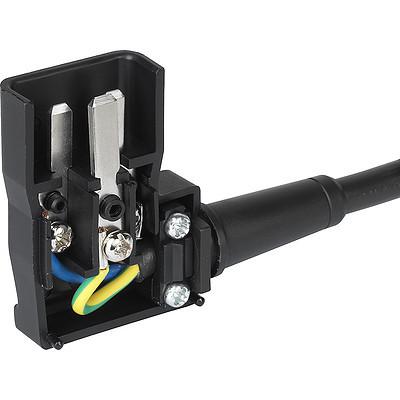

4789.1100, IEC Appliance Outlet C20 Angled, Black, 16 Amp for 3 x 1.5m sqr/14AWG Maximum wire size 10.4mm
Schurter 4789.1100, IEC Appliance Outlet C20 Angled, Black, 16 Amp for 3 x 1.5m sqr/14AWG Maximum wire size 10.4mm Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C20 Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 70 °C, 16A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1 Specification Schurter Part Number 4789.1100 Rated Voltage 250V Rated Current 16A (CE) 20A (UL/CSA) Operating Temperature -25°C to 70°C Mounting Wire Screw Mount/Outlet Material Thermoplastic, black, UL 94V-0 Termination Style C20/Screw Terminal Weight 40g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes Datasheet Product Datasheet
$17.00
$20.06 inclGST -
4784.0000, IEC Appliance Inlet C15/F, Angled, Black, for 3 x 1.5m sqr/14AWG Maximum wire size 10mm Type, 120 °C pin Temperature
Schurter 4784.0000, IEC Appliance Inlet C15/F, Angled, Black, for 3 x 1.5m sqr/14AWG Maximum wire size 10mm Type, 120 °C pin Temperature Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C15/F Plug acc to IEC 60320-1 Screw On Mounting 120 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1 Specification Schurter Part Number 4784.0000 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 70°C Mounting Wire Screw Mount/Inlet Material Thermoplastic, black, UL 94V-0 Termination Style C15/F to Screw Terminal Weight 40g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes Datasheet Product Datasheet
$9.00
$10.62 inclGST
