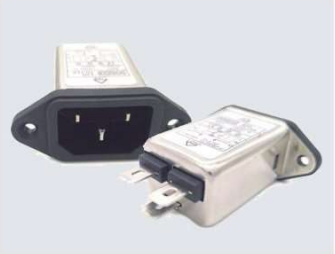

Schurter 3-101-144, IEC Appliance Inlet, C14/M with 1 Stage EMC (RFI) Line Filter, 15 Amp, Front Side Mounting, Plastic Flange Screw On Type Features Panel Mount : Screw-on or snap-in mounting from front side 2 Functions : Appliance Inlet Protection class II, Line filter in standard and medical version Solder terminals or quick connect terminals Characteristics Compact high performance filter Suitable for use in equipment according to IEC/UL 60950 Suitable for use in medical equipment according to IEC/UL 60601-1 Other versions on request Standard version without X-capacitor Polarized C8 connector Specification Schurter Part Number 3-101-144 Rated Voltage 250V Rated Current 15A Filter Stages 1 Stage Standard Operating Temperature -25°C to 85°C Filter Type Differential and Common Mode Fuse Holder N/A Line Switch N/A Mounting Panel Mount - Screw On Material Thermoplastic, black, UL 94V-0 Termination Style C14 Male to Quick Connects Weight 60g Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 1.7kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet Alternatives version without line filter 2576; 2578

Read more less

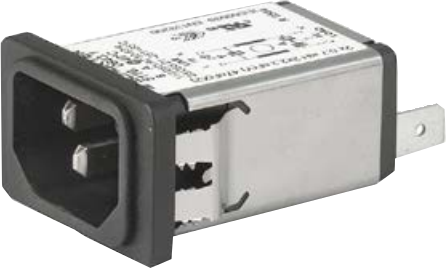

Schurter 5120.2207.0, IEC Appliance Inlet, C14/M with 1 Stage EMC (RFI) Line Filter, 15 Amp, Front Side Mounting, Snap On Features Panel Mount : Screw-on or snap-in mounting from front side 2 Functions : Appliance Inlet Protection class II, Line filter in standard and medical version Solder terminals or quick connect terminals Characteristics Compact high performance filter Suitable for use in equipment according to IEC/UL 60950 Suitable for use in medical equipment according to IEC/UL 60601-1 Other versions on request Standard version without X-capacitor Polarized C8 connector Specification Schurter Part Number 5120.2207.0 Rated Voltage 250V Rated Current 15A Filter Stages 1 Stage Standard Operating Temperature -25°C to 85°C Filter Type Differential and Common Mode Fuse Holder N/A Line Switch N/A Mounting Panel Mount - Screw in Material Thermoplastic, black, UL 94V-0 Termination Style C14 Male to Quick Connects Weight 60g Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 1.7kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet Alternatives version without line filter 2576; 2578

Read more less

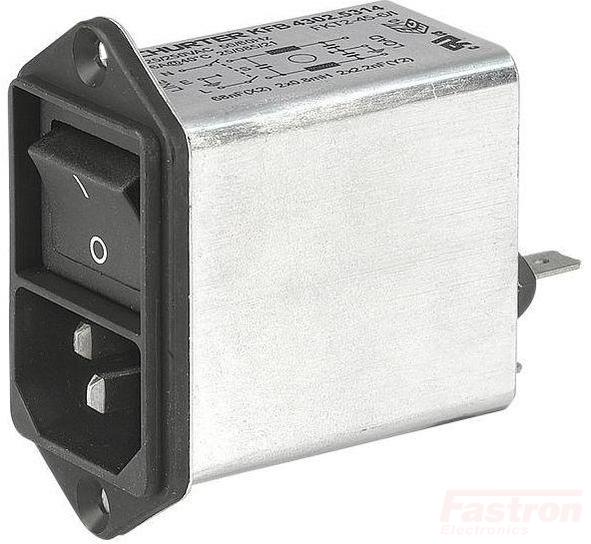

Schurter 4302.5315 (KFB .25QC 2-P SW 10A), IEC Appliance Inlet C14/M with 1-Stage EMC (RFI), Line Switch 2 Pole Features Panel Mount : Screw-on mounting from front side 3 Functions : Appliance Inlet Protection class I, Line Switch 2-pole, EMC Filter 1 Stage Line filter in standard and medical version Quick connect terminals 6.3 x 0.8 mm Characteristics Compact design with optimal shielding All single elements are already wired Plug removal necessary for fuse-link replacement 2-stage line filter with increased attenuation With EMC-shield Suitable for use in equipment according to IEC/UL 60950 Suitable for use in medical equipment according to IEC/UL 60601-1 Medical Version M80 Specification Schurter Part Number 4302-5315 (KFB .25QC 2-P SW 10A) Rated Voltage 250V Rated Current 10A Filter Stages 1 Stage Standard Attenuation Operating Temperature -25°C to 85°C Filter Type Differential and Common Mode Fuse Holder N/A Line Switch 2 Pole Mounting Panel Mount - Case 50 Material Nickel Plated Steel Termination Style C14 Male to Quick Connects Weight 120g Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 1.7kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet

Read more less

Timonta Series FKV2-55-1/l, IEC Inlet w/ 1 Stage EMC (RFI) line filter, w/ 2 Pole 5x20 Fuse holder 250VAC, 1 Amp Datasheet Product Datasheet

Read more less

Timonta Series IEC Inlet w/ 1 Stage EMC (RFI) line filter, w/ 2 Pole Fuse 250VAC, 6 Amp Datasheet Product Datasheet

Read more less

Schurter CE20.6100.151, IEC Appliance Inlet C14/M with Filter, Fuseholder 2-pole 5 x 20 mm Features Panel Mount : Screw-on mounting from front side 4 Functions : Appliance Inlet Protection class I, EMC Line Filter Line Switch 2-pole, Fuseholder for fuse-links 5 x 20 mm 2-pole Line filter in standard and medical version Quick connect terminals 6.3 x 0.8 mm Characteristics Compact design with optimal shielding All single elements are already wired Plug removal necessary for fuse-link replacement With EMC-shield Suitable for use in equipment according to IEC/UL 60950 Suitable for use in medical equipment according to IEC/UL 60601-1 Medical Version M80 NOTE Requires 4305.0001,4305.0006,4305.0011,or 4305.0016 Fuse Drawer Specification Schurter Part Number CE20.6100.151 Rated Voltage 250V Rated Current 2A Filter Stages 1 Stage Standard Operating Temperature -25°C to 85°C Filter Type Differential and Common Mode Fuse Holder 2 Pole Line Switch 2 Pole Mounting Panel Mount Material Nickel Plated Steel Termination Style C14 Male to Quick Connects Weight 260g Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 1.7kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter 5008.0006, IEC Appliance Inlet C8 with 1 Stage EMC (RFI) Line Filter, Screw On Features Panel Mount : Screw-on or snap-in mounting from front side 2 Functions : Appliance Inlet Protection class II, Line filter in standard and medical version Solder terminals or quick connect terminals Characteristics Compact high performance filter Suitable for use in equipment according to IEC/UL 60950 Suitable for use in medical equipment according to IEC/UL 60601-1 Other versions on request Standard version without X-capacitor Polarized C8 connector Specification Schurter Part Number 5008-0006 Rated Voltage 250V Rated Current 6A Filter Stages 1 Stage Standard Operating Temperature -25°C to 85°C Filter Type Differential and Common Mode Fuse Holder N/A Line Switch N/A Mounting Panel Mount - Screw in Material Thermoplastic, black, UL 94V-0 Termination Style C8/Faston Weight 40g Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 1.7kV VDE/UL/CSA/ROHS Yes Datasheet Product Datasheet Alternatives version without line filter 2576; 2578

Read more less

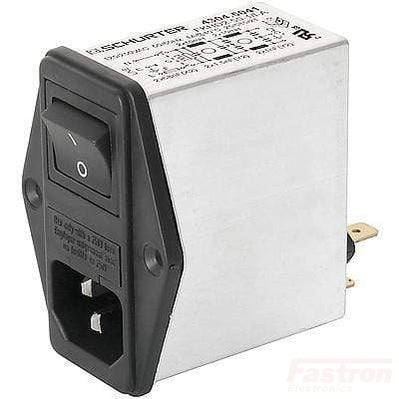

Schurter 4304.5029 (FKID2-50-4/M80-A), IEC Appliance Inlet C14/M with 2-Stage EMC (RFI) Line Filter Features Panel Mount : Screw-on mounting from front side 4 Functions : Appliance Inlet Protection class I, EMC Filter 2 Stage High Attenuation, Line Switch 2-pole, Fuseholder for fuse-links 5 x 20 mm 2-pole Line filter in standard and medical version Quick connect terminals 6.3 x 0.8 mm Characteristics Compact design with optimal shielding All single elements are already wired Plug removal necessary for fuse-link replacement 2-stage line filter with increased attenuation With EMC-shield Suitable for use in equipment according to IEC/UL 60950 Suitable for use in medical equipment according to IEC/UL 60601-1 Medical Version M80 Specification Schurter Part Number 4304-5029 (FKID2-50-4/M80-A) Rated Voltage 250V Rated Current 4A Filter Stages 2 Stage Higher Attenuation Operating Temperature -25°C to 85°C Filter Type Differential and Common Mode Fuse Holder 2 Pole Line Switch 2 Pole Mounting Panel Mount - Case 50 Material Nickel Plated Steel Termination Style C14 Male to Quick Connects Weight 260g Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 1.7kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet

Read more less

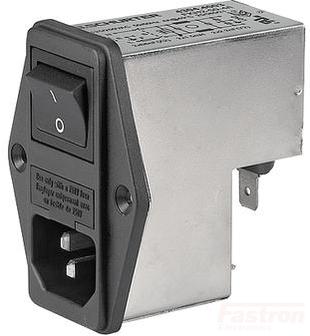

Schurter 4304.4022 (FKI2-50-2/I), IEC Appliance Inlet C14/M with 1 Stage EMC (RFI) Line Filter Features Panel Mount : Screw-on mounting from front side 4 Functions : Appliance Inlet Protection class I, EMC Line Filter 1 Stage, Line Switch 2-pole, Fuseholder for fuse-links 5 x 20 mm 2-pole Line filter in standard and medical version Quick connect terminals 6.3 x 0.8 mm Characteristics Compact design with optimal shielding All single elements are already wired Plug removal necessary for fuse-link replacement With EMC-shield Suitable for use in equipment according to IEC/UL 60950 Suitable for use in medical equipment according to IEC/UL 60601-1 Medical Version M80 Specification Schurter Part Number 4304-4022 (FKI2-50-2/I) Rated Voltage 250V Rated Current 2A Filter Stages 1 Stage Standard Operating Temperature -25°C to 85°C Filter Type Differential and Common Mode Fuse Holder 2 Pole Line Switch 2 Pole Mounting Panel Mount - Case 50 Material Nickel Plated Steel Termination Style C14 Male to Quick Connects Weight 260g Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 1.7kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet
