TRB-22D-R-240-NC, 22mm Pushbutton Momentary RED 240VAC, NORMALLY CLOSED, Plastic, IEC60947-5-1 Pushbutton Switches will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) 1 Pole Momentary Rated for 6 Amp @ 230VAC, or 0.3 Amp @ 230VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-22D-R-240-NC Colour Black Body, Red Button Functions Momentary (Normally Closed)  Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 230VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia   Datasheet Product Datasheet

Read more less

FRSS-RJ45/8AL, Surge Protection Device For RJ45 1GB/s Ethernet & POE Devices 3 Pole , Un = 5VDC(Line)/48VDC(POE), Uc = 45VDC, 5kA per line @ Imax(8/20uS)(KA), -40 to +70 Deg C Operation, Nominal Discharge 5kA, Maximum Discharge 10kA   Application IT Systems Coarse and Fine Protection Industrial Control System Measurement System Device Control RJ45 Ethernet Systems POE Compliant 1000Mb/s Compliant   Specifications Trent part number FRSS-RJ45/8AL Nominal Voltage (Un) 5VDC (Line) / 48VDC (POE) Maximum Permissable Voltage (Uc) 45VDC No of Poles 3 Location of use IT Communications Line/signals 1000Mb/s POE Supported Protection modes TX+/TX-/RX+/RX-/PE Additional Remote Contacts No Protective element MOV No Fault/Fault Indication N/A Surge discharge rating Per pole 5kA (8/20uS) Nominal, 10kA (8/20uS) Max  Nominal Internal protection and safety Thermal disconnector in each MOV Weight 150g Standards IEC61643-21; GB 18802.21 ; YD/T 1542   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

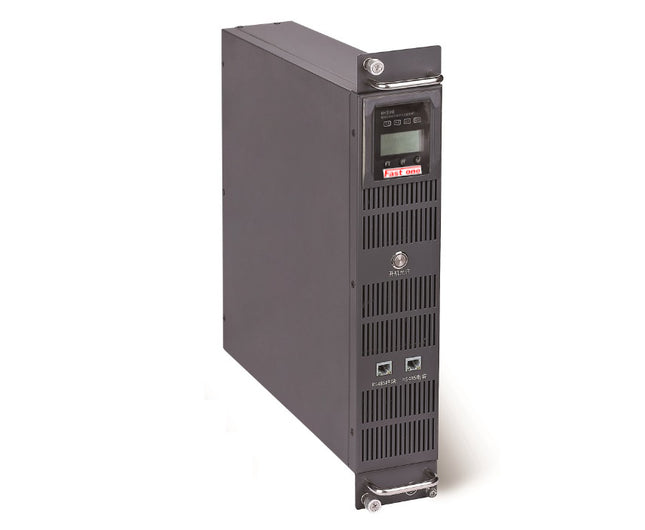

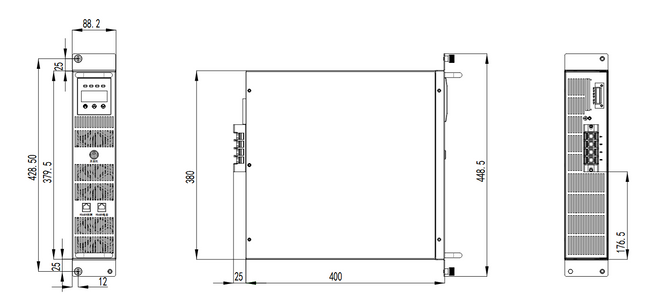

FAST ONE SLIM AHF-44A-400-4W, Active Harmonic Filter & Static Var Generator, 30Kvar/44 Amp, 3 Phase 4 Wire, 380VAC +/-20%, RACK MOUNT ONLY, NOTE for AHF function the module is limited to 30 Amp For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. and for the filtering or control of Harmonic Distortion Features Automatic Power Factor Correction up to Cos φ = 0.99 Overtemperature Alarm Optional RS485 Comms 3 Year Fastron Electronics Warranty Modular Construction for Rack or Wall Mount Installtions Perfect for Residential Applications Stack multiple modules for larger Power Factor Correction Requirements   Specification Fastron Part Number FAST ONE SLIM AHF-44A-400-4W Function Reactive Power Correction & Rack Mounted Active Harmonic Filter Rating 44 Amp @ 50 Deg C /30Kvar (note for AHF function, Current should be limited to 30 Amp Nominal Voltage (Un) 380VAC Line to Line 50Hz +/-20% Switch Delay Time Instant Correction/Inverter Based Desired Harmonic 0.99 IND - 0.99 CAP LCD Display Accuracy IGBT Temp, Grid Current Grid THDi, Grid PF, Grid Imbalance Current imbalance < 5%  Comms RS485 (Optional) Mounting Style , RACK MOUNT ONLY Termination Style Screw Dimensions D:400x88.2x448.5 Weight 17kg Certification EN 61000-6-4:2007+A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 Enclosure protection IP21 Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet User Manual Datasheet

Read more less

TRENT TGD-1PL C 1-10kA, 1 Pole Miniature Bidirectional DC Circuit Breaker C Curve 10Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-1PL C 1-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 1 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

TRENT TGD-2PL C 63-10kA, 2 Pole Miniature Bidirectional DC Circuit Breaker C Curve 50 Amp, 10kA, 500VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 2 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB, RCM (Pending) Specification TRENT Part Number TGD-2PL C 63-10kA Functions 2 Pole MCB - C Curve Nominal Voltage 500VDC @ 50/60Hz Nominal Current Range 63 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

TRENT TGD-2PL C 40-10kA, 2 Pole Miniature Bidirectional DC Circuit Breaker C Curve 40 Amp, 10kA, 500VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 2 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB, RCM (Pending) Specification TRENT Part Number TGD-2PL C 40-10kA Functions 2 Pole MCB - C Curve Nominal Voltage 500VDC @ 50/60Hz Nominal Current Range 40 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

TRENT TGD-1PL C 63-10kA, 1 Pole Miniature Bidirectional DC Circuit Breaker C Curve 63 Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-1PL C 63-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 63 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

TRENT TGD-1PL C 50-10kA, 1 Pole Miniature Bidirectional DC Circuit Breaker C Curve 50 Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-1PL C 50-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 50 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

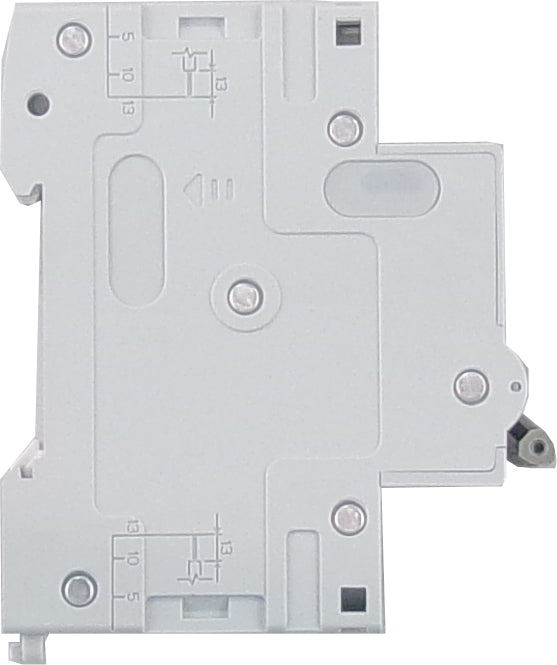

TRENT TGD-1PL C 20-10kA, 1 Pole Miniature Bidirectional DC Circuit Breaker C Curve 20 Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-1PL C 20-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 20 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

TRENT TGD-1PL C 16-10kA, 1 Pole Miniature Bidirectional DC Circuit Breaker C Curve 16 Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-1PL C 16-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 16 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

TRENT TGD-1PL C 10-10kA, 2 Pole Miniature Bidirectional DC Circuit Breaker C Curve 10 Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-1PL C 10-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 10 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

GIC Z2301N0G1FT00, Totalizer/Counter or HOUR METER with Green Backlit Display 9-30VDC, Mosfet Output IP40 Direct Voltage Inputs 7 Digit Display (8mm) 9-30VDC Aux Supply 48 x 24mm Cutout Reset On Panel or via Rear Terminals Datasheet Product Datasheet

Read more less
