Trent ROT-FGM6DC-400-2, Extended Rotary Handle for 2 POLE DC MCCB FGM6DC-400,630,800 Frame Size Rotary Extended Handle for Miniature Circuit Breakers is used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Rotary handle mounts directly on DC MCCB with screws (included) without removal of midcover Clear ON/OFF/TRIP Direct access to push to trip button with rotary handle mounted Datasheet Product Datasheet

Read more less

Fastron Electronics FAT100D10, AC Current Transducer, 100Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1% Features Quick Release 24mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FAT100D10 Technology 24mm Split Core AC Current Transformer Ratio 100/0-10V Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 100Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 300g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

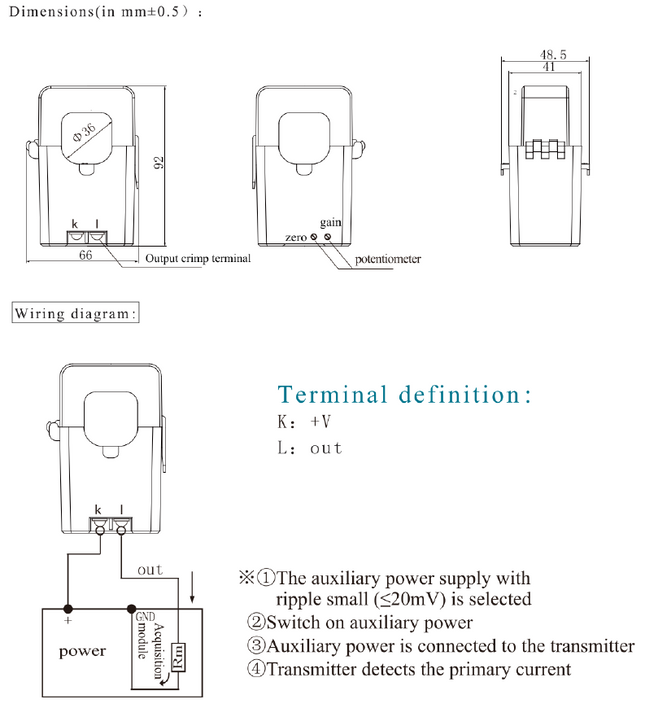

Fastron Electronics FATL400D10, AC Current Transducer, 400Amp Measurement, 36mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length Features Quick Release 36mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications Control Systems Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FATL400D10 Technology 36mm Split Core AC Current Transformer Ratio 400/0-10V Aperture Size ø 36 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 400Amp x 1.2 Termination Style Screw Terminals Unit Weight 250g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Fastron Electronics FAT200D10, AC Current Transducer, 200Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length Features Quick Release 24mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FAT200D10 Technology 24mm Split Core AC Current Transformer Ratio 200/0-10V Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 200Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 300g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Fastron Electronics FAT300D10, AC Current Transducer, 300Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length Features Quick Release 24mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FAT300D10 Technology 24mm Split Core AC Current Transformer Ratio 300/0-10V Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 300Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 300g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Trent ROT-FGM6DC-320-2, Extended Rotary Handle for 2 POLE DC MCCB FGM6DC-320 Frame Size Rotary Extended Handle for Miniature Circuit Breakers is used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Rotary handle mounts directly on DC MCCB with screws (included) without removal of midcover Clear ON/OFF/TRIP SuDirect access to push to trip button with rotary handle mounted Datasheet Product Datasheet

Read more less

TRB-BD21, 1 x NO, 2 Position Toggle Switch BLACK, 3 Amp @ 240VAC, 0.3 Amp @ 24VDC, Plastic/Metal, IEC60947-5-1 Toggle Switches are used to Toggle between 2 or 3 Digital or Analogue Input Signals or to simply turn off control signals. Widely used for Rugged Industrial Applications Including Critical Machinery requiring safe and reliable repetitive operation by the user. Features : 600V Insulation Rating 240VAC @ 3 Amp 22mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-BD21-IP40 Functions 1 Pole, 2 Position Toggle Switch Switch Type Latching 2 x NO Nominal Voltage 240VAC @ 50/60Hz, 24VDC  Rated Impulse Voltage 6kV Nominal Current Range AC 3 Amp @240VAC, 0.3 Amp @ 24VDC Rated Insulation Voltage 600VAC Humidity 35-85% Approvals CE Standards IEC60947-5-1, IP20 (IP40 Installed) Weight 65g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia   Datasheet Product Datasheet

Read more less

Trent TC-FGM6DC-3P-800, Terminal Cover for 3 Pole DC Moulded Case Circuit Breaker (MCCB) Frame Size 800, 1 PC ONLY  Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : IP40 Terminal Cover UL94V0 Material Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number TC-FGM6DC-3P-800 Functions Terminal Cover for 3 Pole DC Moulded Case Circuit Breaker Frame Size 800 Operating Temperature -25 to 50 Deg C Insulation Voltage 800V Weight 50g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent TC-FGM6DC-2P-630 100A, Terminal Cover for 2 Pole DC Moulded Case Circuit Breaker (MCCB) Frame Size 630, 1 PC ONLY  Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : IP40 Terminal Cover UL94V0 Material Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number TC-FGM6DC-2P-630 Functions Terminal Cover for 2 Pole DC Moulded Case Circuit Breaker Frame Size 630 Operating Temperature -25 to 50 Deg C Insulation Voltage 800V Weight 50g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent TC-FGM6DC-630, Terminal Cover for 3 Pole DC Moulded Case Circuit Breaker (MCCB) Frame Size 630, 1 PC ONLY  Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : IP40 Terminal Cover UL94V0 Material Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number TC-FGM6DC-630 Functions Terminal Cover for 3 Pole DC Moulded Case Circuit Breaker Frame Size 630 Operating Temperature -25 to 50 Deg C Insulation Voltage 800V Weight 50g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent TC-FGM6DC-400 100A, Terminal Cover for 3 Pole DC Moulded Case Circuit Breaker (MCCB) Frame Size 400, 1 PC ONLY  Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : IP40 Terminal Cover UL94V0 Material Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number TC-FGM6DC-400 Functions Terminal Cover for 3 Pole DC Moulded Case Circuit Breaker Frame Size 400 Operating Temperature -25 to 50 Deg C Insulation Voltage 800V Weight 50g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent 250AAF Series 690V, 250 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 250AAF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 37000 A²/s I²t Rating (IP > 30IN) 44000 A²/s Nominal Current (RMS + DC) 250 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 90.2 x 30 x 36.7mm Hole Centers 62.4 - 76mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 28W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart
