Recommended products

Fastron FTPS-3-400-40-420, SCR Phase/Burst Controller,  400VAC 3 Wire (400V L-L, 230V L-N), 3 Phase, 4-20/0-20mA/5K POT Input, with In built Fuses, 32 Amps per Phase @ 50 Deg C Features Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions Made in China, Low cost 3 Phase, Phase Angle/Burst Controller 4-20mA Input Proportional Control (0-10V/1-5V/5K POT input on request) Fully enclosed IP20 Phase Angle or Burst switching Aluminium Frame Removable Cover Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FTPS-3-400-40-420 Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Voltage 4-20mA default (0-10V/0-5V/5K POT on request) Load Current 32 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO Relay Contact (not available with RS485 Option) Comms Optional RS485 Modbus RTU Special Feature Internal Fuse Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Delay on Start Programmable from 0 to 10 seconds Soft Start Programmable from 0 to 10 seconds Termination Style Screw Unit Weight 4kg (6kg Packed) Factory Pack Qty 1   Technical Docs User Manual Modbus Register Map Calibration Procedure Wiring Detail

Read more less

Fastron FTPS-3-400-50-420, SCR SCR Phase/Burst Controller, 400VAC 3 Wire (400V L-L, 230V L-N), 4-20/0-20mA/5K POT Input, 3 Phase, with In built Fuses, 40 Amps per Phase @ 50 Deg C Features Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions Made in China, Low cost 3 Phase, Phase Angle/Burst Controller 4-20mA Input Proportional Control (0-10V/1-5V/5K POT input on request) Fully enclosed IP20 Phase Angle or Burst switching Aluminium Frame Removable Cover Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FTPS-3-400-50-420 Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Voltage 4-20mA default (0-10V/0-5V/5K POT on request) Load Current 40 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO Relay Contact (not available with RS485 Option) Comms Optional RS485 Modbus RTU Special Feature Internal Fuse Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Delay on Start Programmable from 0 to 10 seconds Soft Start Programmable from 0 to 10 seconds Termination Style Screw Unit Weight 4kg (6kg Packed) Factory Pack Qty 1   Technical Docs User Manual Modbus Register Map Calibration Procedure Wiring Detail

Read more less

E62.L95-503G10, 50uF, 65 x 95mm Heavy Duty AC Film Power Capacitor w/Stud -40 to 85 °C 200,000 hrs, 640VAC/1000VDC Characteristics and utility 50uF 640VAC/1000VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.G85-503G10 Technology Metalized Polypropylene Film Capacitor Dimensions ø65 x 95mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 640VAC/1000VDC Operating Temperature Range -40 to 85 °C Capacitance 50uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M6 x 12 studs Unit Weight 0.18kg Factory Pack Quantity 21 (MOQ = 105)   Datasheet Product Datasheet

Read more less

Electronicon 275.289-714301/221K02 37.3KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 116 x 280(+15)mm Gas Filled, 3 x 143uF, SINGLE SIDED TERMINALS, Internal Discharge Resistors, Replaces 275.189-714301/221702K Characteristics and utility 37.3kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors INCLUDED Reactive power factor correction Gas Filled Lightweight Construction Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number 275.289-714301/221K02 37.3KVAR 525V 50HZ Technology Gas Filled, Low Loss, Self Healing Dimensions 116 x 280(+15)mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 37.3 Kvar Capacitance 3 x 143uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 3 x 60 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Discharge Resistors Required See 275.105-10120 Termination Style Filter Type Terminal Approvals UL 810, CSA C22.2 No.90 Unit Weight 2.8kg Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

E62.Q32-104C20, 100uF, Heavy Duty AC Film Capacitor ø100 x 320mm, M10x12 terminals with Bushing. C2 Design, 1350VAC/2250VDC Characteristics and utility 100uF 1350VAC/2250VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.Q32-104C20 Technology Metalized Polypropylene Film Capacitor Dimensions ø95 x 176mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 1350VAC/2250VDC Operating Temperature Range -40 to 85 °C Capacitance 100uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M10 x 12 studs Unit Weight 2.7kg Factory Pack Quantity 30   Datasheet Product Datasheet

Read more less

Trent TC-FGM6S-3P-160, Terminal Cover for 3 Pole Moulded Case Circuit Breaker (MCCB) Frame Size 160, 1 PC ONLY  Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : IP40 Terminal Cover UL94V0 Material Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number TC-FGM6S-3P-160 Functions 3 Pole MCCB Operating Temperature -25 to 50 Deg C Insulation Voltage 800V Weight 50g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent TC-FGM6S-3P-400, Terminal Cover for 3 Pole Moulded Case Circuit Breaker (MCCB) Frame Size 400, 1 PC ONLY  Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : IP40 Terminal Cover UL94V0 Material Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number TC-FGM6S-3P-400 Functions 3 Pole MCCB Operating Temperature -25 to 50 Deg C Insulation Voltage 800V Weight 50g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

MPFC-PF (PF12R1A), Power Factor Regulator, 12 Step, 1 Phase Measurement, 3 Phase Control, 50-530V 50/60HZ Single CT Sensing 32nd Harmonic Measurement Isolated Switching of Power Factor Correction Contactors Cos ϕ Setting 0.9 to 0.9 CAP Auto CT Secondary Selection Backlit LCD Display Various Program Combinations IP41 Up to 12 steps Measurement System - Automatic/Manual 50-530VAC Measurement 100-132V / 207-253VAC (L-N) Aux Supply Configurable Alarms Dual Password Protection Programmable Fan Control Programmable 1A/5A CT Ratio   Specification Beluk Part Number MPFC-PF / PF12R1A Function Reactive Power Correction Nominal Voltage (Un) 50-530VAC Line to Line Supply Voltage 100-132V / 207-253VAC (L-N), 45-65Hz, max fuse 6A Relay Rating 250VAC/5Amp Static Output Rating (T Models) 8-48VDC / 100mA Internal 2MB Logger  Optional 3 x CT Measurement  Optional Switch Delay Time 1s - 1200s User Adjustable Alarm 1 x Relay as above Temperature/Fan/THD Alarm 1 x Relay as above Re-connection Delay Time 50 - 1200s User Adjustable Desired Power Factor 0.90 IND - 0.90 CAP Number of Output Relays 12 Smallest Capacitor Current 10mA CT Input Range 15mA - 6 Amp LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms Optional Termination Style Screw Weight 700g Certification IEC 654-1 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP50 for case, IP20 for terminals Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...60 °C Datasheet User Manual Modbus user Manual Application Notes Discharge Resistor Usage Power Factor Correction Blog Quick Start Guide(Blog)

Read more less

BLR-CM12R (3ACM12R-BEL-O), Power Factor Regulator, 12 Step, 1 Phase Measurement, 3 Phase Control, 50-530V 50/60HZ, (OBSOLETE 2025) Single CT Sensing 32nd Harmonic Measurement Isolated Switching of Power Factor Correction Contactors Cos ϕ Setting 0.9 to 0.9 CAP Auto CT Secondary Selection Backlit LCD Display Various Program Combinations IP41 Up to 12 steps Measurement System - Automatic/Manual 50-530VAC Measurement 100-132V / 207-253VAC (L-N) Aux Supply Configurable Alarms Dual Password Protection Programmable Fan Control Programmable 1A/5A CT Ratio   Specification Beluk Part Number BLR-CM12R / 3ACM12R-BEL-O Function Reactive Power Correction Nominal Voltage (Un) 50-530VAC Line to Line Supply Voltage 100-132V / 207-253VAC (L-N), 45-65Hz, max fuse 6A Relay Rating 250VAC/5Amp Static Output Rating (T Models) 8-48VDC / 100mA Internal 2MB Logger  Optional 3 x CT Measurement  Optional Switch Delay Time 1s - 1200s User Adjustable Alarm 1 x Relay as above Temperature/Fan/THD Alarm 1 x Relay as above Re-connection Delay Time 50 - 1200s User Adjustable Desired Power Factor 0.90 IND - 0.90 CAP Number of Output Relays 12 Smallest Capacitor Current 10mA CT Input Range 15mA - 6 Amp LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms Optional Termination Style Screw Weight 700g Certification IEC 654-1 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP50 for case, IP20 for terminals Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...60 °C Datasheet User Manual Modbus user Manual Application Notes Discharge Resistor Usage Power Factor Correction Blog Quick Start Guide(Blog)

Read more less

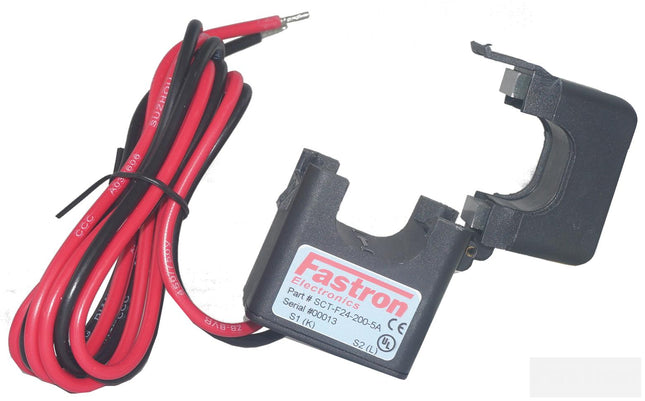

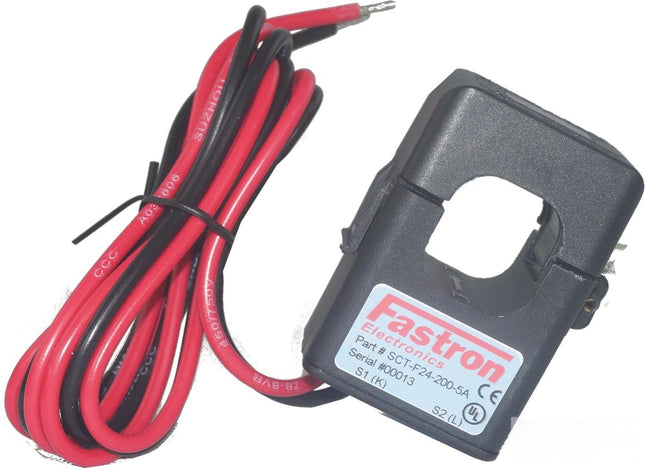

Fastron Electronics FAT200D10, AC Current Transducer, 200Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1% Features Quick Release 24mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FAT200D10 Technology 24mm Split Core AC Current Transformer Ratio 200/0-10V Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 200Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 300g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Fastron Electronics FAT100D10, AC Current Transducer, 100Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length Features Quick Release 24mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FAT100D10 Technology 24mm Split Core AC Current Transformer Ratio 100/0-10V Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 100Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 300g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

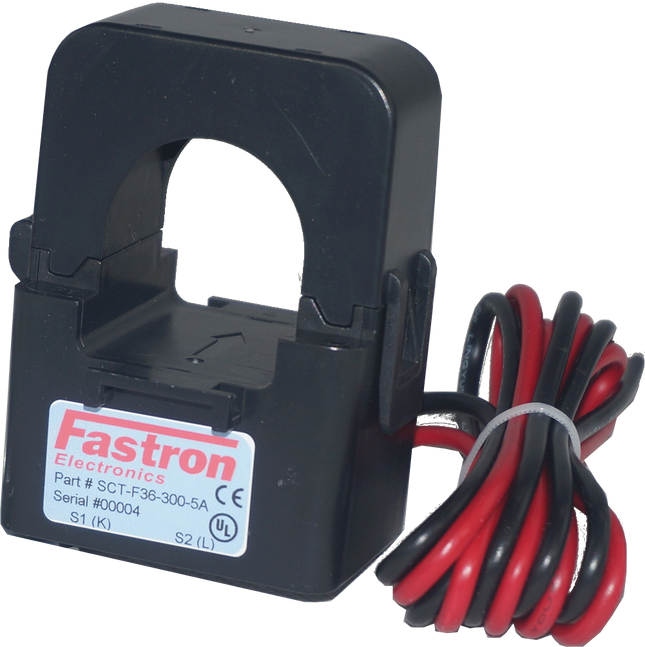

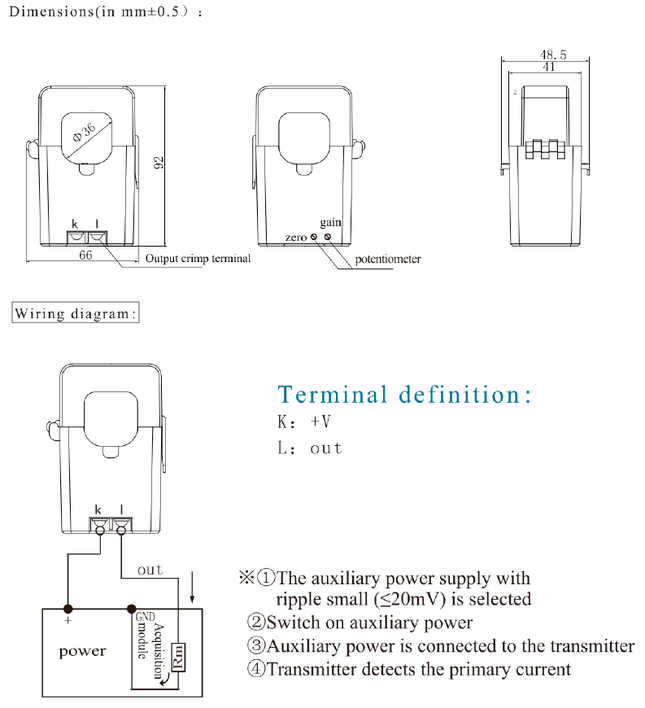

Fastron Electronics FATL500D10, AC Current Transducer, 500Amp Measurement, 36mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length Features Quick Release 36mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications Control Systems Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FATL500D10 Technology 36mm Split Core AC Current Transformer Ratio 500/0-10V Aperture Size ø 36 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 500Amp x 1.2 Termination Style Screw Terminals Unit Weight 250g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less
