Rishabh Shunt 1A/75mV DC Current Shunt, 75mV output, Form B Class 0.5 Features Low Cost Instantaneous measurement Applications Industrial Electrical Installatons Feedback Control DC Current Measurement Specification Rishabh Part Number Shunt 1A/75mV Nominal Current Ipn (DC) up to 10 Amp Overload Capacity 1.2 x Ipn continuous (5 x Ipn 5 seconds) Mounting Style Panel Mount Operating Temperature Range -25°C / 65°C Standards DIN EN 60 051, DIN EN 50 022-35 Unit Weight up to 7kg Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh Shunt 5A/75mV DC Current Shunt, 75mV output, Form B Class 0.5 Features Low Cost Instantaneous measurement Applications Industrial Electrical Installatons Feedback Control DC Current Measurement Specification Rishabh Part Number Shunt 5A/75mV Nominal Current Ipn (DC) up to 10 Amp Overload Capacity 1.2 x Ipn continuous (5 x Ipn 5 seconds) Mounting Style Panel Mount Operating Temperature Range -25°C / 65°C Standards DIN EN 60 051, DIN EN 50 022-35 Unit Weight up to 7kg Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

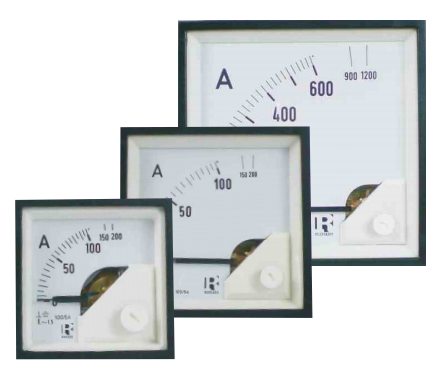

Rishabh DS72/150A/75mV, Moving Coil Ammeter 150Amp for 150A/60mVDC Shunt Connect Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72x72mm Panel Space 65mm Depth Specification Rishabh Part Number DS72/150A/75mV Nominal Measurement Range 0 - 150 Amp DC Shunt Input 0-75mV Unipolar Maximum Measurement Range 150 AmpDC Over Range Ipn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron Electronics SCT-F16-30, 30/0.333V Measurement, Class 1 Split Core CT's Features Quick Release Split Core System Cable Mount 0.333V Output Self Powered Rated System Voltage 0.60/3kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number SCT-F16-30 Technology Split Core AC Current Transformer Ratio 30/0.333V Aperture Size ø 15 mm VA Rating N/A Accuracy Class Class 1 Output 0.333V (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 50Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 100g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Fastron Electronics SCT-Y24-5A/100mA, 5A/100mA Measurement, Class 1 Split Core CT's, Easy Click HY2.0 Connector for CRJ-31 RJ45 Splitter Features Quick Release Split Core System Cable Mount 100mA Output Self Powered Rated System Voltage 0.60/3kV 0.9M Flying Leads with HY-2.0 Connector Applications Eastron Modular Metering Equipment Energy Monitoring Load Balancing Power Quality Measurements   Specification Fastron Part Number SCT-Y24-5A/100mA Technology Split Core AC Current Transformer Ratio 5/100mA Aperture Size ø 24 mm VA Rating 1VA Accuracy Class Class 1 Output 100mA (+20%) Isolation 3kV (AC, 10Hz, 1 min) Bandwidth 10-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 5Amp x 1.2 Termination Style 0.9M Flying leads with HY-2.0 Connector Unit Weight 100g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide CRJ-31 Connector User Guide

Read more less

Rishabh Shunt Shunt 2000A/50mV DC Current Shunt, 50mV output, Form B Class 0.5 Features Low Cost Instantaneous measurement Applications Industrial Electrical Installatons Feedback Control DC Current Measurement Specification Rishabh Part Number Shunt 2000A/50mV Nominal Current Ipn (DC) up to 2000 Amp Overload Capacity 1.2 x Ipn continuous (2 x Ipn 5 seconds) Mounting Style Panel Mount Operating Temperature Range -25°C / 65°C Standards DIN EN 60 051, DIN EN 50 022-35 Unit Weight up to 7kg Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh Shunt 50A/60mV DC Current Shunt, 60mV output, Form B Class 0.5 Features Low Cost Instantaneous measurement Applications Industrial Electrical Installatons Feedback Control DC Current Measurement Specification Rishabh Part Number Shunt 50A/60mV Nominal Current Ipn (DC) up to 50 Amp Overload Capacity 1.2 x Ipn continuous (5 x Ipn 5 seconds) Mounting Style Panel Mount Operating Temperature Range -25°C / 65°C Standards DIN EN 60 051, DIN EN 50 022-35 Unit Weight up to 7kg Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh DE96/1000VAC, 96x96mm, 0-1000VAC Input Voltmeter, 1000VAC Range Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DE96/1000VAC Nominal Measurement Range 0 - 1000VAC Maximum Measurement Range 1000VAC Over Range Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh DS72/150A/0-10V, Moving Coil Ammeter 72x72mm, 150Amp DC for 150A/0-10VDC Connect Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DS72/150A/0-10V Nominal Measurement Range 0 - 150 Amp AC Shunt Input 0-10VDC Unipolar Maximum Measurement Range 150 Amp Over Range Ipn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

PFC 12-6-R-RTC, Power Factor Regulator & Kwh Power Quality Meter 144x144mm (Epcos BR 6000) wit RTC, 6 Step, 30-550V 50/60HZ, 240VAC Aux Single 1/5A CT Sensing Automatic Step Sensing (After start up sequence) Isolated Switching of Power Factor Correction Contactors Cos ϕ Setting 0.85 to 0.95 CAP Auto CT Secondary Selection Backlit LCD Display Various Program Combinations IP41 Up to 6 steps Measurement System - Automatic/Manual 240VAC Aux Supply Modbus RS485 Configurable Alarms Dual Password Protection Programmable Fan Control Programmable 1A/5A CT Ratio   Specification Rishabh Part Number PFC 12-8-R-RTC Function Reactive Power Correction Nominal Voltage (Un) 110-480VAC Line to Line Supply Voltage 240VAC (L-N), 15VA 40-70Hz +/-10% Relay Rating 250VAC/10Amp Panel Size 144 x 144mm Switch Delay Time 10s - 1800s User Adjustable Alarm 1 x Relay as above Temperature Alarm 1 x Relay as above Re-connection Delay Time 10 - 1800s User Adjustable Desired Power Factor 0.80 IND - 0.80 CAP Number of Output Relays 7 Smallest Capacitor Current 10mA CT Input Range 1/5 Amp LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms RS485 Termination Style Screw Weight 700g Certification IEC 61326-1:2012, Table 2 (EMC), IEC 62053-21 (Accuracy), IEC 61010-1-2010 (Safety), IEC60529 (IP Rating Dust & Water) Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP50 for case, IP20 for terminals Safety According to IEC 61010-1-2010, installation category III Pollution degree 2 Operating Temperature -20...60 °C Datasheet Product Datasheet User Manual Application Notes Discharge Resistor Usage Power Factor Correction Blog Quick Start Guide(Blog)

Read more less

CASU1336K6501B6, AC Filter Capacitor Film Type ø65 x 109mm 850VAC 33uF, M12 Stud Bottom, 2 x M6 Terminals Characteristics and utility 33uF, 850VAC AC Filter Cap Connector type - Stud inserts Indoor mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Fastron Part Number CASU1336K6501B6 Technology Film AC Filter Cap Dimensions ø65 x 109mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 850V (Peak) 600V (rms) Operating Temperature Range -40 to 85 °C Capacitance 33uF Tolerance On Capacitance +/- 5% Lifetime 100000 Hours @ 70 °C (Long Life) Termination Style M6 studs Unit Weight 0.4kg Factory Pack Quantity 50   Datasheet Datasheet

Read more less

Rishabh Shunt 20A/60mV DC Current Shunt, 60mV output, Form B Class 0.5 Features Low Cost Instantaneous measurement Applications Industrial Electrical Installatons Feedback Control DC Current Measurement Specification Rishabh Part Number Shunt 20A/60mV Nominal Current Ipn (DC) up to 20 Amp Overload Capacity 1.2 x Ipn continuous (5 x Ipn 5 seconds) Mounting Style Panel Mount Operating Temperature Range -25°C / 65°C Standards DIN EN 60 051, DIN EN 50 022-35 Unit Weight up to 7kg Factory Pack Qty 1   Datasheet Product Datasheet
