Low Voltage Protection Class Current Transformers

FPT-135 800/1A 5P35 5VA Protection Class CT, 800/1A, Class 5P35 5VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 800/1A 5P35 5VA Technology Protection Class Current Transformer Ratio 800/5 Aperture Size 81 x 135mm VA Rating 5VA Accuracy Class Class 5P35 Output 1 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 800Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

FPT-135 1000/1A 5P35 5VA Protection Class CT, 1000/1A, Class 5P35 5VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 1000/1A 5P35 5VA Technology Protection Class Current Transformer Ratio 1000/5 Aperture Size 81 x 135mm VA Rating 5VA Accuracy Class Class 5P35 Output 1 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 1000Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 7kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

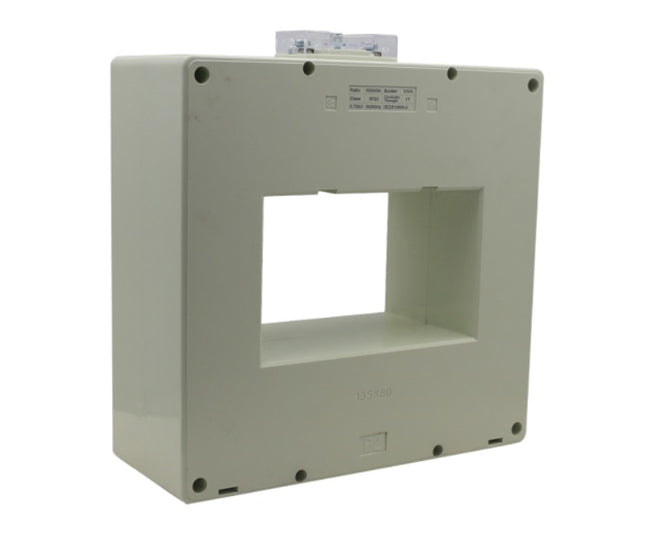

FPT-135 1200/1A 5P35 5VA Protection Class CT, 1200/1A, Class 5P35 5VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 1200/1A 5P35 5VA Technology Protection Class Current Transformer Ratio 1200/5 Aperture Size 81 x 135mm VA Rating 5VA Accuracy Class Class 5P35 Output 1 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 1200Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

FPT-135 1500/1A 5P35 5VA Protection Class CT, 1500/1A, Class 5P35 5VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 1500/1A 5P35 5VA Technology Protection Class Current Transformer Ratio 1500/5 Aperture Size 81 x 135mm VA Rating 5VA Accuracy Class Class 5P35 Output 1 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 1500Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

FPT-135 5000/1A 5P35 5VA Protection Class CT, 5000/1A, Class 5P35 5VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 5000/1A 5P35 5VA Technology Protection Class Current Transformer Ratio 5000/5 Aperture Size 81 x 135mm VA Rating 5VA Accuracy Class Class 5P35 Output 1 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 5000Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

FPT-135 4000/1A 5P35 5VA Protection Class CT, 4000/1A, Class 5P35 5VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 4000/1A 5P35 5VA Technology Protection Class Current Transformer Ratio 4000/5 Aperture Size 81 x 135mm VA Rating 5VA Accuracy Class Class 5P35 Output 1 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 4000Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

FPT-135 3000/1A 5P35 5VA Protection Class CT, 3000/1A, Class 5P35 5VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 3000/1A 5P35 5VA Technology Protection Class Current Transformer Ratio 3000/5 Aperture Size 81 x 135mm VA Rating 5VA Accuracy Class Class 5P35 Output 1 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 3000Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

FPT-135 2500/1A 5P35 5VA Protection Class CT, 2500/1A, Class 5P35 5VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 2500/1A 5P35 5VA Technology Protection Class Current Transformer Ratio 2500/5 Aperture Size 81 x 135mm VA Rating 5VA Accuracy Class Class 5P35 Output 1 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 2500Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

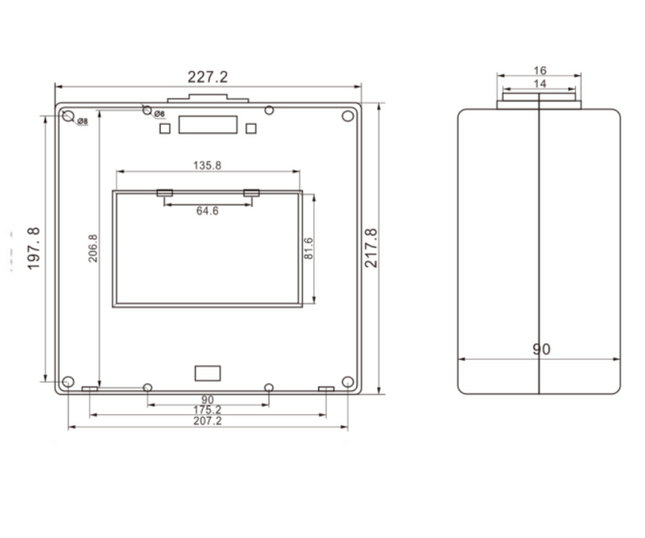

FPT-135 2000/1A 5P35 5VA Protection Class CT, 2000/1A, Class 5P35 5VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 2000/1A 5P35 5VA Technology Protection Class Current Transformer Ratio 2000/5 Aperture Size 81 x 135mm VA Rating 5VA Accuracy Class Class 5P35 Output 1 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 2000Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

FPT-135 800/1A 5P20 10VA Protection Class CT, 800/1A, Class 5P20 10VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring Specification Fastron Electronics Part Number FPT-135 800/1A 5P20 15VA Technology Protection Class Current Transformer Ratio 800/5 Aperture Size 81 x 135mm VA Rating 10VA Accuracy Class Class 5P20 Output 1 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10DegC / 50DegC Continuous Current (max) 800Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

FPT-135 1000/1A 5P20 15VA Protection Class CT, 1000/1A, Class 5P20 15VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 1000/1A 5P20 15VA Technology Protection Class Current Transformer Ratio 1000/5 Aperture Size 81 x 135mm VA Rating 15VA Accuracy Class Class 5P20 Output 1 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 1000Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

FPT-135 1200/1A 5P20 15VA Protection Class CT, 1200/1A, Class 5P20 15VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 1200/1A 5P20 15VA Technology Protection Class Current Transformer Ratio 1200/5 Aperture Size 81 x 135mm VA Rating 15VA Accuracy Class Class 5P20 Output 1 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 1200Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less
